Challenger H610M ITX 2LAN

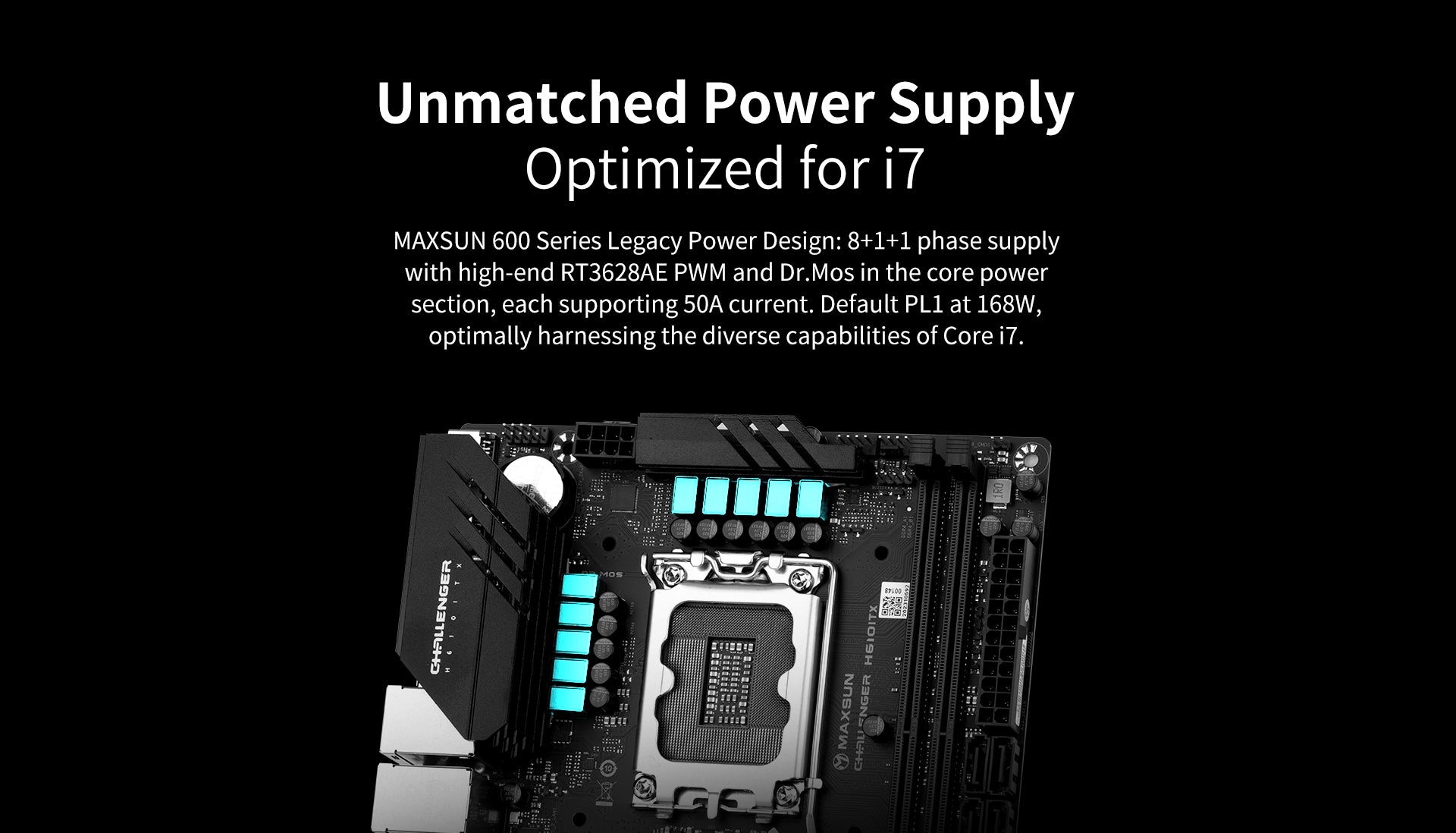

- Stable Power Supply: With an 8+1+1 phase power delivery system, it ensures efficient and reliable power to your CPU and critical components, even under load.

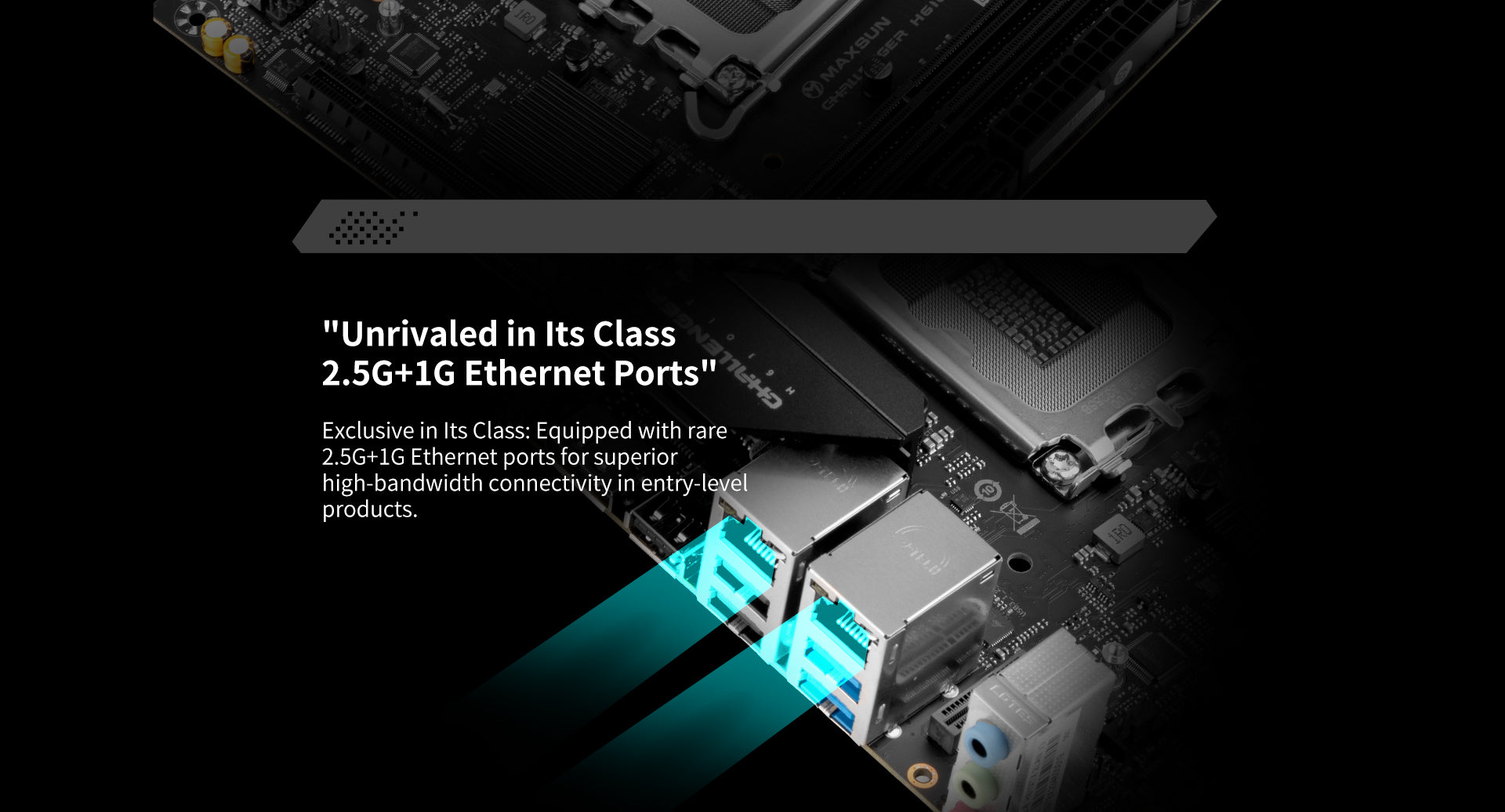

- Dual Network Support: Features dual network ports with a 2.5G and a 1G Ethernet interface, providing versatile connectivity options for enhanced internet speed and reliability.

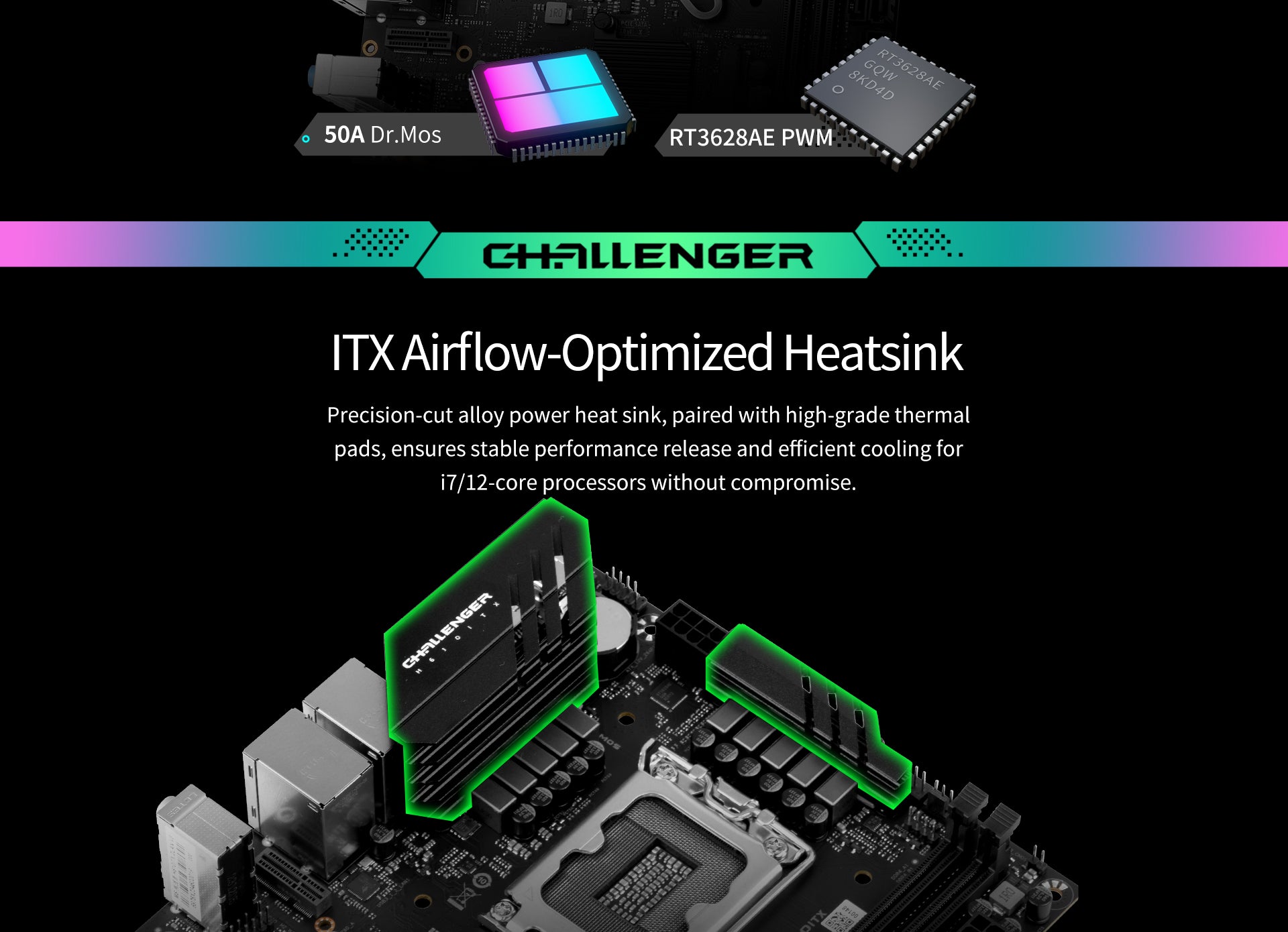

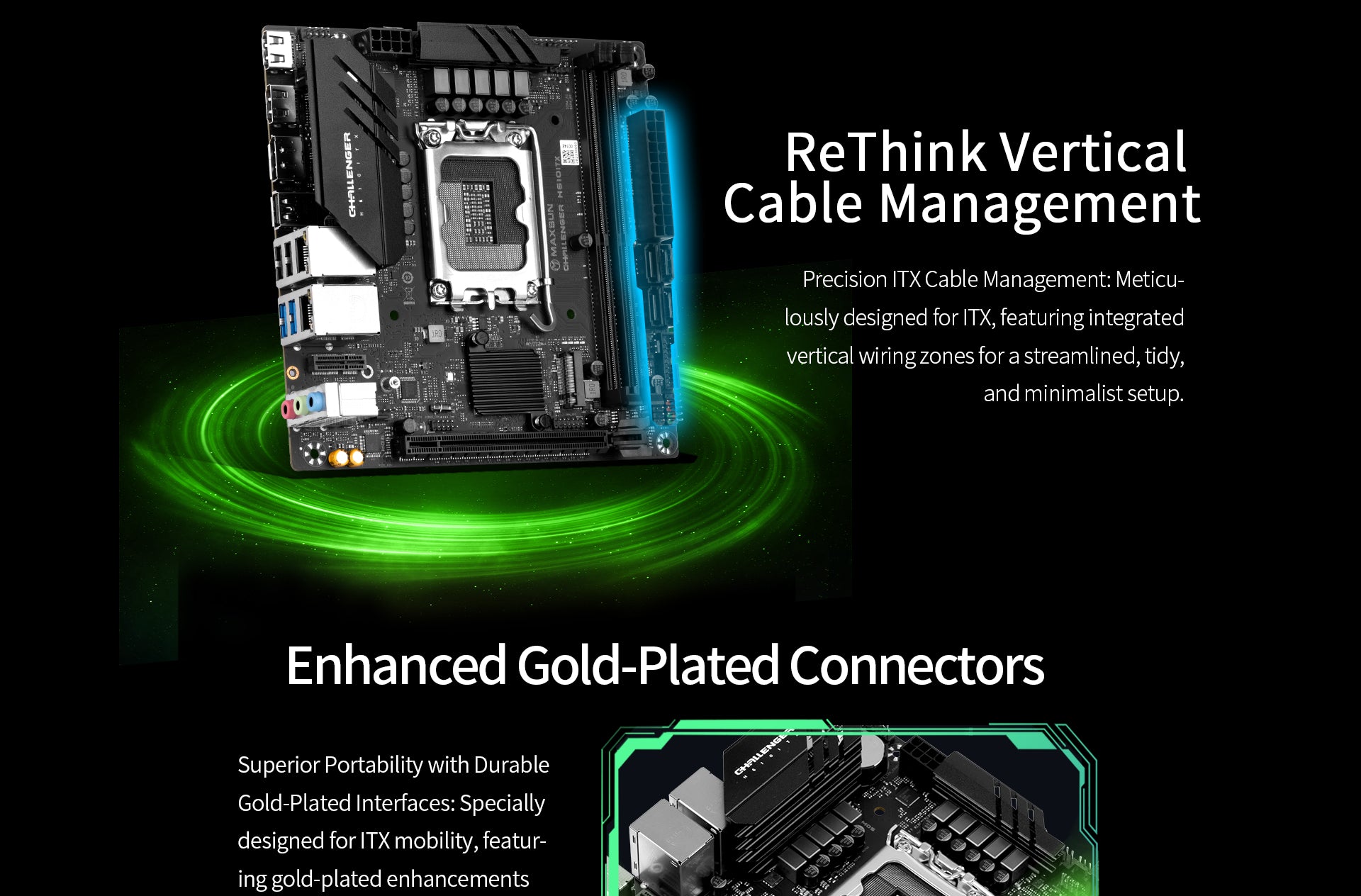

- Optimized Cooling: The ITX form factor is enhanced with optimized airflow and alloy cooling armor, designed specifically to maintain optimal temperatures and performance stability.

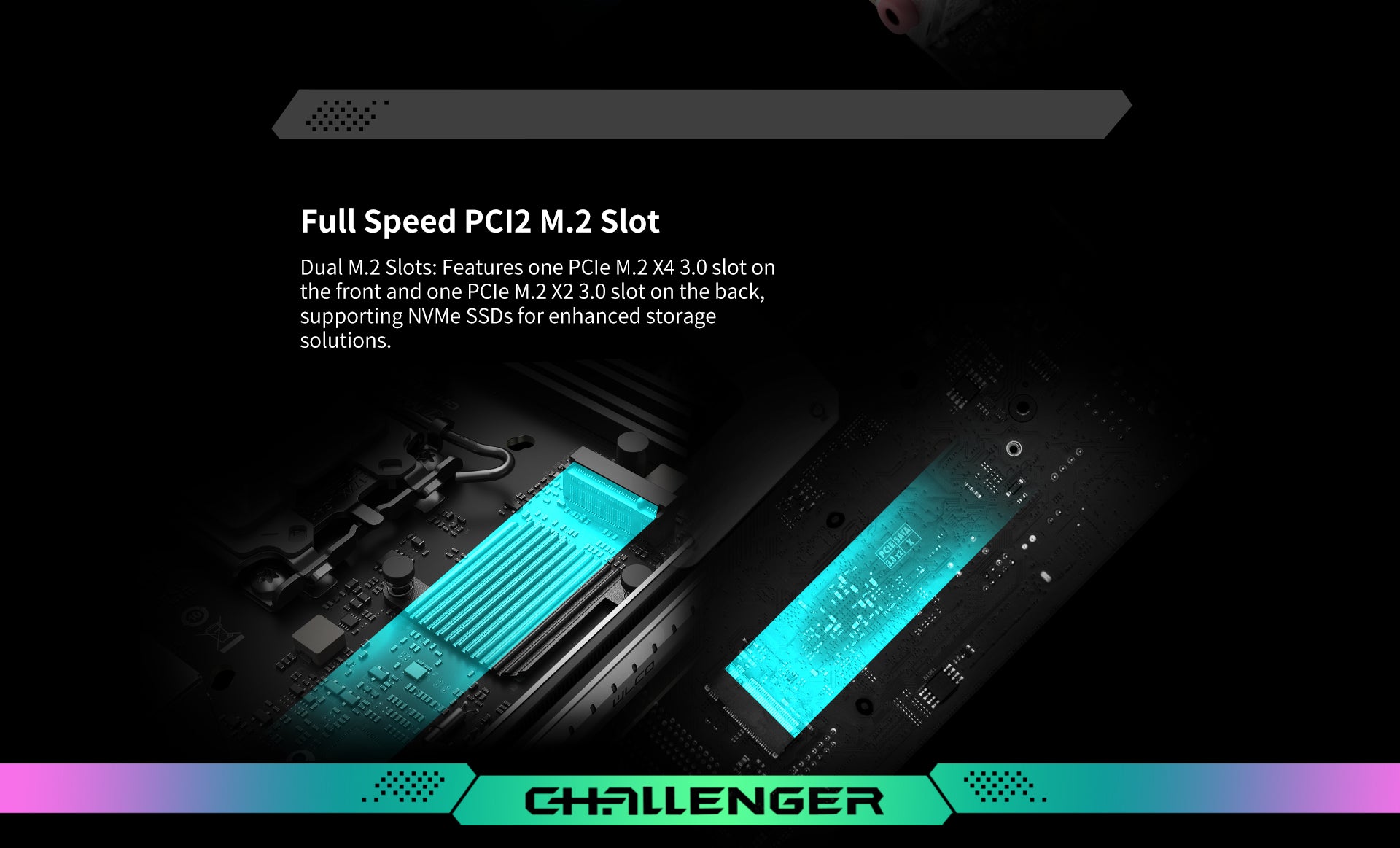

- Dual M.2 Interfaces: Offers both front and back M.2 interfaces, enabling high-speed storage solutions that reduce data transfer times dramatically.
Overview

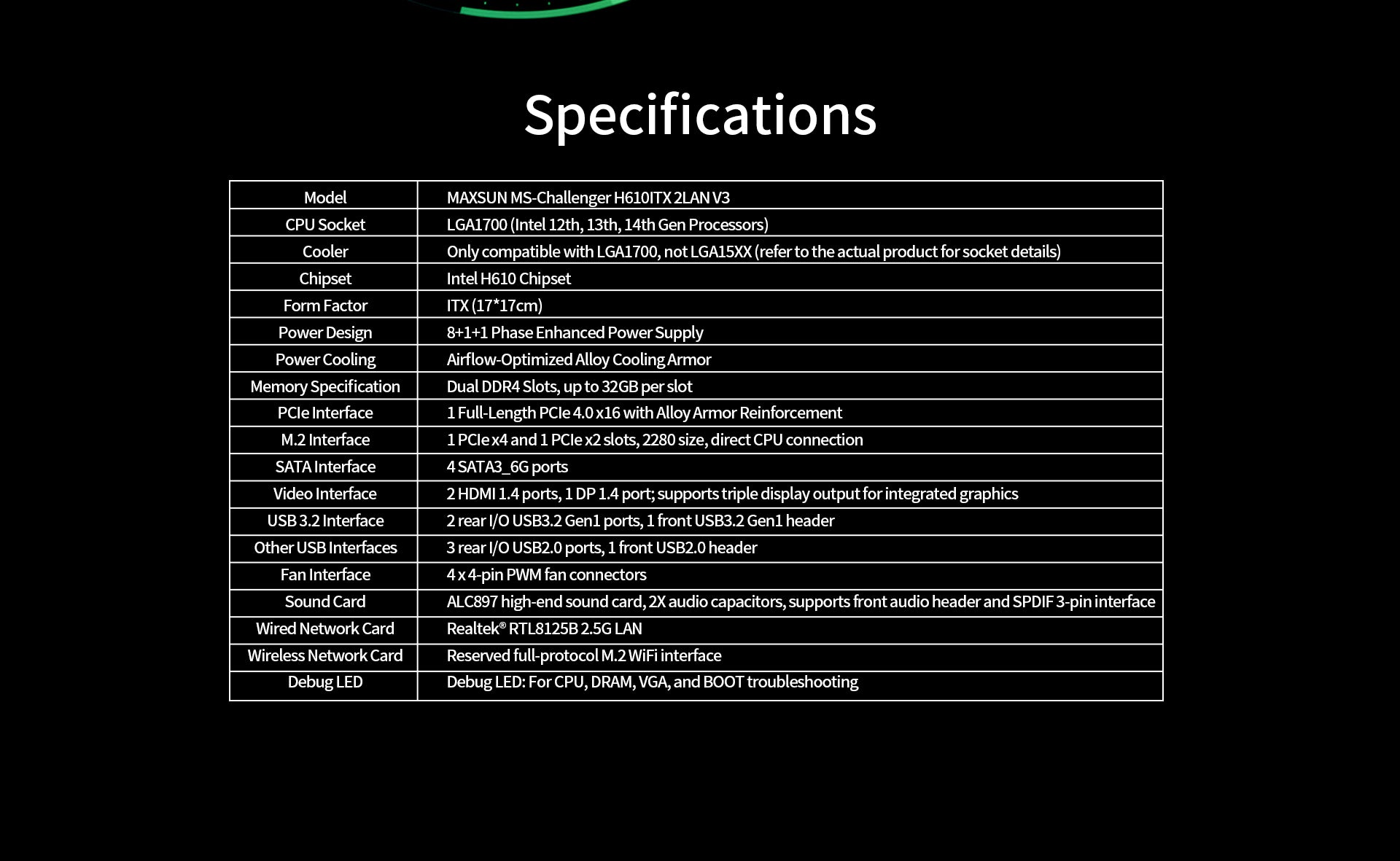

Specification
Support

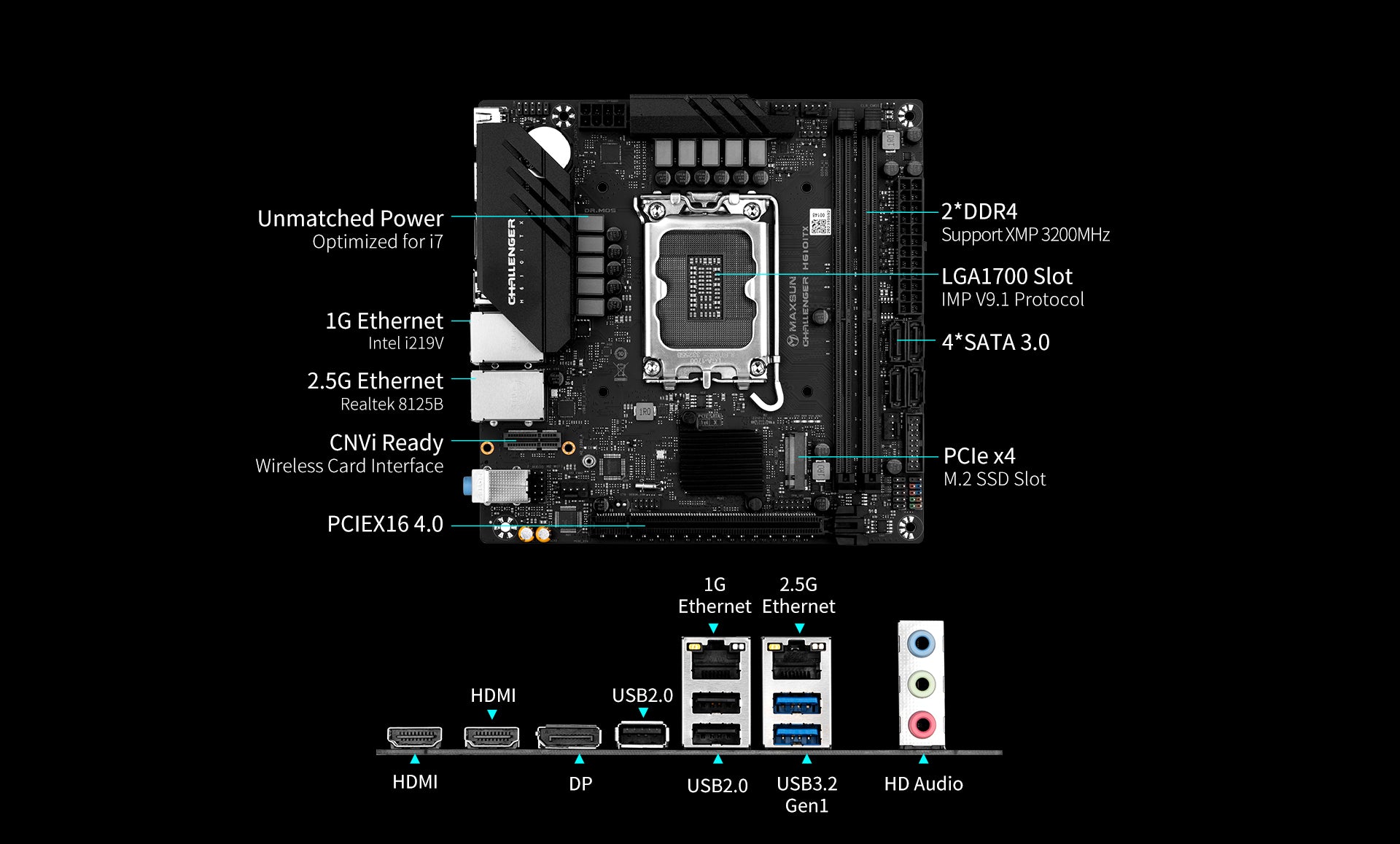

- CPU
- Support for LGA1700 slots
12th、13th、14th-generation processor (CPU overclocking technology is not supported)
TDP: 168W
- CHIPSET
- Intel®H610 High speed chipset
- DISPLAY
- 2*HDMI ports, up to 4096x2160@30Hz resolution (HDMI1.4 and HDCP2.2)
1*DP1.2 port with up to 4096x2160@60Hz resolution
- EXPANSION INTERFACE
- 1*PCIEX16 4.0 slot
- AUDIO

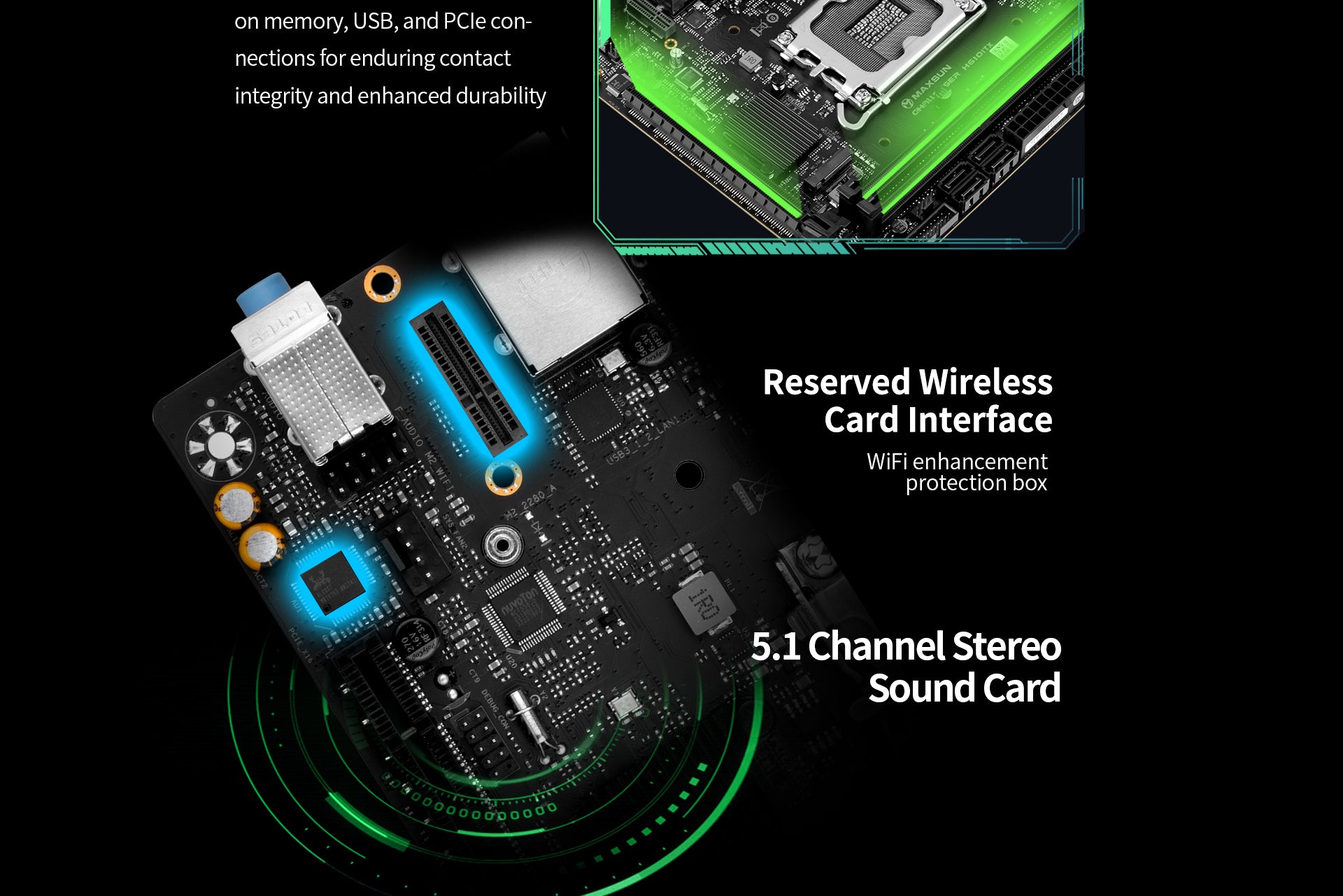

- Integrated ALC897 sound card chip
- NETWORK
- LAN1 port Integrated Realtek8125BG Network Card Chip (10/100/1000/2500Mbit)
LAN2 port Integrated Realtek8111H Network Card Chip (10/100/1000Mbit)
- STORAGE
- M2_SSD_A slot supports 2280 size PCIE X4 3.0 devices only (Front)
M2_SSD_B slot supports 2280 size PCIE X2 3.0 devices only (Back)
4x SATA3.0 ports
- USB
- Onboard rear ports: 2 USB3.2 GEN1 ports, 3 USB2.0 ports
On-board pins: 1 set (2) USB2.0 pins, 1 set (2) USB3.2 GEN1 pins
- IN-BOARD SOCKET
- 1x 24-PIN motherboard ATX power supply port
1x 8-PIN motherboard ATX 12V power port with 12V input
3x system fan pins and 1 CPU fan pin
1x CLR_CMOS pin
- OPERATING SYSTEM
- Integrated ALC897 sound card chip
