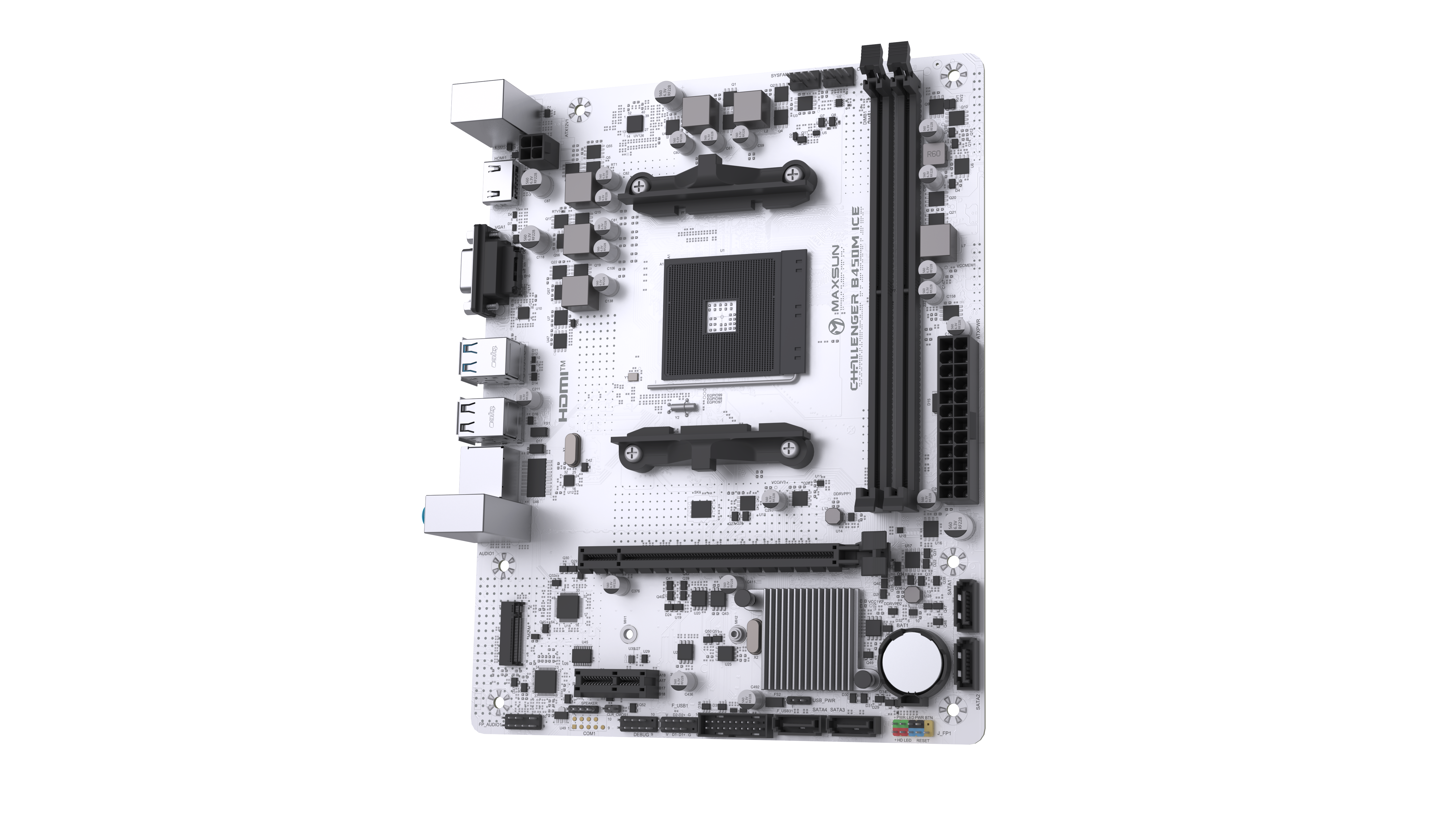

Challenger B450m buz


Stable Power – 3+2 phase VRM with low-temp MOS for reliable performance.

Fast Storage – PCIe 3.0 x4 M.2 slot supports NVMe SSDs.

Memory Boost – Dual DDR4 slots, up to 3200MHz (OC).

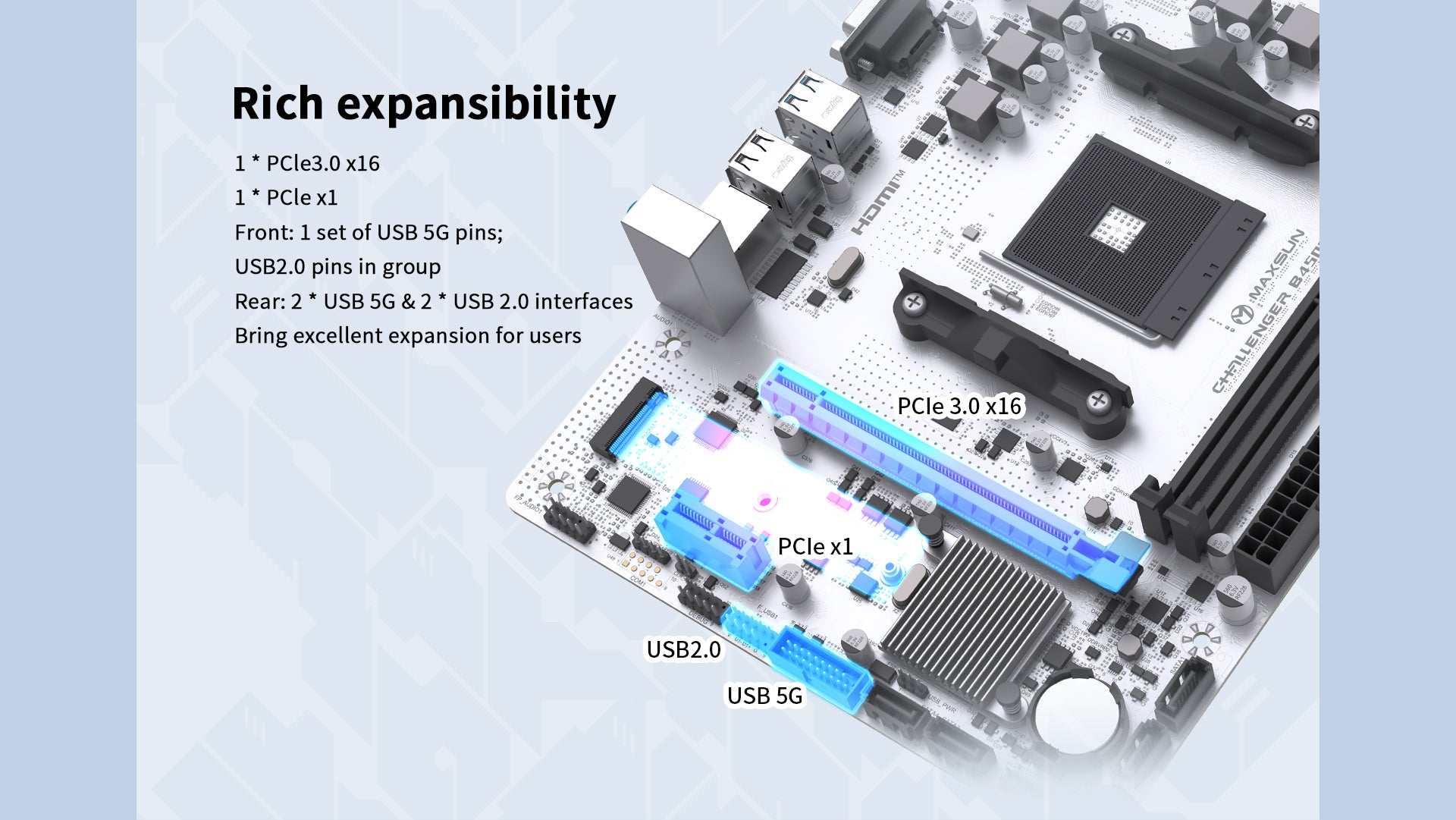

Rich I/O – USB 3.2 Gen1, USB 2.0, HDMI, VGA, and more.

Compact Design – Micro-ATX form, ideal for space-saving builds.

GPU Ready – Full-speed PCIe x16 slot for graphics cards.

AMD Support – Compatible with Ryzen 3000/5000 series CPUs.

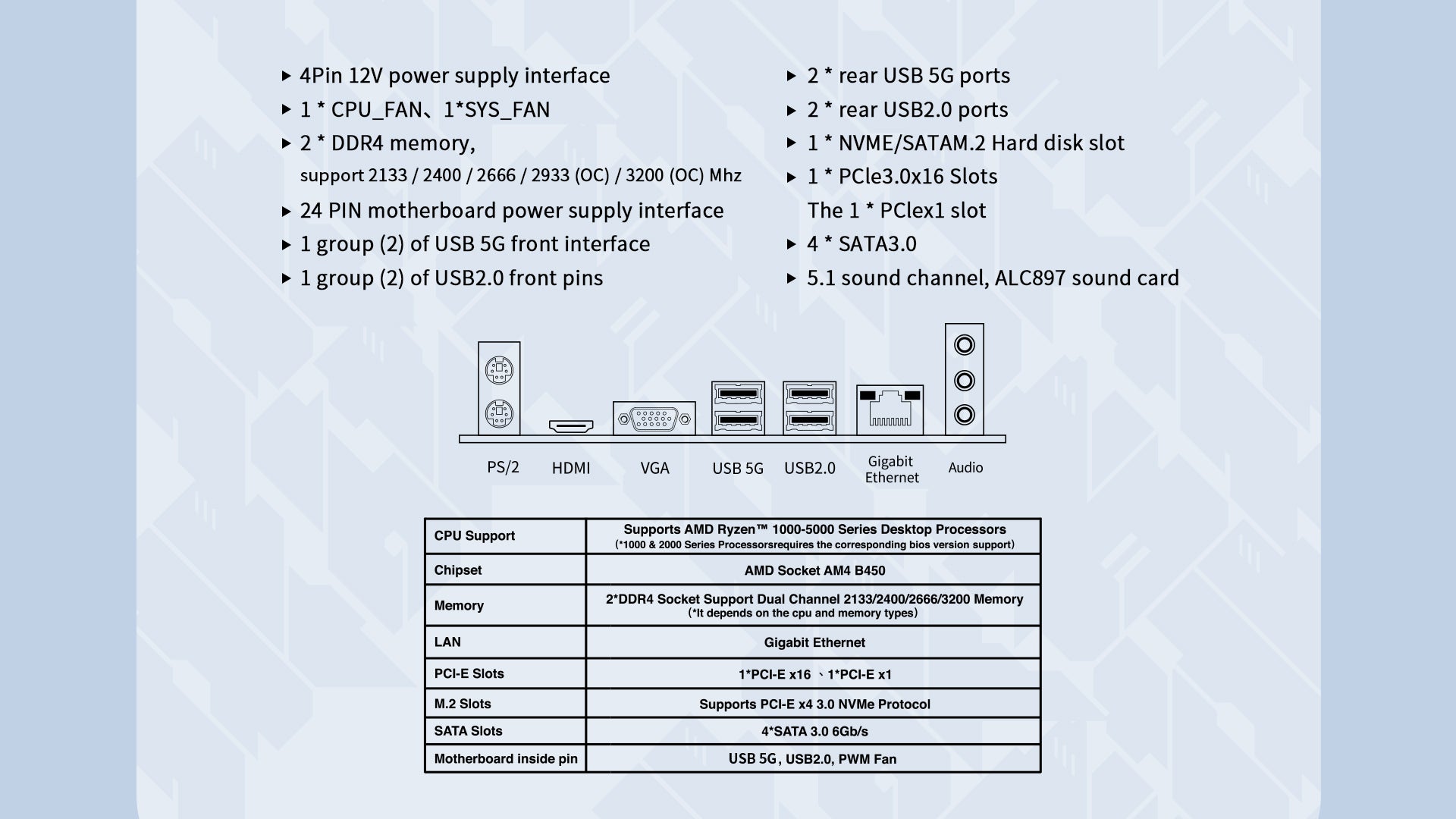

Overview
Specification
Support

  • CPU Support
  • Supports AMD Ryzen™ 1000–5000 Series Desktop Processors (1000 & 2000 Series require specific BIOS version)
  • Chipset
  • AMD Socket AM4 B450
  • Memory
  • 2 x DDR4 Socket, Dual Channel, 2133/2400/2666/3200 MHz
  • LAN
  • Gigabit Ethernet
  • PCI-E Slots
  • 1 x PCI-E x16, 1 x PCI-E x1
  • M.2 Slots
  • Supports PCI-E x4 3.0 NVMe Protocol
  • SATA Slots
  • 4 x SATA 3.0 6Gb/s
  • Motherboard Inside Pin
  • USB 5G, USB 2.0, PWM Fan
