Terminator B850M WIFI

  • rocessor: AM5 socket, supports Ryzen 7000/8000/9000 (TDP: 170W-230W).
  • Chipset: AMD® B850 for superior performance.
  • Memory: 4 x DDR5 slots, up to 192GB, speeds up to 7600MHz (OC).
  • Graphics: HDMI 1.4 (4K@30Hz), DP (4K@60Hz), integrated graphics.
  • Expansion: 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x4, 1 x PCIe 3.0 x1.
  • Audio: Realtek ALC897, 6 outputs including SPDIF.
  • Networking: Realtek 8125B/D Ethernet, Wi-Fi 6, Bluetooth 5.2.
  • Storage: 2 x M.2 (PCIe X4/X2), 4 x SATA 3.0.
  • USB: 4 x USB 5G, 4 x USB 2.0, USB Type-C (10Gbps).
请求报价

你也许也喜欢

Overview
Specification
Support

  • Socket & Processor Support
  • Compatible with AM5 socket for Ryzen 7000, 8000, and 9000 series processors.
  • Power Consumption
  • TDP range from 170W to 230W for optimal power efficiency.
  • Chipset
  • AMD® B850 High-Speed Chipset for superior performance and stability.
  • Memory Capacity
  • 4 DIMM DDR5 slots, supporting up to 192GB with dual-channel memory and AMD EXPO technology.
  • Memory Frequency Support
  • Compatible with DDR5 speeds of up to 7600MHz (OC), with flexibility for overclocking at various frequency levels.
  • Integrated Graphics
  • Supports integrated graphics with shared memory, featuring HDMI 1.4 (up to 4096x2160@30Hz) and DP (up to 4096x2160@60Hz).
  • Expansion Slots
  • 1 x PCIe 4.0 x16 slot
    1 x PCIe 3.0 x4 slot
    1 x PCIe 3.0 x1 slot
  • Audio
  • Integrated Realtek ALC897 sound with 6 audio outputs, including optical SPDIF_OUT.
  • Networking
  • Realtek 8125B/D 10/100/1000/2500Mbit Ethernet
    Realtek 8852BE Wi-Fi 6 and Bluetooth 5.2
  • Storage
  • 2 x M.2 slots for PCIe X4/X2 SSDs (supports 2280/22110/2280 sizes)
    4 x SATA3.0 interfaces for additional storage.

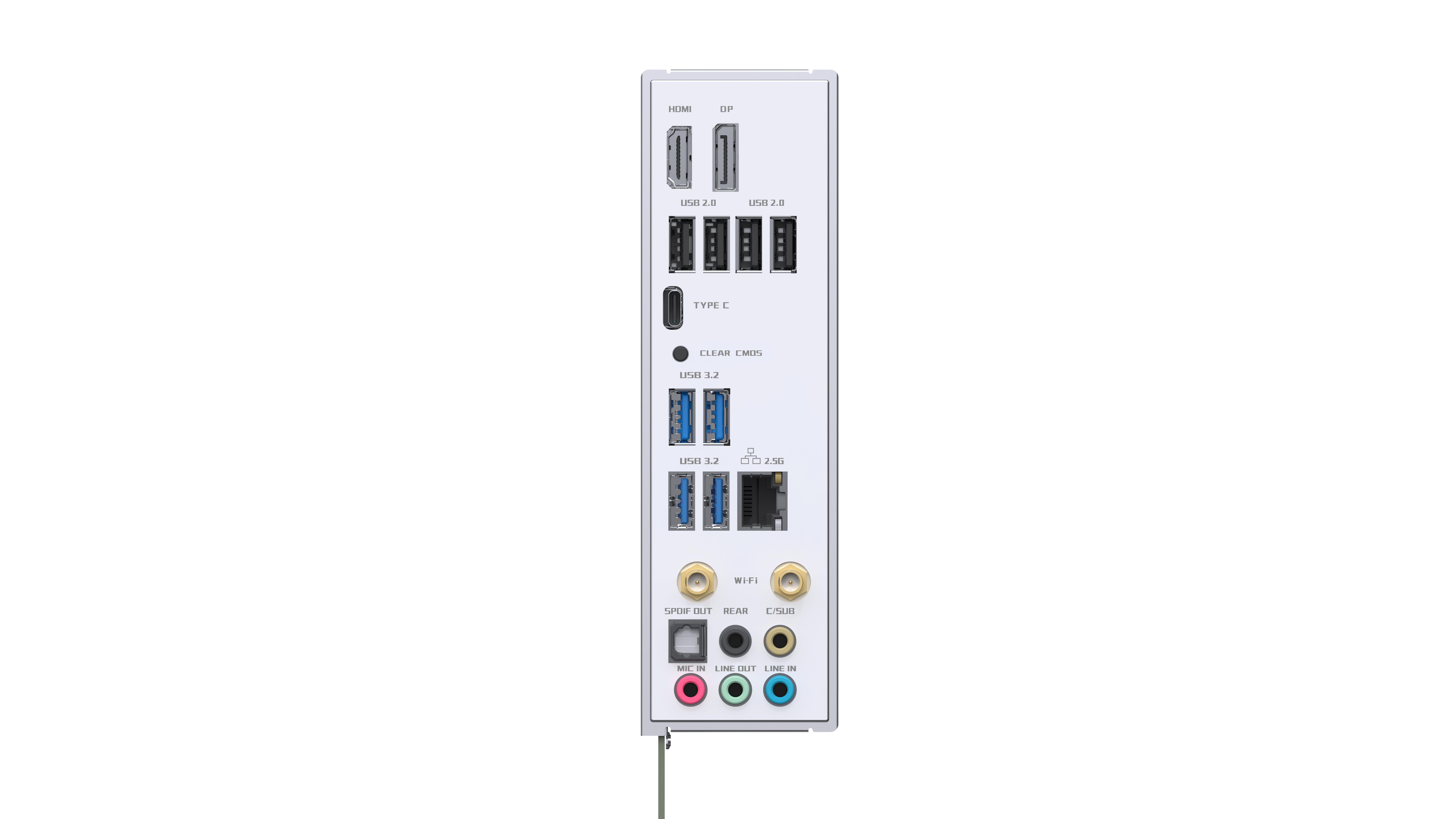

  • USB Ports
  • 4 x USB 5G, 4 x USB 2.0, and 1 x USB Type-C (10Gbps) at the rear.
    1 x Front USB Type-C (10Gbps) and additional internal USB headers.
  • Power & Cooling
  • 24-pin ATX and 8-pin ATX 12V power connectors.
    3 system fan headers and 1 CPU fan header for optimal cooling.
    Smart fan control for automatic fan speed adjustments.
  • OS Compatibility
  • Supports Windows 10/11 64-bit and Ubuntu 64-bit.
  • ESD Protection
  • High-level protection for your components with ±8KV air discharge and ±6KV contact discharge.
  • Additional Features
  • CLR_CMOS button, TPM header, and COM_A header for system management and upgrades.
