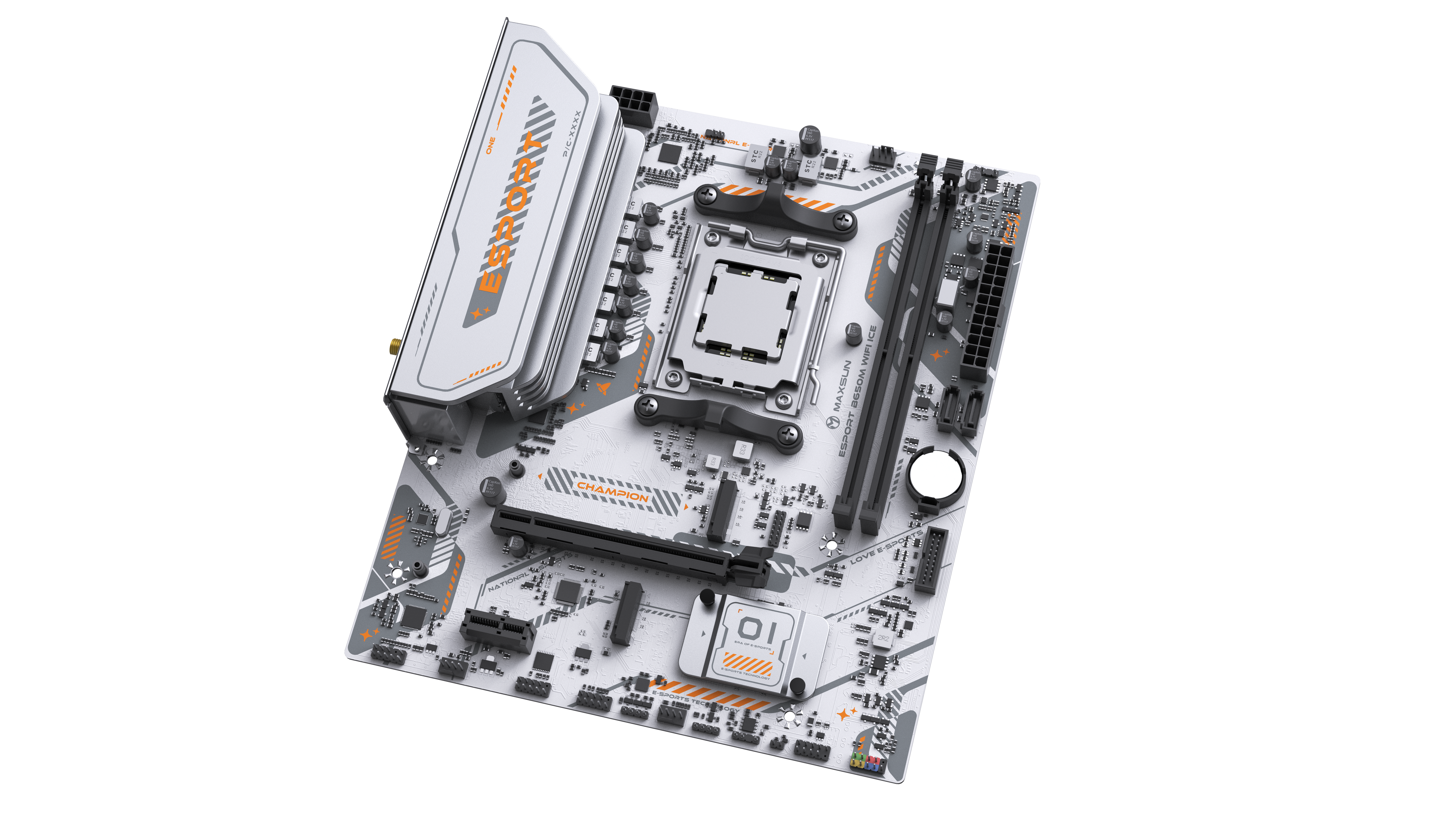

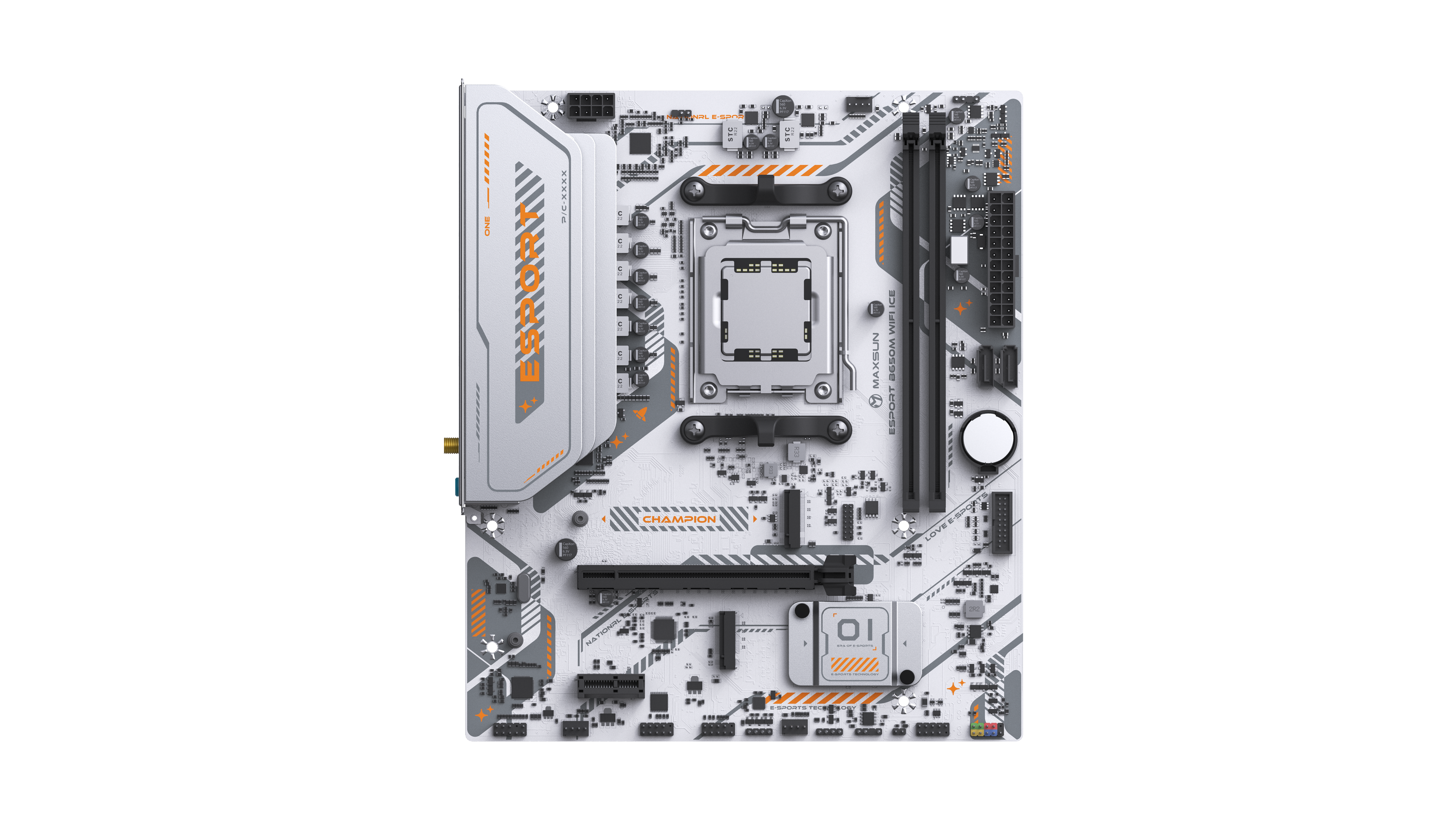

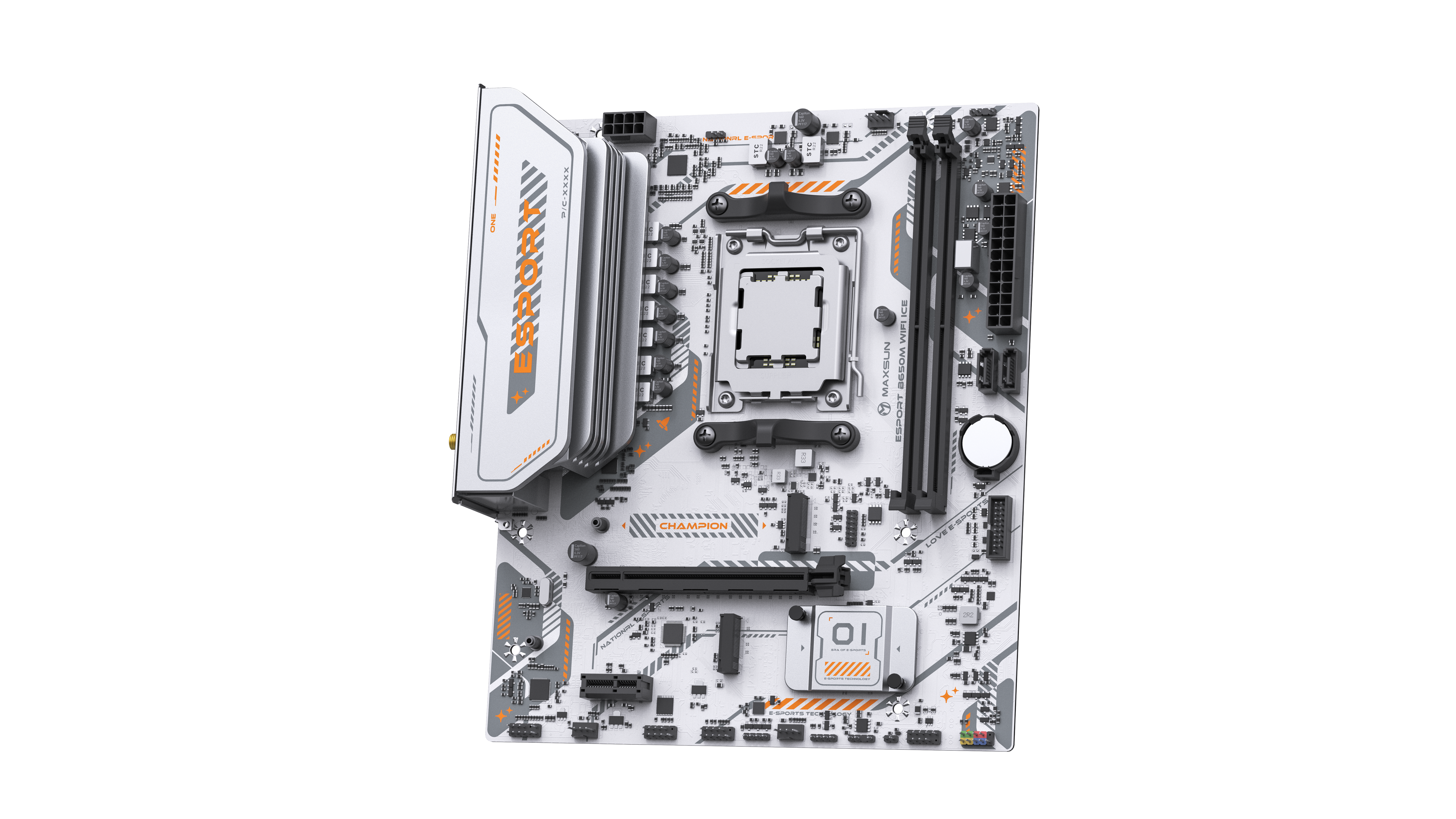

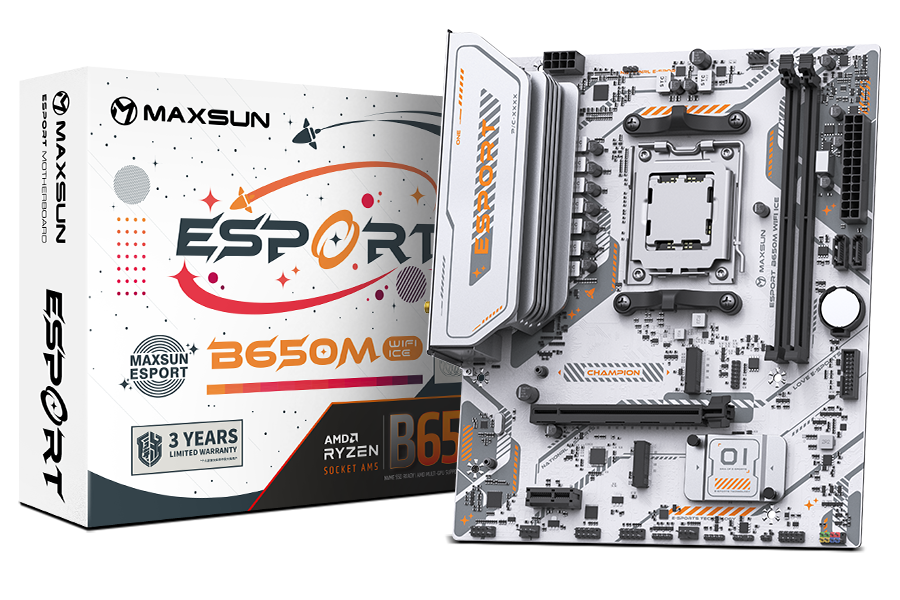

eSport B650M WIFI6 ICE
- Power Delivery: 6+2+1 Phase with 50A Dr.MOS and SMT Capacitors.
- Durable Components: Polymer Tantalum Capacitors for long lifespan and high power.
- Memory Support: Dual-Channel DDR5 up to 8000MHz (OC+) for fast performance.
- Connectivity: Realtek 8111H Ethernet + Wi-Fi 6 with Bluetooth 5.2.
- Custom Lighting: 2x 5V ARGB, 1x 12V RGB + MAXSUNSync software.
- Static Protection: ESD Protection for enhanced durability.
- Processor Support: AMD Ryzen™ ZEN4/ZEN5 (AM5 socket compatibility).
- Performance Ready: Optimized for R9 7900 / R7 9700X.
Overview
Specification
Support
- Model
- MS-eSport B650M WIFI ICE
- Motherboard Size
- mATX Size: 245 x 210mm
- CPU Socket
- AM5, compatible with Ryzen 7000/8000/9000 series processors
TDP: 105-180W
- Chipset
- AMD® B650 high-speed chipset
- Memory
- RAM: 2 x DIMM DDR5 slots, supporting up to 96GB
Dual-channel support
Frequency Support: 4800/5200/5600(OC)/6000(OC)/6200(OC)/6400(OC)/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7400(OC)/7600(OC)/7800(OC)/8000(OC) MHz
- Display
- 1 x HDMI 1.4 (up to 4096 x 2160 @ 30Hz)
1 x DisplayPort (up to 4096 x 2160 @ 60Hz)
- Expansion Slot
- 1 x PCIe 5.0 x16 slot
1 x PCIe 3.0 x1 slot
- Audio
- Integrated Realtek ALC897 audio chip
- Network
- Integrated Realtek 8125BG/D LAN chip
Onboard Realtek 8852BE WiFi 6 with Bluetooth 5.2
1 x onboard M.2 E-Key PCI-E 2230 slot for WiFi
- Storage
- 2 x M.2 slots (supporting 2242/2280 PCIe 4.0 x4/x2 SSDs)
2 x SATA 3.0 ports
- USB

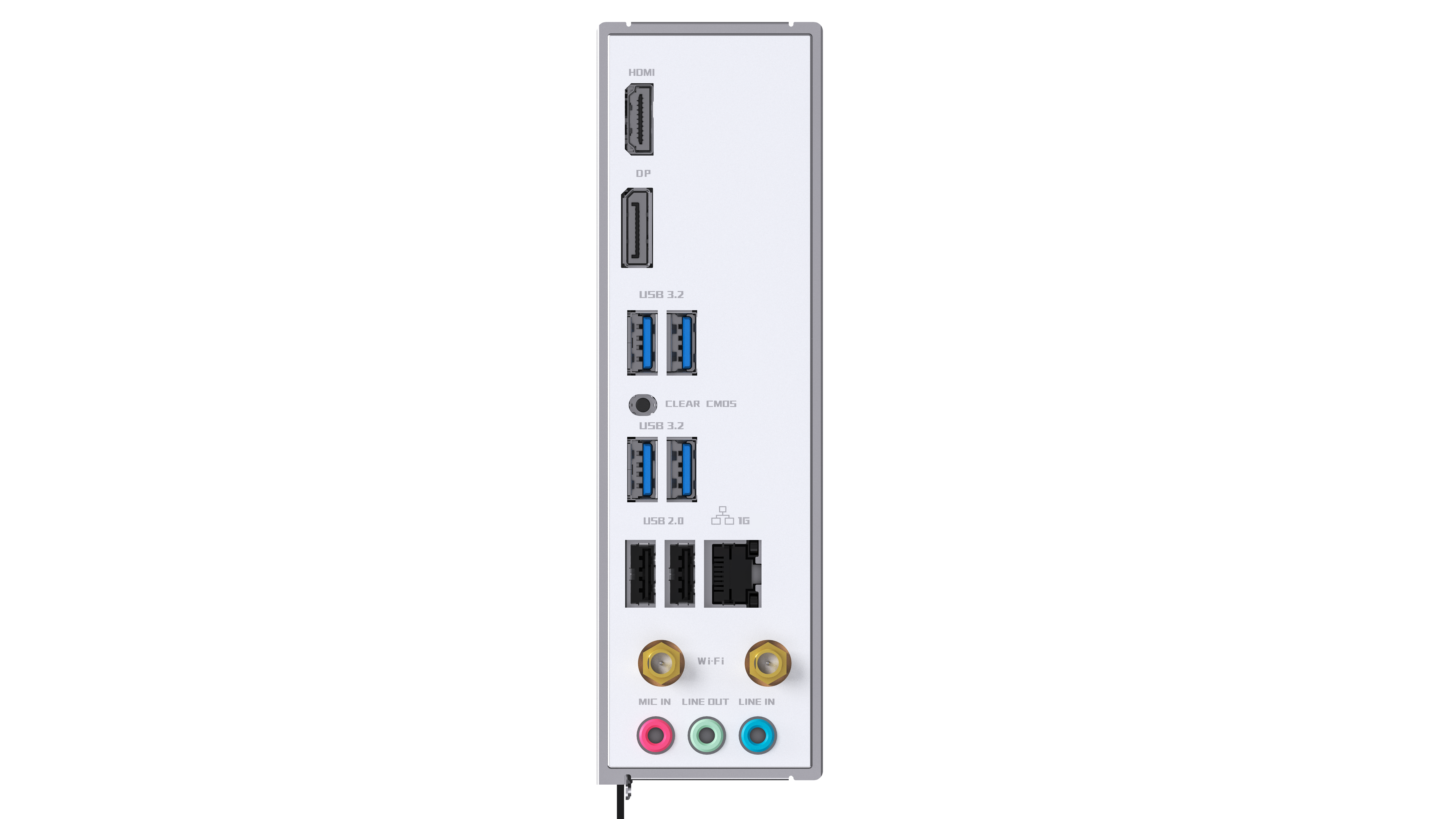

- Rear I/O: 4 x USB 3.2 Gen 1, 2 x USB 2.0
Internal Headers: 1 x USB 2.0 header (supports 2 ports), 1 x USB 3.2 Gen 1 header (supports 2 ports), 1 x USB Type-C 10G port
- Additional Features
- 1 x 24-PIN ATX power connector
RGB Headers: 2 x 5V ARGB headers, 1 x 12V RGB header with MAXSUN Sync support
1 x 8-PIN ATX12V power connector (12V input)
Fan Headers: 2 system fan headers, 1 CPU fan header
1 x COM A header
1 x Rear CLR_CMOS button
1 x TPM header
