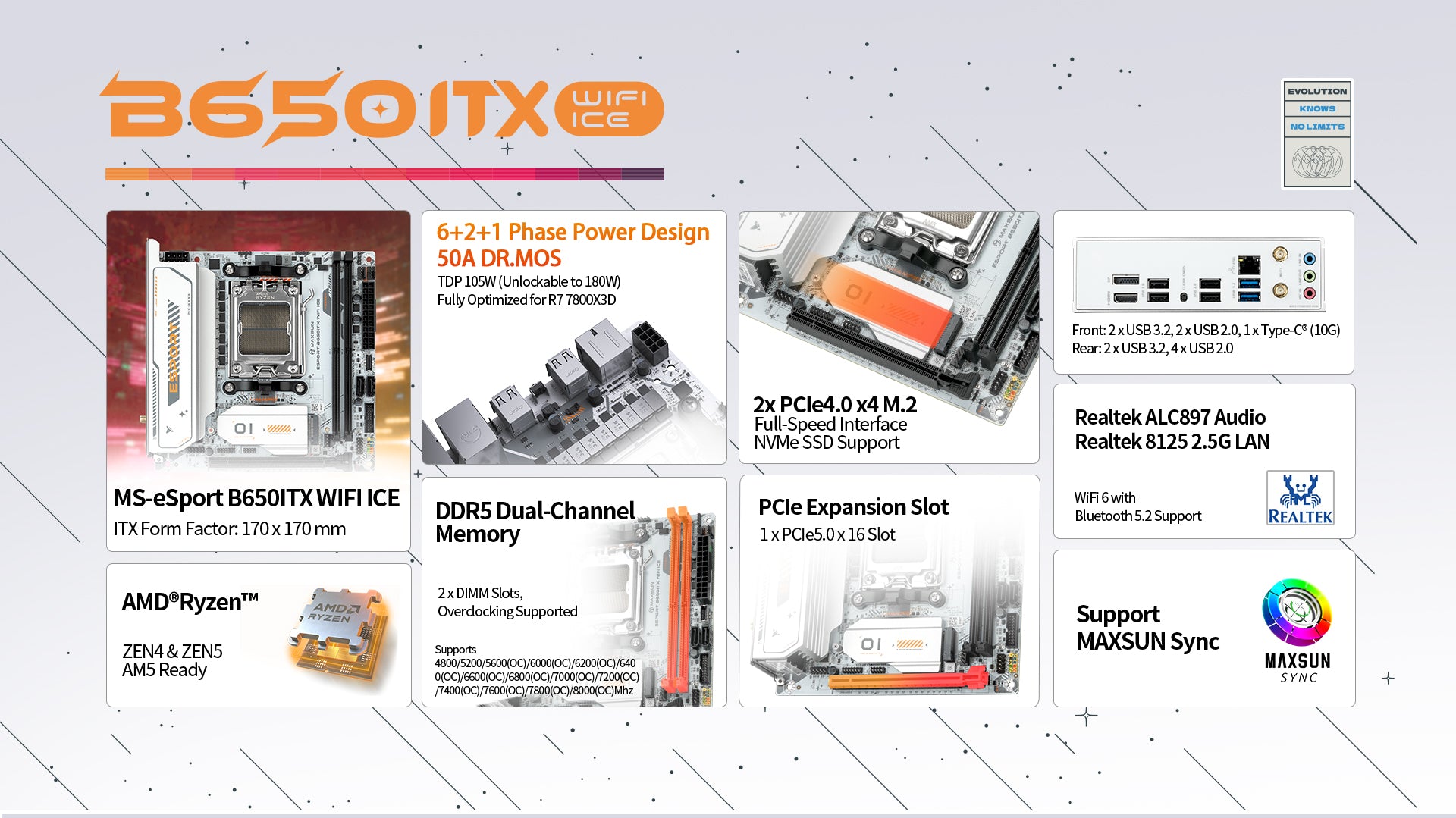

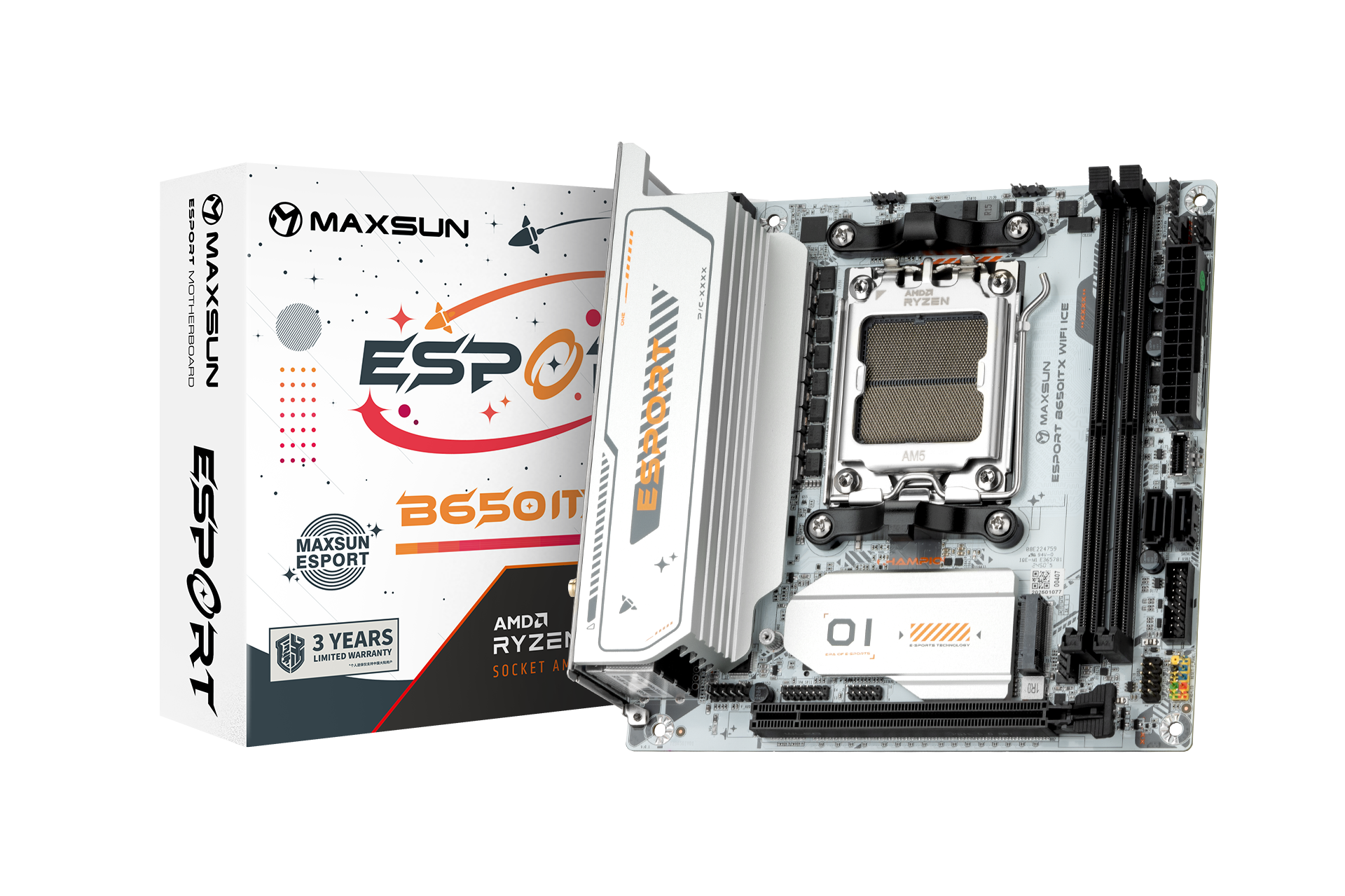

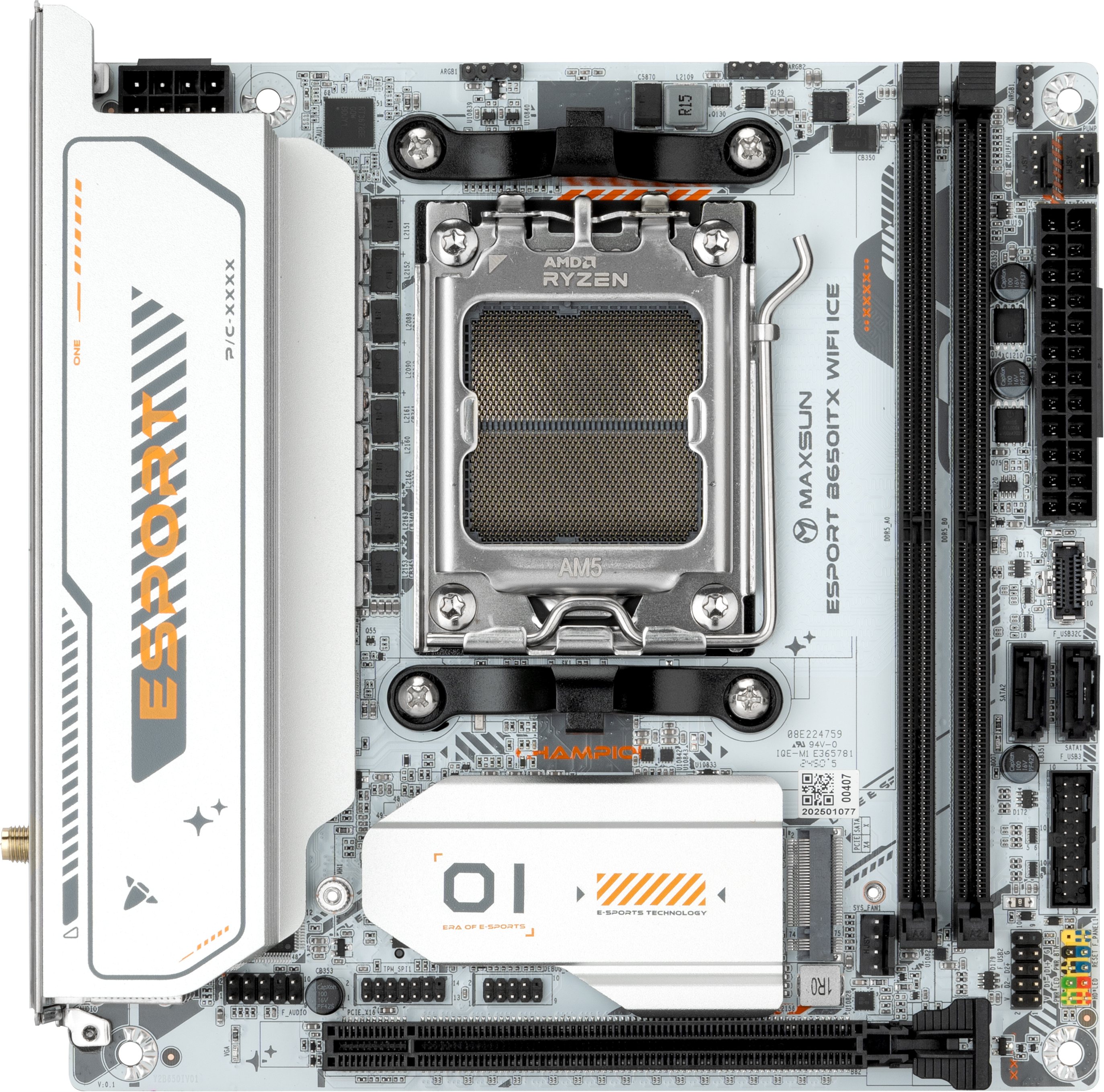

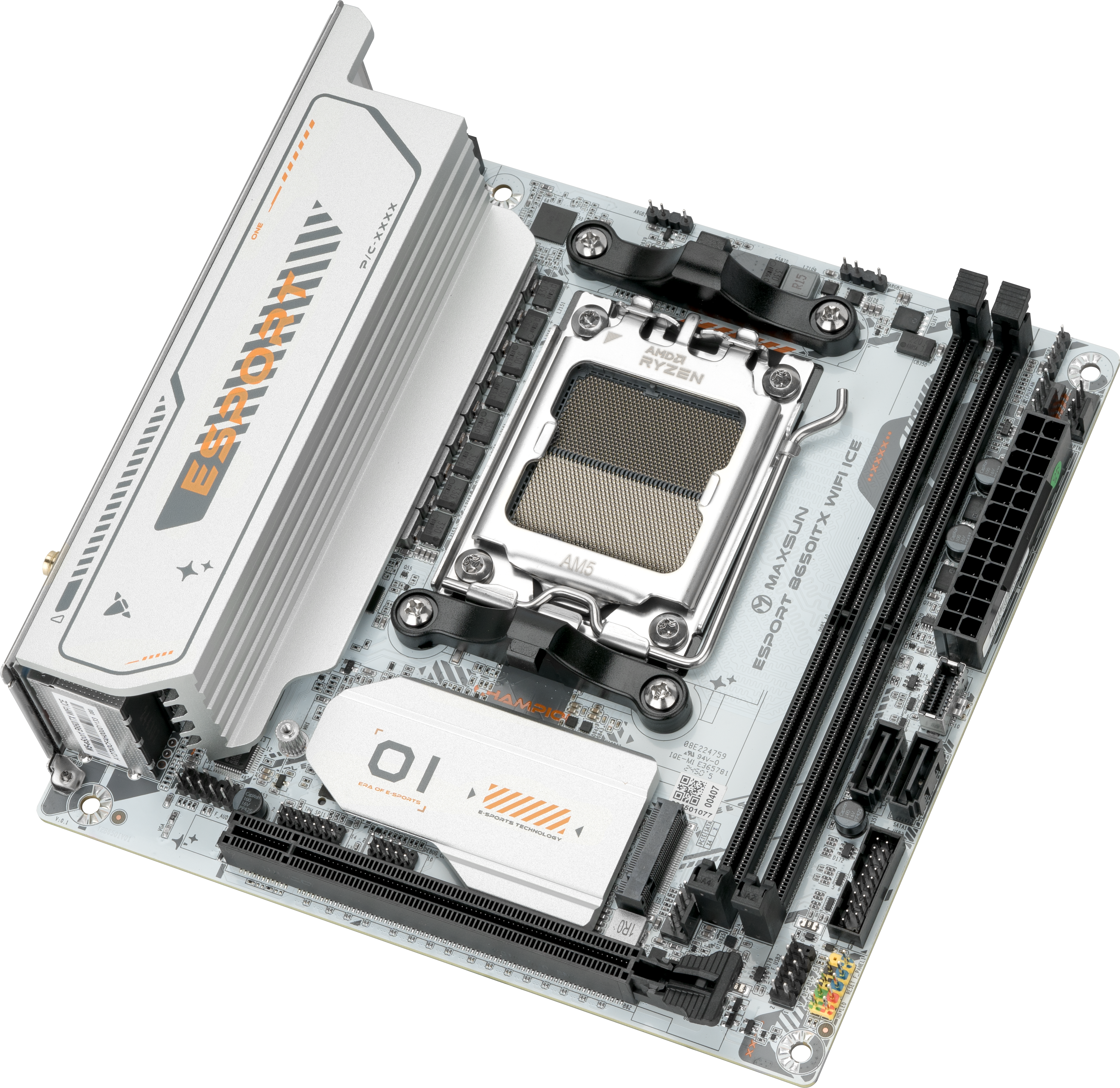

eSport B650ITX WIFI ICE
- Compact ITX Build: 170 x 170 mm, ideal for small yet powerful setups.
- AM5 Ready: Supports Ryzen 7000/8000/9000 CPUs, TDP 105-180W.

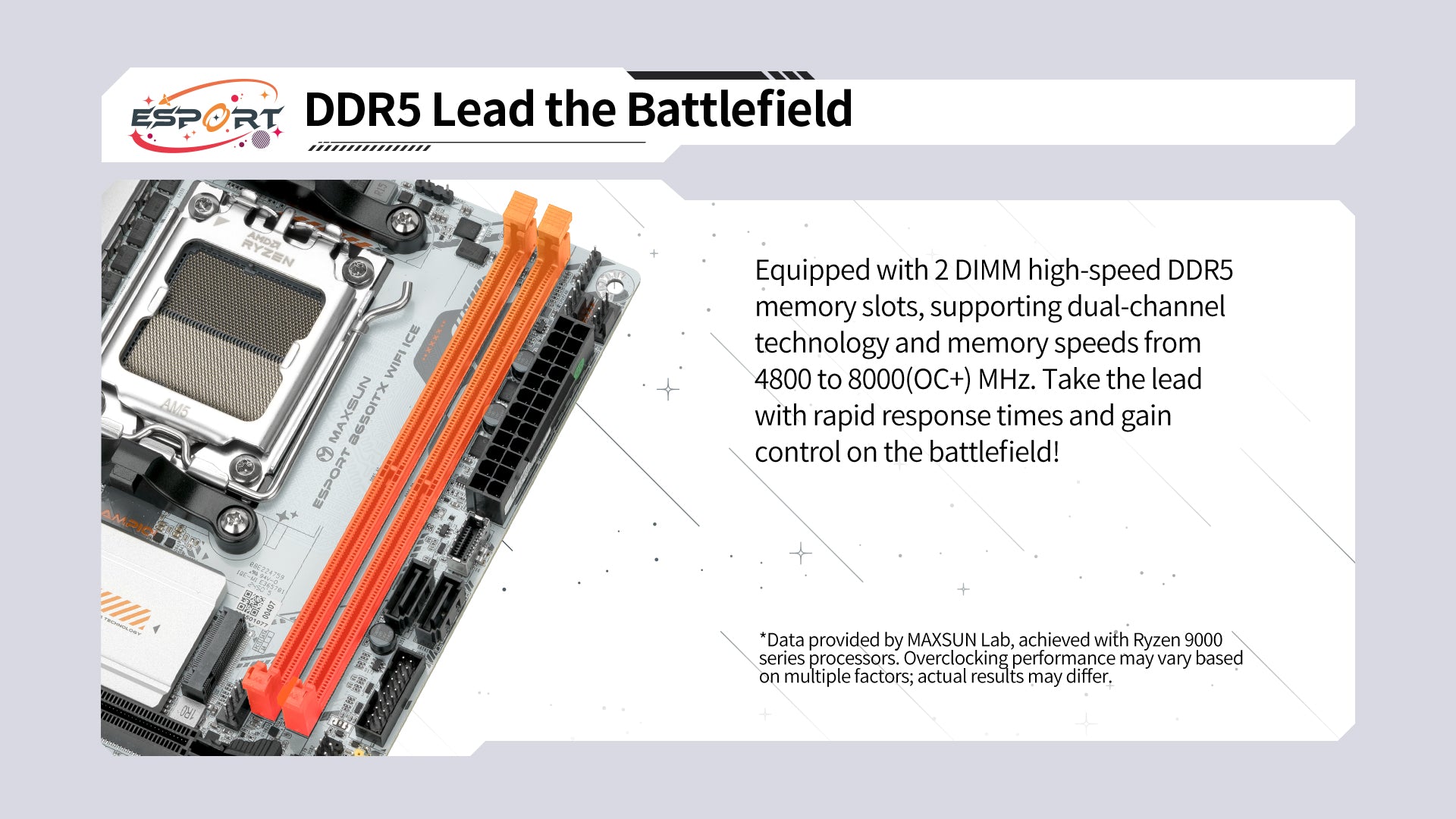

- DDR5 Performance: Dual slots, up to 96GB, overclocking to 8000 MHz.
- Next-Gen Expansion: PCIe 5.0 x16 slot and dual PCIe 4.0 M.2.

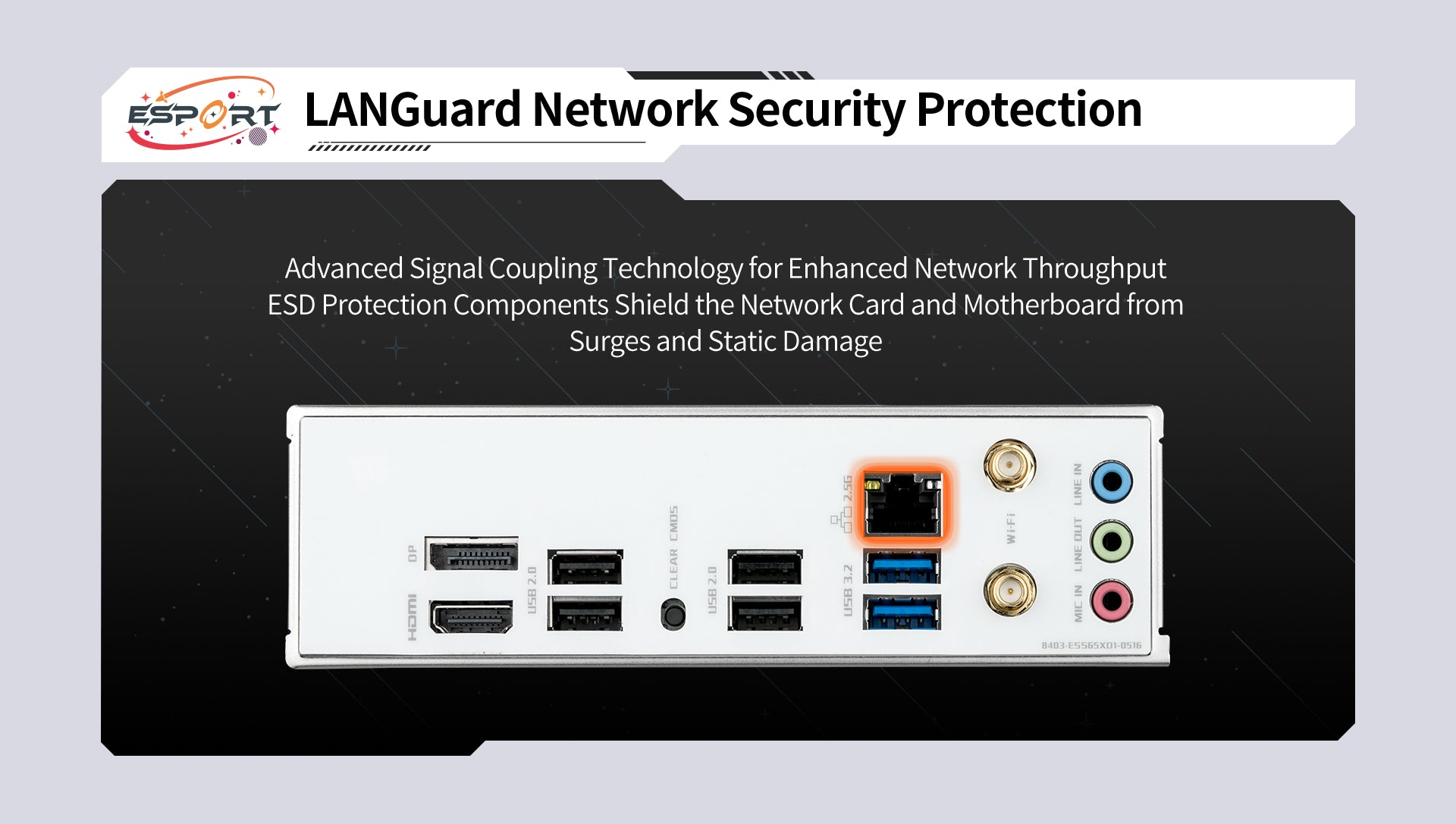

- Seamless Connectivity: WiFi 6, Bluetooth 5.2, and 2.5G LAN.
- Flexible USB Options: USB 3.2, USB 2.0, and 10G Type-C.
- Enhanced Visuals: HDMI 4K @ 30Hz, DP 4K @ 60Hz.
- Built to Perform: RGB lighting, robust cooling, and safety features.
Overview

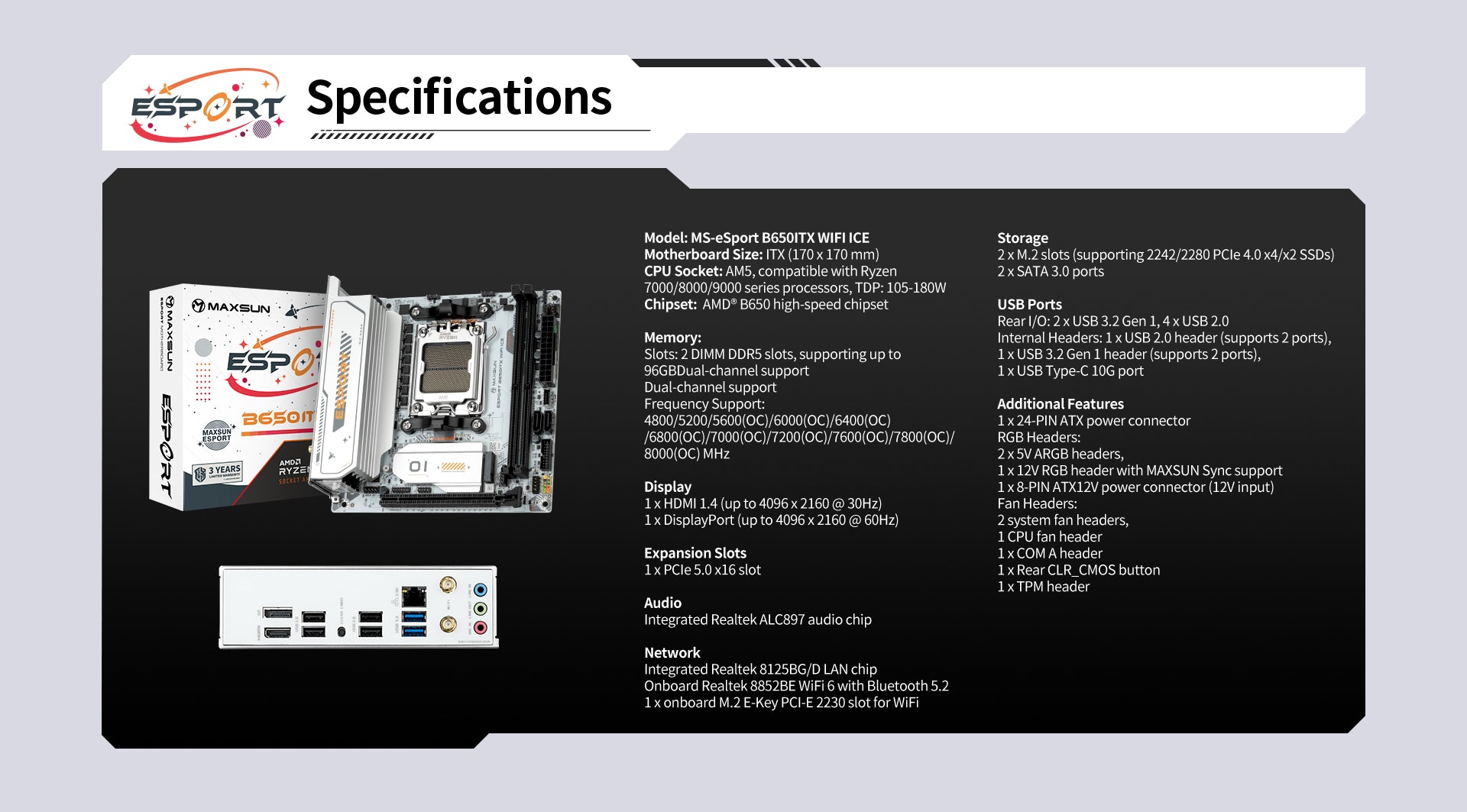

Specification
Support
- Model
- MS-eSport B650ITX WIFI ICE
- Motherboard Size
- ITX (170 x 170 mm)
- CPU Socket
- AM5, compatible with Ryzen 7000/8000/9000 series processors
TDP: 105-180W
- Chipset
- AMD® B650 high-speed chipset
- Memory
- 2 DIMM DDR5 slots, supporting up to 96GB
Dual-channel support
Frequency Support: 4800/5200/5600(OC)/6000(OC)/6200(OC)/6400(OC)/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7400(OC)/7600(OC)/7800(OC)/8000(OC) MHz
- Display
- 1 x HDMI 1.4 (up to 4096 x 2160 @ 30Hz)
1 x DisplayPort (up to 4096 x 2160 @ 60Hz)
- Expansion Slot
- 1 x PCIe 5.0 x16 slot
- Audio
- Integrated Realtek ALC897 audio chip
- Network
- Integrated Realtek 8125BG/D LAN chip
Onboard Realtek 8852BE WiFi 6 with Bluetooth 5.2
1 x onboard M.2 E-Key PCI-E 2230 slot for WiFi
- Storage
- 2 x M.2 slots (supporting 2242/2280 PCIe 4.0 x4/x2 SSDs)
2 x SATA 3.0 ports
- USB
- Rear I/O: 2 x USB 3.2 Gen 1, 4 x USB 2.0
Internal Headers: 1 x USB 2.0 header (supports 2 ports), 1 x USB 3.2 Gen 1 header (supports 2 ports), 1 x USB Type-C 10G port
- Additional Features
- 1 x 24-PIN ATX power connector
RGB Headers: 2 x 5V ARGB headers, 1 x 12V RGB header with MAXSUN Sync support
1 x 8-PIN ATX12V power connector (12V input)
Fan Headers: 2 system fan headers, 1 CPU fan header
1 x COM A header
1 x Rear CLR_CMOS button
1 x TPM header
