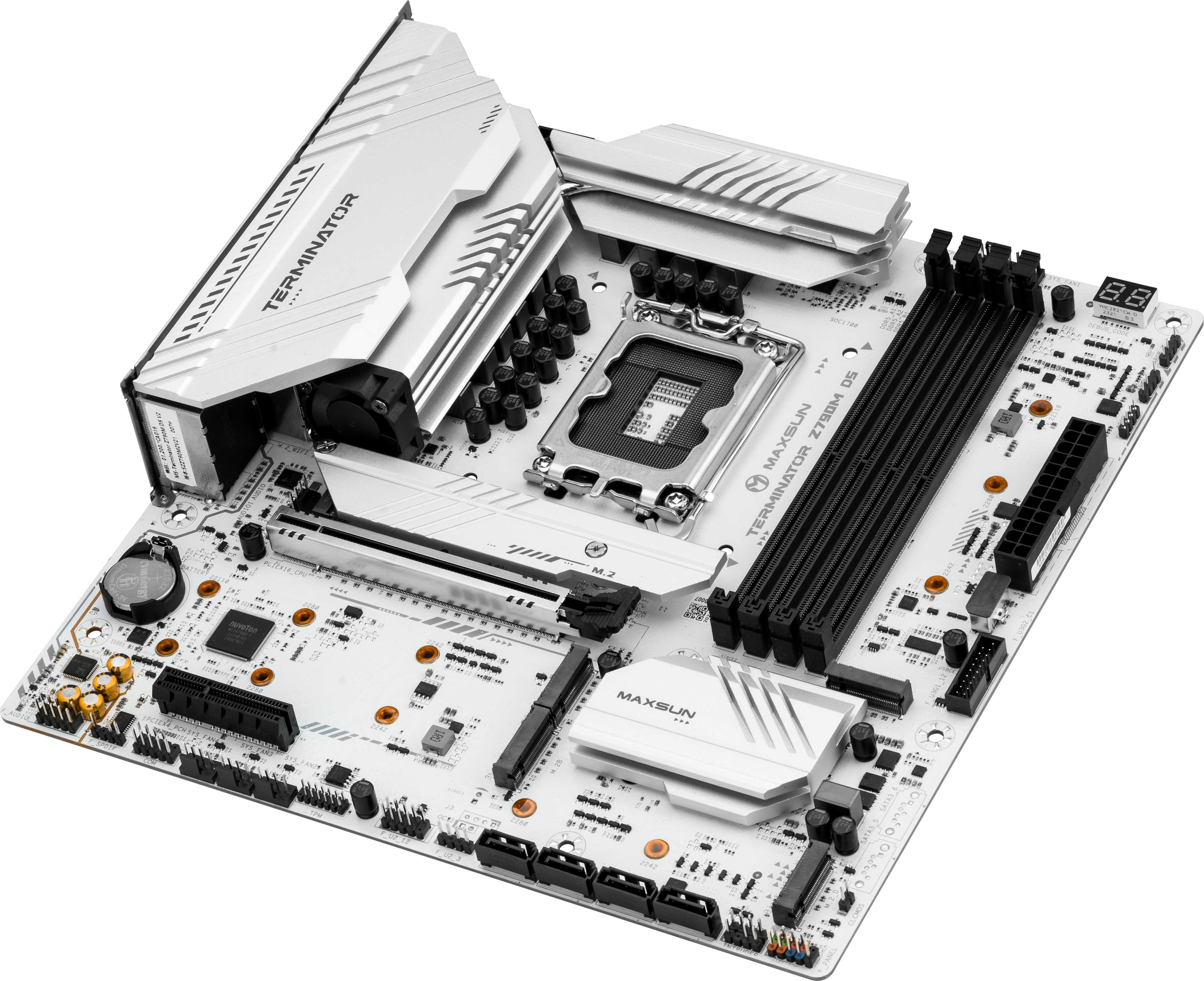

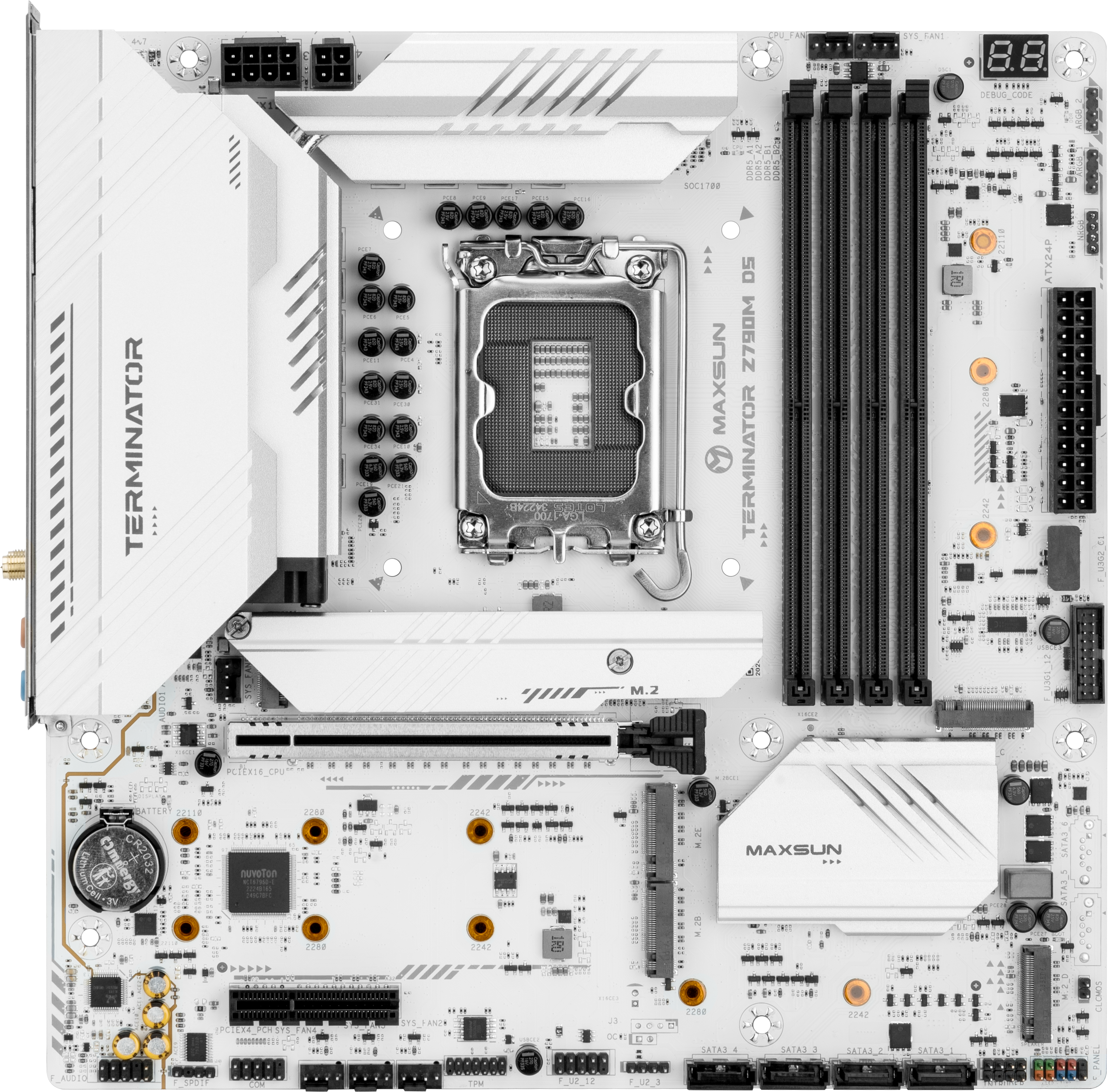

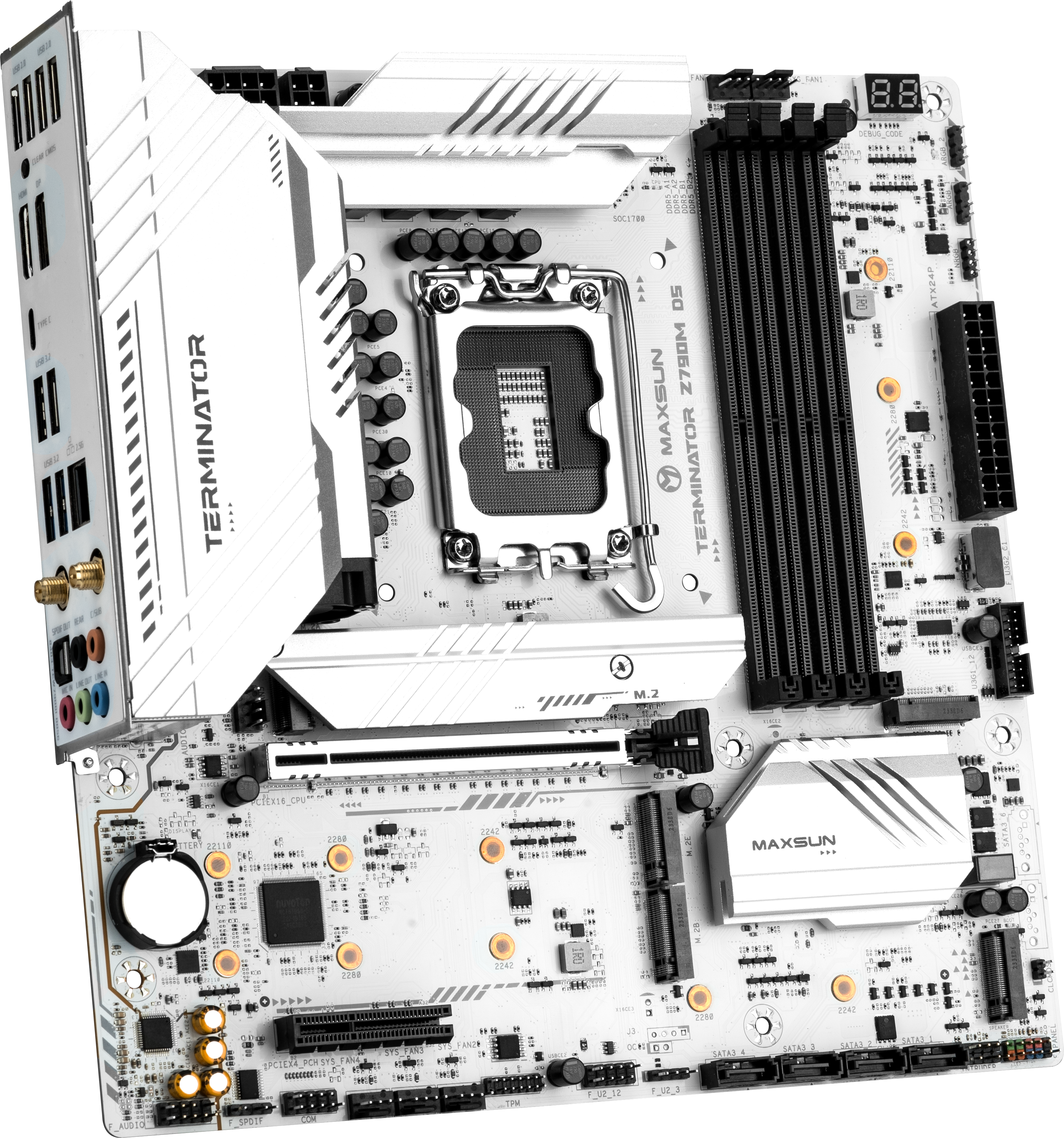

Terminator Z790M D5 ICE

• CHIPSET
• INTEL Z790

• CPU
• Supports 12th/13th/14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
  LGA 1700

• MEMORY
• 4x DDR5, Maximum Memory Capacity 192GB
  Memory Support 7600 (OC)/ 7400 (OC)/7200 (OC)/7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
  Supports Intel® XMP 3.0 OC
  Supports Dual-Controller Dual-Channel mode

• ONBOARD GRAPHICS
• 1x DisplayPort 1.4
  1x HDMI™port
  *HDMI™ port supports up to 4K@60Hz
  *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

• EXPANSION SLOT
• 1x PCIe 5.0 x16 slot
  1x PCIe 3.0 x4 slot

• STORAGE
• M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
  M.2_2 slot (Key M), type 2242/2280(supports PCIe 4.0 x4 mode)
  M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
  M.2_4 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
  M.2_5 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
  4 x SATA 6Gb/s ports

• USB
• *Front USB (Total 6 ports)
  1x USB 3.2 Gen2x2 Type C
  2x USB 3.2 Gen1 Type A
  3x USB 2.0

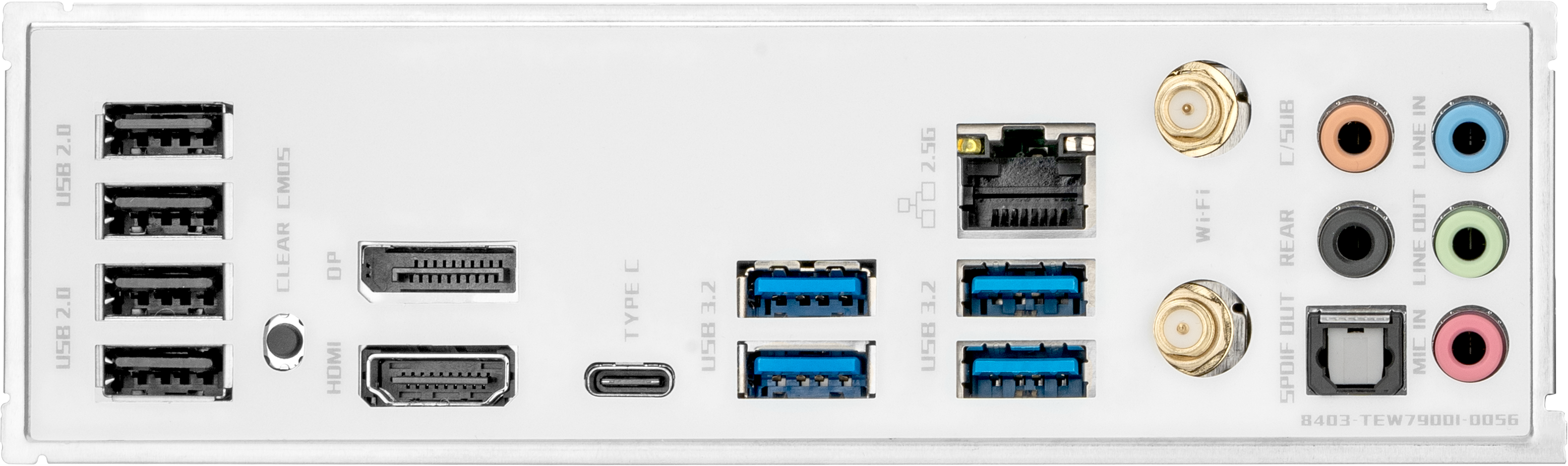

  *Rear USB (Total 9 ports)
  1x USB 3.2 Gen2x2 Type C
  4x USB 3.2 Gen1 Type A
  4x USB 2.0

• LAN
• Realtek® RTL8125BG 2.5G LAN

• WIRELESS / BLUETOOTH
• Intel® Wi-Fi 6E AX211
  The Wireless module is pre-installed in the M.2 (Key-E) slot
  Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
  Supports 802.11 a/ b/ g/ n/ ac/ ax
  Supports Bluetooth® 5.3

• AUDIO
• Realtek® ALC897 Codec
  7.1-Channel High Definition Audio
  Supports S/PDIF output

• INTERNAL I/O
• 1x 24-pin Power Connector(ATX_PWR)
  2x 8-pin+12VPower Connector(CPU_PWR)
  1x 4-pin CPU Fan
  5 x M.2 slots (Key-M)
  4x SATA 6Gb/s ports
  1x M.2 slots (Key-E)
  1x 4-Pin SPEAKER
  2x 5V 3-Pin ARGB
  1x 12V 4-Pin RGB
  1x 2-pin Clear CMOS
  1x Front Audio
  1x COM_A Port
  1x TPM pin header(Support TPM 2.0)

• LED FEATURE
• 4x Distributed Debug LED

• OPERATING SYSTEM
• Support for Windows® 11 64-bit, Windows® 10 64-bit

• FORM FACTOR
• M-ATX
  245mm x 245mm
