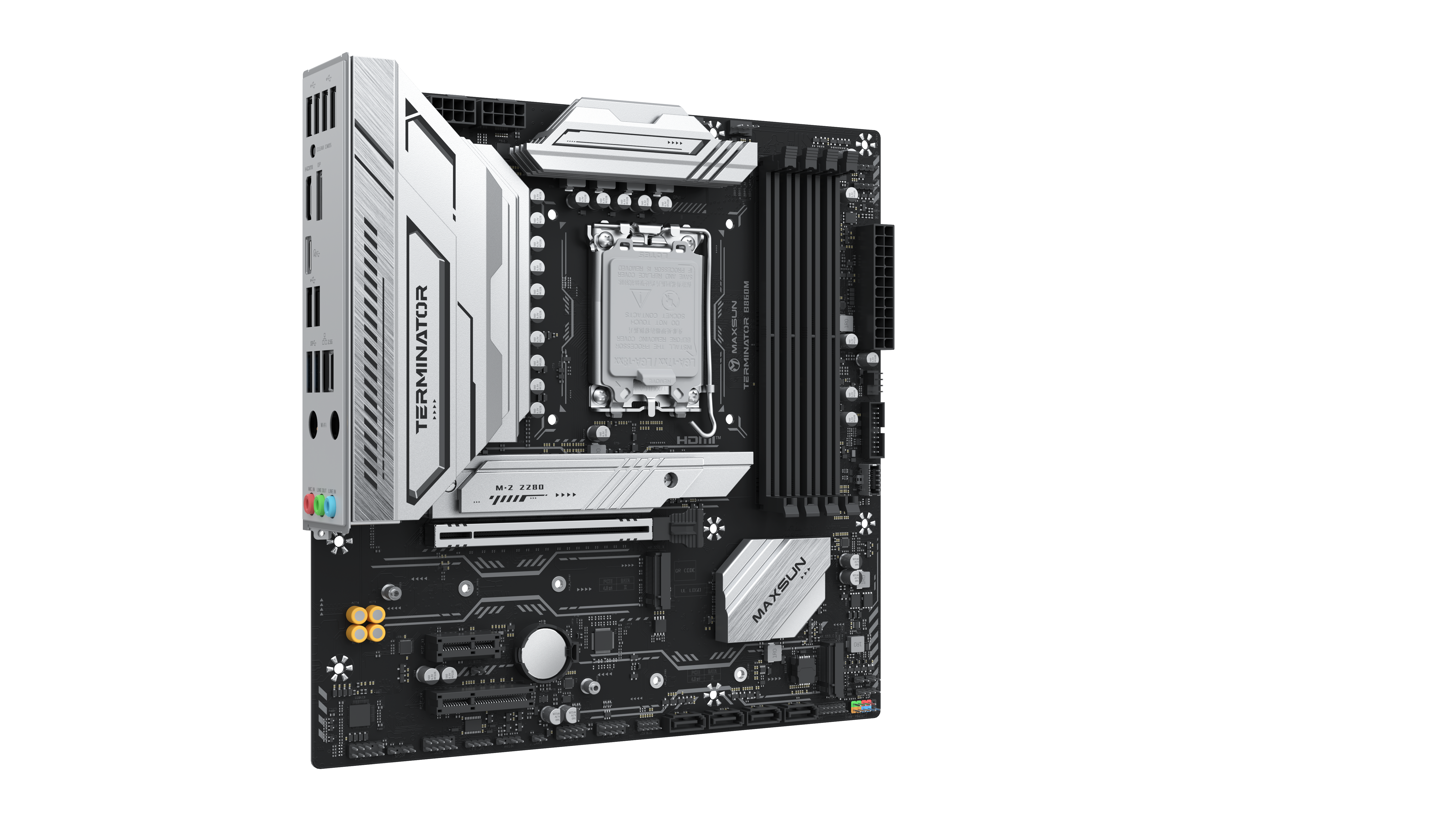

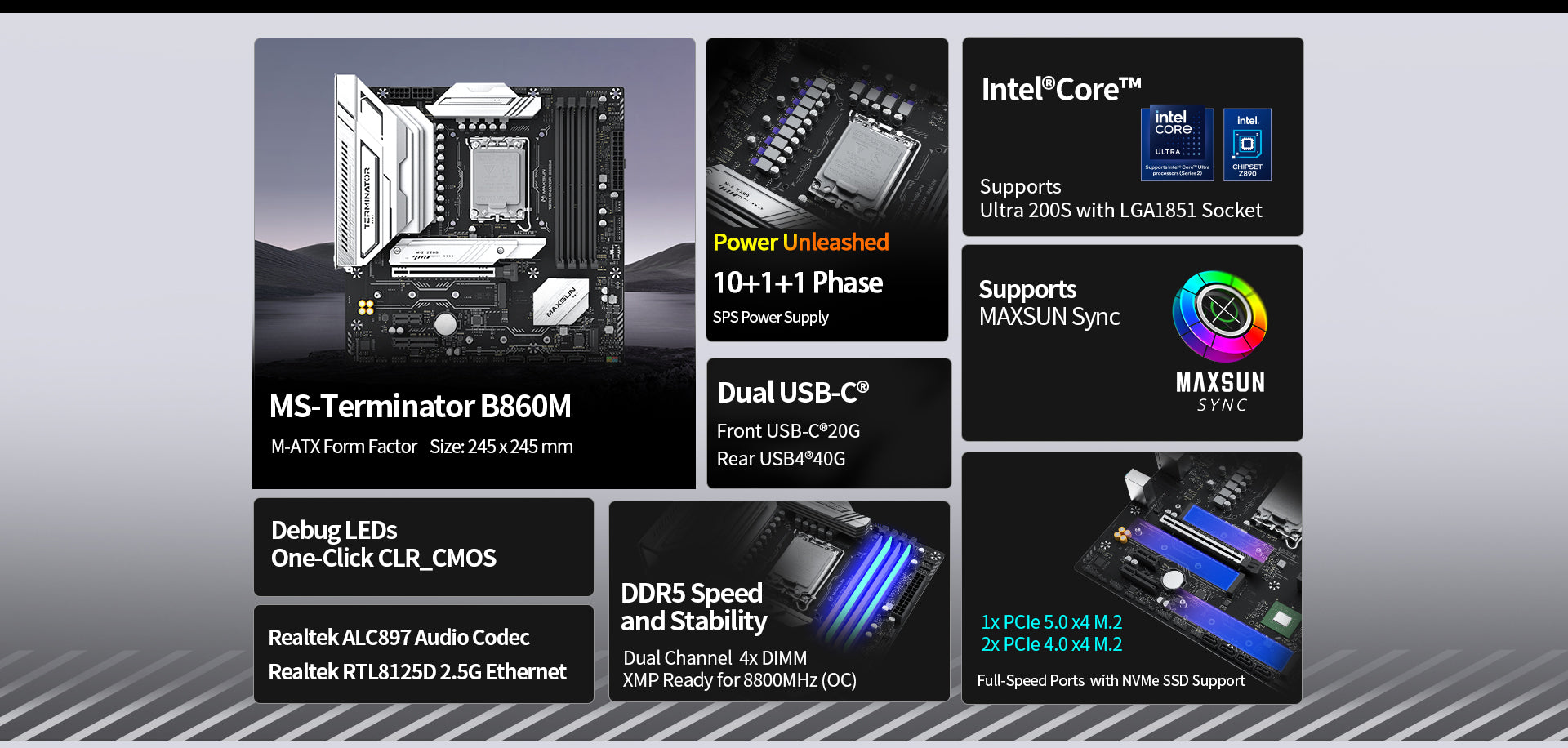

Terminator B860M
- Compact Powerhouse: M-ATX design, optimized for Intel® LGA1851 Ultra processors.

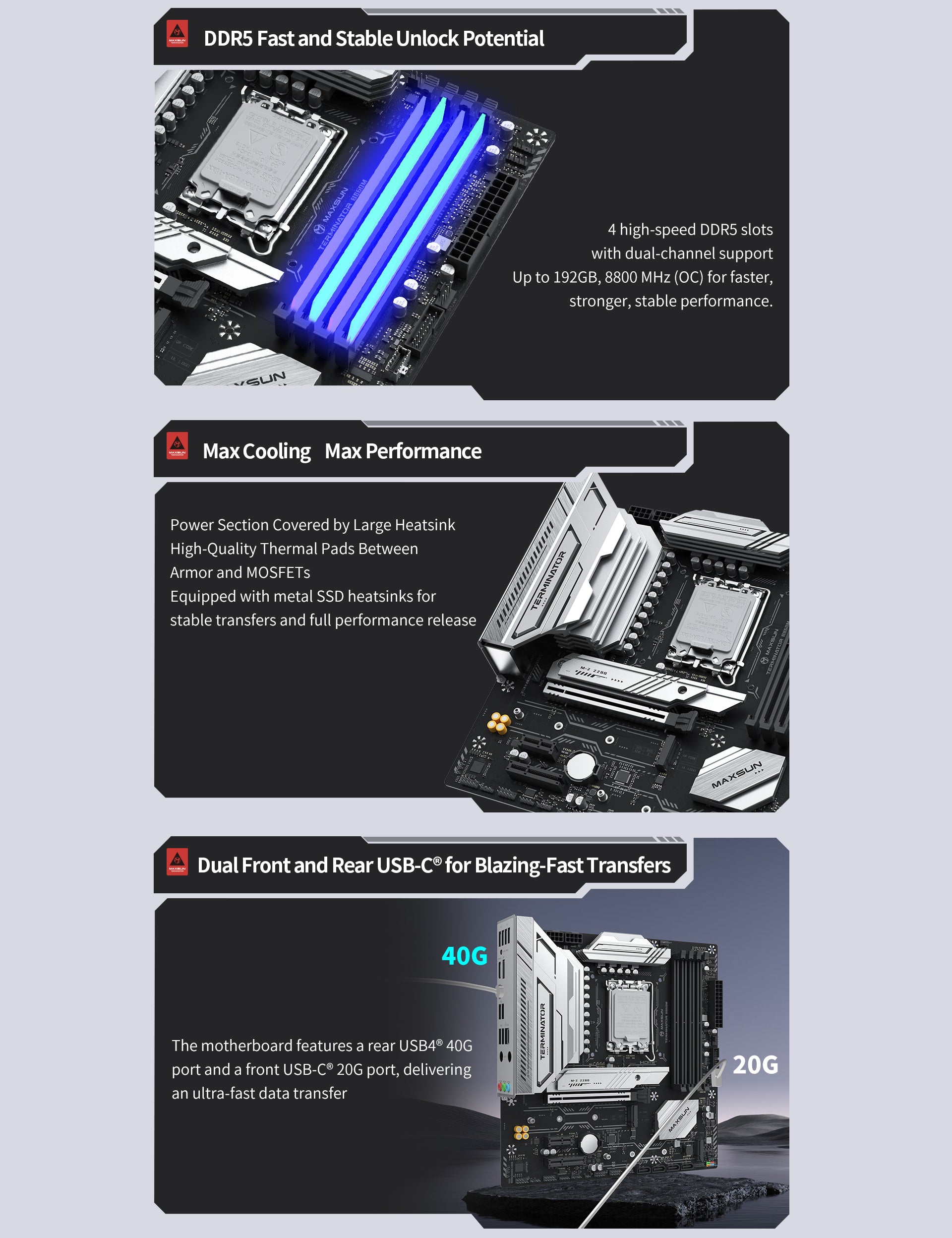

- Blazing Fast Memory: 4 x DDR5 slots, up to 192GB, with speeds up to 8800MHz (OC).
- Next-Gen Connectivity: PCIe 5.0 slot, dual M.2 (PCIe 4.0), and USB-C 40Gbps support.
- Advanced Networking: Built-in 2.5G LAN and M.2 WiFi expansion.
- Custom Cooling & RGB: Multiple fan headers and vibrant ARGB/RGB lighting support.
Overview
Specification
Support

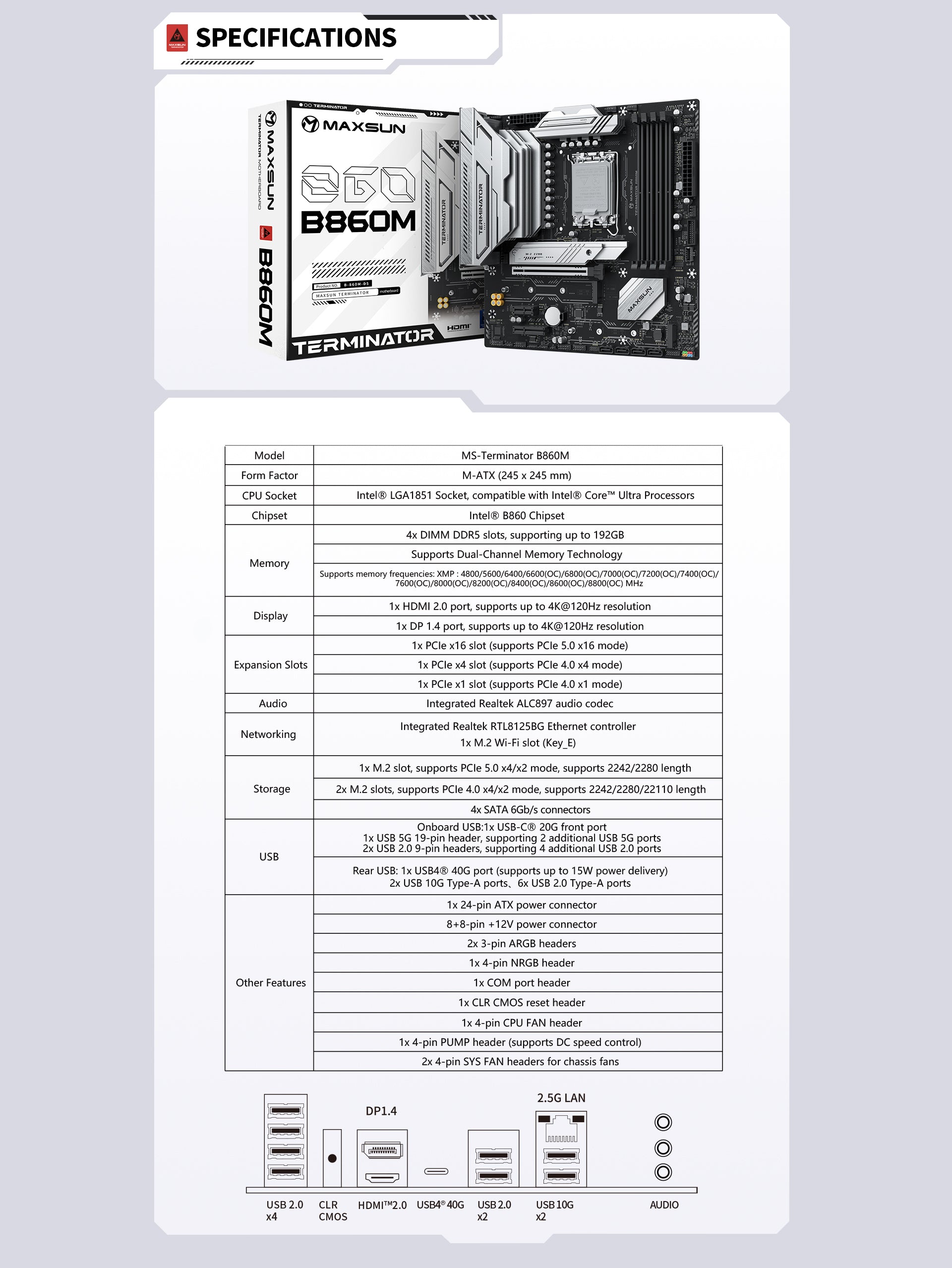

- Model
- MS-Terminator B860M
- Motherboard Size
- M-ATX (245 x 245 mm)
- CPU Socket
- Intel® LGA1851 Socket, compatible with Intel® Core™ Ultra Processors
- Chipset
- Intel® B860 Chipset
- Memory
- 4 x DIMM DDR5 slots, supporting up to 192GB
Supports Dual-Channel Memory Technology
Supports memory frequencies: XMP 4800/5600/6400/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7400(OC)/7600(OC)/8000(OC)/8200(OC)/8400(OC)/8600(OC)/8800(OC) MHz
- Display
- 1 x HDMI 2.0 port, supports up to 4K@120Hz resolution
1 x DP 1.4 port, supports up to 4K@120Hz resolution

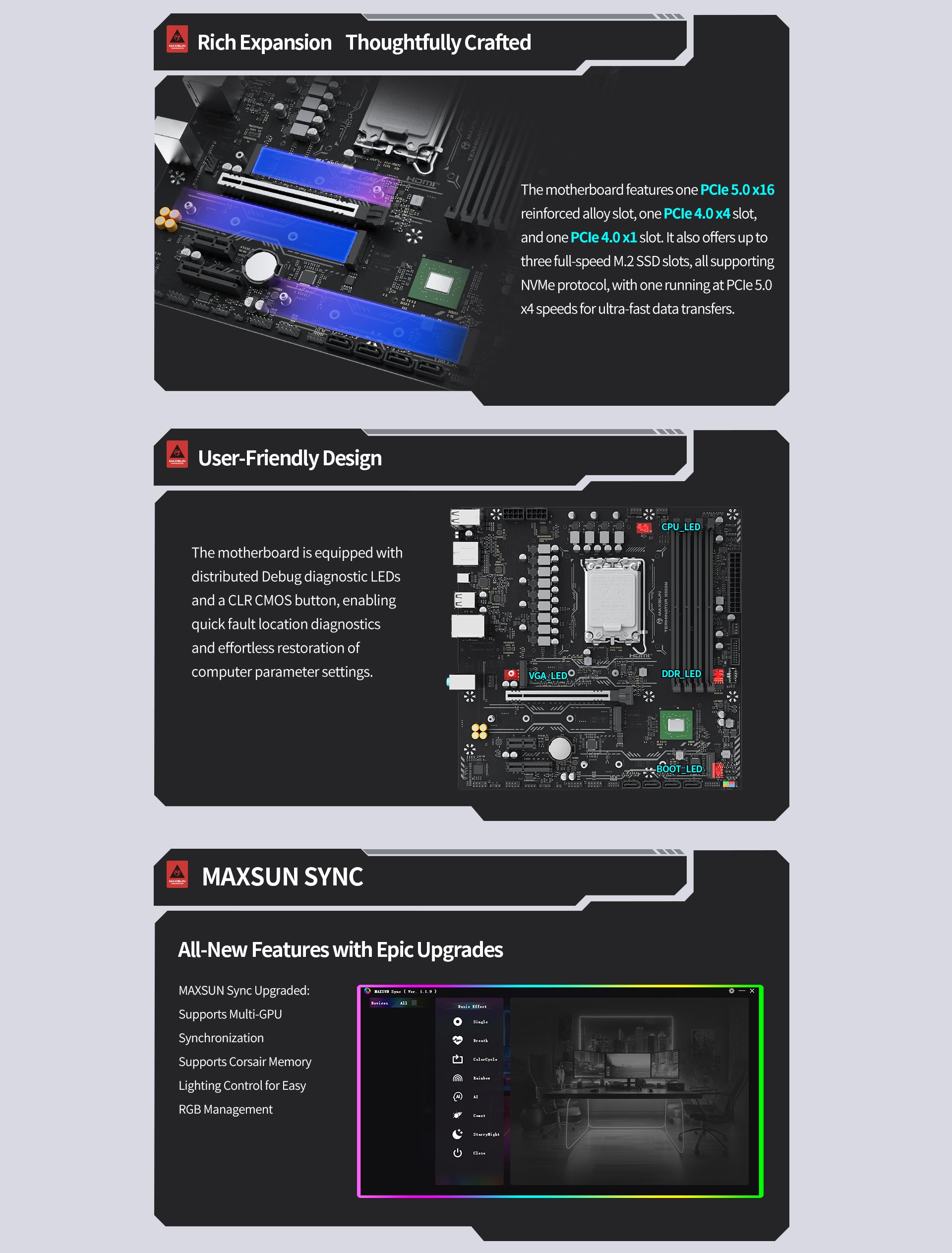

- Expansion Slots
- 1 x PCIe x16 slot (supports PCIe 5.0 x16 mode)
1 x PCIe x4 slot (supports PCIe 4.0 x4 mode)
1 x PCIe x1 slot (supports PCIe 4.0 x1 mode)
- Audio
- Integrated Realtek ALC897 audio codec
- Networking
- Integrated Realtek RTL8125BG Ethernet controller
1 x M.2 Wi-Fi slot (Key_E)
- Storage
- 1 x M.2 slot, supports PCIe 5.0 x4/x2 mode, supports 2242/2280 length
2 x M.2 slots, supports PCIe 4.0 x4/x2 mode, supports 2242/2280/22110 length
4 x SATA 6Gb/s connectors
- USB
- Onboard USB:
1 x USB 3.2 Gen2x2 Type-C® (20G) front port
1 x USB 3.2 Gen1 (5G) 19-pin header, supporting 2 additional USB 3.2 Gen1 ports
2 x USB 2.0 9-pin headers, supporting 4 additional USB 2.0 ports
Rear USB:
1 x USB 40G Type-C® port (supports up to 15W power delivery)
2 x USB 3.2 Gen2 Type-A (10G) ports
6 x USB 2.0 Type-A ports
- Other Features
- 1 x 24-pin ATX power connector
8+8-pin +12V power connector
2 x 3-pin ARGB headers
1 x 4-pin NRGB header
1 x COM port header
1 x CLR CMOS reset header
1 x 4-pin CPU FAN header
1 x 4-pin PUMP header (supports DC speed control)
2 x 4-pin SYS FAN headers for chassis fans
