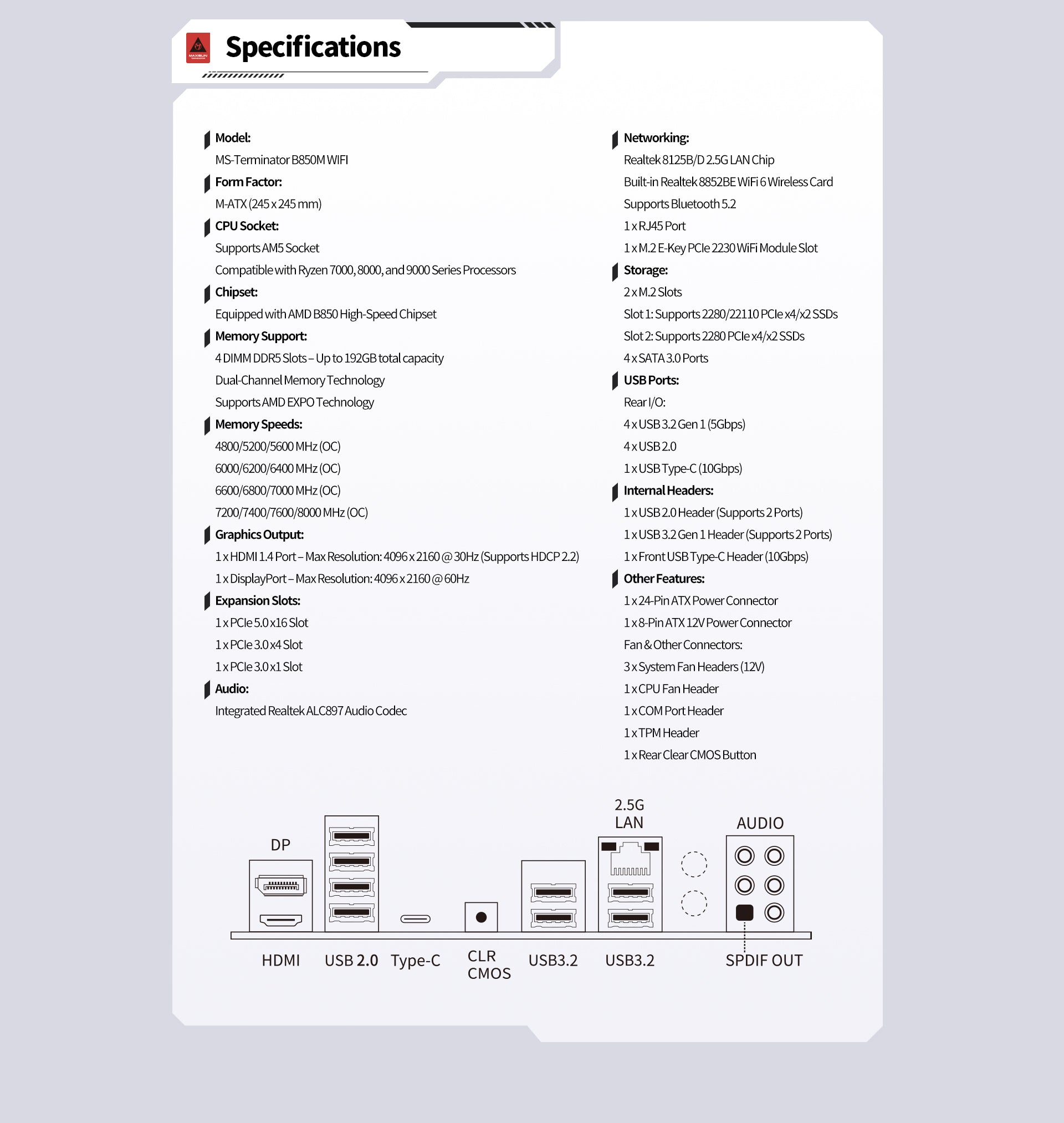

Compatible with AM5 socket for Ryzen 7000, 8000, and 9000 series processors.
Power Consumption
TDP range from 170W to 230W for optimal power efficiency.
Chipset
AMD® B850 High-Speed Chipset for superior performance and stability.

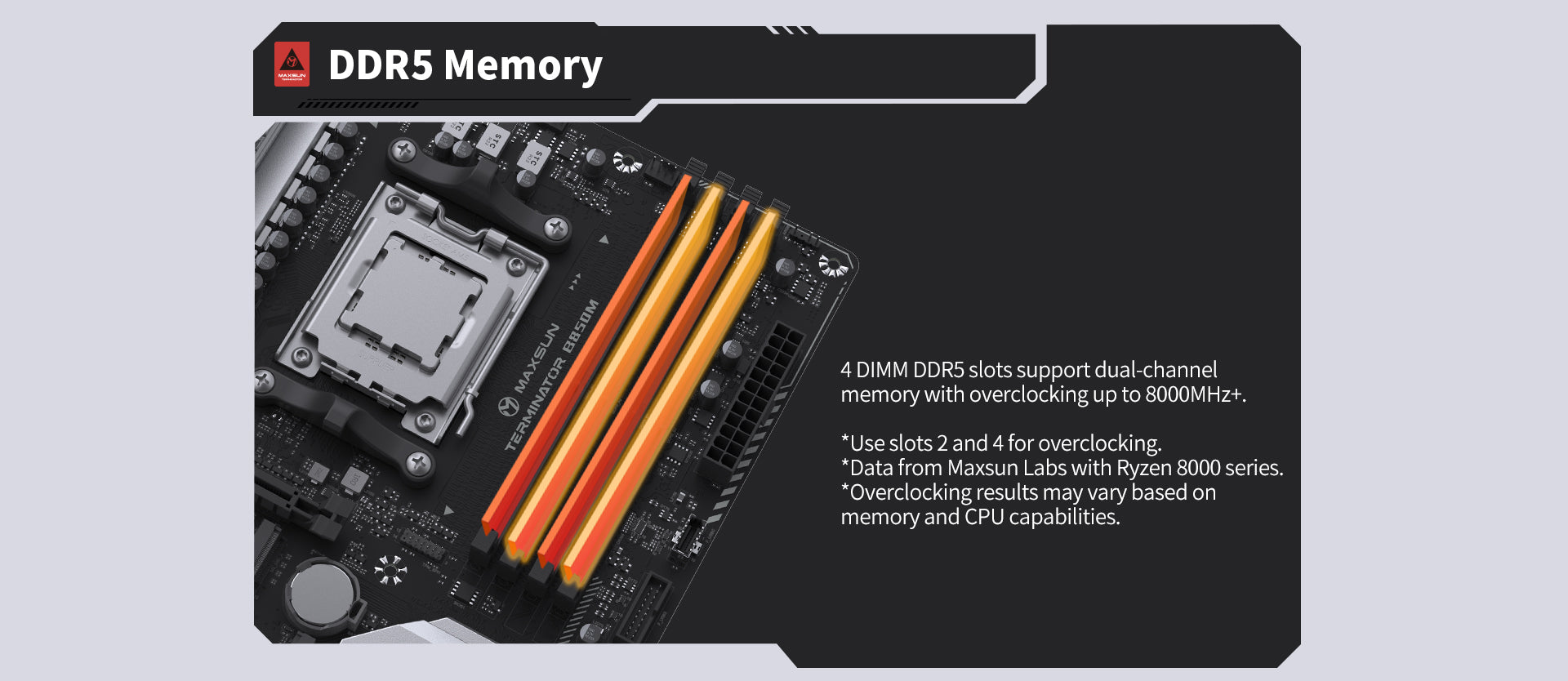

Memory Capacity
4 DIMM DDR5 slots, supporting up to 192GB with dual-channel memory and AMD EXPO technology.
Memory Frequency Support
Compatible with DDR5 speeds of up to 7600MHz (OC), with flexibility for overclocking at various frequency levels.
Integrated Graphics
Supports integrated graphics with shared memory, featuring HDMI 1.4 (up to 4096x2160@30Hz) and DP (up to 4096x2160@60Hz).

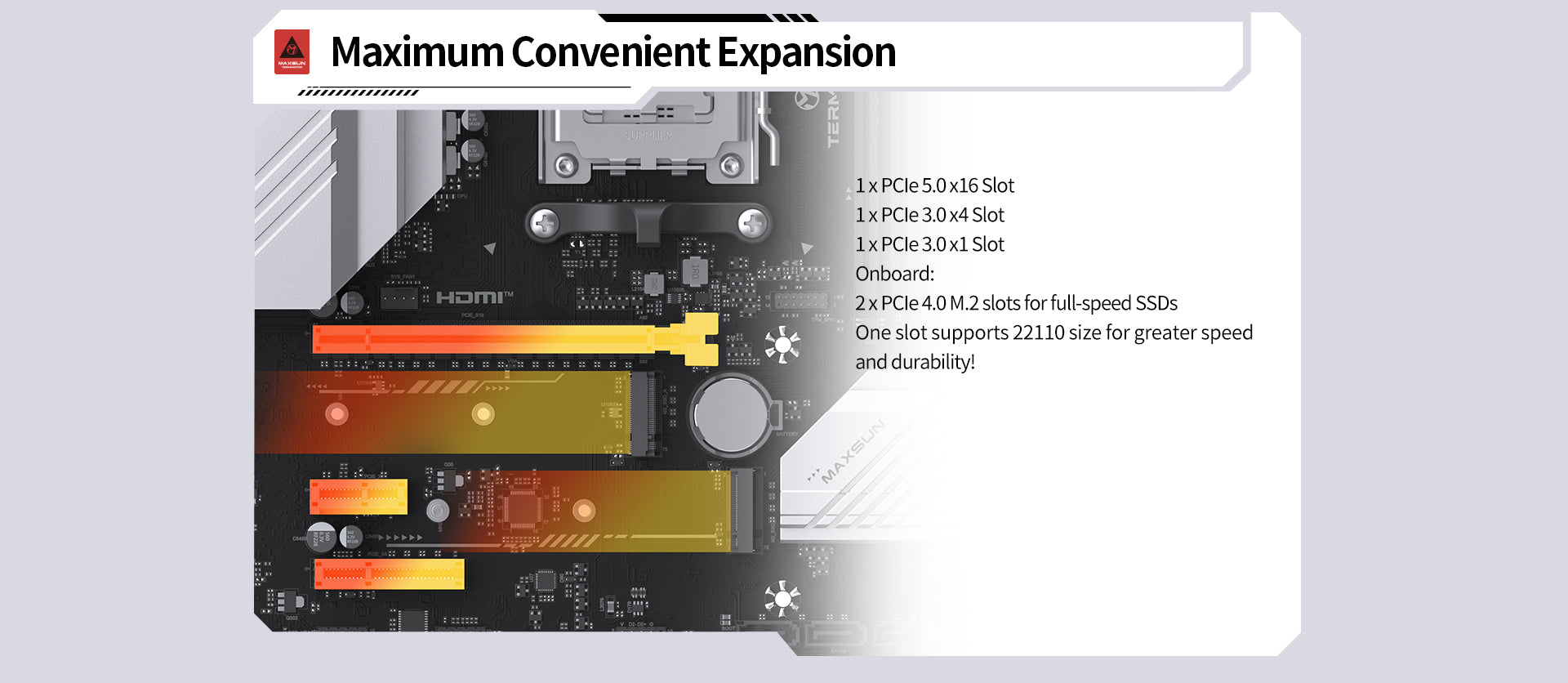

Expansion Slots
1 x PCIe 4.0 x16 slot 1 x PCIe 3.0 x4 slot 1 x PCIe 3.0 x1 slot
Audio
Integrated Realtek ALC897 sound with 6 audio outputs, including optical SPDIF_OUT.

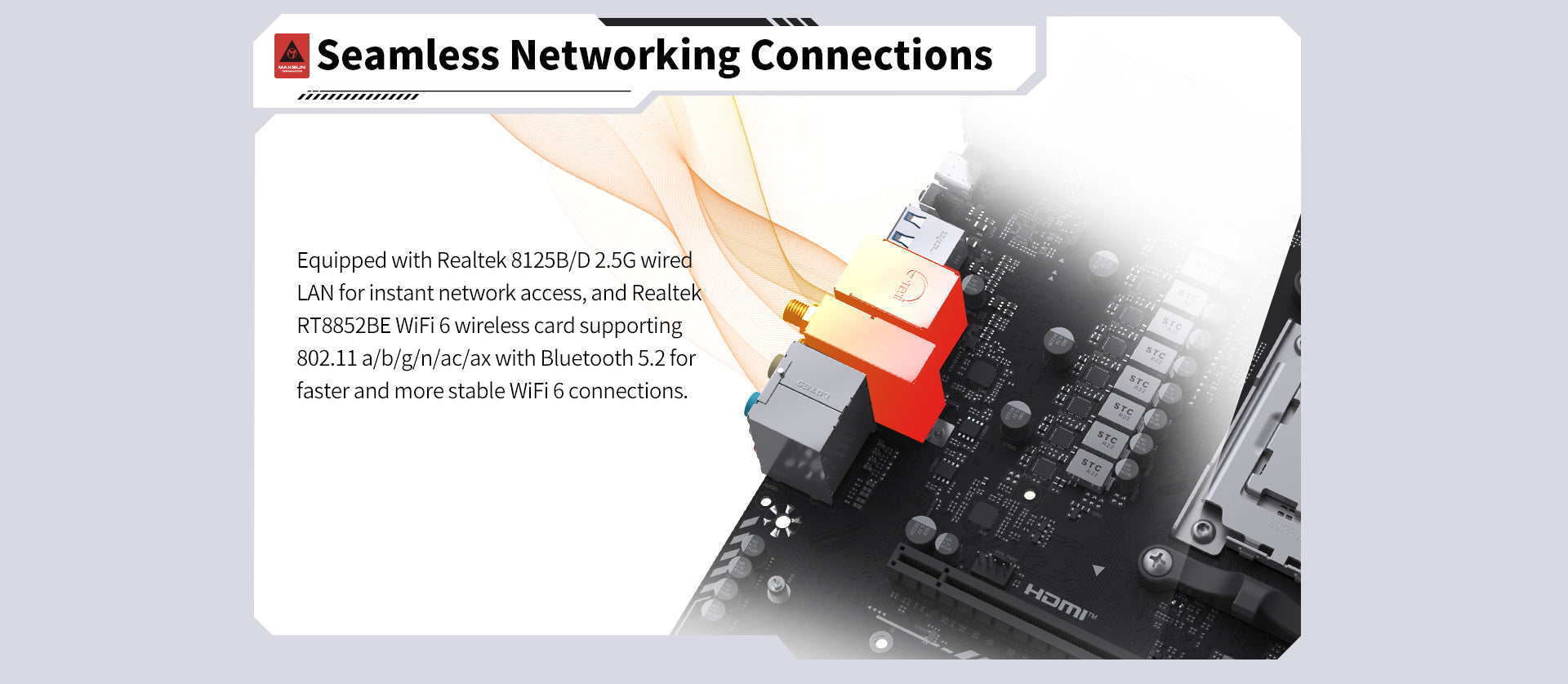

Networking
Realtek 8125B/D 10/100/1000/2500Mbit Ethernet Realtek 8852BE Wi-Fi 6 and Bluetooth 5.2
Storage
2 x M.2 slots for PCIe X4/X2 SSDs (supports 2280/22110/2280 sizes) 4 x SATA3.0 interfaces for additional storage.
USB Ports

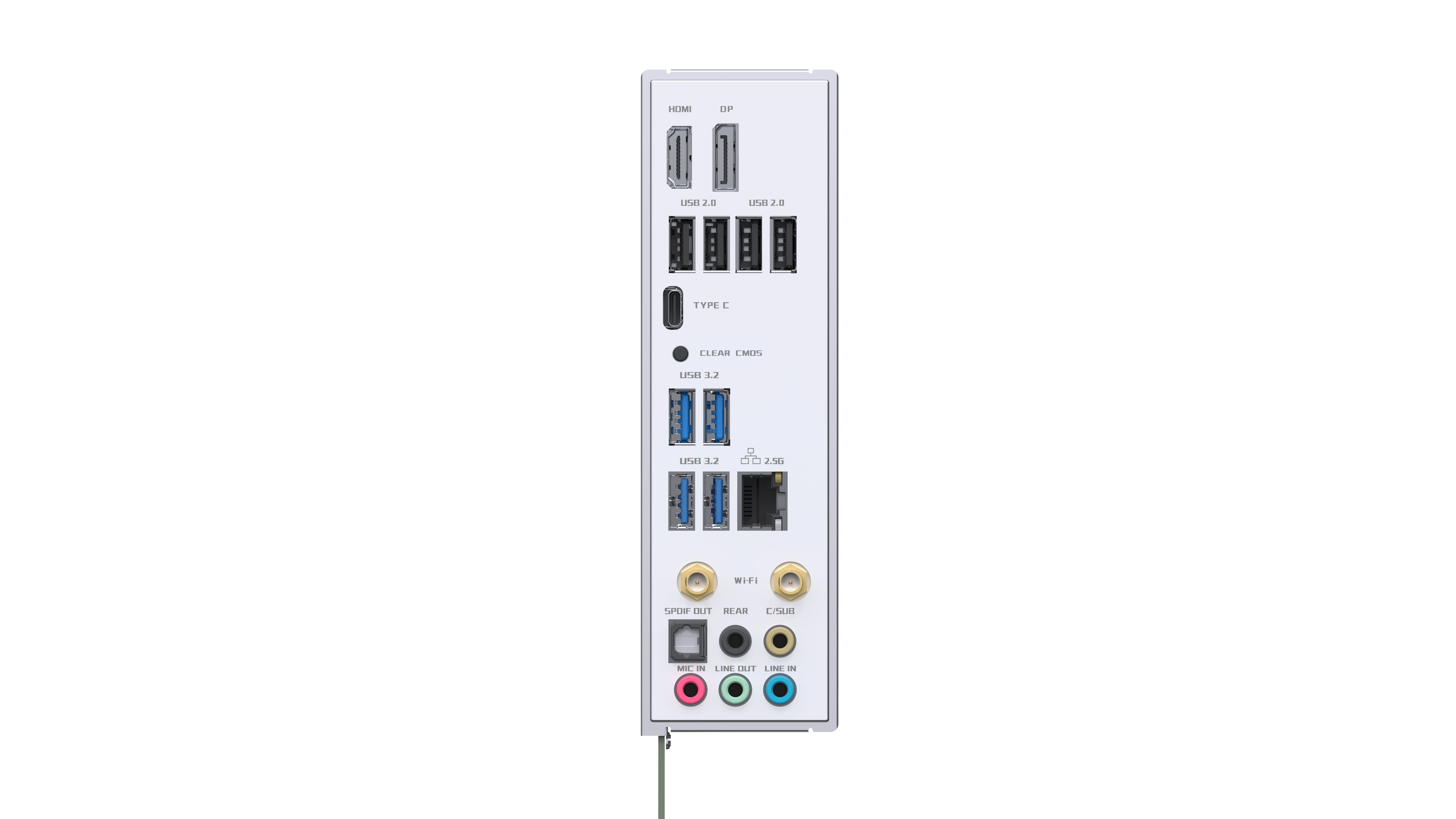

4 x USB 5G, 4 x USB 2.0, and 1 x USB Type-C (10Gbps) at the rear. 1 x Front USB Type-C (10Gbps) and additional internal USB headers.
Power & Cooling
24-pin ATX and 8-pin ATX 12V power connectors. 3 system fan headers and 1 CPU fan header for optimal cooling. Smart fan control for automatic fan speed adjustments.
OS Compatibility
Supports Windows 10/11 64-bit and Ubuntu 64-bit.
ESD Protection
High-level protection for your components with ±8KV air discharge and ±6KV contact discharge.
Additional Features
CLR_CMOS button, TPM header, and COM_A header for system management and upgrades.
