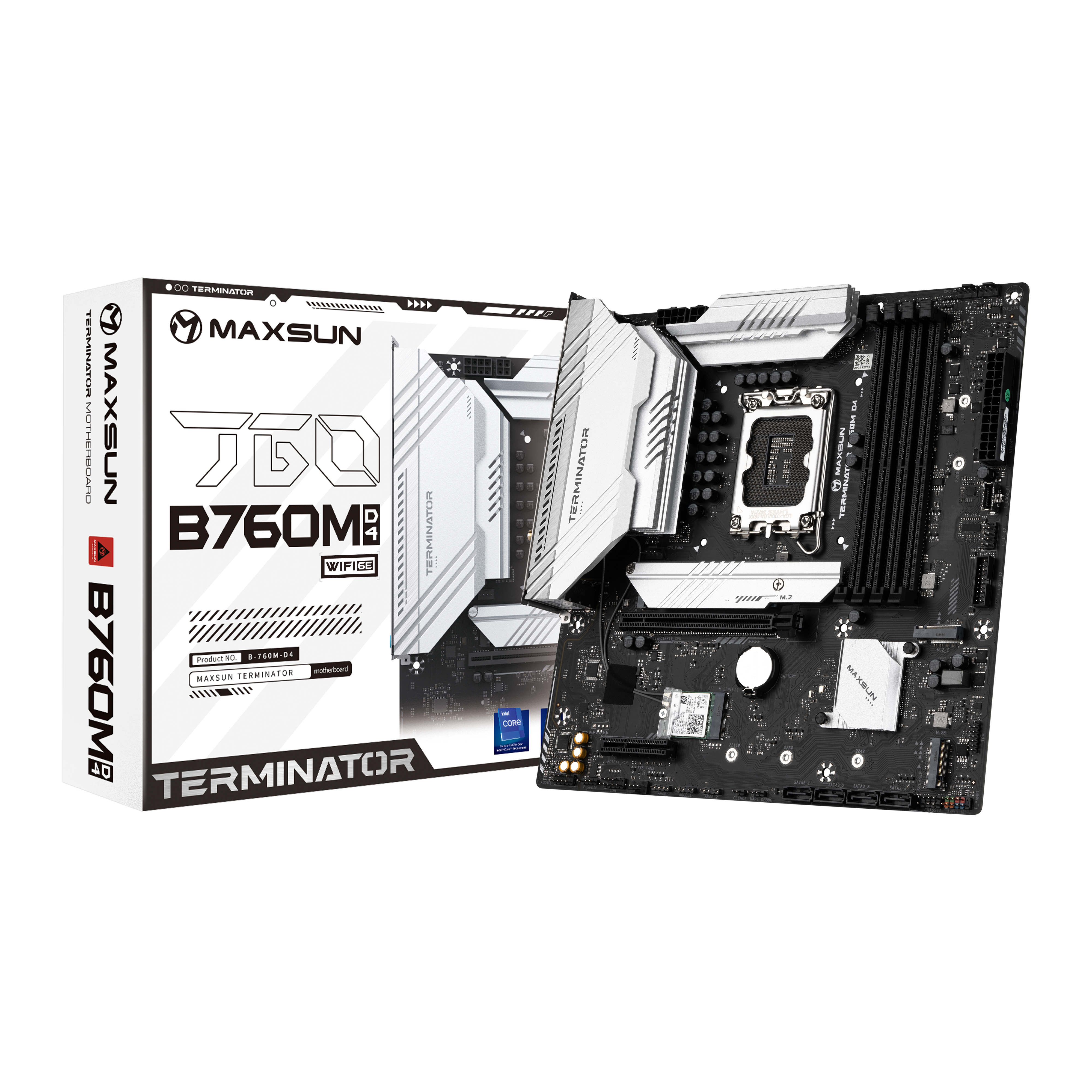

Terminator B760M D4 WIFI6E
- 10-phase core 50A Dr. Mos power supply
- 6-layer 2oz PCB to strengthen the power supply
- Alloy heat sink armor
- 3*M.2 SSD interface
- 2.5G NIC & WIFI6E
- Front 20G rate Type-C
Intel® Core™ 13th and
12th Gen (Socket LGA1700)
2.5G & WIFI6
3*M.2
4*SATA 3.0

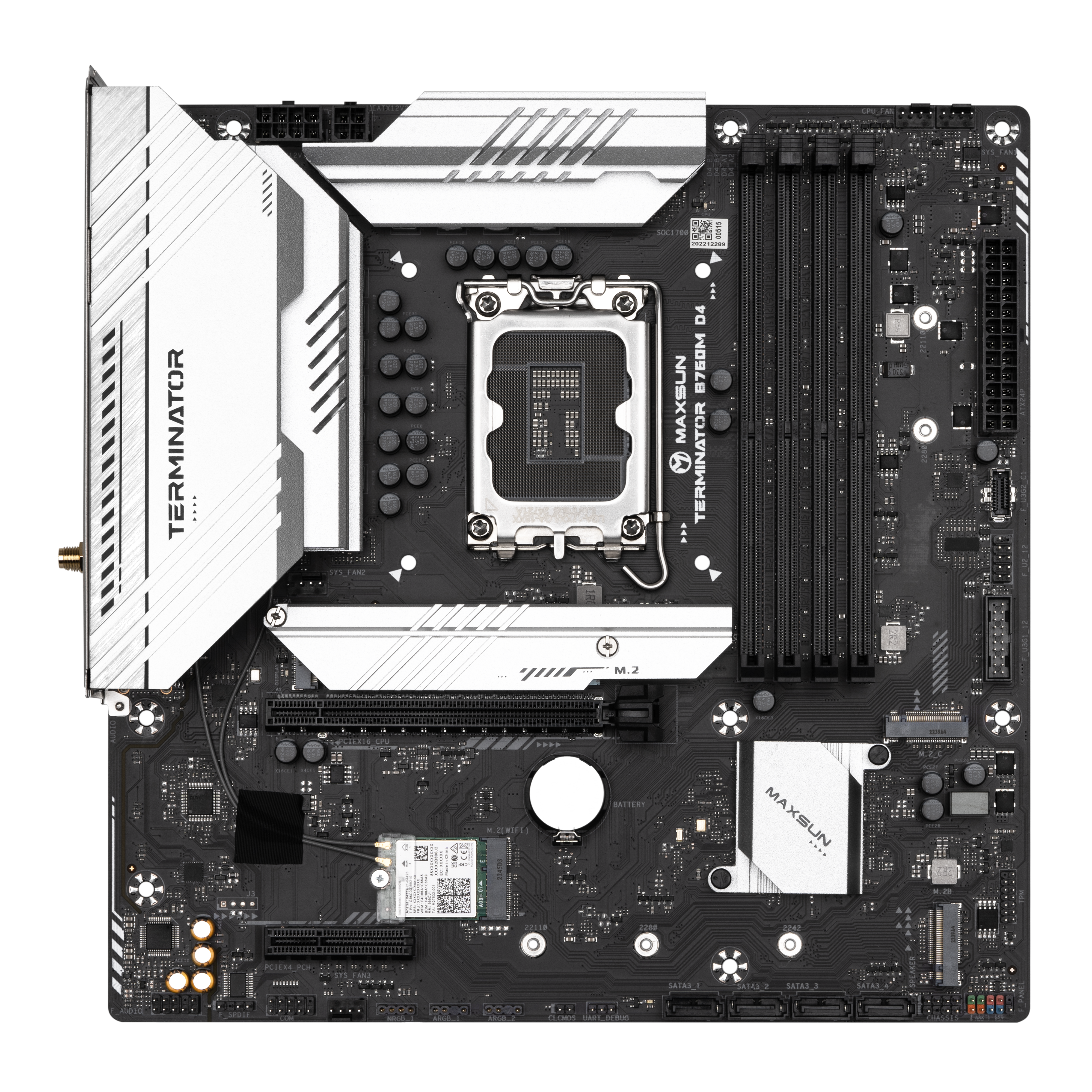

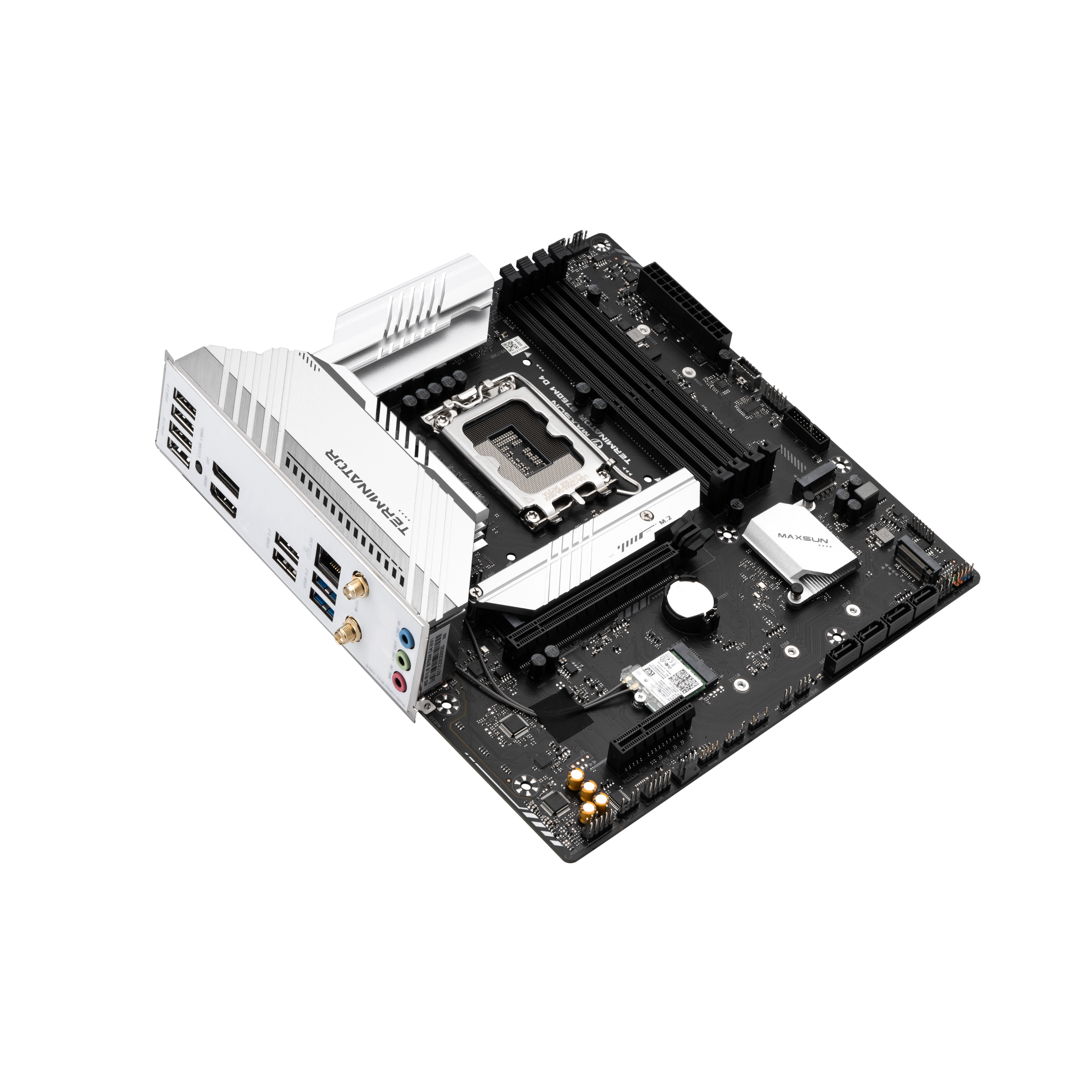

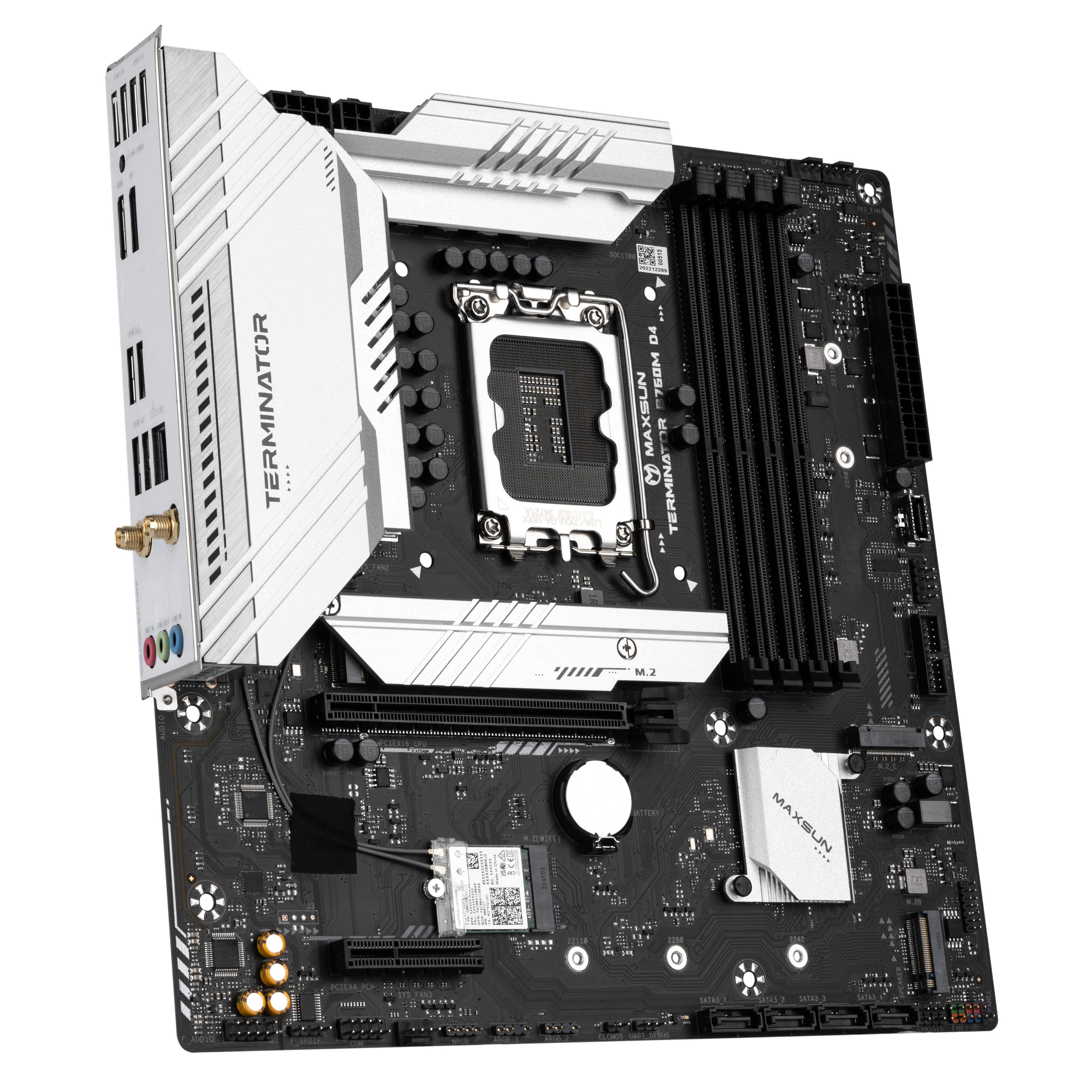

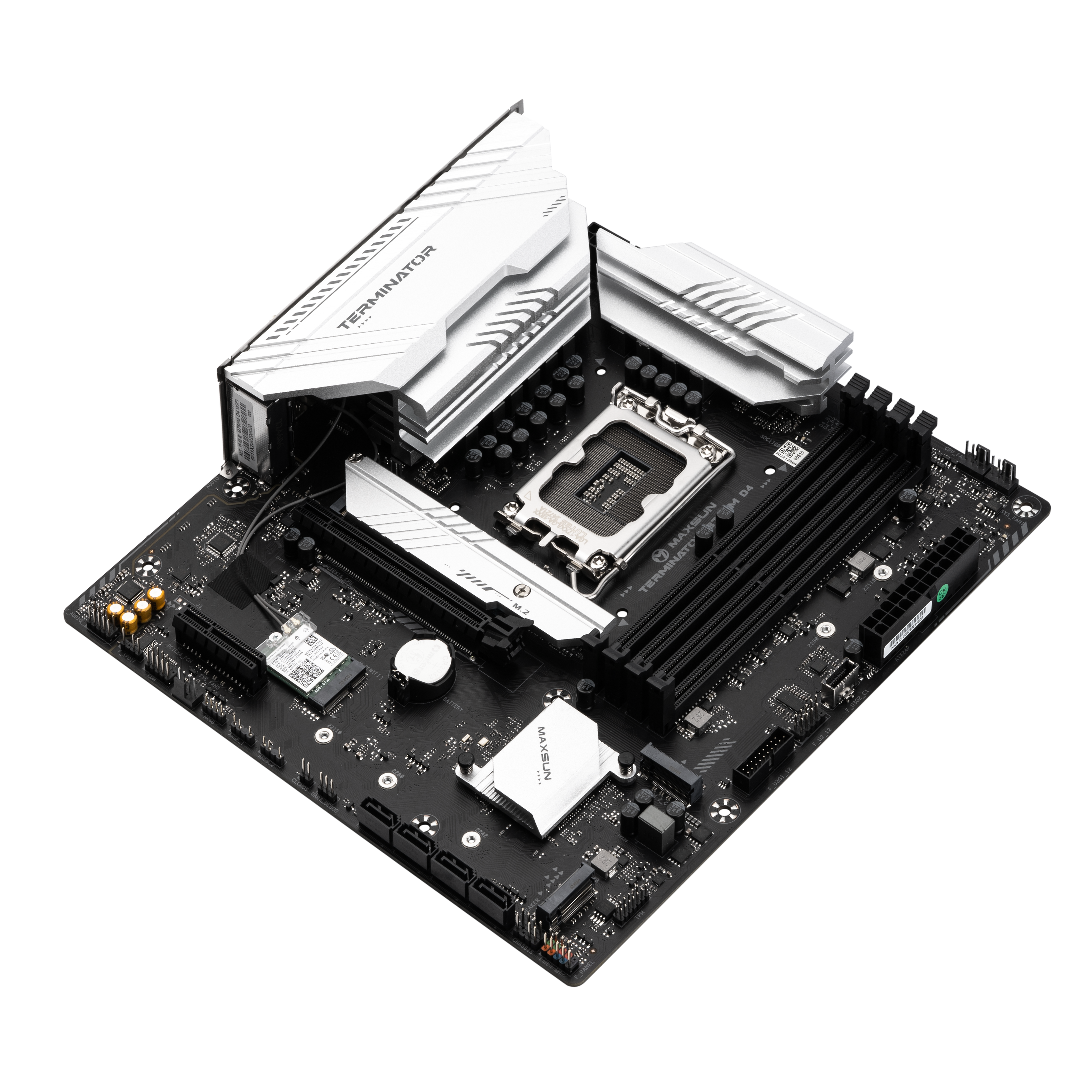

MS-Terminator B760M D4 WIFI6E
MATX Size :245*245mm
AX211 wireless network card
Wi-Fi6E,Bluetooth 5.2 support
Onboard distributed debug lights
I/O Clr-Cmos function keys
Strong experience.
2oz PCB
50A
Dr.Mos
SIC654
8+1+1
pahase
Front 20G Type-C
Support USB3.2 Gen2x2
20G rate
DDR4 RAM
DualChannel 4*DIMM
Support memory XMP 2400/2666/2933/3200Mhz/OC+
13th & 12th
Intel®Core™ LGA1700 support
Realtek ALC897 sound card
Realtek 8125 NIC
PWM Master
RT3628AE
Full speed PCIe4.0 x4 M.2
3*Nvme PCIe4.0 x4 SSD slot
Stable Power Supply
10-phase power supply
& integrated Dr.Mos
& integrated Dr.Mos
Using 8+1+1 phase power supply, through the RT3628AE PWM main control chip and the 50A Dr.Mos equipped with each phase of the core, it can stably release the heterogeneous performance of the 13th generation Core, bringing an excellent performance experience.
8+1+1 phase
power supply
50A
Dr.Mos
RT3628AE PWM
main control chip
Stable cooling
Extended
Alloy Thermal Armor
The silver alloy heat dissipation armor covers the MOS and inductor of the power supply part, and high-quality heat-conducting silicon strips are used between the contact surfaces, and the performance of the 13th generation Core processor is released stably.
Strong Scalability
The motherboard provides up to 3 full-speed M.2 hard disk interfaces, all of which are PCIe4.0 x4 rate and support the NVMe protocol.
High Speed Internet
Front 20G rate Type-C interface
& 2.5G network card
& 2.5G network card
The motherboard provides a next-generation front USB3.2 Gen2x2 Type-C interface, with a theoretical transmission speed of up to 20Gbps; a built-in 2.5G network card faster and more stable. M.2 WIFI slot supports PCIe & USB & CNVi Protocols.
- CHIPSET
- INTEL B760
- CPU
- Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
- MEMORY
- 4x DDR4, Maximum Memory Capacity 128GB
Memory Support DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz
Supports Intel® XMP 2.0 OC
Supports Dual-Controller Dual-Channel mode
- ONBOARD GRAPHICS
- 1x DisplayPort 1.4
1x HDMI™port
*HDMI™ port supports up to 4K@30Hz
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- EXPANSION SLOT
- 1x PCIe 5.0 x16 slot
1x PCIe 3.0 x4 slot
- STORAGE
- M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
- RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- USB
- *Front USB (Total 5 ports)
1x USB 3.2 Gen2x2 Type C
2x USB 3.2 Gen1 Type A
2x USB 2.0

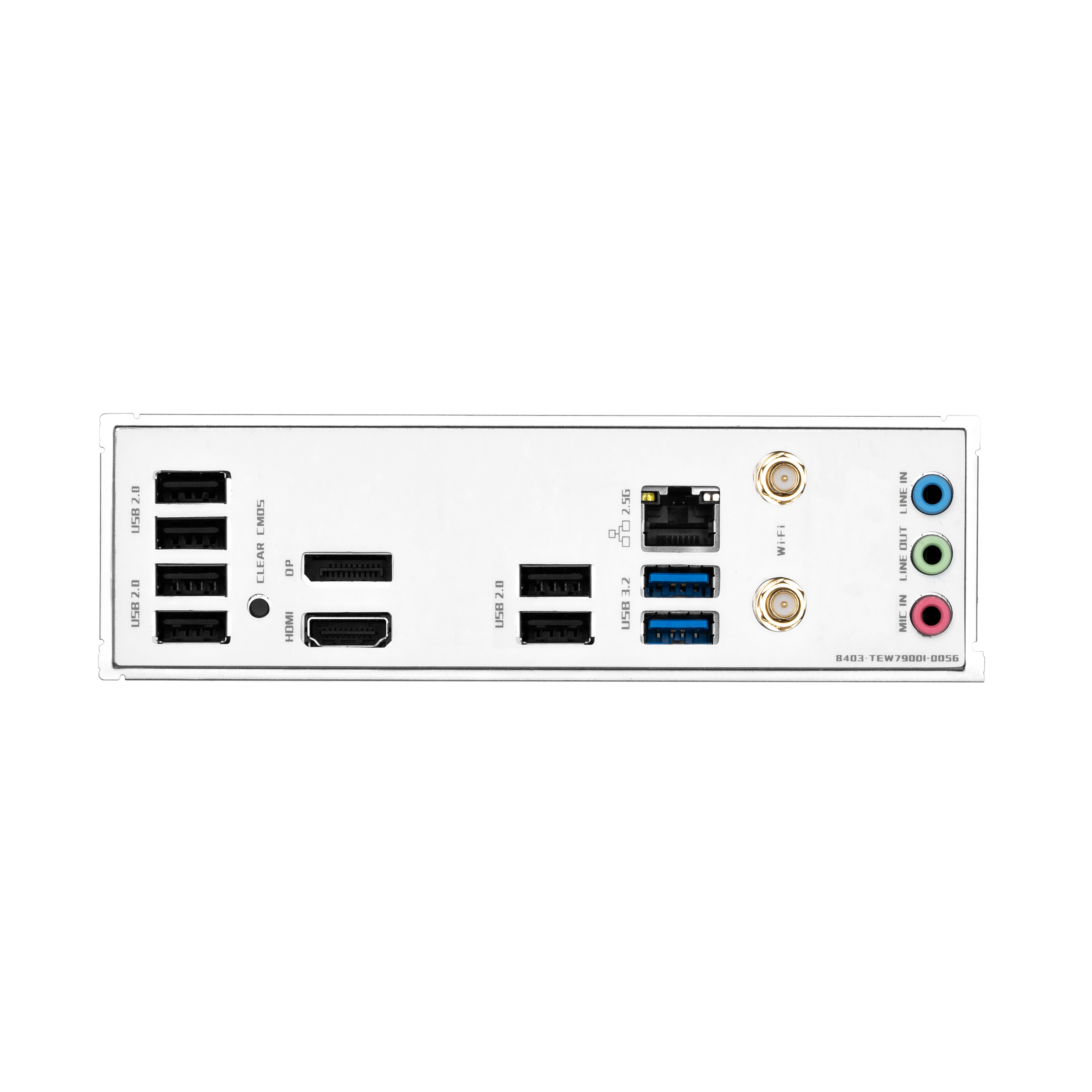

*Rear USB (Total 8 ports)
2x USB 3.2 Gen1 Type A
6x USB 2.0
- LAN
- Realtek® RTL8125BG 2.5G LAN
- WIRELESS / BLUETOOTH
- Intel® Wi-Fi 6E AX211
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3
- AUDIO
- Realtek® ALC897 Codec
5.1-Channel High Definition Audio
- INTERNAL I/O
- 1x 24-pin Power Connector(ATX_PWR)
1x 8+4-pin Power Connector(CPU_PWR)
1x CPU Fan
3x System Fan
3 x M.2 slots (Key-M)
4x SATA 6Gb/s ports
2x 5V 3-Pin ARGB
1x 12V 4-Pin RGB
1x Clear CMOS
1x 4-Pin SPEAKER
1x Front Audio
1x M.2 slots (Key-E)
1x COM_A Port
1x TPM pin header(Support TPM 2.0)
- LED FEATURE
- 4x Distributed Debug LED
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- FORM FACTOR
- M-ATX
245mm x 245mm
