MAXSUN

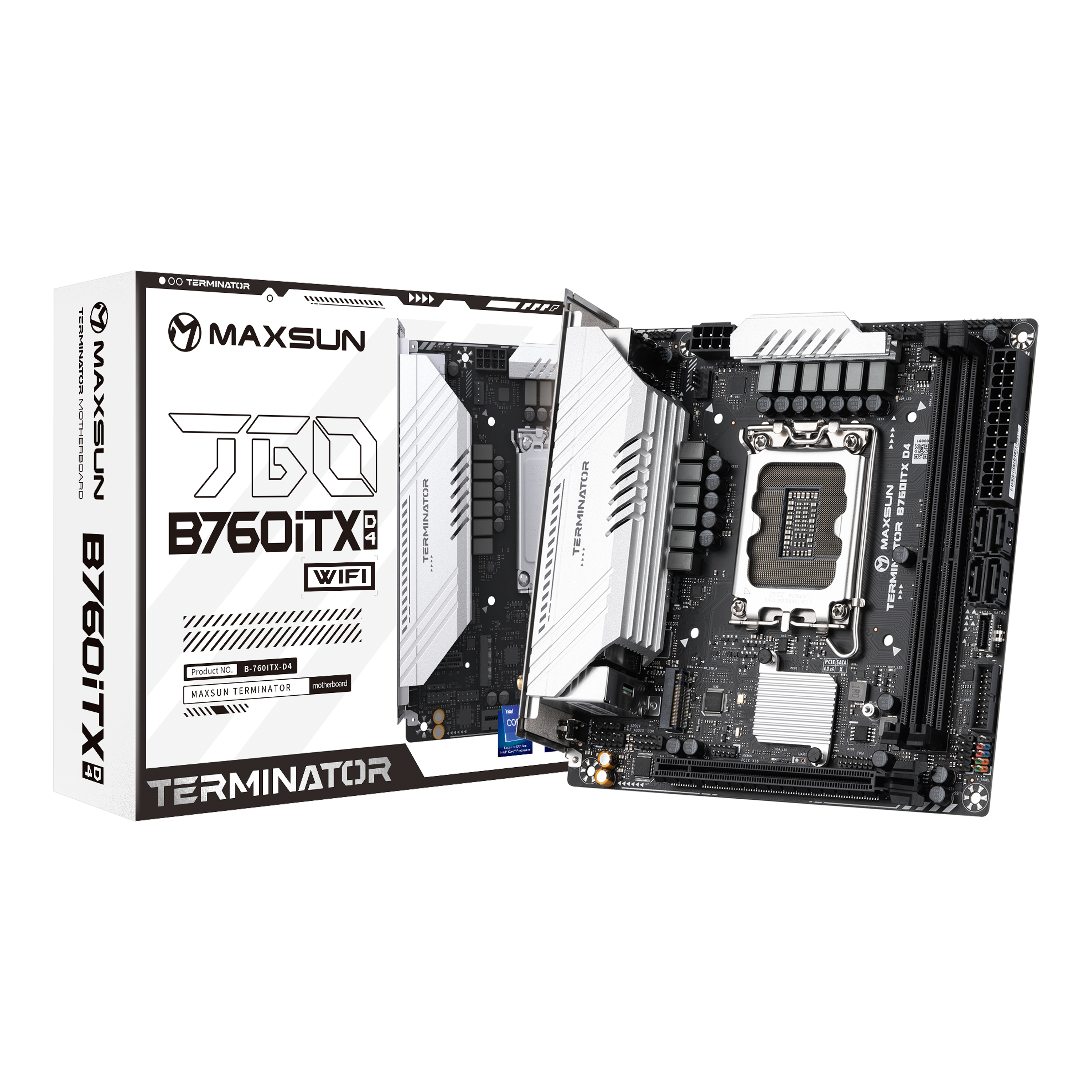

Terminator B760ITX D4 WIFI

  • 8+1+2 power supply
  • Core 60A Dr. Mos
  • Dual Type-C front and rear
  • Dual M.2 hard drive interface
  • 2.5G & WIFI6E network port
REQUEST A QUOTE

你也许也喜欢

Overview
Specification
Support

Strongperformance

Excellentextension

Fastnetwork

8+1+2 power supply &
Core 60A Dr. Mos

Front and rear dual Type-C
Dual M.2 hard disk interface

2.5G & WIFI6E

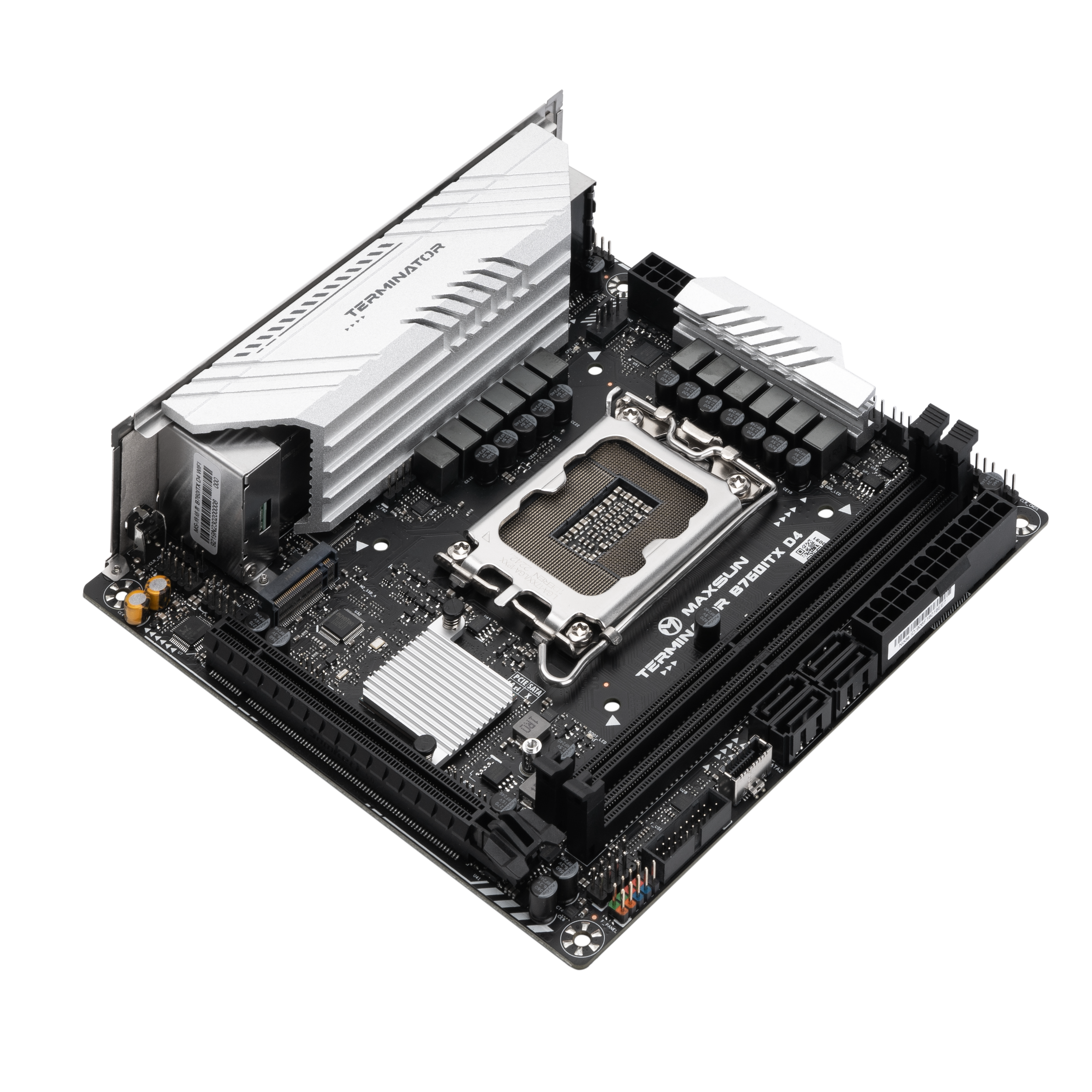

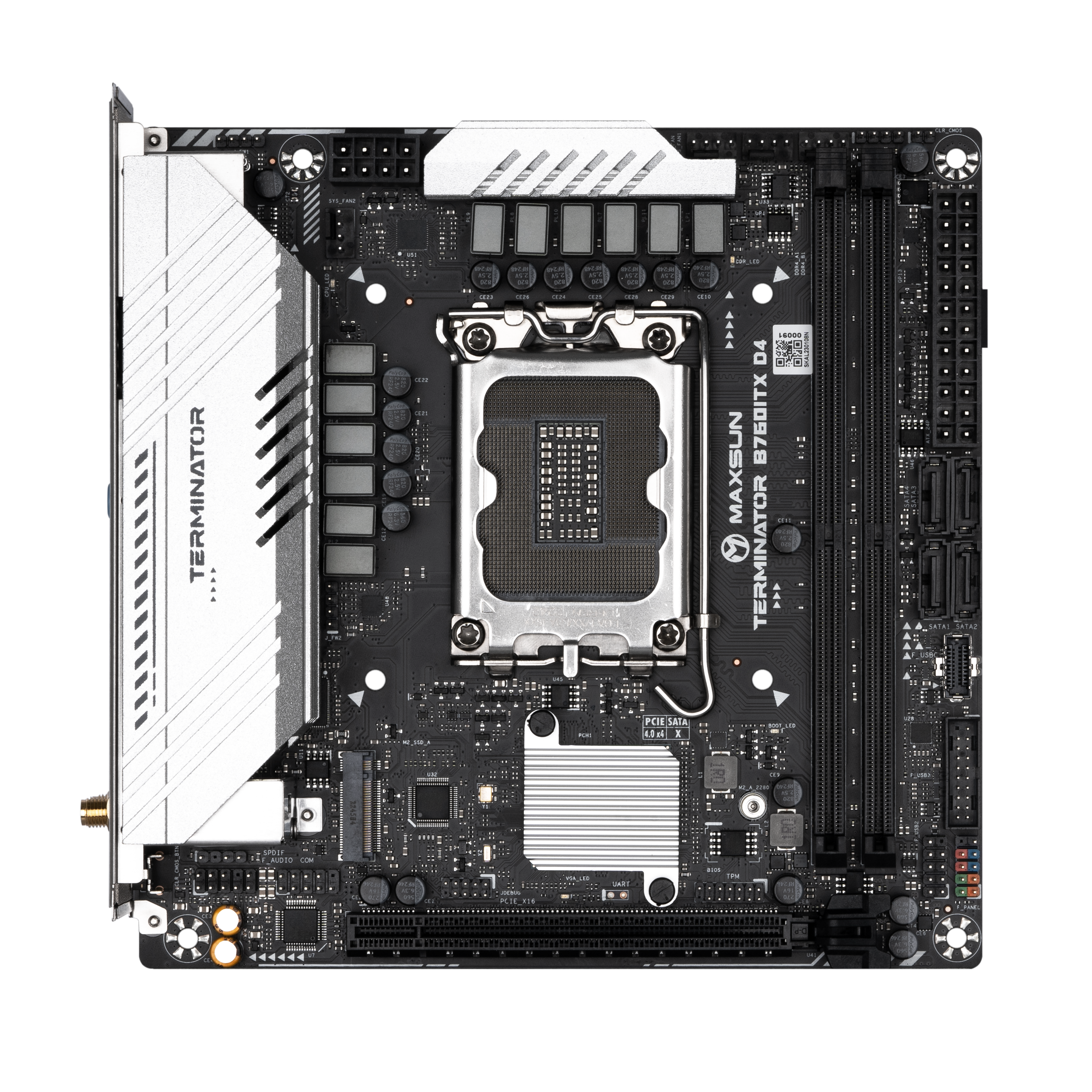

  • MS-Terminator B760ITX D4 WIFI

    ITX Size: 170*170mm

  • WI-FI6E wireless network card

    Equipped with IntelAX211 wireless
    network card

  • PWM master

    MP2960

  • PL1 200W
    PL2 253W

    Small size can do a lot

  • 60A
    Dr.Mos

    MP86945

  • 8+1+2
    phase

    Power

  • Front and rear
    dual Type-C

    Rear USB3.2 Gen2x2 20G rate
    Front USB3.2 Gen15G rate

  • Humanized design

    Distributed Debug lights
    CLR_CMOS function keys

  • DDR4 memory

    Dual channel 2*DIMM
    Support XMP 2400/2666/2933/3200Mhz/OC+

  • 13th & 12th

    Intel®Core™ LGA1700 support

  • Realtek
    ALC897 sound card
    8125 NIC

  • Dual PCle4.0x4M.2

    Both the front and the back are
    full-speed interfaces

    • Strong power supply

    11-phase power supply
    & integrated Dr.Mos

    Using 8+1+2 phase power supply design, the model is MP2960 PWM main control chip, the core part is 60A Dr.Mos per phase, allowing the small body to emit large energy and fully release the full performance of the 13th generation Core

    8+1+2 phase
    power supply

    60A
    Dr.Mos

    MP2960
    PWM

    Stable cooling

    High efficiency

    Alloy Thermal Armor

    Hao silver alloy heat dissipation armor covers the power supply part. High-quality heat-conducting silicon strips are used between the MOS and the inductor contact surface to help the performance of the 13th generation Core processor be released stably.

    Expand excellent

    Dual M.2 & Dual Type-C

    Dual M.2 hard disk interfaces, both front and back interfaces are PCle4.0x4 protocol, both are full speed, and both support NVMe protocol.

    Fast network

    2.5G wired network card & WIFI6
    wireless network card

    The motherboard has a built-in 2.5G wired network card, which is faster and more stable. At the same time, it is equipped with a standard WIFI6E wireless network card, which supports 2.4, 5, and 6GHz frequency bands

    Humanized design

    Distributed Debug lights
    & CLR CMOS buttons

    The mainboard is equipped with distributed Debug lights and CLR_CMOS buttons, which are widely loved by players. The former can help players quickly diagnose the faulty parts of the mainboard, and the latter can quickly restore the computer's parameter settings.

    CPU Debug light

    Memory Debug light

    System Debug light

    Graphics card Debug light

    CLR_CMOS button

    • CHIPSET
    • INTEL B760
    • CPU
    • Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
      LGA 1700
    • MEMORY
    • 2x DDR4, Maximum Memory Capacity 64GB
      Memory Support DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz
      Supports Intel® XMP 2.0 OC
      Supports Dual-Controller Dual-Channel mode
    • ONBOARD GRAPHICS
    • 1x DisplayPort 1.4
      1x HDMI™port
      *HDMI™ port supports up to 4K@30Hz
      *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    • EXPANSION SLOT
    • 1x PCIe 5.0 x16 slot
    • STORAGE
    • M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
      M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
      4 x SATA 6Gb/s ports
    • RAID
    • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    • USB
    • *Front USB (Total 5 ports)
      1x USB 3.2 Gen1 Type C
      2x USB 3.2 Gen1 Type A
      2x USB 2.0
      *Rear USB (Total 9 ports)
      1x USB 3.2 Gen1 Type C
      4x USB 3.2 Gen1 Type A
      4x USB 2.0
    • LAN
    • Realtek® RTL8125BG 2.5G LAN
    • WIRELESS / BLUETOOTH
    • Intel® Wi-Fi 6E AX211
      The Wireless module is pre-installed in the M.2 (Key-E) slot
      Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
      Supports 802.11 a/ b/ g/ n/ ac/ ax
      Supports Bluetooth® 5.3
    • AUDIO
    • Realtek® ALC897 Codec
      5.1-Channel High Definition Audio
    • INTERNAL I/O
    • 1x 24-pin Power Connector(ATX_PWR)
      1x 8-pin Power Connector(CPU_PWR)
      1x CPU Fan
      1x PUMP Fan
      2x System Fan
      2 x M.2 slots (Key-M)
      4x SATA 6Gb/s ports
      1x CLR_CMOS
      1x 4-Pin BUZZER
      1x Front Audio
      1x COM Port
      1x 9-Pin JDEBUG
      1x TPM pin header(Support TPM 2.0)
      1x 3-Pin SPDIF
    • LED FEATURE
    • 4x Distributed Debug LED
    • OPERATING SYSTEM
    • Support for Windows® 11 64-bit, Windows® 10 64-bit
    • FORM FACTOR
    • ITX
      170mm x 170mm
