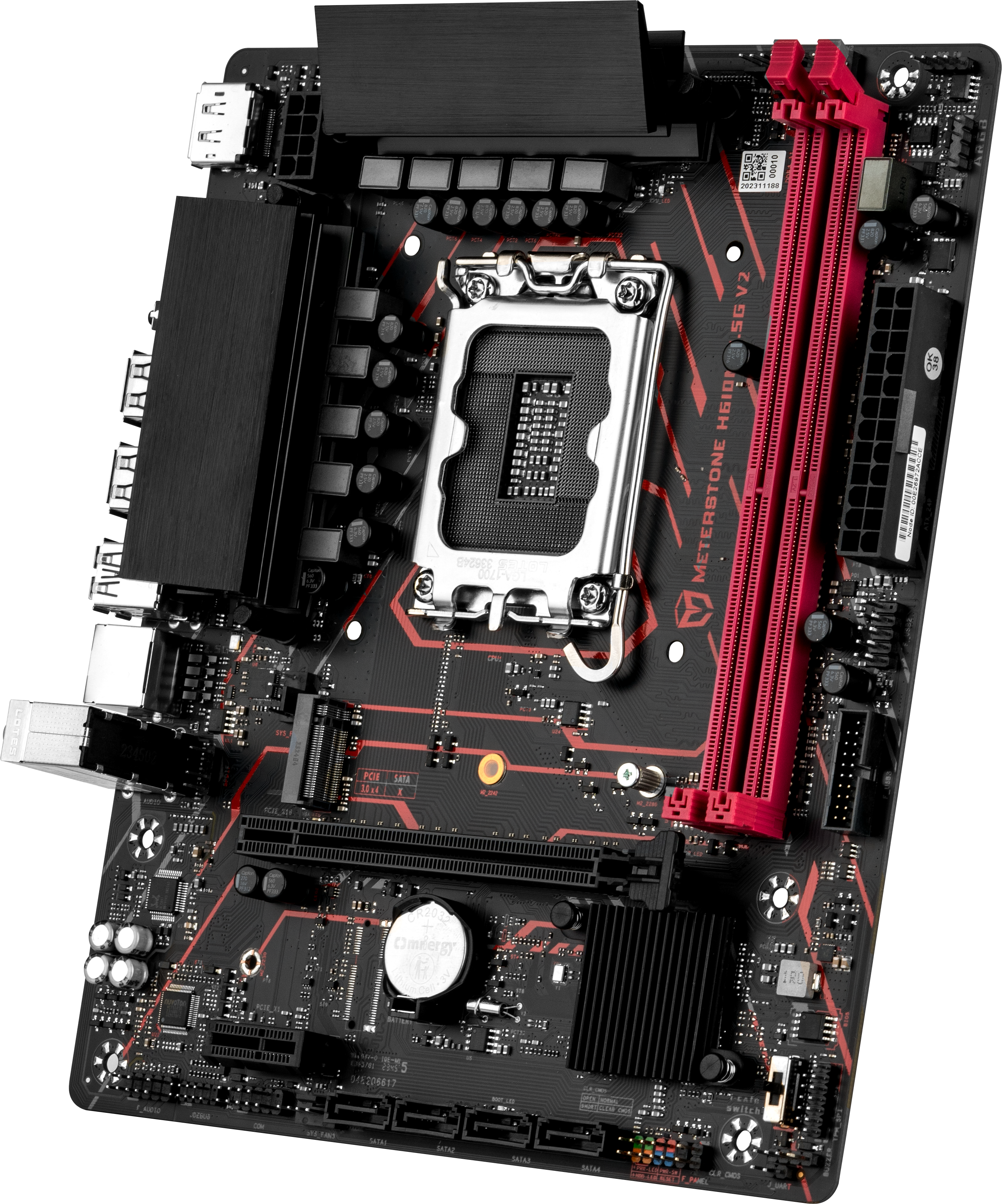

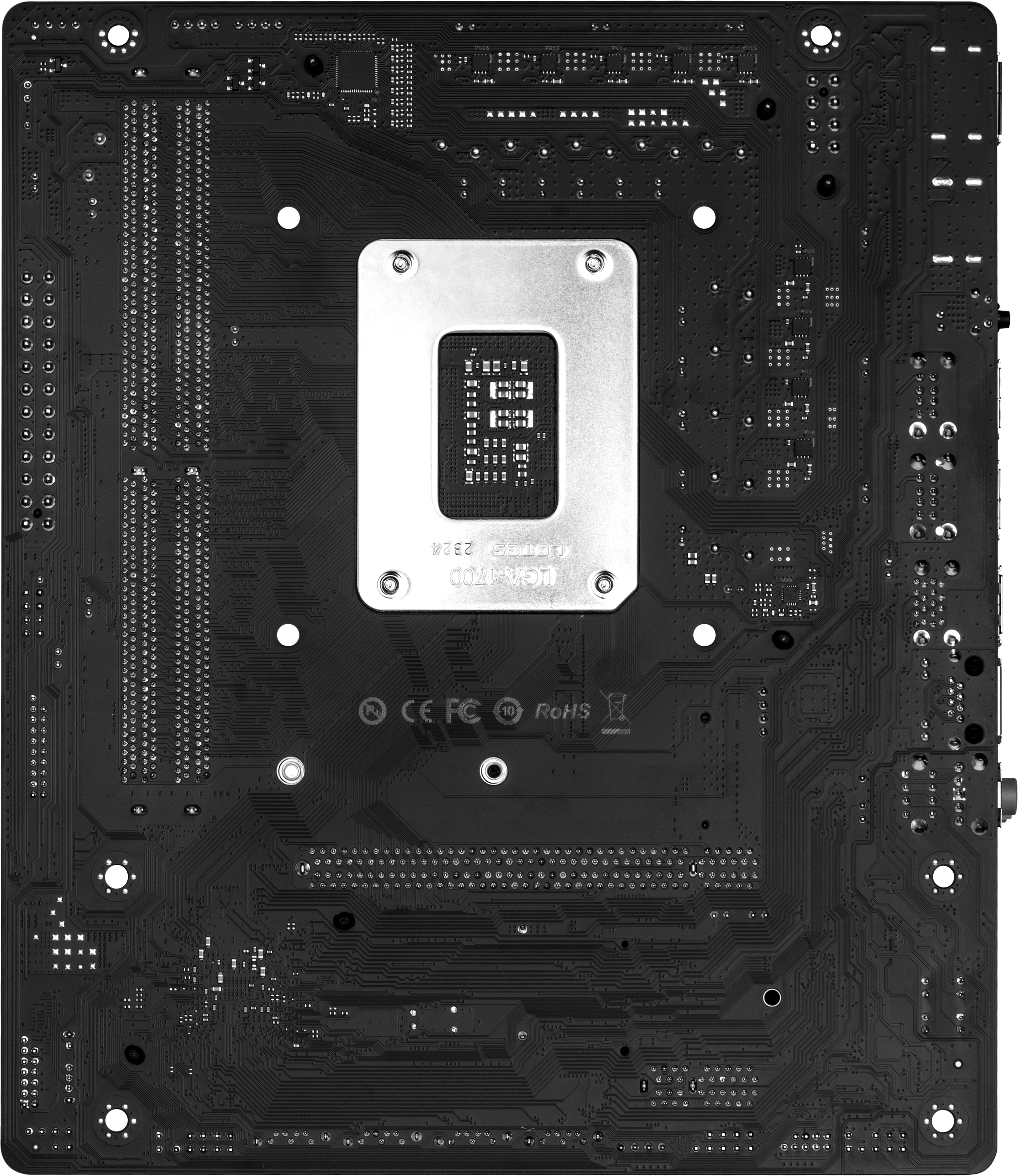

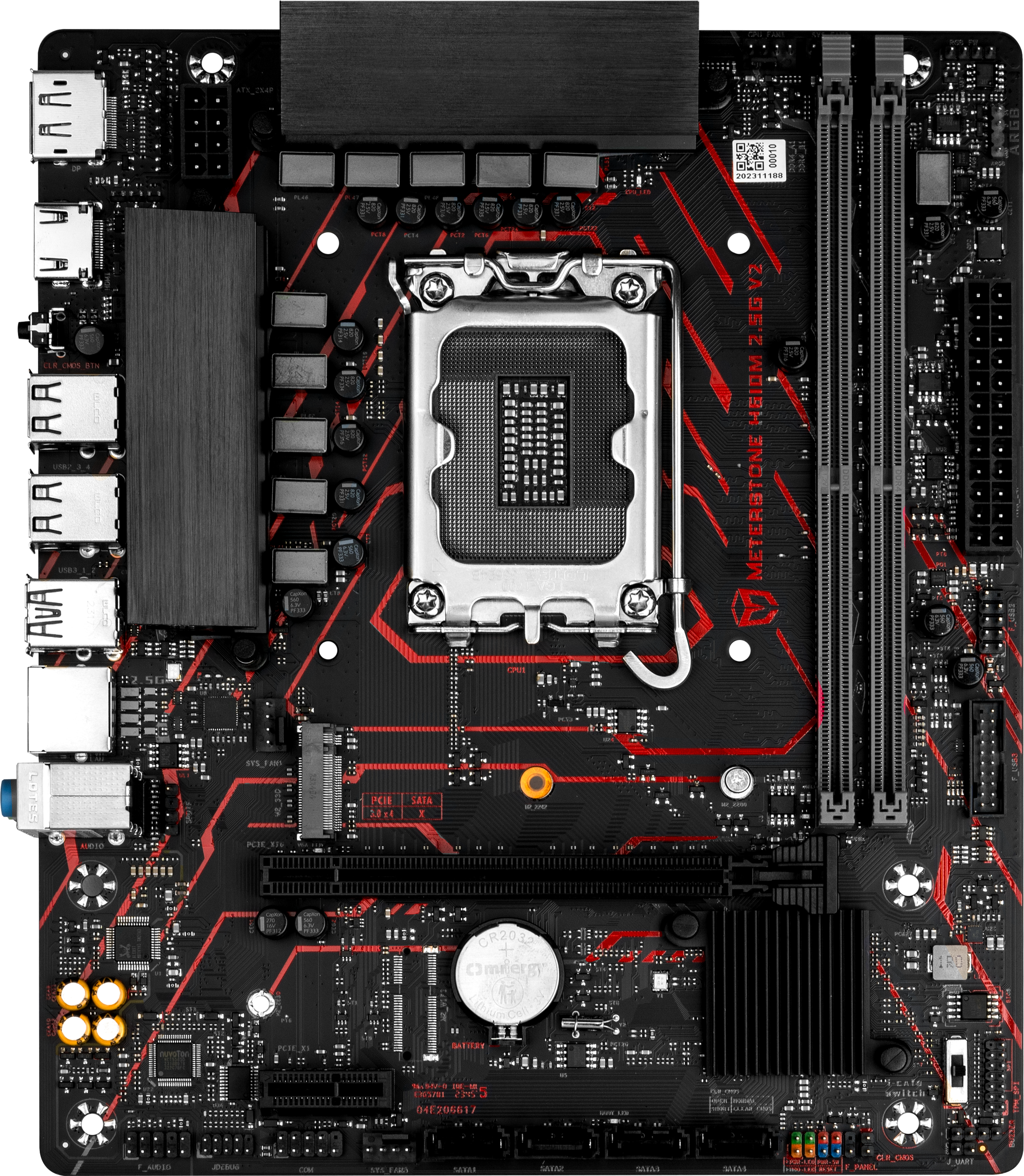

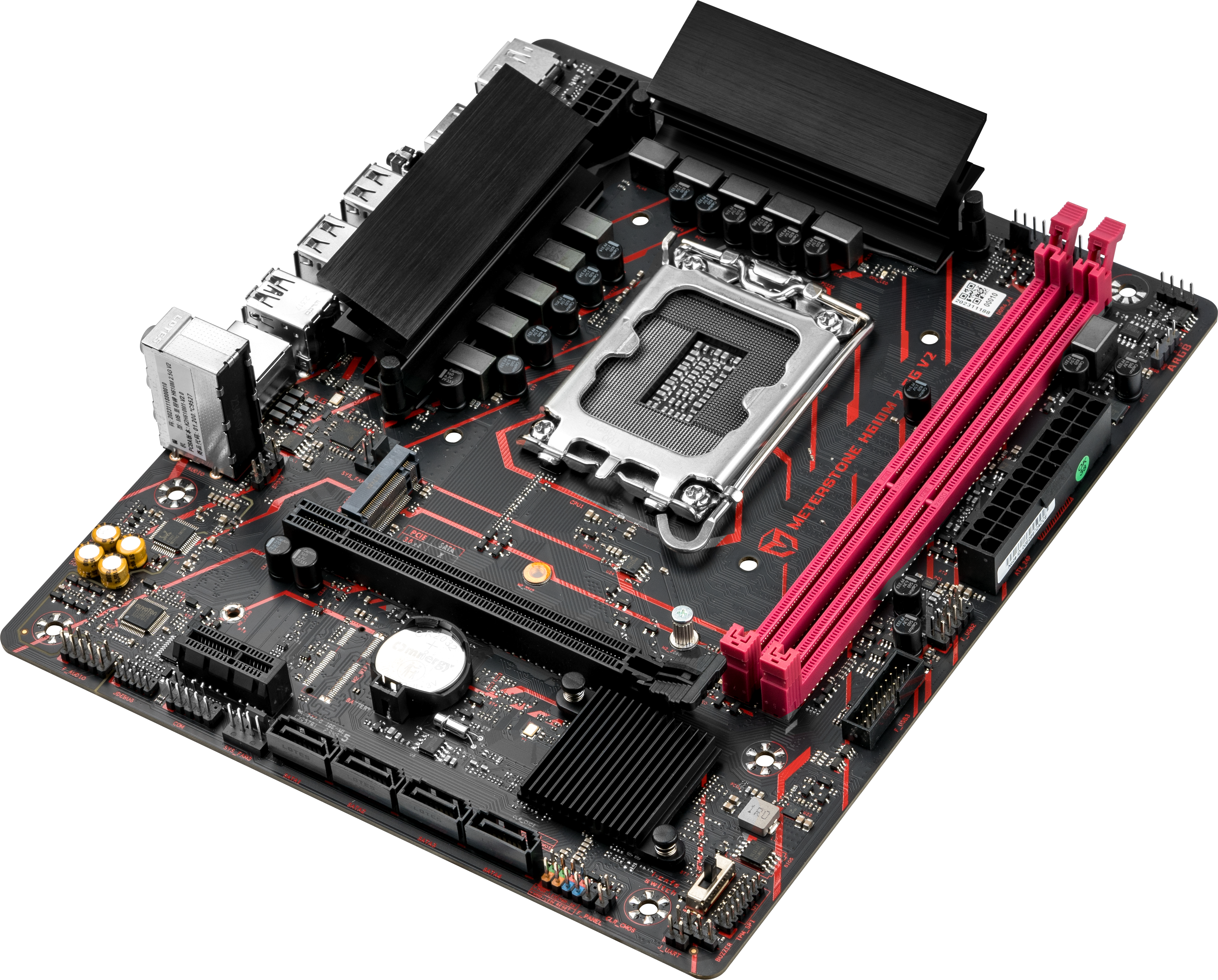

Milestone H610M 2.5G

• CHIPSET
• INTEL H610

• CPU
• Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
  LGA 1700

• MEMORY
• 2x DDR4, Maximum Memory Capacity 64GB
  Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz
  Supports Intel® XMP 2.0 OC
  Supports Dual-Controller Dual-Channel mode

• ONBOARD GRAPHICS
• 1x DisplayPort 1.2
  1x HDMI™port
  *HDMI™ port supports up to 4K@30Hz
  *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

• EXPANSION SLOT
• 1x PCIe 4.0 x16 slot
  1x PCIe 3.0 x1 slot

• STORAGE
• M.2 slot (Key M), type 2242/2280 (supports PCIe 3.0 x4 mode)
  4x SATA 6Gb/s ports

• RAID
• Not Supports RAID

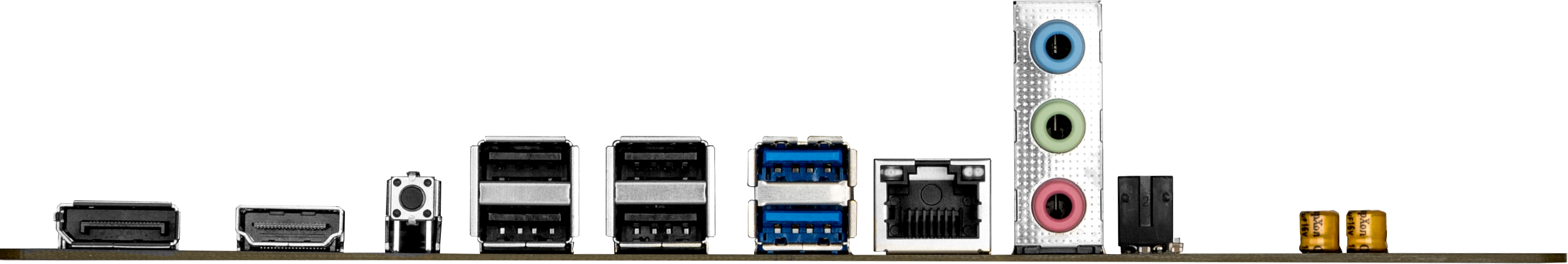

• USB
• *Front USB (Total 4 ports)
  2x USB 3.2 Gen1 Type A
  2x USB 2.0
  *Rear USB (Total 6 ports)
  2x USB 3.2 Gen1 Type A
  4x USB 2.0

• LAN
• Realtek® RTL8125BG 2.5G LAN

• AUDIO
• Realtek® ALC897 Codec
  5.1-Channel High Definition Audio

• INTERNAL I/O
• 1x 24-pin Power Connector(ATX_PWR)
  1x 8-pin Power Connector(CPU_PWR)
  1x CPU Fan
  3x System Fan
  1x M.2 slots (Key-M)
  4x SATA 6Gb/s ports
  1x 2-Pin CLR_CMOS
  1x 4-Pin BUZZER
  1x Front Audio
  1x COM_A Port
  1x 9-Pin DEBUG_CON
  1x TPM pin header(Support TPM 2.0)

• LED FEATURE
• 4x Distributed Debug LED

• OPERATING SYSTEM
• Support for Windows® 11 64-bit, Windows® 10 64-bit

• FORM FACTOR
• M-ATX
  220mm x 185mm
