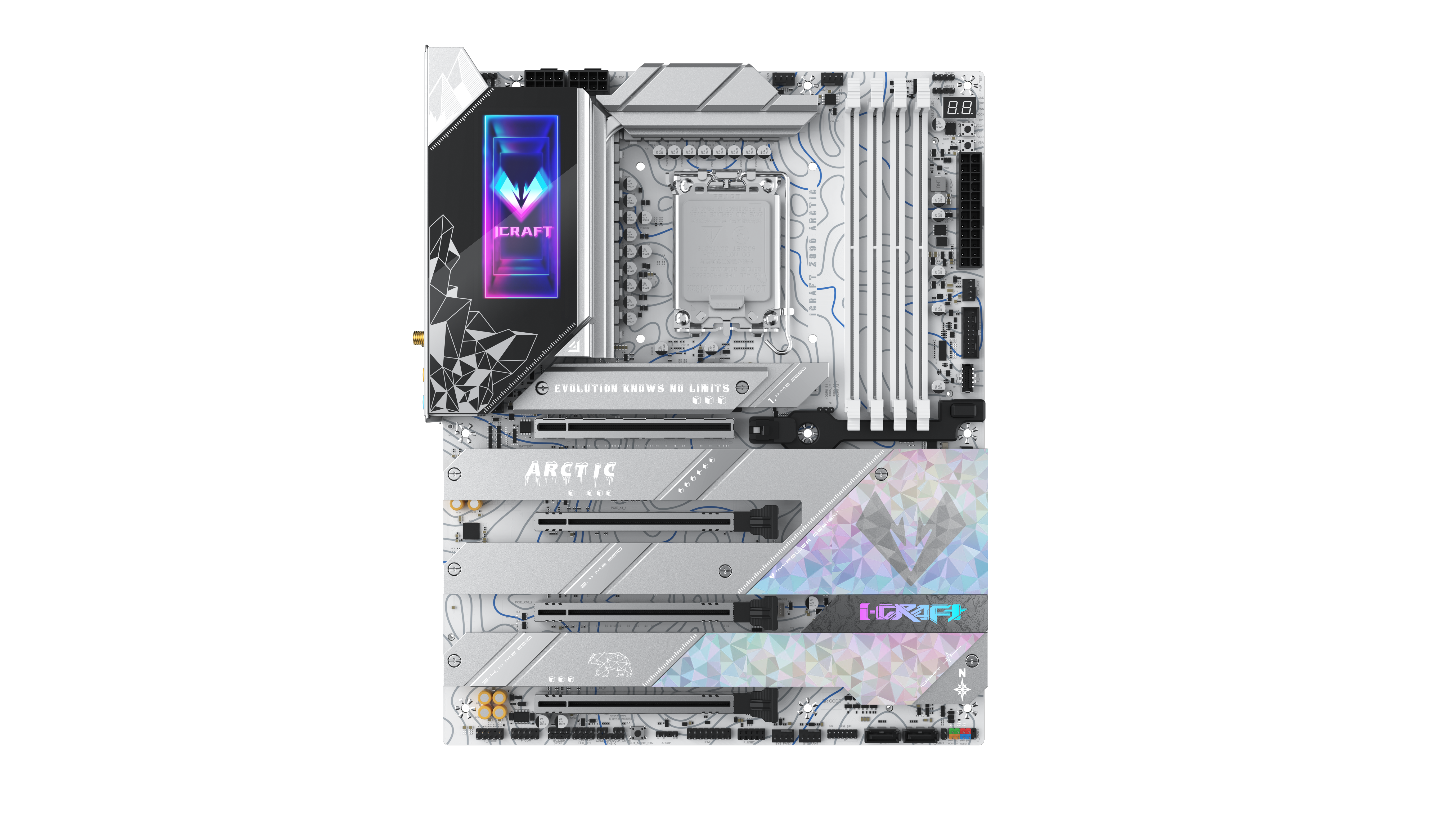

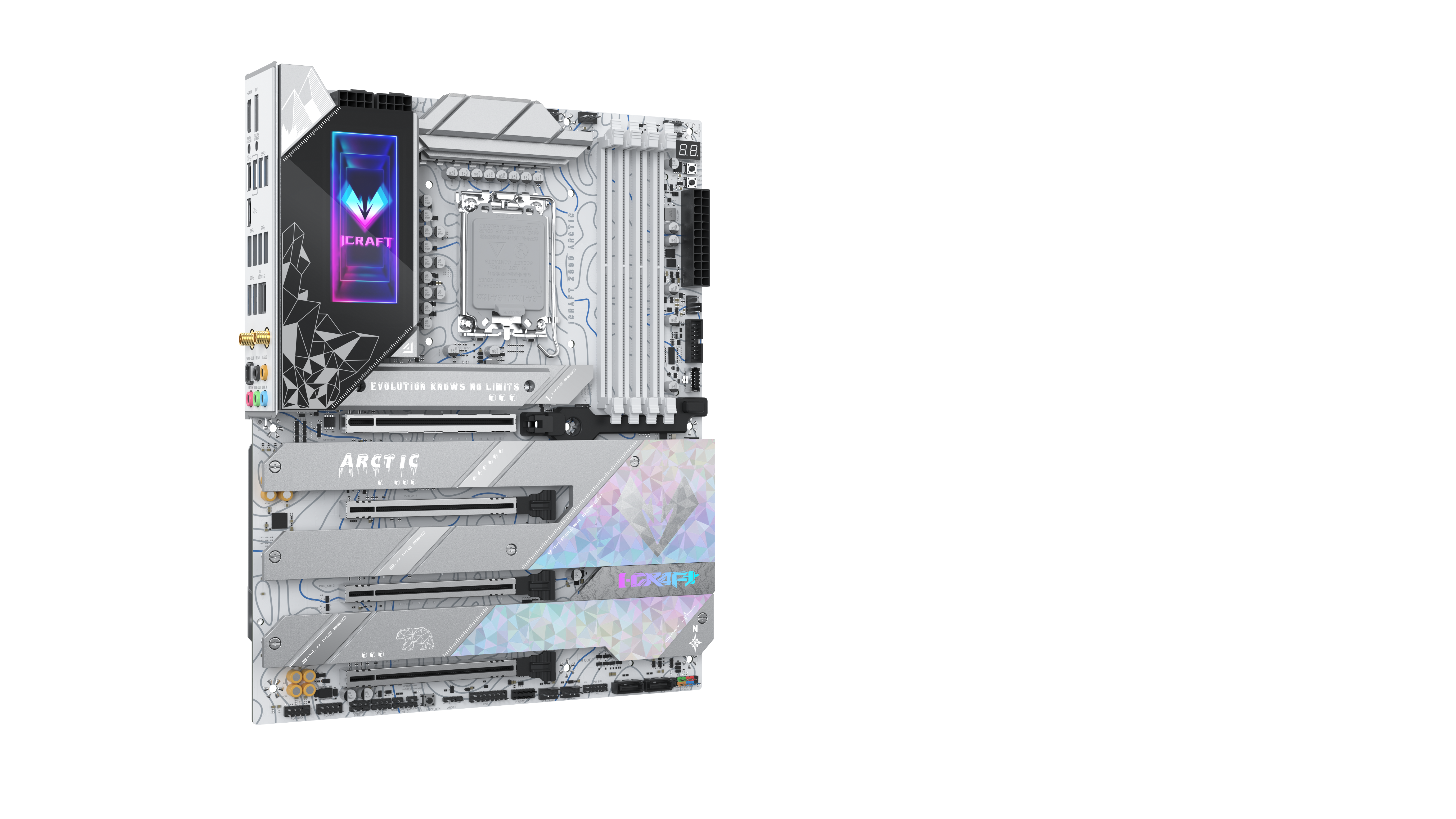

iCraft Z890 Arctic
- CPU: LGA1851 socket for Core™ Ultra, Pentium® Gold, and Celeron® processors
- Form Factor: ATX (305mm x 245mm)
- Chipset: Intel® Z890
- Memory: Supports up to 256GB DDR5 (8800 OC) with dual-channel and Intel® XMP support
- Graphics: 1x DisplayPort 1.4, 1x HDMI™ 2.1
- PCIe Slots: PCIe 5.0 x16 and x8 slots for ultimate flexibility in multi-GPU setups
- Storage: 4x M.2 (PCIe 5.0 & 4.0), 4x SATA 6Gb/s, and 1x SFF-8654 4i interface
- Networking: Realtek 5Gb Ethernet, Wi-Fi 7, Bluetooth® 5.4
- USB Ports: Total of 16, including 2x USB 40G Type-C® and 9x USB 10G Type-A
- Audio: High-definition with Realtek ALC1220 codec
- Special Features: BIOS Flashback, RGB lighting control, onboard power/reset buttons, and debug lights for streamlined troubleshooting
- Operating System Support: Windows® 11 and Windows® 10 (64-bit)
Overview
Specification
Support
- Model
- MS-iCraft Z890 Arctic
- Form Factor
- ATX (305 × 245 mm)
- CPU Socket
- Intel® LGA1851 socket, compatible with Intel® Core™ Ultra processors
- Chipset
- Intel® Z890 Chipset
- Memory
- 4 × DIMM DDR5 slots, supporting up to 256GB
Dual-channel memory support
XMP Support: 4800/5600/6400/7600/OC/8000(OC)/8200(OC)/8400(OC)/8600(OC)/8800(OC) MHz
- Display Outputs
- 1 × HDMI™ 2.1, supporting up to 4K at 120Hz
1 × DP1.4, supporting up to 8K at 120Hz
- Expansion Slots
- 1 × PCIe 5.0 x16 slot (configurable as x8/x8, x8/x4, x4/x4)
1 × PCIe x16 slot (physical size x16, supports PCIe 5.0 x8 or PCIe 4.0 x4)
2 × PCIe x16 slots (supporting PCIe 4.0 x4)
- Audio
- Integrated Realtek ALC1220 audio chip
- Networking
- Integrated Realtek RTL8126 network chip
Integrated Intel® BE200 Wi-Fi module, supporting Wi-Fi 7 and Bluetooth 5.4
- Storage
- 1 × M.2 slot, supporting PCIe 5.0 x4/x2 mode, compatible with 2242/2280/2280K lengths
3 × M.2 slots, supporting PCIe 4.0 x4/x2 mode, compatible with 2242/2280/22110 lengths
4 × SATA 6Gb/s ports
- USB Ports
- Front Panel USB:
1 × USB 20G Type-C® header
1 × USB 5G 19-pin header, supporting 3 × USB 5G ports (USB 3.2 Gen 1)
1 × USB 2.0 9-pin header, supporting 2 × USB 2.0 ports

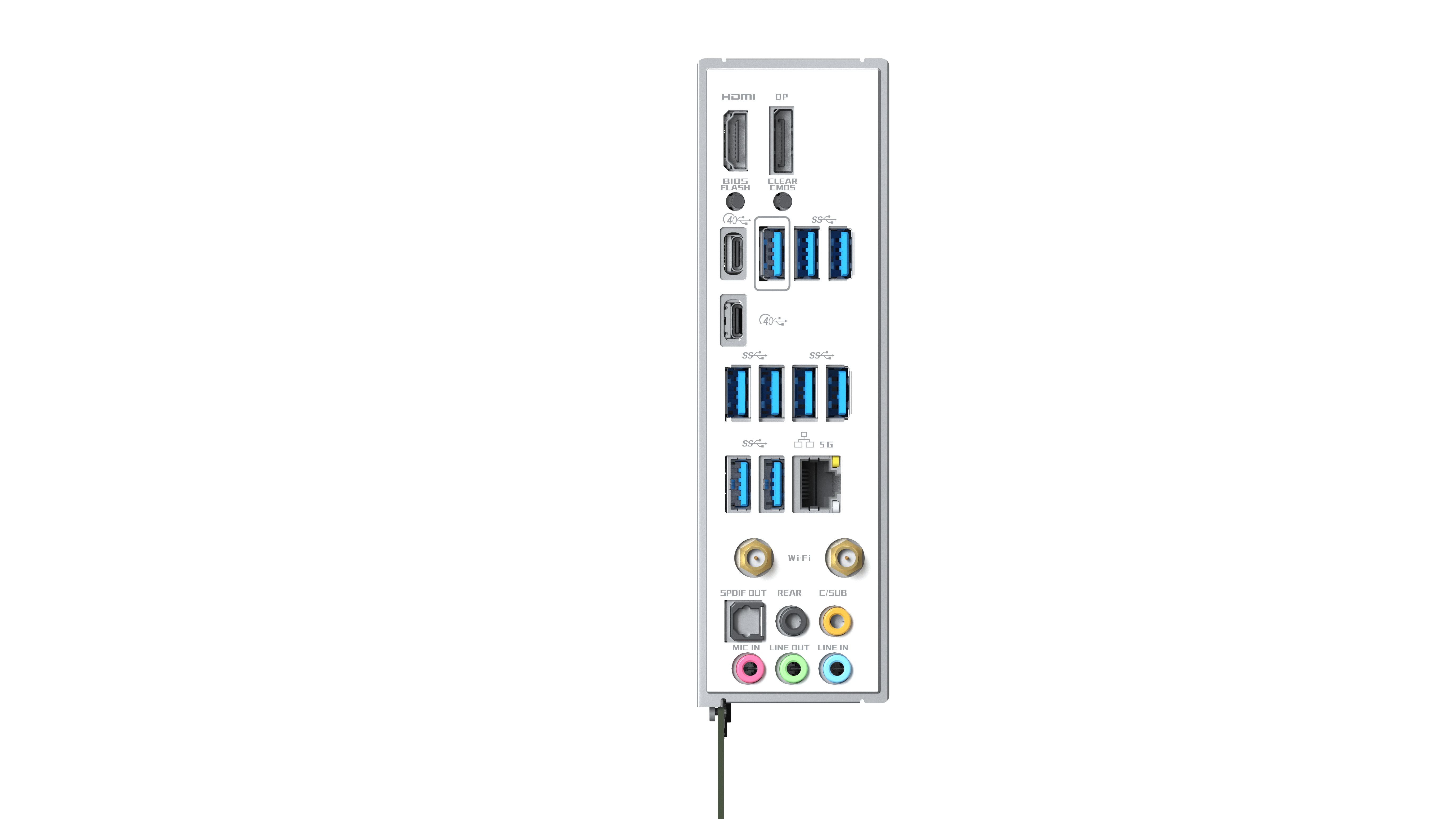

Rear Panel USB:
2 × USB 40G Type-C® ports (one supporting 15W charging)
9 × USB 10G Type-A ports
- Additional Features
- 1 × 24-pin ATX Power Connector
2 × 8-pin +12V Power Connectors
2 × 3-Pin ARGB Headers
1 × 4-Pin NRBG Header
1 × COM Port Header
1 × CLR_CMOS Reset Button
1 × 4-Pin CPU Fan Header
1 × 4-Pin PUMP Header (supports DC and PWM modes)
4 × 4-Pin System Fan Headers
