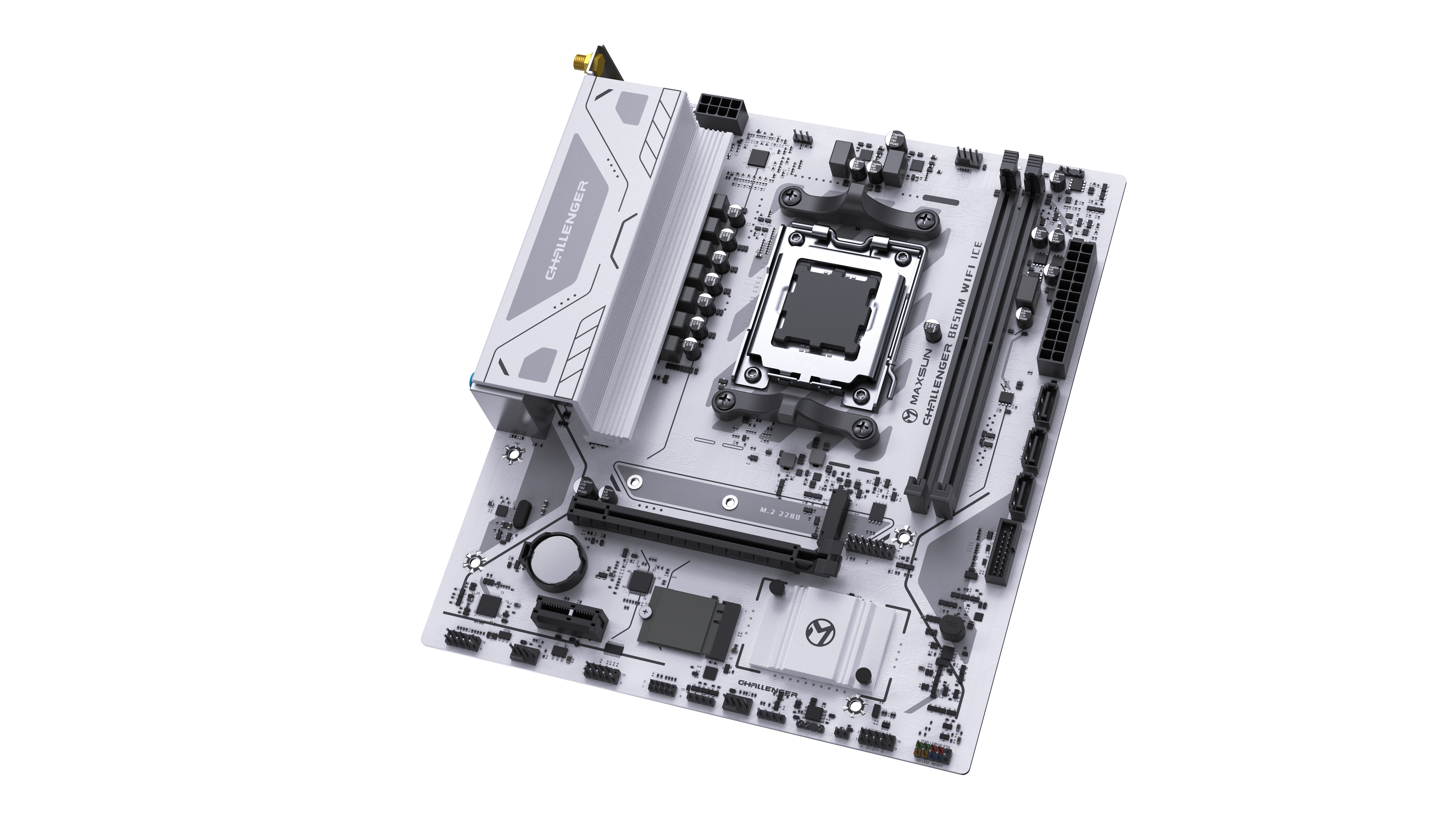

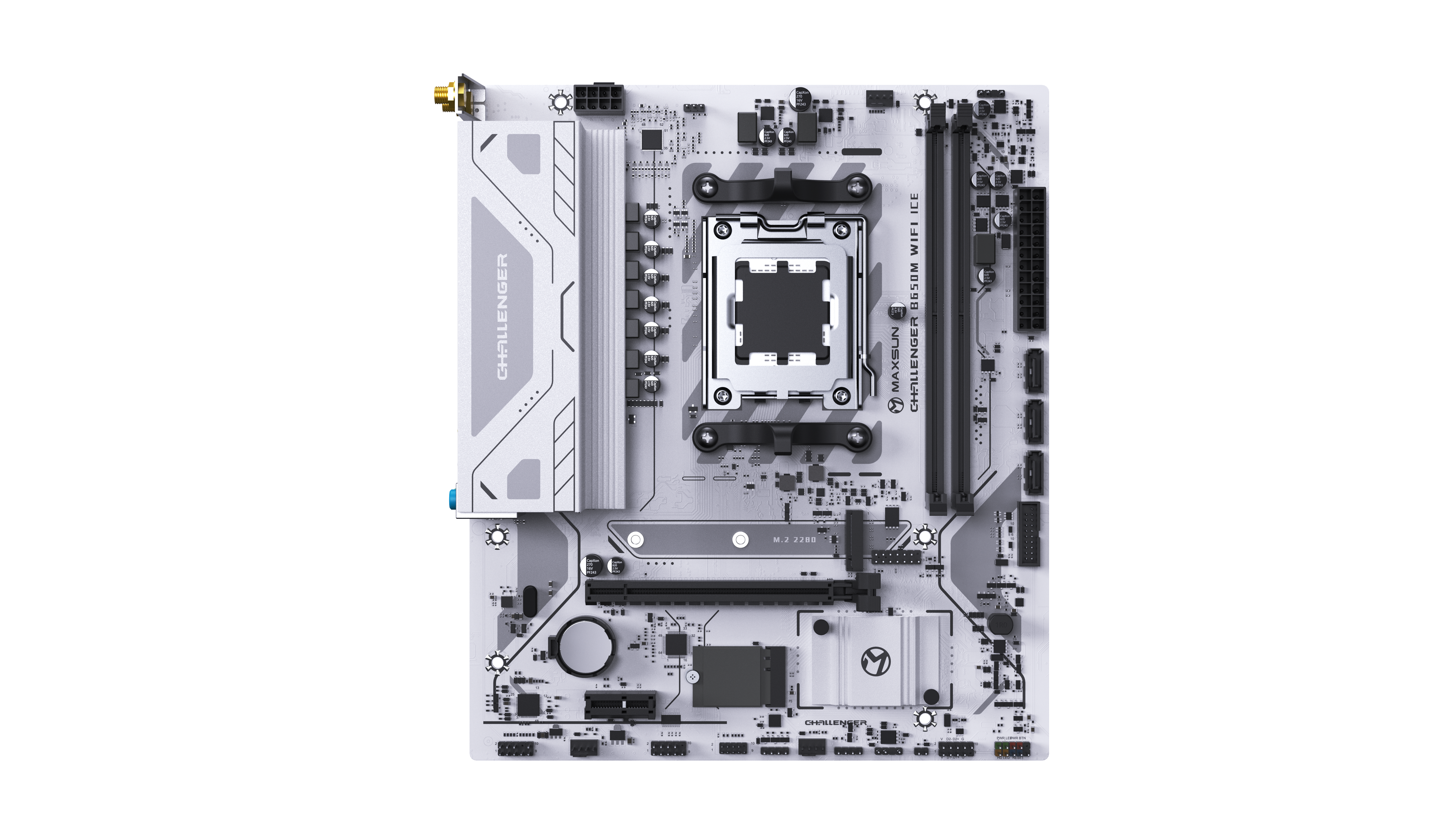

Challenger B650M WIFI ICE
- Mighty Stable: Enhanced power for stable output.

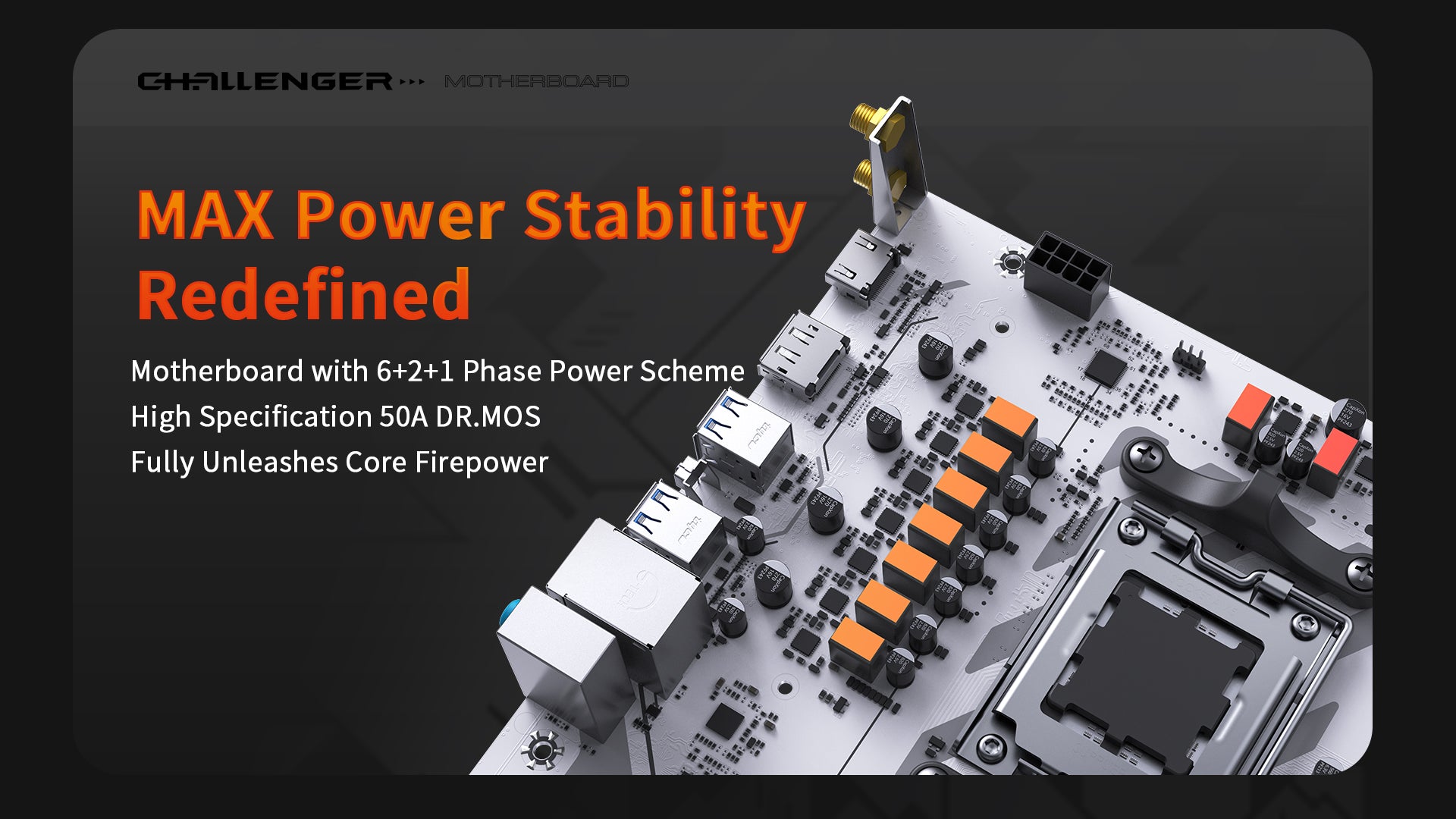

- Effortlessly Handle R7: 6+2+1 Phase DR.MOS Power Design.

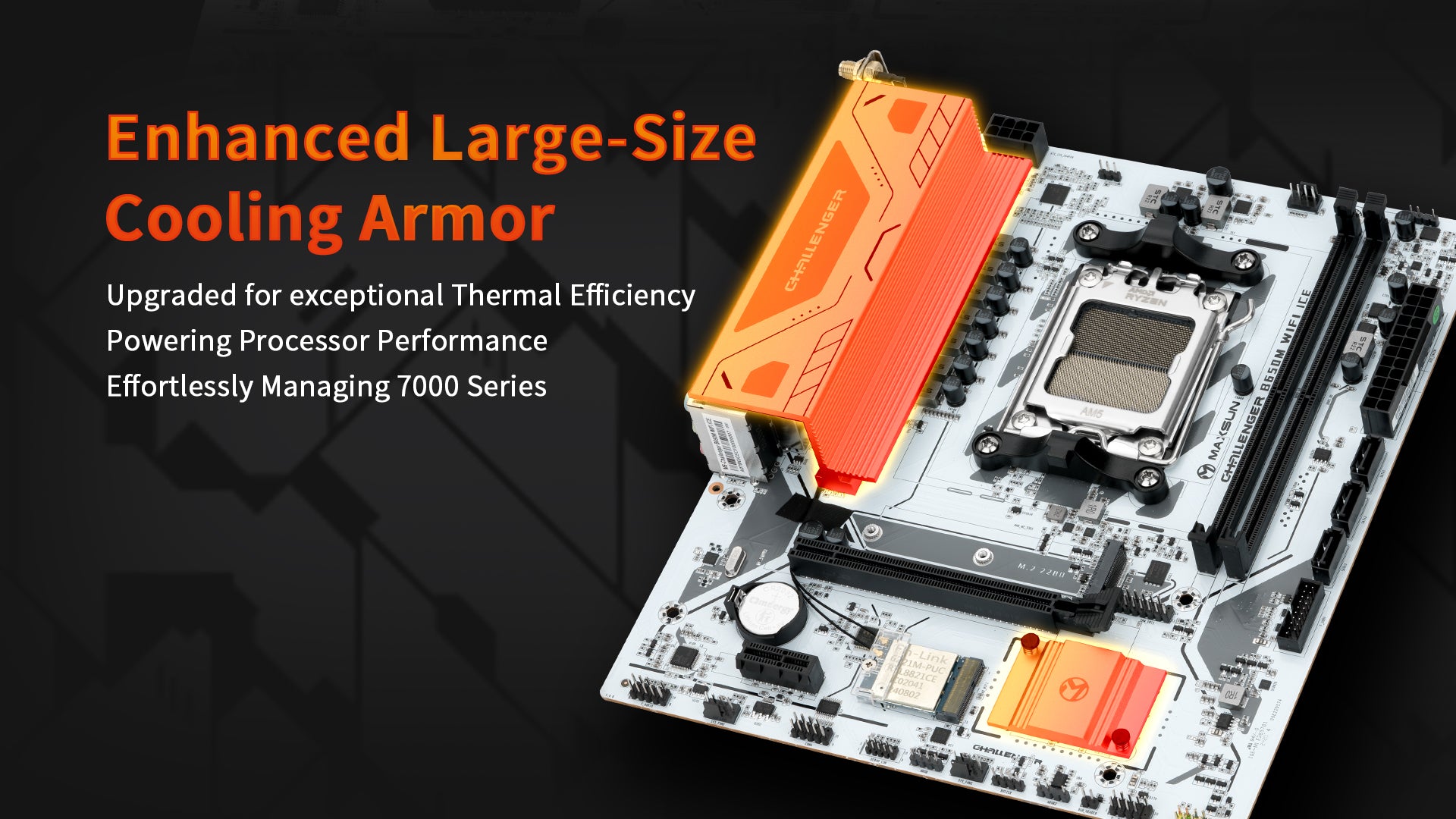

- Fast Cooling: Large heat sink for rapid thermal management.

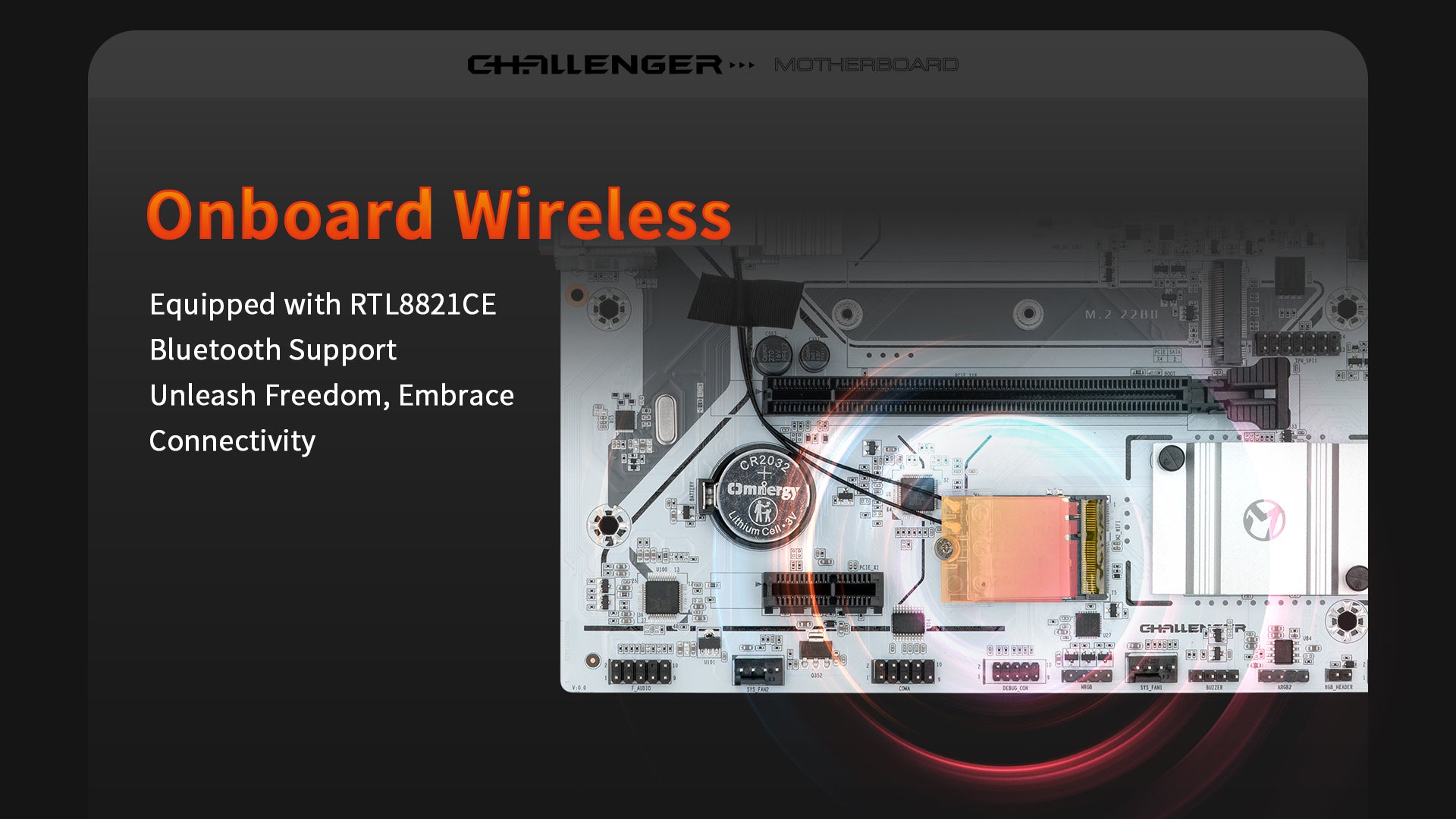

- Wireless Connectivity: Onboard wireless card for seamless internet connection.

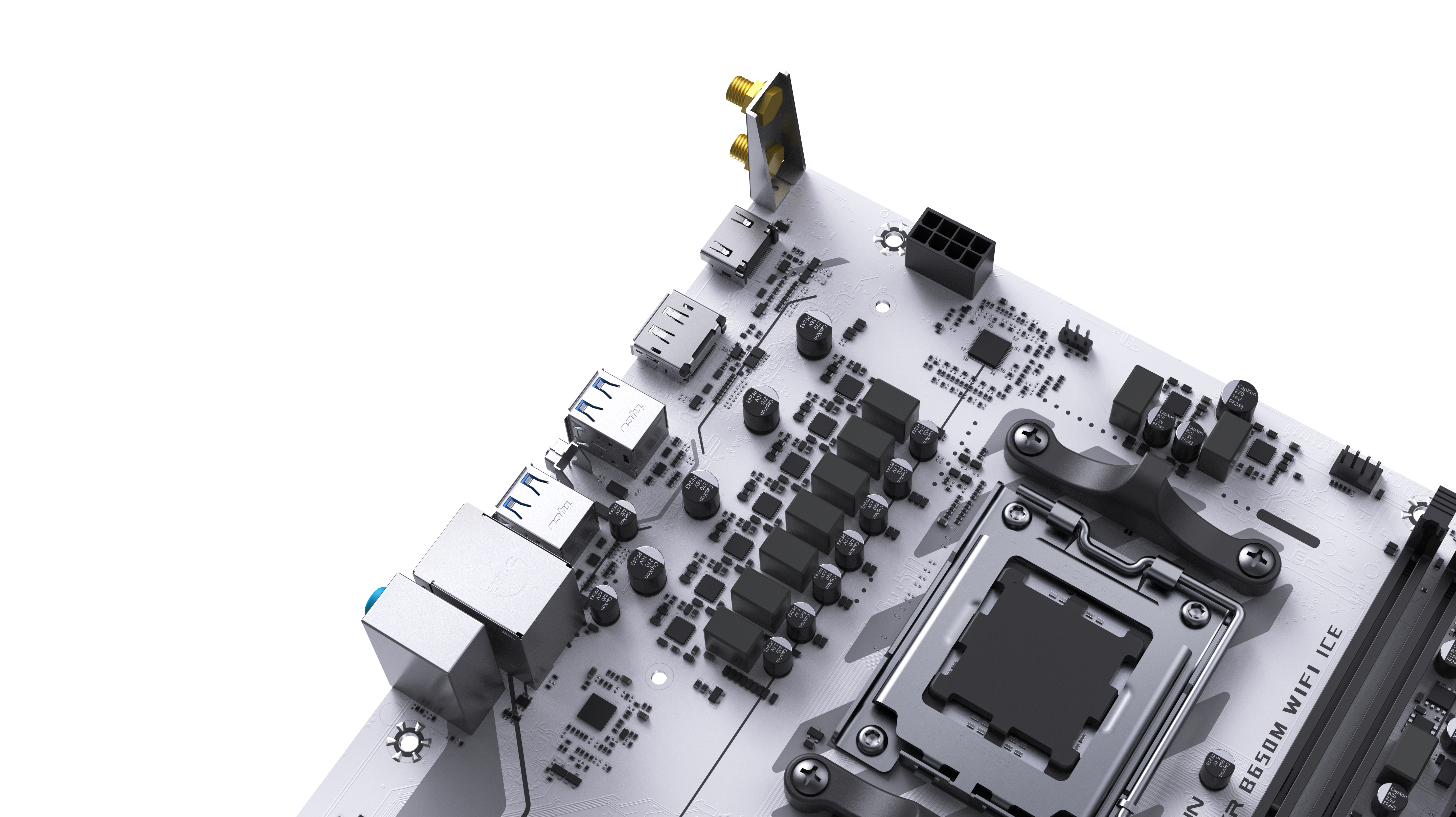

- 50A Dr.MOS: Advanced power design with 6+2+1 phase configuration.
Overview
Specification
Support

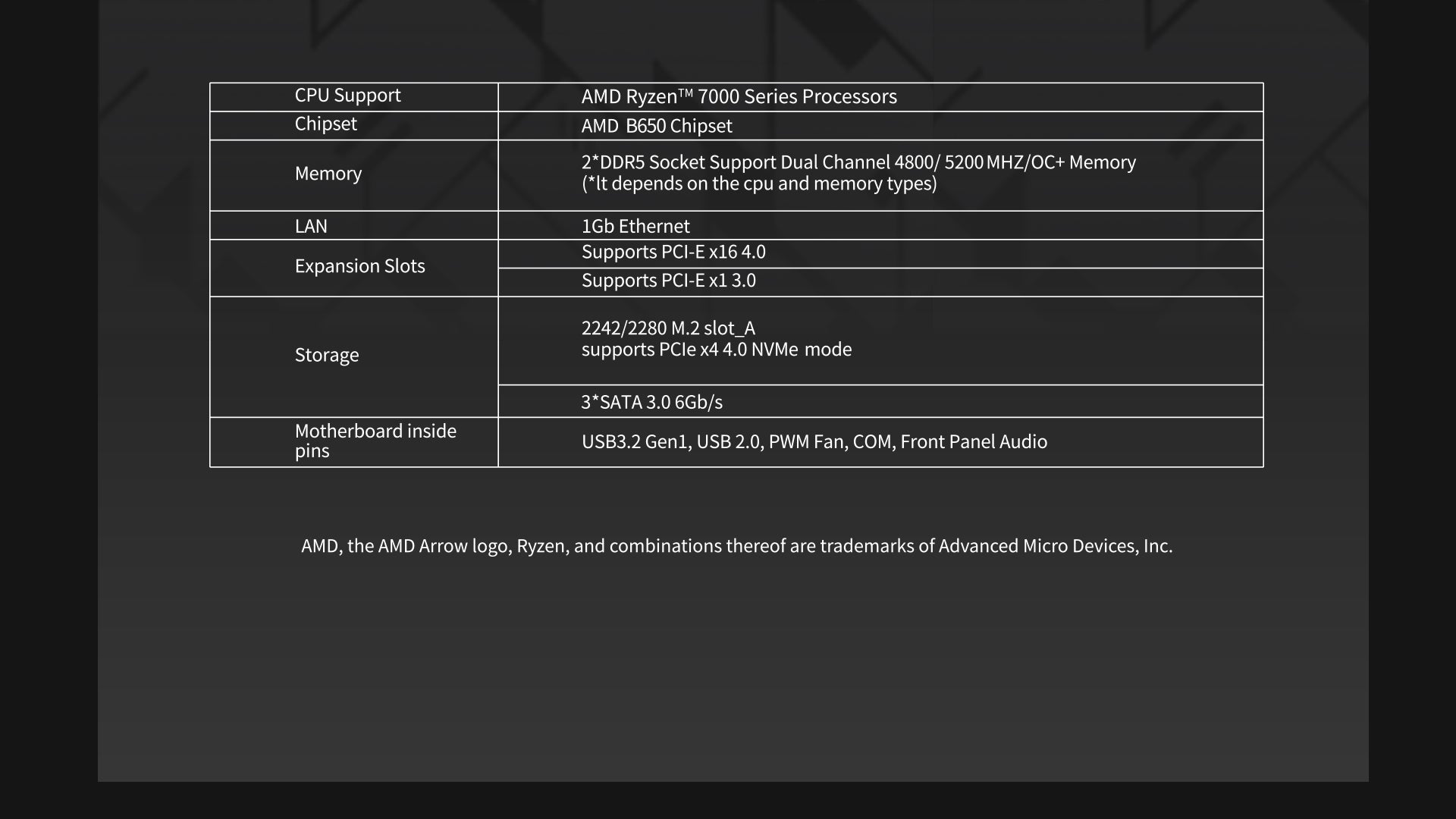

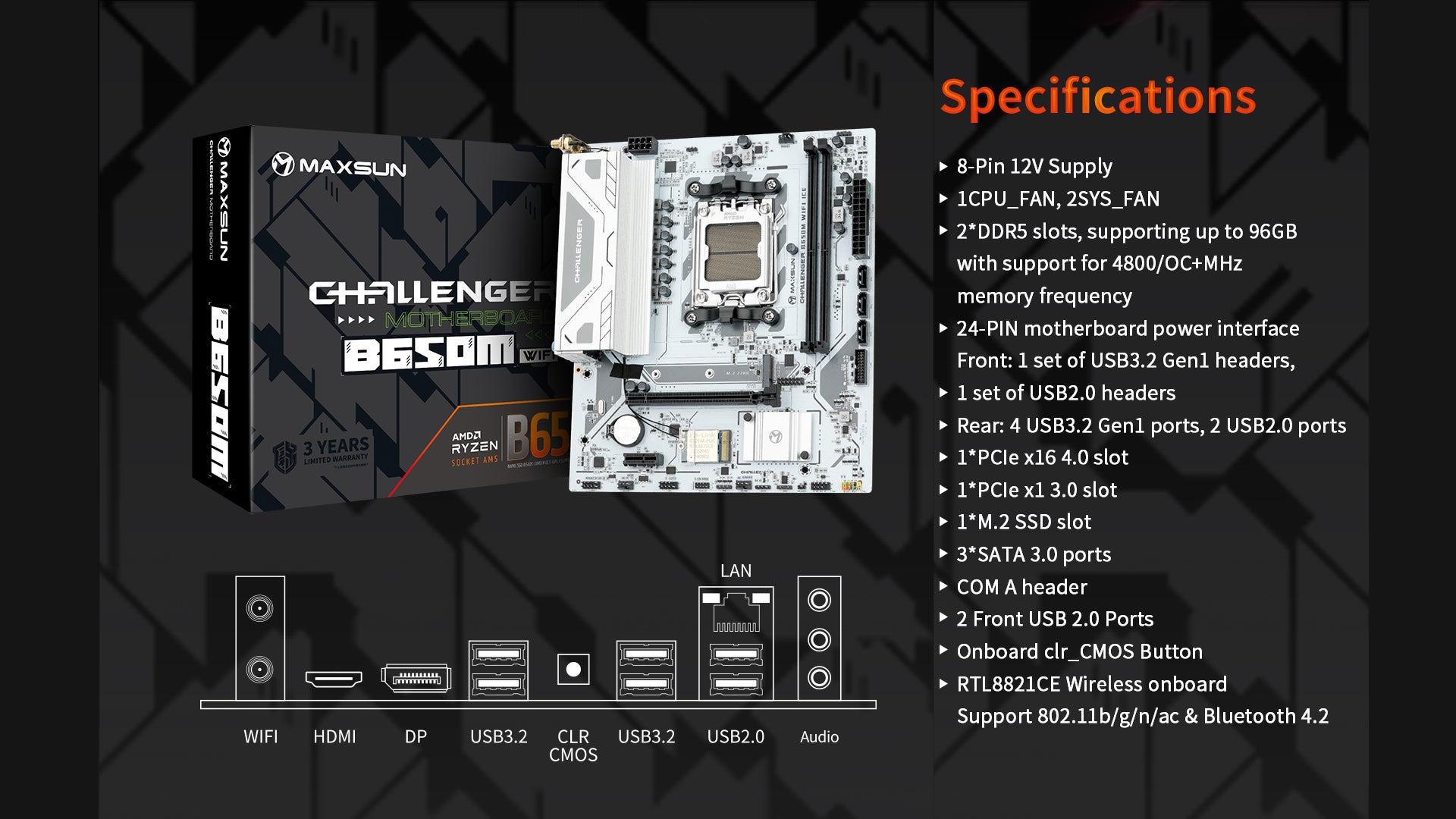

- CHIPSET
- AMD® B650 Chipset
- CPU (Max Support)
- Supports LGA1718 slot
AMD RYZEN7000& RYZEN8000Series
TDP: 155W (6+2+1 items)

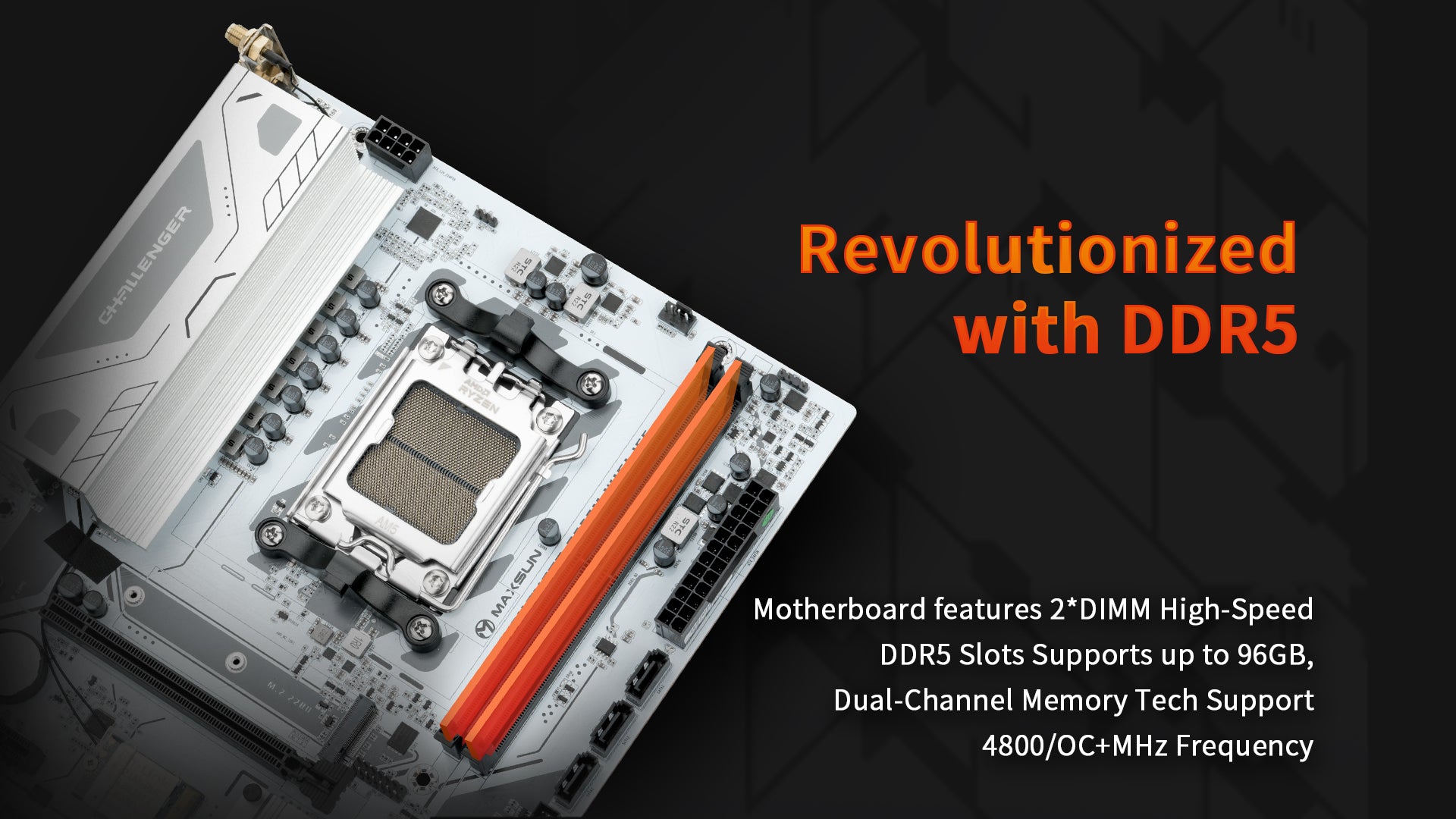

- MEMORY
- 2* DIMM DDR5 memory slots
Supports dual-channel memory technology
Support 4800MHZ/5200MHZ/OC Memeroy Frequency
- ONBOARD GRAPHICS
- 1x VGA
*Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
1x HDMI™port
*HDMI™ port supports up to 4K@30Hz
*Graphics specifications may vary between CPU types.

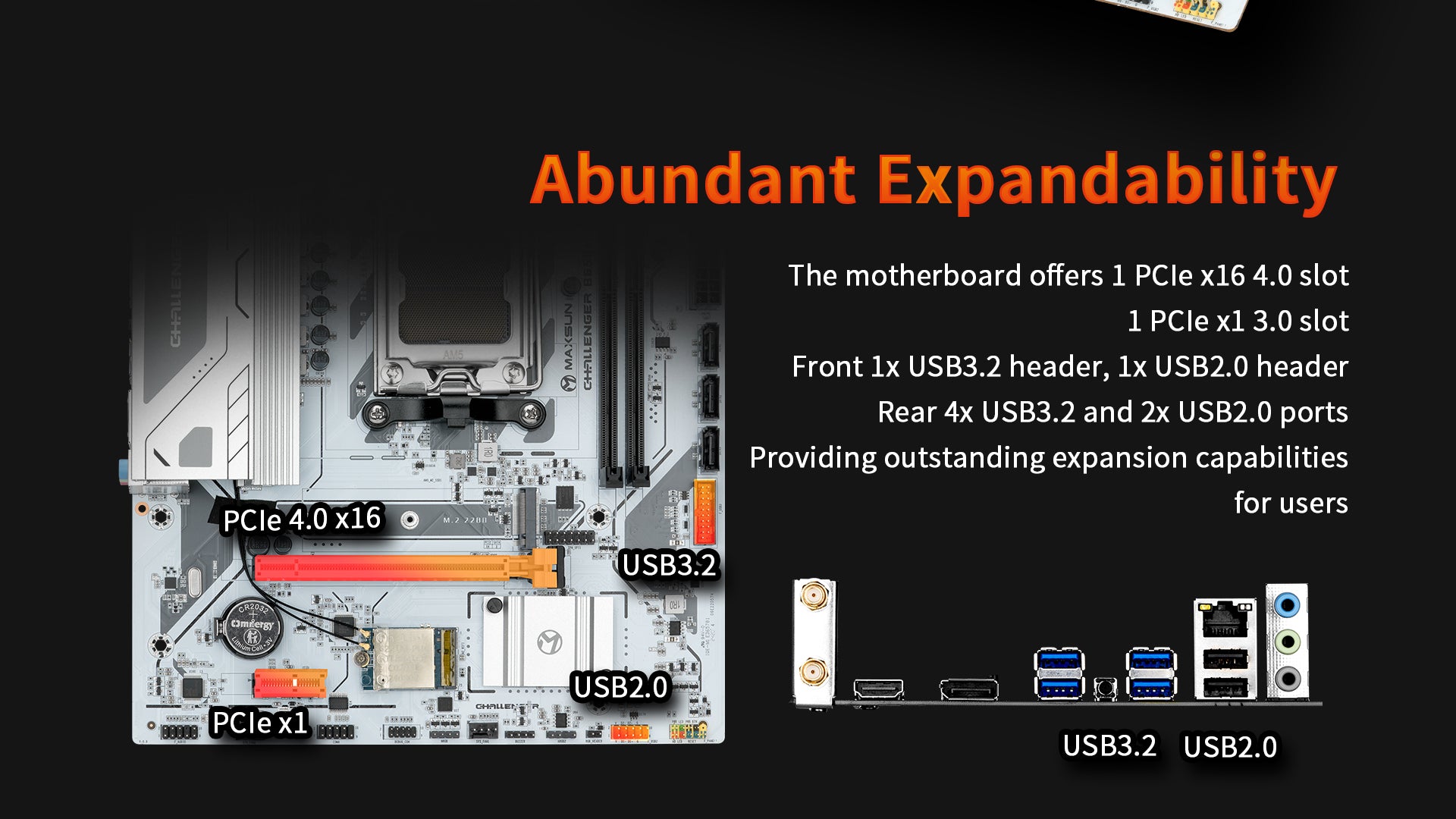

- EXPANSION SLOT
- 1x PCIe 4.0 x16 slot
1x PCIe 3.0 x4 slot
1x PCIe 3.0 x1 slot
- STORAGE

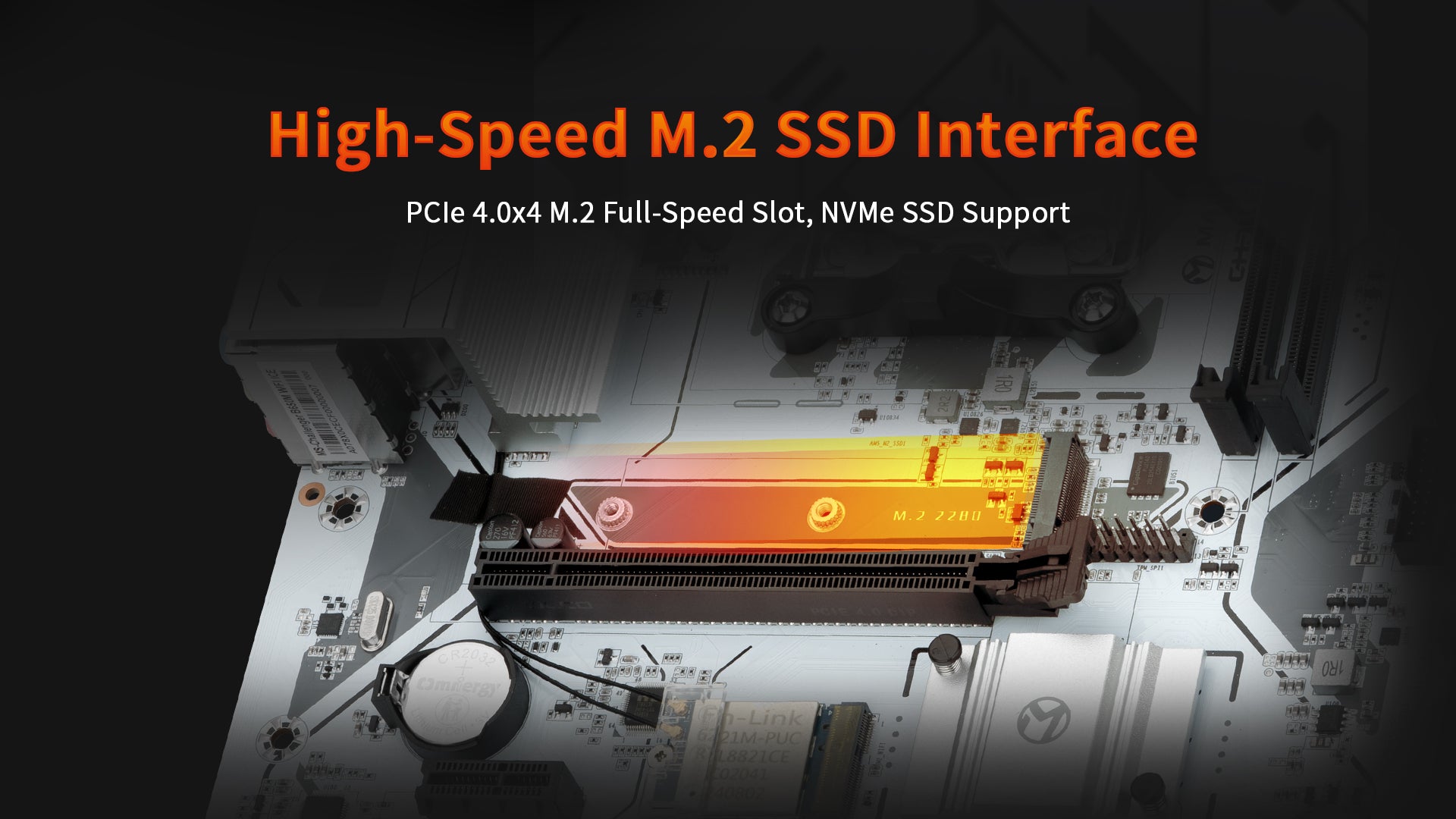

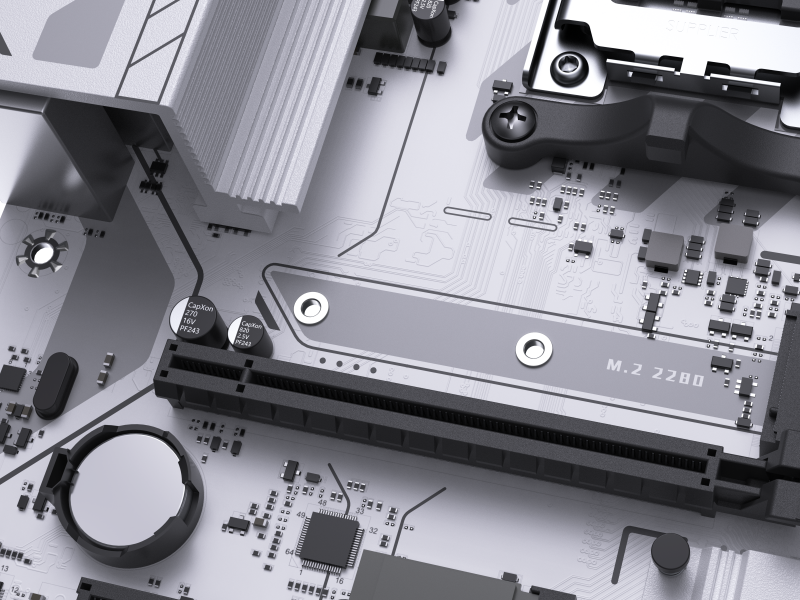

- M.2 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
4x SATA 6Gb/s ports
- USB

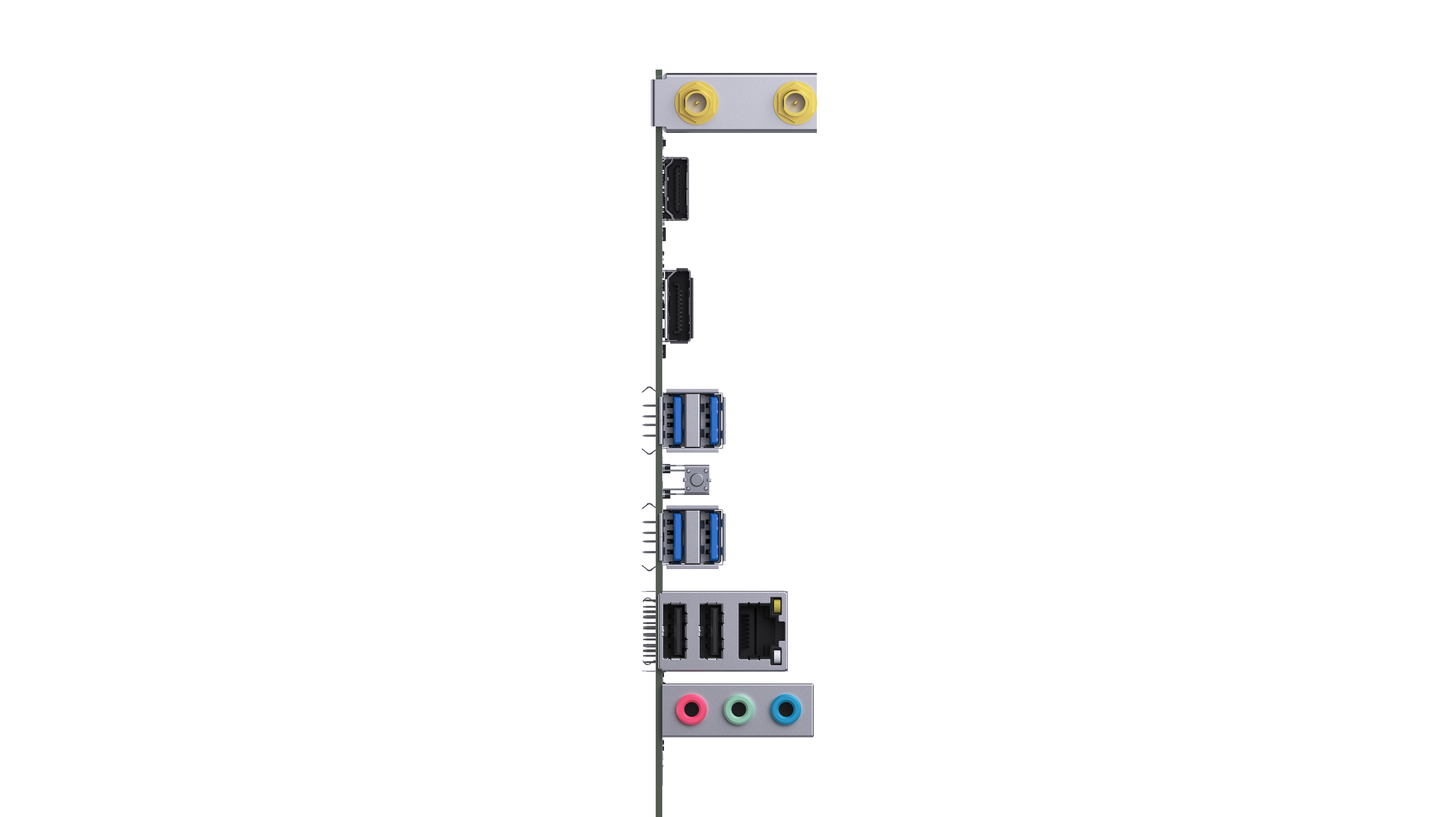

- Onboard rear ports: 4* USB3.2 GEN1 ports, 2* USB2.0 ports
On-board pins: 1* set (2 pcs) of USB2.0 pins, 1* set (2 pcs) of USB3.2 GEN1 pins
- LAN
- Realtek® RTL8111HNIC Chip
- AUDIO
- Realtek® ALC897 Codec
5.1-Channel High Definition Audio
- INTERNAL I/O
- 1x 24-pin Power Connector(ATX_PWR)
1x 8-pin Power Connector(CPU_PWR)
1x CPU Fan
2x System Fan
1x PS/2 interface
1x M.2 slots (Key-M)
4x SATA 6Gb/s ports
1x 4-Pin SPEAKER
1x Front Audio
1x COM_A Port
1x 9-Pin DEBUG_CON
1x CLR CMOS
- SSD
- 1* M.2 4.0 slot (supports 2242/2280 PCIE X4/X2 channel SSD only)
3* SATA3.0 ports
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- FORM FACTOR
- M-ATX
245mm x 210mm
