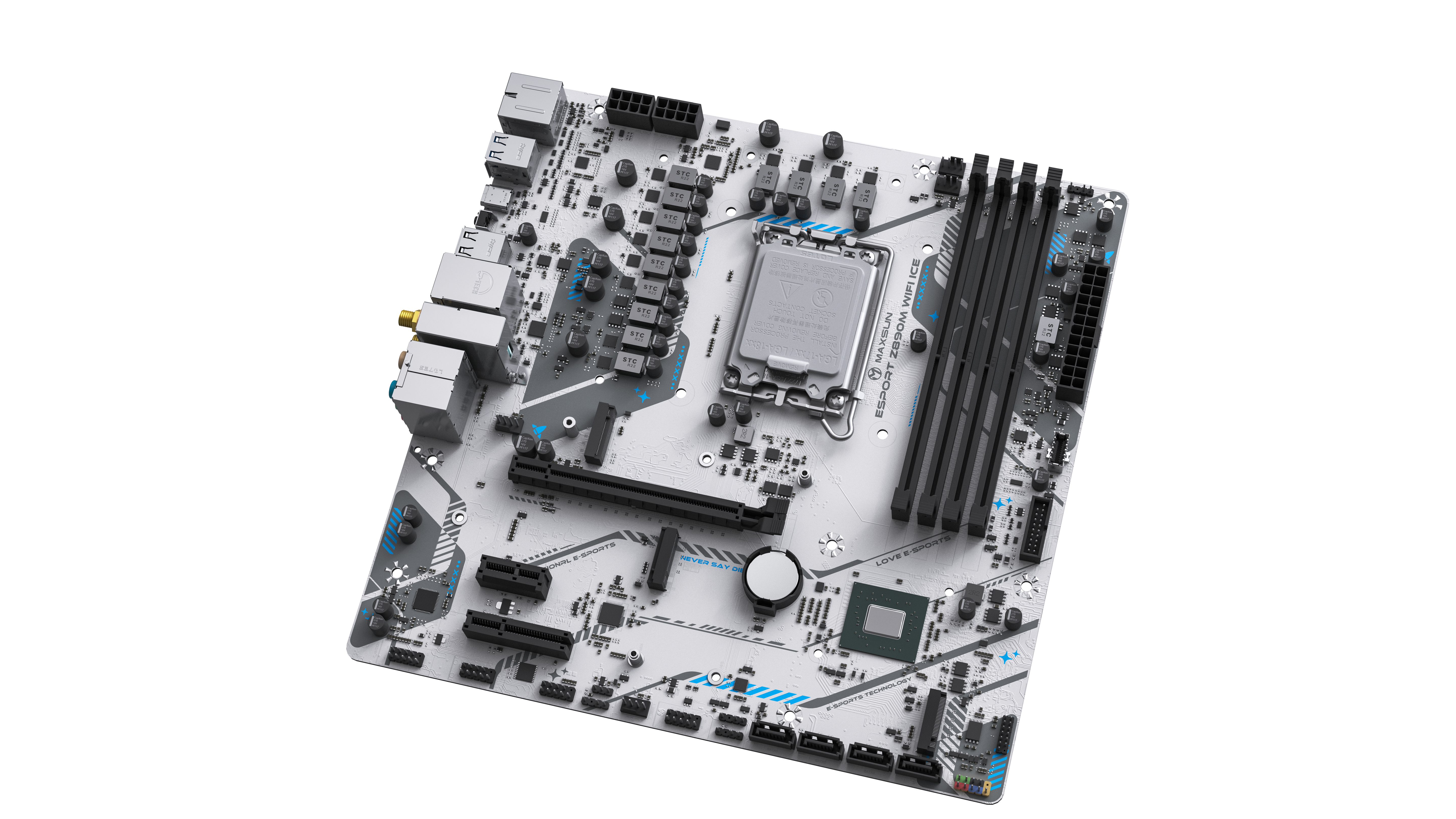

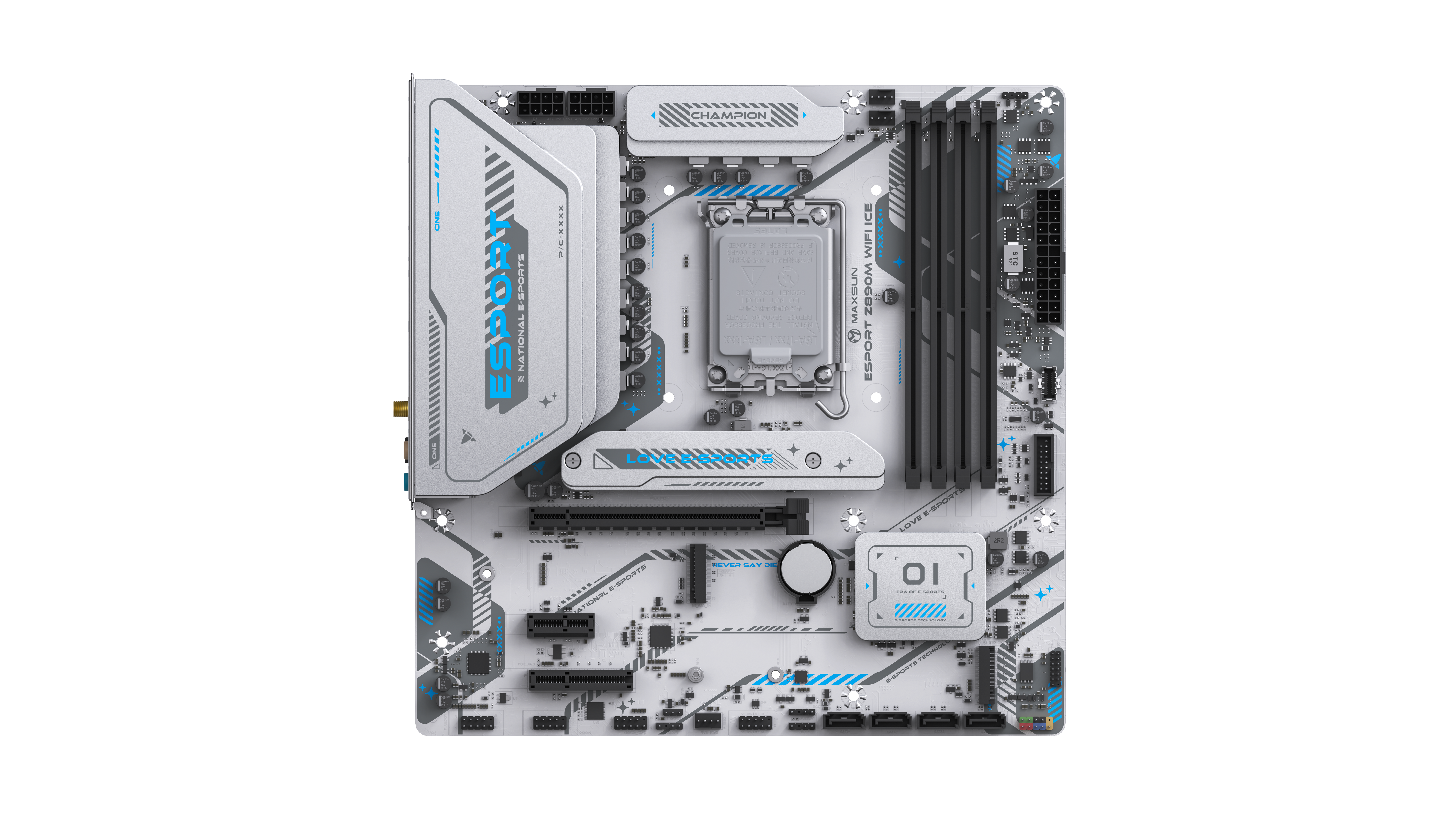

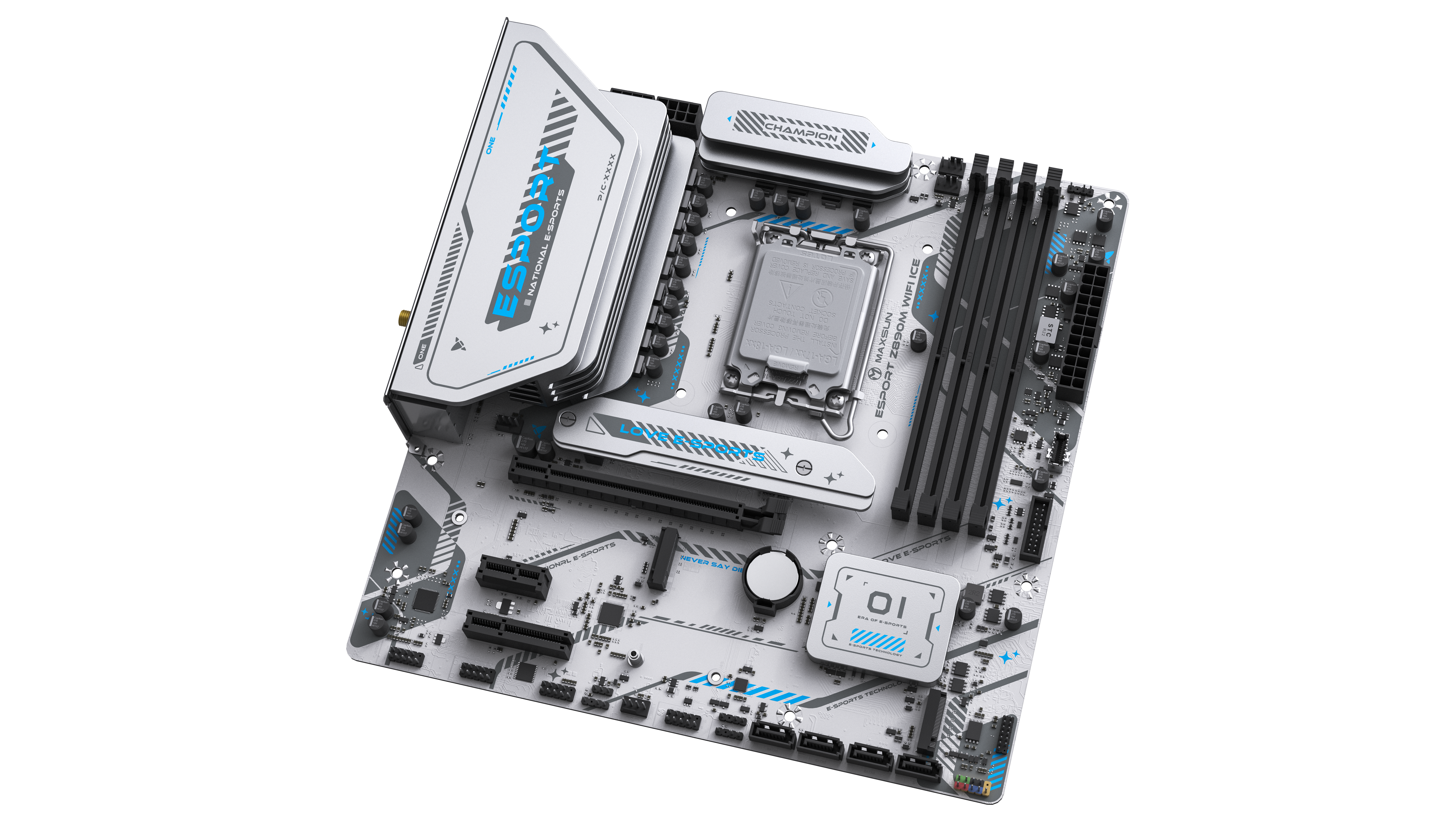

eSport Z890M WIFI ICE

• Model
• MS-eSport Z890M WIFI ICE

• Form Factor
• M-ATX (245 x 245 mm)

• CPU Socket
• Intel® LGA1851, compatible with Intel® Core™ Ultra processors

• Chipset
• Intel® Z890

• Memory
• 4 x DIMM DDR5 slots, supporting dual-channel up to 256GB
  Memory speeds: XMP 4800/5200/5600(OC)/6000(OC)/6400(OC)/6800(OC)/7000(OC)/7200(OC)/7600(OC)/7800(OC)/8000(OC) MHz

• Graphics Support
• 1 x HDMI™ 2.0 (up to 4K @60Hz)
  1 x DisplayPort (up to 4K @60Hz)

• Expansion Slots
• 1 x PCIe 5.0 x16 slot (supports PCIe 5.0 x16 mode)
  1 x PCIe 4.0 x4 slot (supports PCIe 4.0 x4 mode)
  1 x PCIe 4.0 x1 slot (supports PCIe 4.0 x1 mode)

• Audio
• Integrated Realtek ALC897 Audio Chip

• Networking
• Realtek RTL8125BG/D Ethernet LAN
  Intel® AX101 Wireless supporting Wi-Fi 6 and Bluetooth 5.2

• Storage
• 1 x M.2 slot (PCIe 5.0 x4/x2, supports 2280 length)
  1 x M.2 slot (PCIe 4.0 x4/x2, supports 2280 length)
  1 x M.2 slot (PCIe 4.0 x4/x2, supports 2280/22110 lengths)
  4 x SATA 6Gb/s ports

• USB Ports
• Onboard: 1 x USB 3.2 Gen2 Type-C (10G) front header
  1 x USB 3.2 Gen1 (5G) header, supports 2 additional USB 3.2 Gen1 ports
  1 x USB 2.0 9-pin header, supports 2 additional USB 2.0 ports

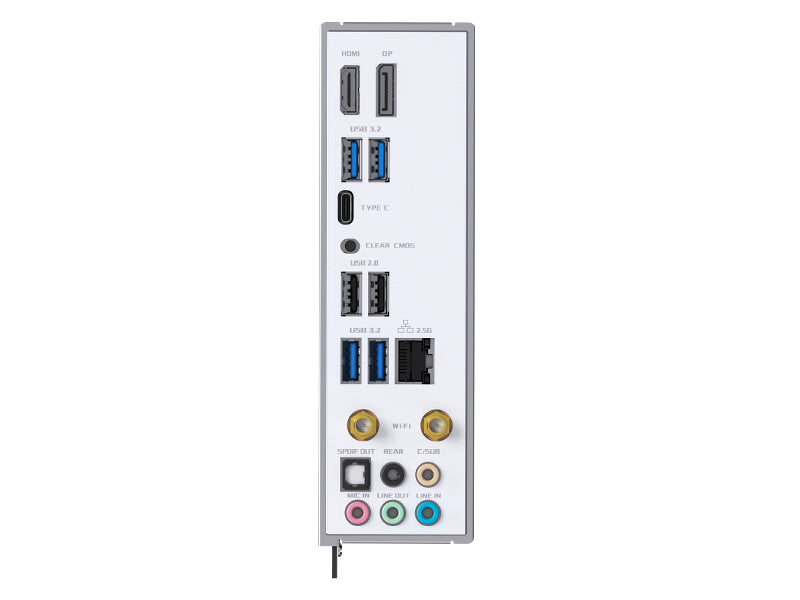

  Rear Panel: 4 x USB 3.2 Gen1 Type-A (5G) ports
  4 x USB 2.0 Type-A ports
  1 x USB 3.2 Gen2 Type-C (10G) port

• Additional Features
• Power Connectors: 1 x 24-Pin ATX, 2 x 8-Pin +12V
  RGB Headers: 2 x 3-Pin ARGB, 1 x 4-Pin NRGB
  Other Headers: 1 x COM port header, CLR CMOS button, 1 x 4-Pin CPU FAN header, 1 x 4-Pin PUMP header, 2 x 4-Pin chassis fan headers
