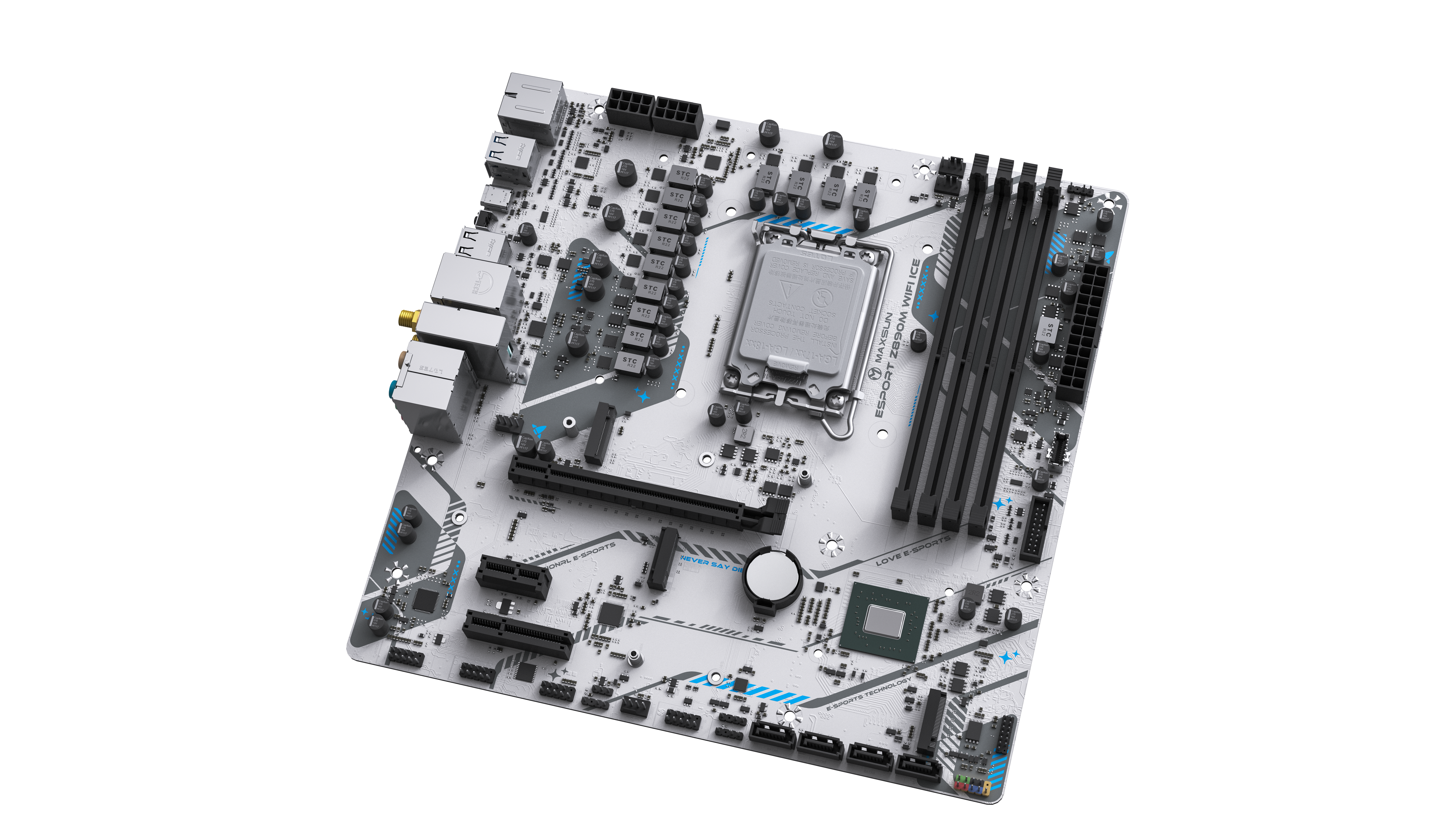

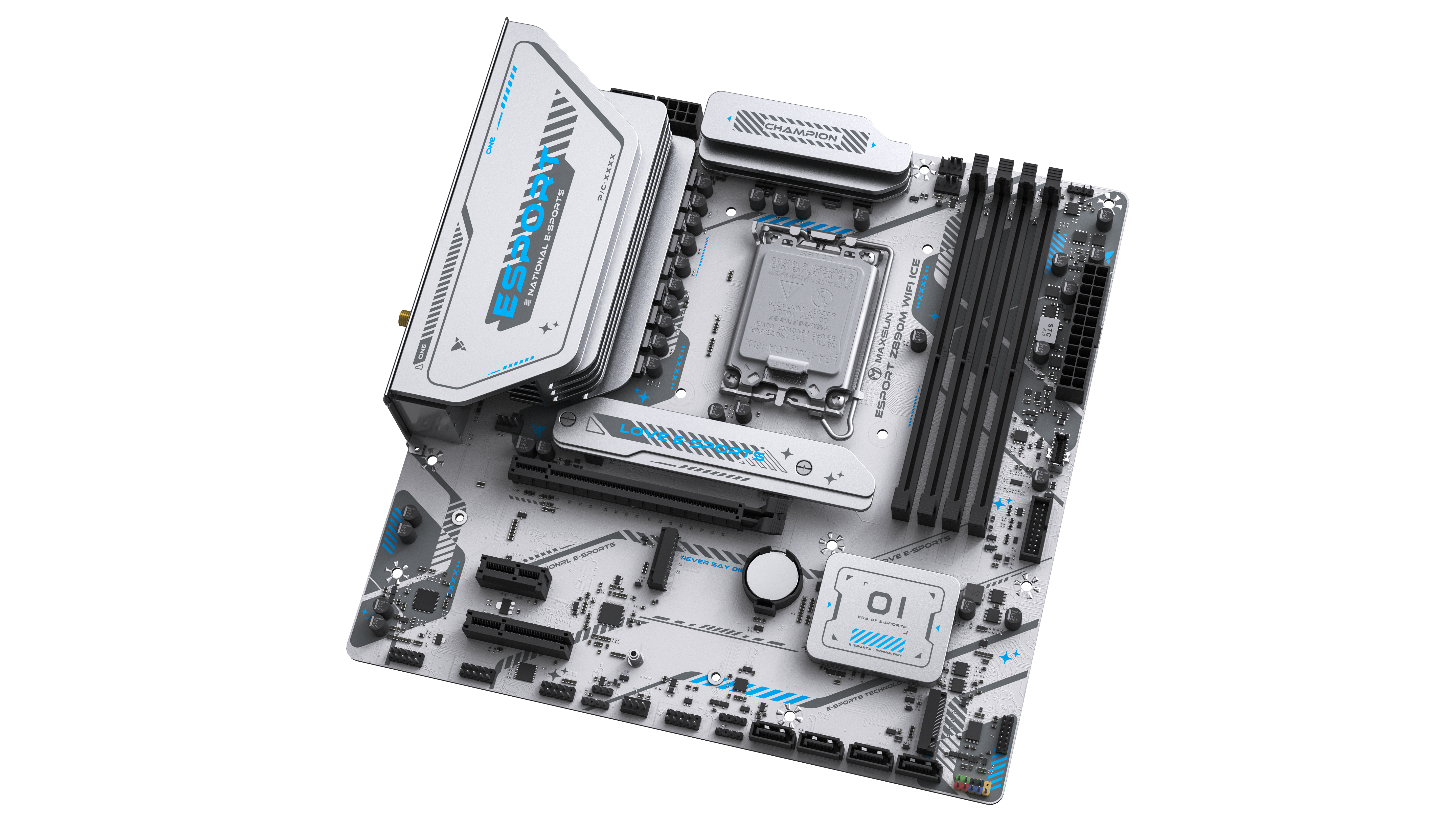

eSport Z890M WIFI ICE

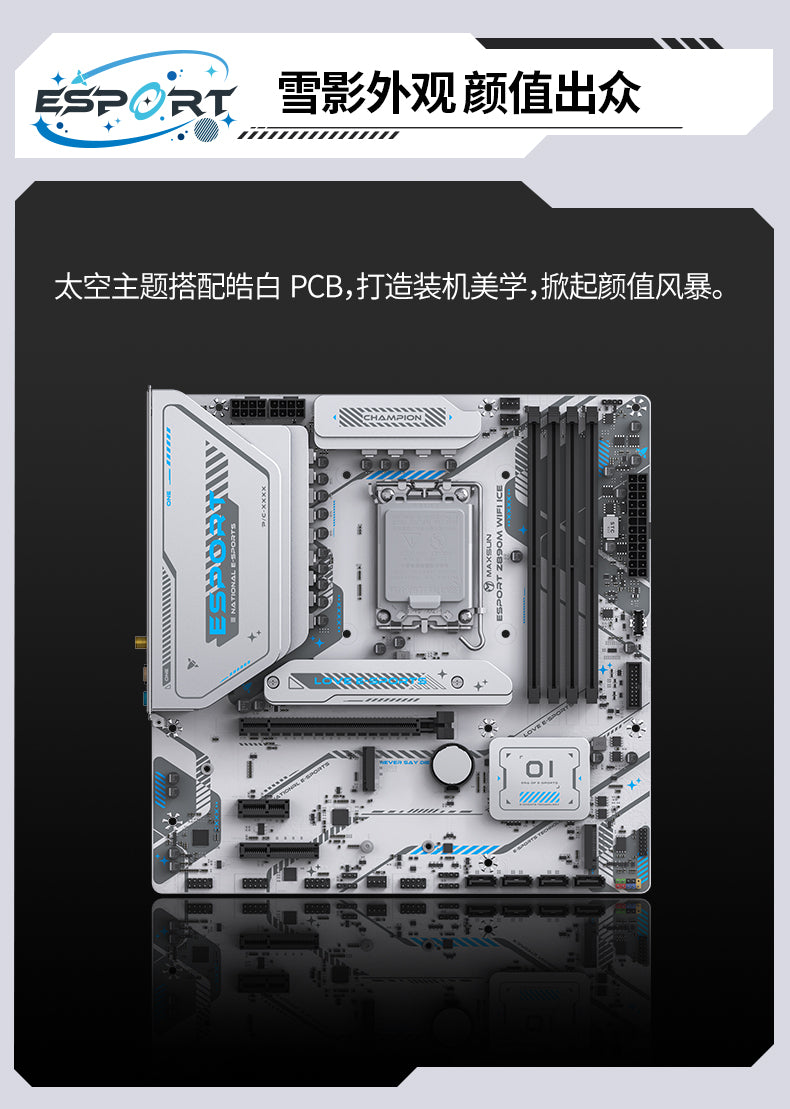

- Space-Inspired White PCB: A cosmic-themed, pure white design that elevates build aesthetics with a unique, standout style.

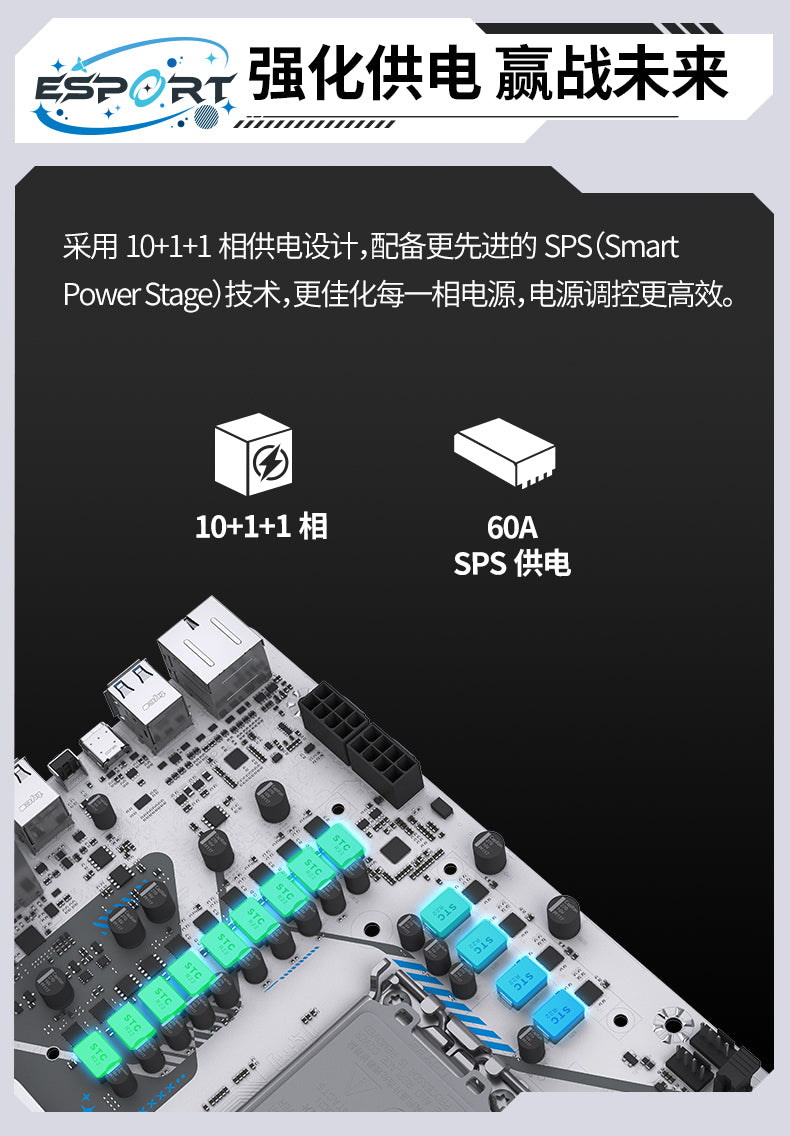

- Optimized Power Delivery:Features a robust 10+1+1 phase design with advanced SPS technology, ensuring efficient, stable power regulation.

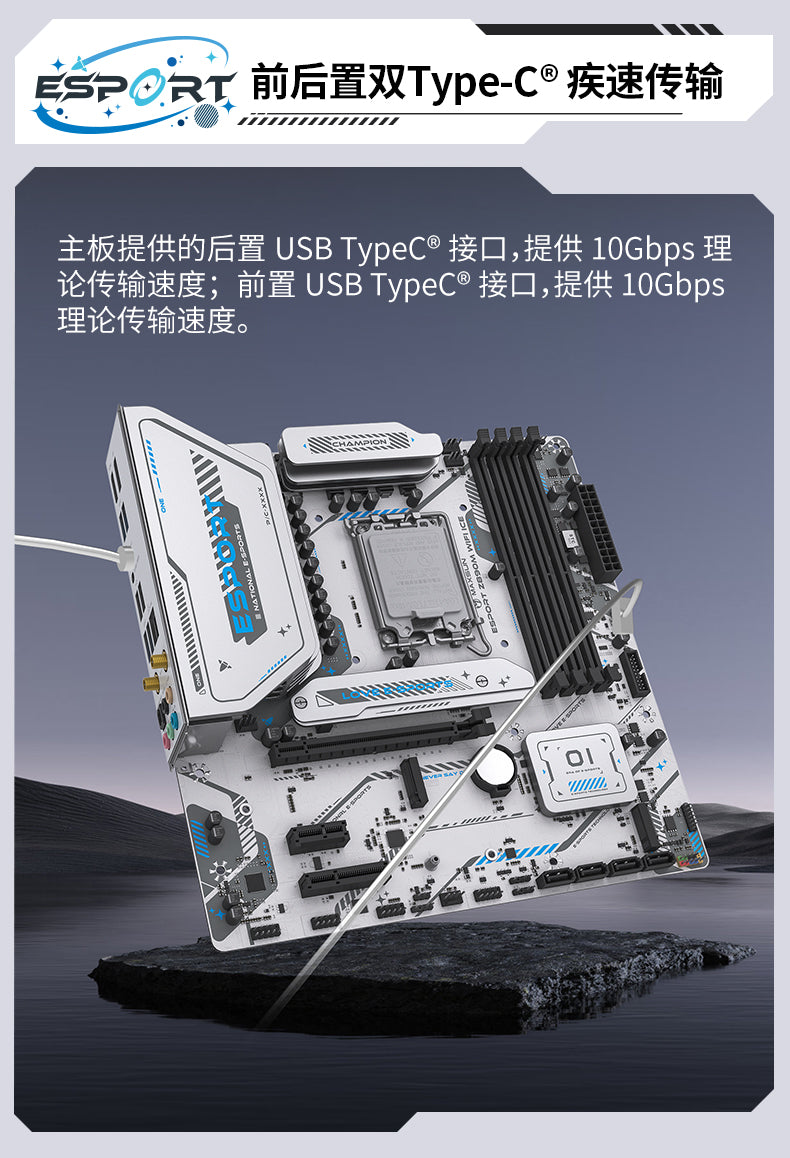

- High-Speed Connectivity: Dual Type-C® ports (front and rear) for 10Gbps data transfer, offering blazing-fast connectivity options.

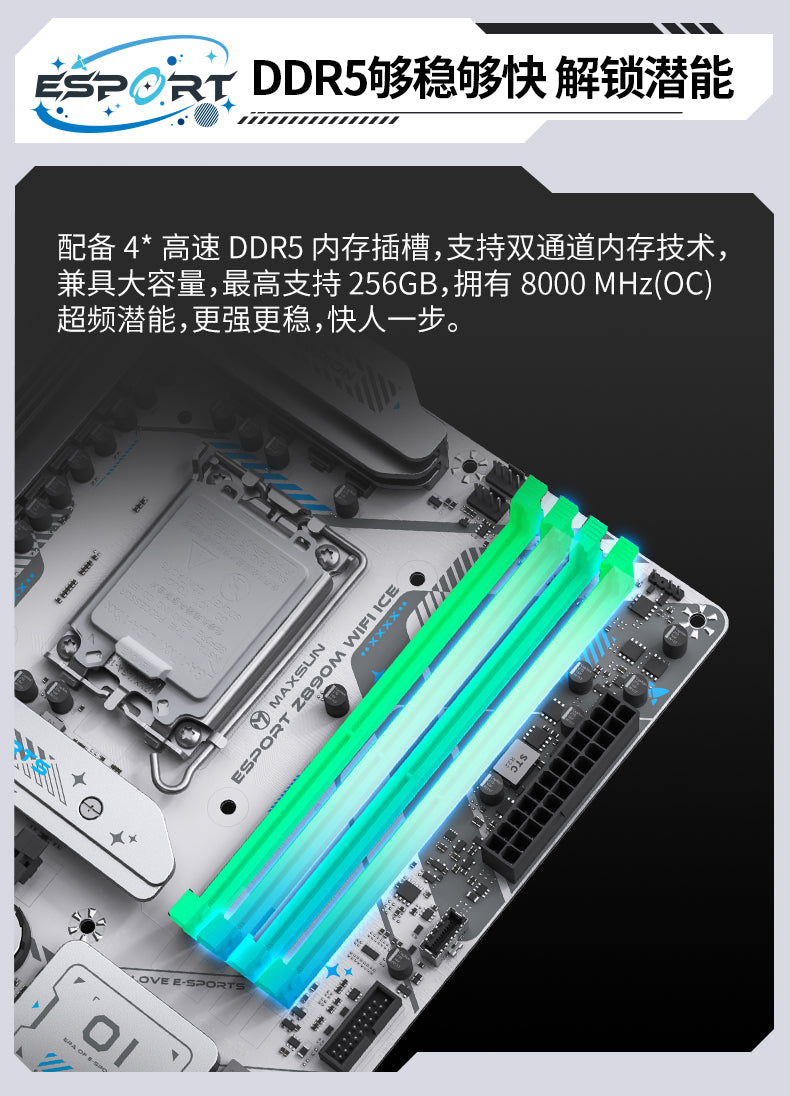

- DDR5 Memory Support: 4 DIMM slots supporting up to 256GB and 8000 MHz (OC), delivering rock-solid performance and unlockable potential.

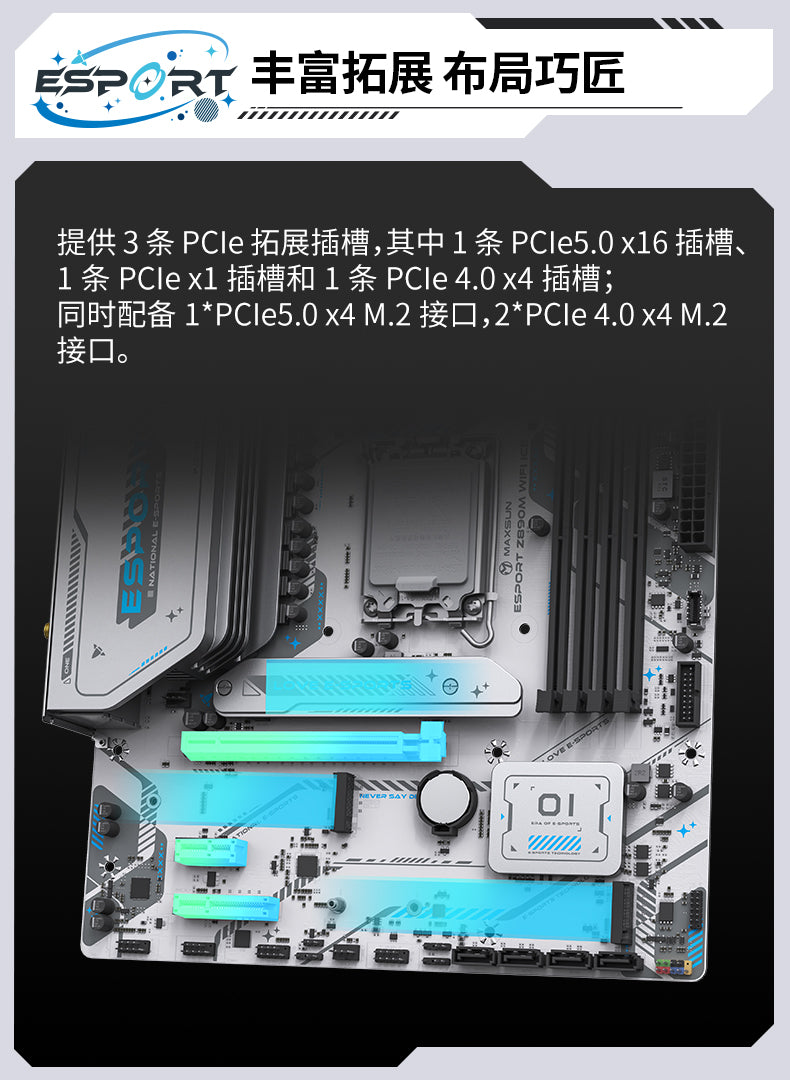

- Cutting-Edge Expansion: Equipped with PCIe 5.0 and PCIe 4.0 slots, plus three M.2 slots for high-speed storage and expansion flexibility.
- Enhanced Networking: Built-in 2.5G Ethernet and Wi-Fi 6 with Bluetooth 5.2, providing seamless, high-speed networking options.

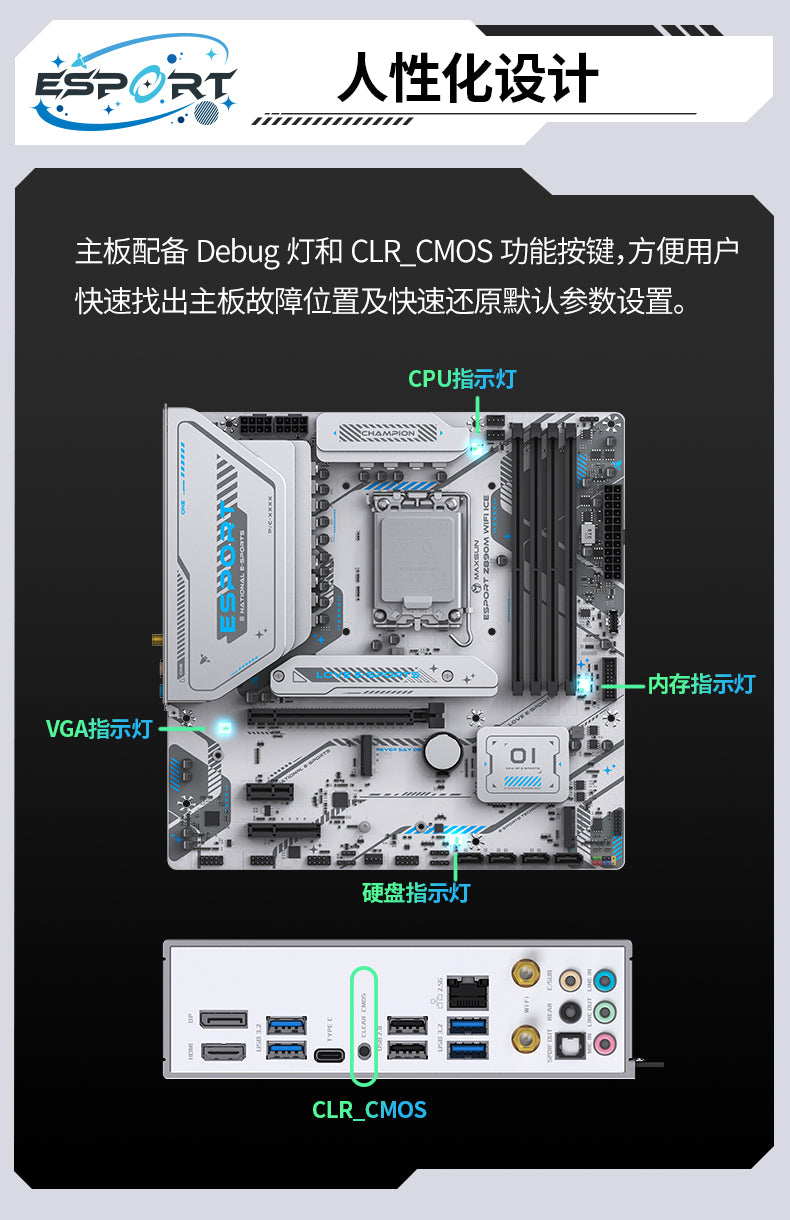

- User-Friendly Design: Includes Debug LEDs and a one-touch CLR CMOS button for easy troubleshooting and quick reset functionality.
- Advanced USB Options: Onboard and rear USB 3.2 ports, including Type-C®, deliver versatile connectivity options for all devices.
Overview
Specification
Support

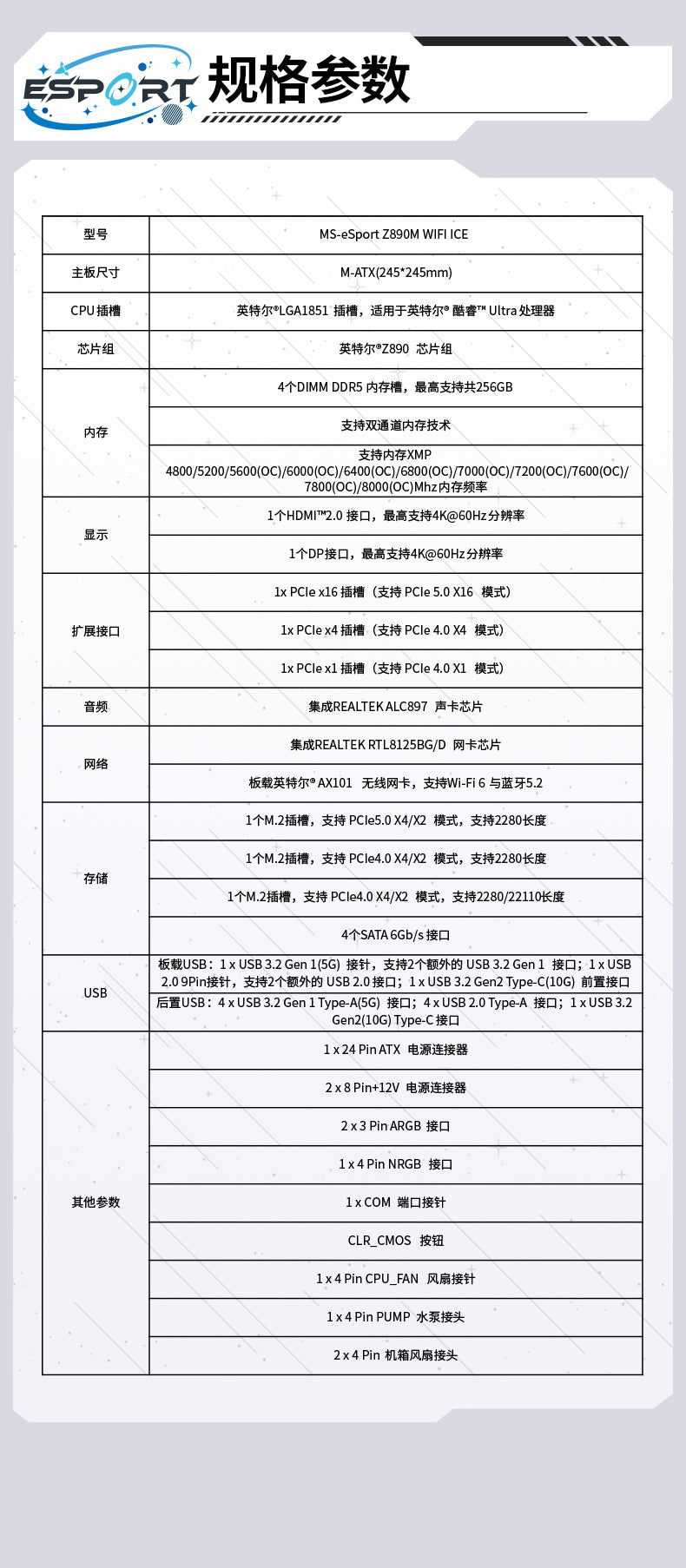

- Model
- MS-eSport Z890M WIFI ICE
- Form Factor
- M-ATX (245 x 245 mm)
- CPU Socket
- Intel® LGA1851, compatible with Intel® Core™ Ultra processors
- Chipset
- Intel® Z890
- Memory
- 4 x DIMM DDR5 slots, supporting dual-channel up to 256GB
Memory speeds: XMP 4800/5200/5600(OC)/6000(OC)/6400(OC)/6800(OC)/7000(OC)/7200(OC)/7600(OC)/7800(OC)/8000(OC) MHz
- Graphics Support
- 1 x HDMI™ 2.0 (up to 4K @60Hz)
1 x DisplayPort (up to 4K @60Hz)
- Expansion Slots
- 1 x PCIe 5.0 x16 slot (supports PCIe 5.0 x16 mode)
1 x PCIe 4.0 x4 slot (supports PCIe 4.0 x4 mode)
1 x PCIe 4.0 x1 slot (supports PCIe 4.0 x1 mode)
- Audio
- Integrated Realtek ALC897 Audio Chip
- Networking
- Realtek RTL8125BG/D Ethernet LAN
Intel® AX101 Wireless supporting Wi-Fi 6 and Bluetooth 5.2
- Storage
- 1 x M.2 slot (PCIe 5.0 x4/x2, supports 2280 length)
1 x M.2 slot (PCIe 4.0 x4/x2, supports 2280 length)
1 x M.2 slot (PCIe 4.0 x4/x2, supports 2280/22110 lengths)
4 x SATA 6Gb/s ports
- USB Ports
- Onboard: 1 x USB 3.2 Gen2 Type-C (10G) front header
1 x USB 3.2 Gen1 (5G) header, supports 2 additional USB 3.2 Gen1 ports
1 x USB 2.0 9-pin header, supports 2 additional USB 2.0 ports

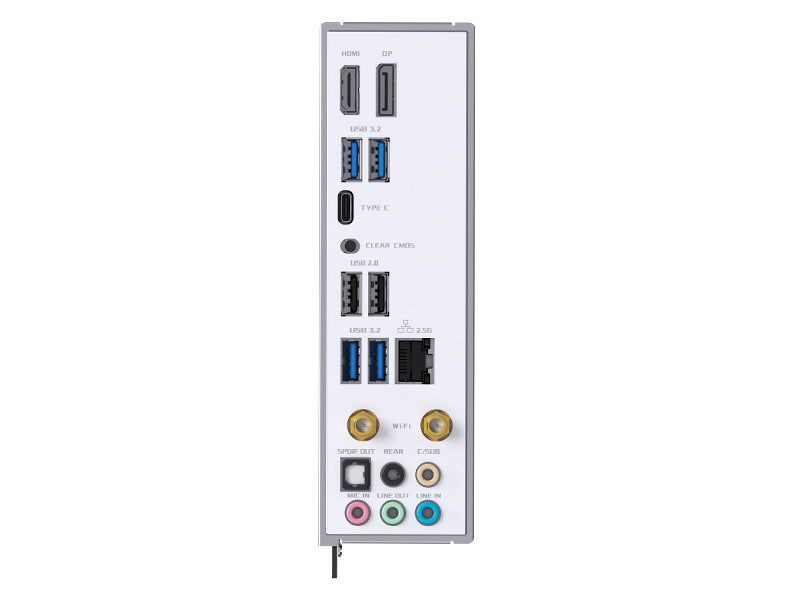

Rear Panel: 4 x USB 3.2 Gen1 Type-A (5G) ports
4 x USB 2.0 Type-A ports
1 x USB 3.2 Gen2 Type-C (10G) port
- Additional Features
- Power Connectors: 1 x 24-Pin ATX, 2 x 8-Pin +12V
RGB Headers: 2 x 3-Pin ARGB, 1 x 4-Pin NRGB
Other Headers: 1 x COM port header, CLR CMOS button, 1 x 4-Pin CPU FAN header, 1 x 4-Pin PUMP header, 2 x 4-Pin chassis fan headers
