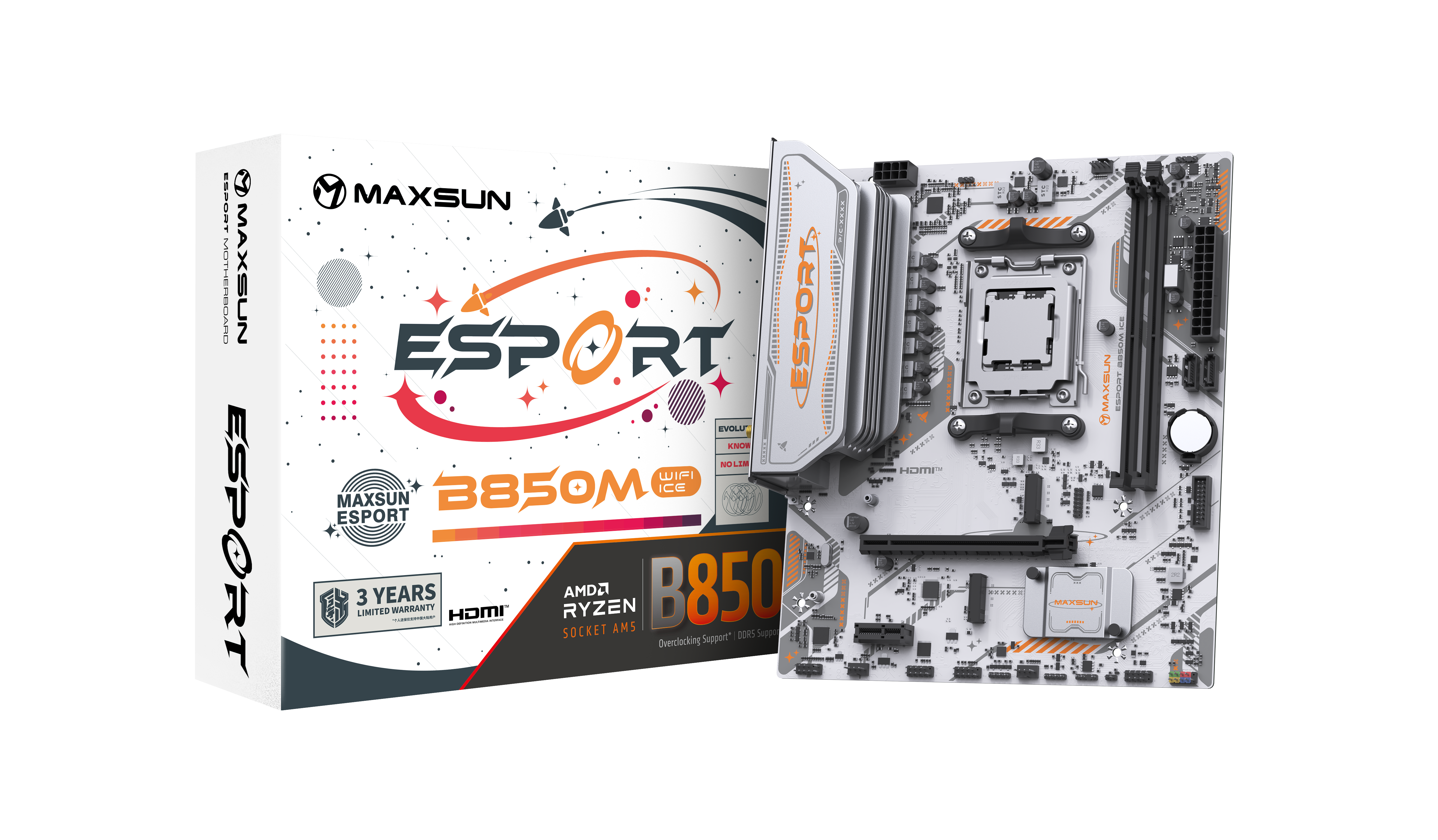

eSport B850M WIFI GELO
- Fator de forma: MicroATX (245x210mm)
- Compatibilidade de CPU: Soquete AM5 para Ryzen Série 7000/8000/9000, TDP: 88-180W
- Chipset:
AMD ® Chipset de alta velocidade B850 - Memória: 2 x slots U-DIMM DDR5, até 96GB, suporta tecnologia de canal duplo, suporte OC até 7800MHz
- Gráficos integrados: memória compartilhada, HDMI 1.4 (até 4096x2160@30Hz), DP (até 4096x2160@60Hz)
- Slots de expansão: 1 x PCIe x16 5.0, 1 x PCIe x1 3.0, suporta placas gráficas AMD/
NVIDIA /Intel - Áudio: Realtek ALC897, 3 conectores de áudio, suporte para saída de áudio frontal e traseira
- Rede: Realtek 8111H Gigabit Ethernet, Wi-Fi 6 (Realtek 8852BE), Bluetooth 5.2
- Armazenamento: 2 x slots M.2 (PCIe 4.0 x4/x2), 2 x SATA 3.0
- Portas USB: 4 x USB 3.2 GEN1, 2 x USB 2.0, 1 x conector USB 3.2 GEN1
Overview
Specification
Support
- Form Factor
- MicroATX (245x210mm)
- CPU Compatibility
- AM5 Socket for Ryzen 7000/8000/9000 Series, TDP: 88-180W
- Chipset
- AMD® B850 High-Speed Chipset
- Memory
- 2 x U-DIMM DDR5 slots, Up to 96GB, Supports Dual-Channel Technology, OC support up to 7800MHz
- Integrated Graphics
- Shared memory, HDMI 1.4 (up to 4096x2160@30Hz), DP (up to 4096x2160@60Hz)
- Expansion Slots
- 1 x PCIe x16 5.0, 1 x PCIe x1 3.0, Supports AMD/NVIDIA/Intel Graphics Cards
- Audio
- Realtek ALC897, 3 Audio jacks, Front & Rear audio output support
- Networking
- Realtek 8111H Gigabit Ethernet, Wi-Fi 6 (Realtek 8852BE), Bluetooth 5.2
- Storage
- 2 x M.2 slots (PCIe 4.0 x4/x2), 2 x SATA 3.0
- USB Ports
- 4 x USB 3.2 GEN1, 2 x USB 2.0, 1 x USB 3.2 GEN1 header
- Power Connectors
- 24-pin ATX, 8-pin 12V ATX
- Fan Headers
- 2 x System Fans, 1 x CPU Fan
- Hardware Monitoring
- Voltage, Temperature, Fan Speed Monitoring, Smart Fan Control
- OS Support
- Windows 10/11 64-bit, Ubuntu 64-bit
- ESD Protection
- ±8KV Air discharge, ±6KV Contact discharge
- Additional Features
- Clear CMOS button, TPM, COM port, ARGB & NRGB headers
