Terminator Z790M D5 WIFI
- Surging property
- 10 phase power supply & hybrid heat dissipation
- Expansion and upgrade
- 5 x M.2 slots
- Fast transmission
- Front and rear dual 20G Type-C

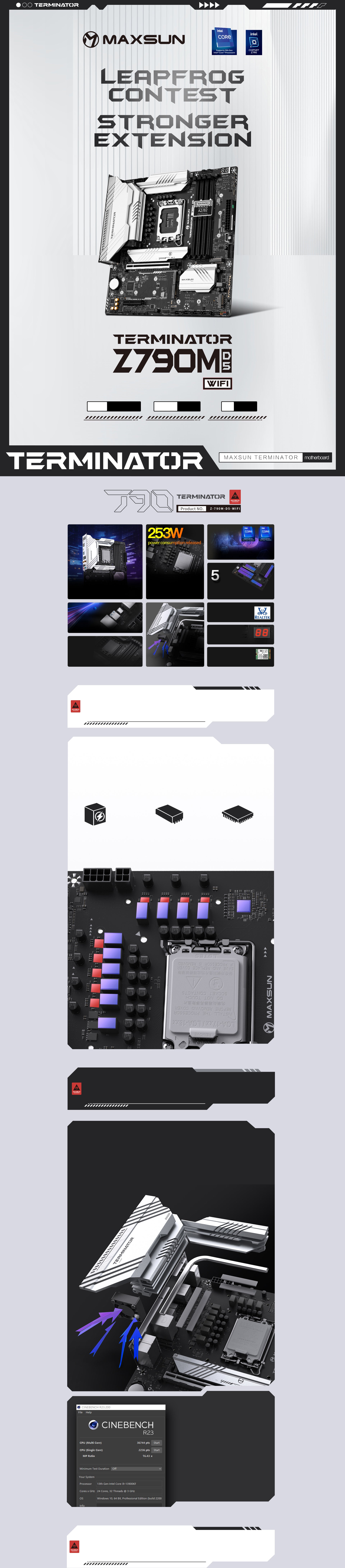

OVERVIEW
Surgingperformance
Extendedupgrade
Fasttransfer
Ancestral Power Supply
&
Hybrid Cooling
5*M.2 hard disk
interface
Dual 20G rate Type-C
MS-Terminator Z790M D5 WIFI
m-ATX form factor Size: 245*245mm
USB3.2 Gen2x2
Type-C
Front and rear dual 20G rate
DDR5 memory
Support XMP frequency stable
running 7000MHz (OC)
Extraordinary experience
with full firepower
8+1+1 phase power supply design
RT3628AEPWM master control
SIC654 50A Dr.Mos
Mixed type
Cooling module
Passive Rin Frost Thermal Armor
Temperature-controlled start-stop low-noise fan
6mm nickel-plated copper tube
High-quality thermal silicon strip
Humanized and
convenient functions
Digital display DEBUG diagnostic light + one-button CLR CMOS
Wi-Fi6E wireless
network card
Support 2.4, 5, 6GHz frequency bands, support Bluetooth 5.3
13th & 12th
Intel®Core™ LGA1700 support
5*PCIe4.0 x4 M.2
Full speed interface, support NVMe hard disk
2.5G wired network card
Realtek RTL8125B network card chip
Ancestral Powered
Use good materials to be stable
10-phase power supply & integrated Dr.Mos
Using 8+1+1 phase power supply, through the RT3628AE PWM main control chip and 50ADr.Mos equipped with each phase of the core, it can stably release the heterogeneous performance of the 13th generation Core and bring an excellent performance experience.
8+1+1 phases
power supply
50A
Dr.Mos
RT3628AE
PWM Master chip
Hybrid cooling
Ingenious materials are used
Alloy cooling armor & self-starting
cooling
The top of the power supply part is covered with silver alloy heat dissipation armor. The two pieces of armor are connected by 6mm nickel-plated copper tubes. The contact surface between the MOS and the MOS is made of high-quality heat-conducting silicon strips, and the temperature-controlled self-starting and stopping low-noise cooling fan is assisted to fully extract 24 cores.
80℃
*Temperature control start and stop cooling fan
Only intervene when the above temperature is reached
CPU(Multi Core)
36744 pts
CPU(Single Core)
2236 pts

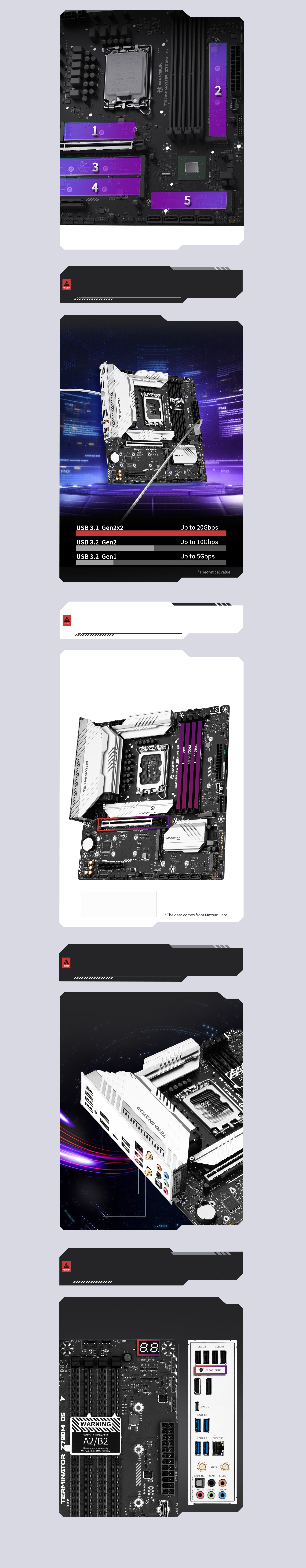

Extended upgrade
The motherboard provides up to 5 M.2 hard disk interfaces, all of which are PCle4.0x4 speed, all support NVMe protocol, and support Raid array.
Dual 20G rate Type-C interface
Data Transfer One Step Faster
The motherboard provides next-generation front and rear USB3.2 Gen2x2Type-C interfaces, and the theoretical transmission speed can reach 20Gbps.
DDR5&PCle5.0
Measured overclockingfrequency stable running
7000MHz
Equipped with 4 DDR5 memory slots, enhanced interface, the signal is more stable and pure. Optimized circuit layout, with stronger overclocking capability, the measured overclocking frequency runs steadily at 7000MHZ
Equipped with a PCle5.0 alloy armor graphics card slot, with faster transmission, the theoretical bandwidth is as high as 128GB/s to prepare for the new generation of equipment.
2.5G & WIFI6E
2.5G
Wired network port
WIFI6E
Wireless network port
The built-in 2.5G rate network card provides a theoretical speed of 2500Mbps, which is faster and more stable. The reserved M.2 WiFi interface supports PCIe & USB & CNVi protocols.
Humanized function
The motherboard is equipped with a user-friendly digital display DEBUG diagnostic light. Users can check the one-key CLR_CMOS at the motherboard status I/0 according to the corresponding display code, allowing players to quickly reset the computer settings.
SPECIFICATION
- CHIPSET
- INTEL Z790
- CPU
- Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
- MEMORY
- 4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
- ONBOARD GRAPHICS
- 1x DisplayPort 1.4
1x HDMI™port
*HDMI™ port supports up to 4K@30Hz
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- EXPANSION SLOT
- 1x PCIe 5.0 x16 slot
1x PCIe 3.0 x4 slot
- STORAGE
- M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
M.2_5 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
- RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- USB
- *Front USB (Total 6 ports)
1x USB 3.2 Gen2x2 Type C
2x USB 3.2 Gen1 Type A
3x USB 2.0
*Rear USB (Total 9 ports)
1x USB 3.2 Gen2x2 Type C
4x USB 3.2 Gen1 Type A
4x USB 2.0
- LAN
- Realtek® RTL8125BG 2.5G LAN
- WIRELESS / BLUETOOTH
- Intel® Wi-Fi 6E AX211
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3
- AUDIO
- Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
- INTERNAL I/O
- 1x 24-pin Power Connector(ATX_PWR)
1x 8+4-pin Power Connector(CPU_PWR)
1x CPU Fan
5x System Fan
5 x M.2 slots (Key-M)
4x SATA 6Gb/s ports
1x M.2 slots (Key-E)
1x 4-Pin SPEAKER
2x 5V 3-Pin ARGB
1x 12V 4-Pin RGB
1x 2-pin Clear CMOS
1x Front Audio
1x COM_A Port
1x TPM pin header(Support TPM 2.0)
- LED FEATURE
- 4x Distributed Debug LED
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- FORM FACTOR
- M-ATX
245mm x 245mm
