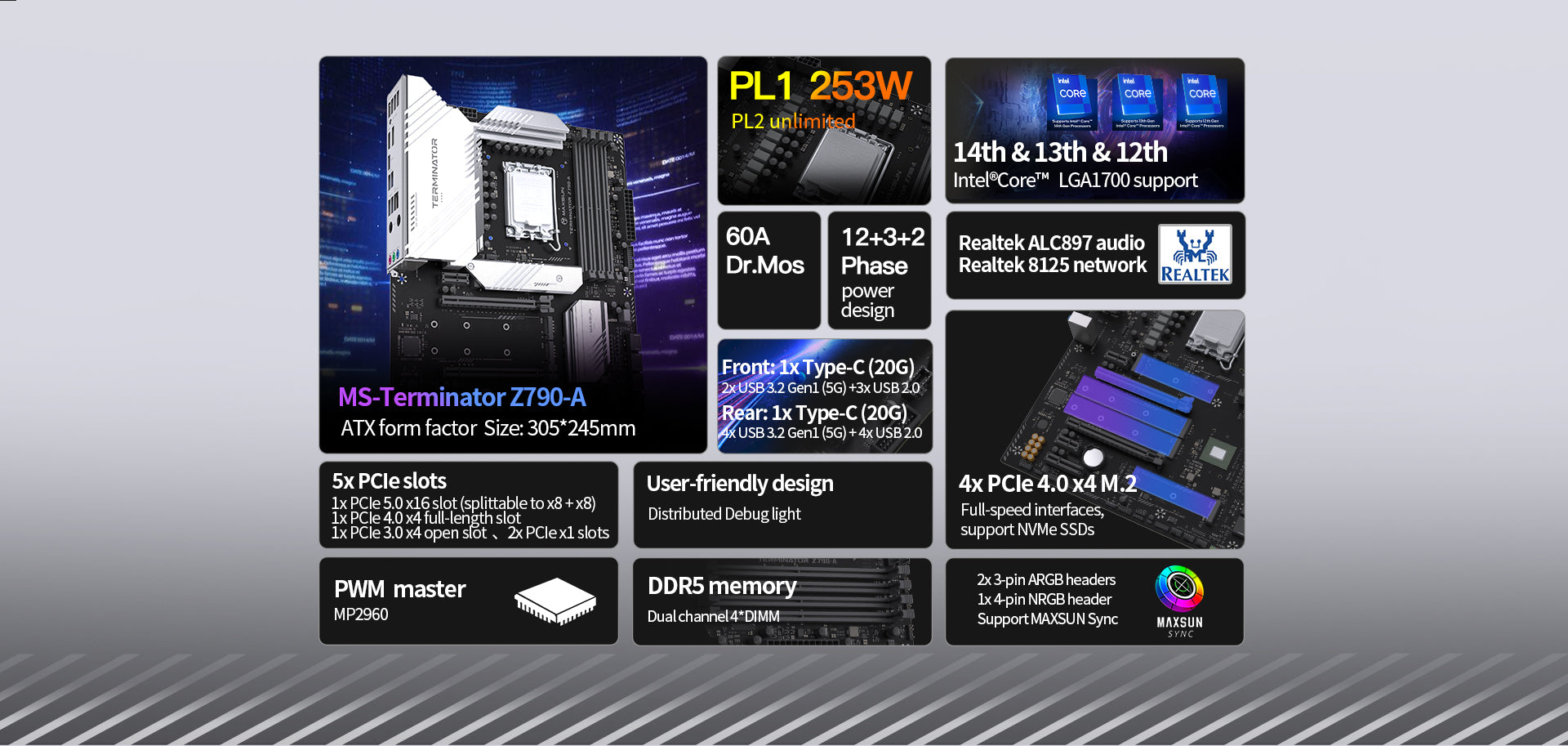

Terminator Z790-A

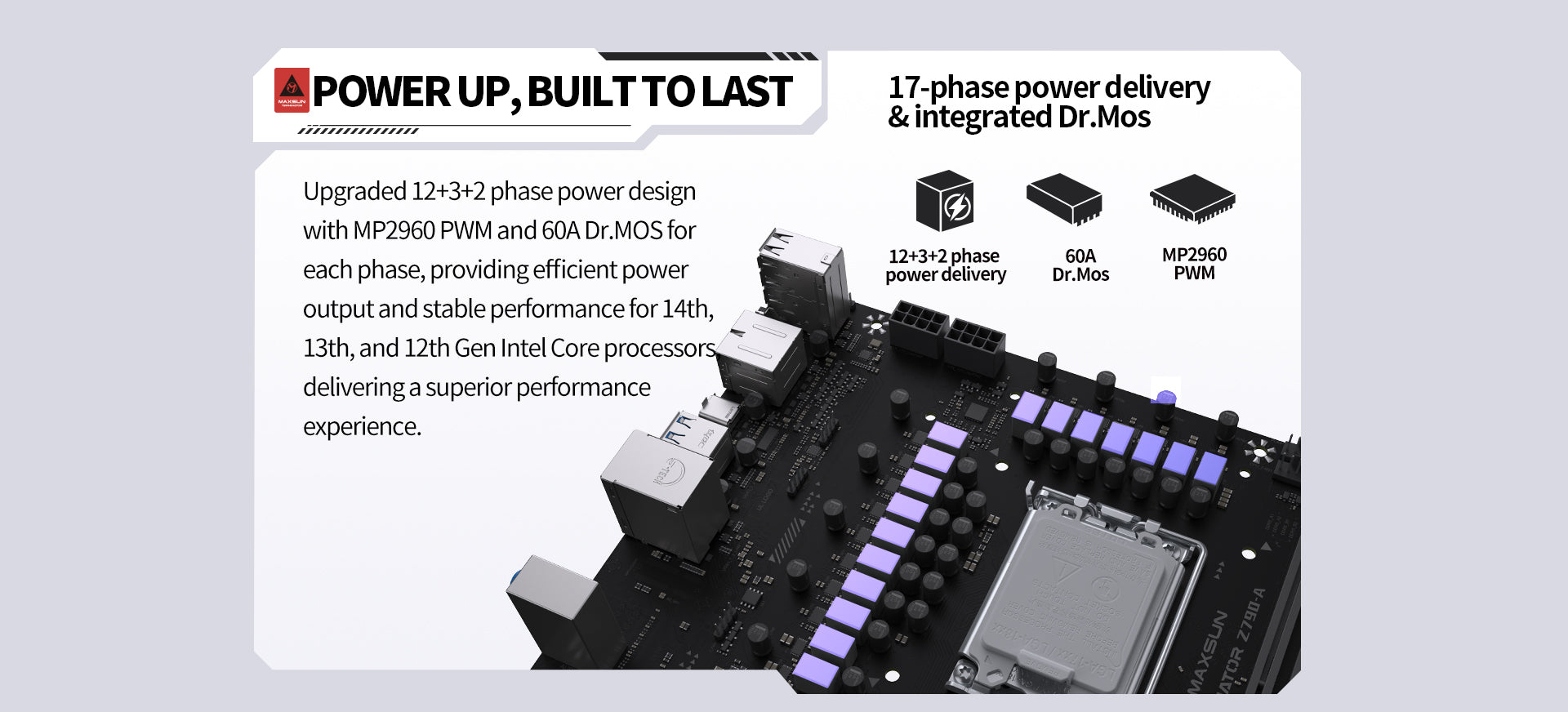

  • Powerful: 2x 8PIN +12V CPU, 24PIN motherboard power
  • Cool: 1x CPU FAN, 1x 4-pin PUMP, 4x SYS FAN

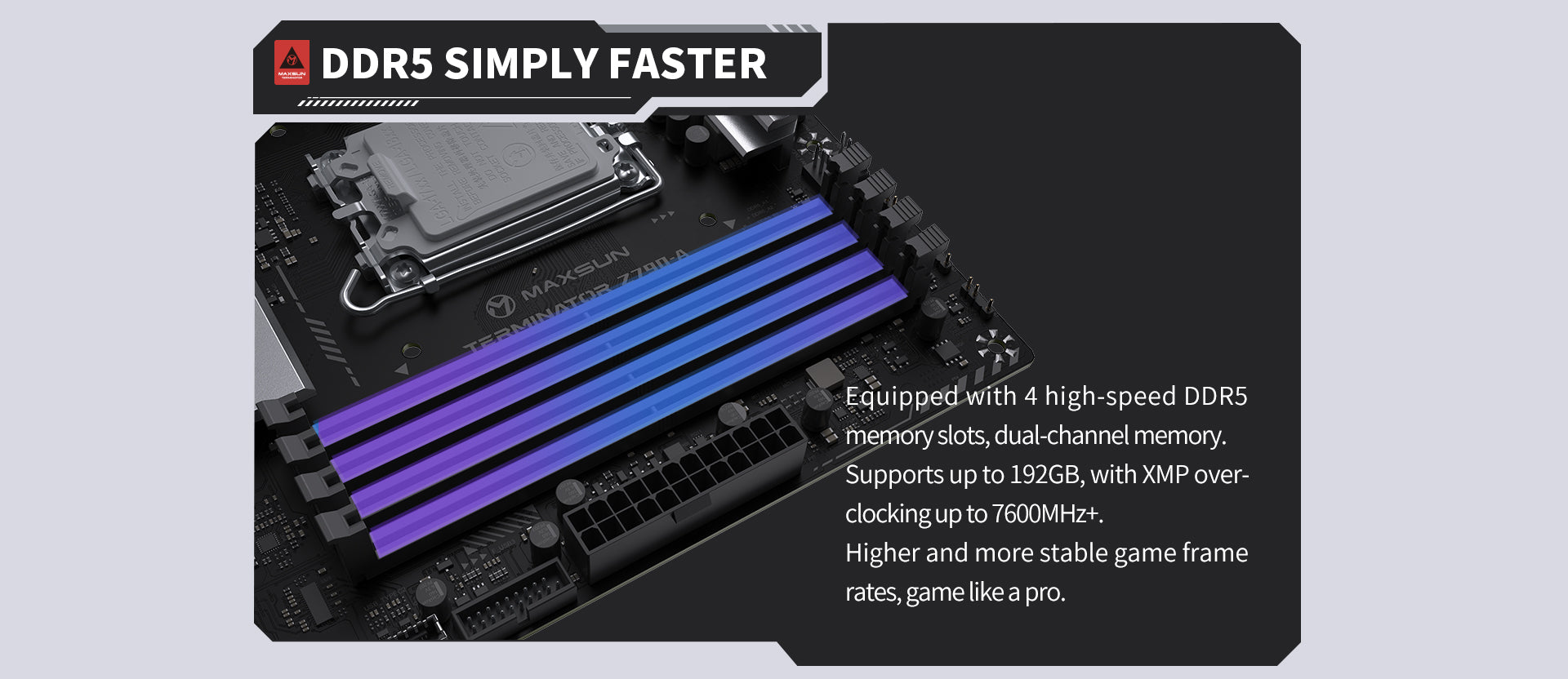

  • Fast Memory: 4x DDR5 slots, up to 7600(OC)MHz, XMP
  • Expandable: 1x PCIe 5.0 x16, 1x PCIe 4.0 x4
  • Storage: 4x PCIe 4.0 x4 M.2, 4x SATA 6Gb/s
  • Front Ports: 1x USB 3.2 Gen2x2 Type-C, USB 3.2 Gen1

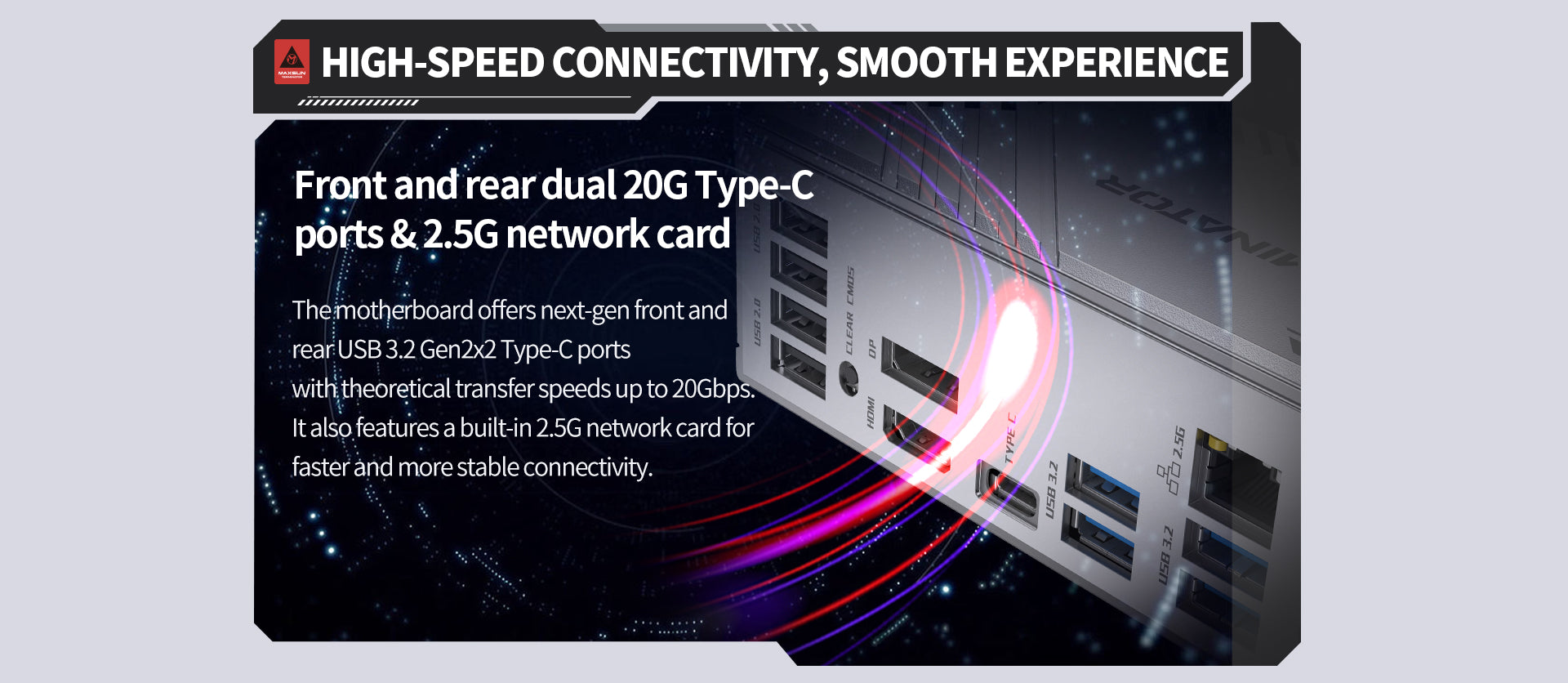

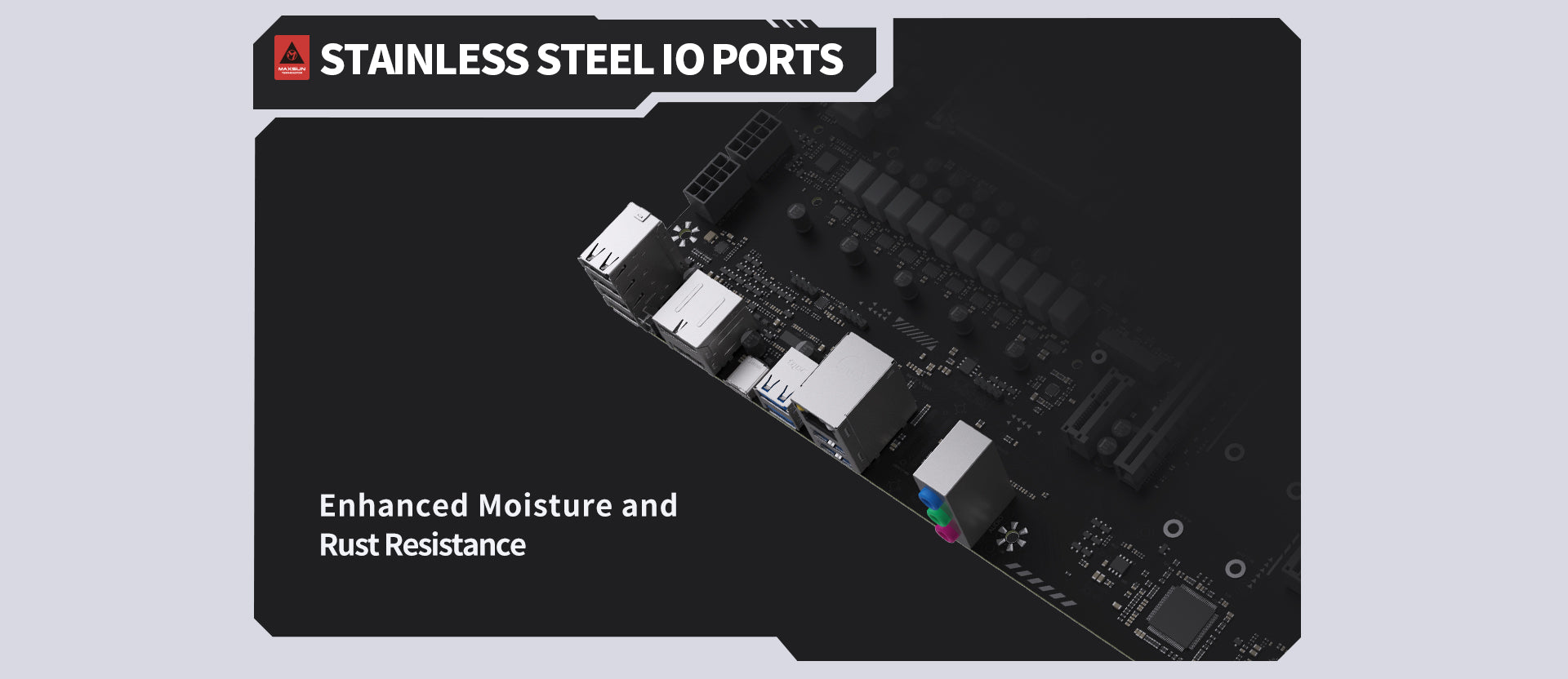

  • Rear Ports: 1x USB 3.2 Gen2x2 Type-C, 4x USB 3.2 Gen1
  • Display: 1x DisplayPort 1.4, 1x HDMI 1.4
  • Features: Debug LEDs, clr_CMOS, ARGB, NRGB
  • Networking: Realtek RTL8125BG 2.5Gb Ethernet
Overview

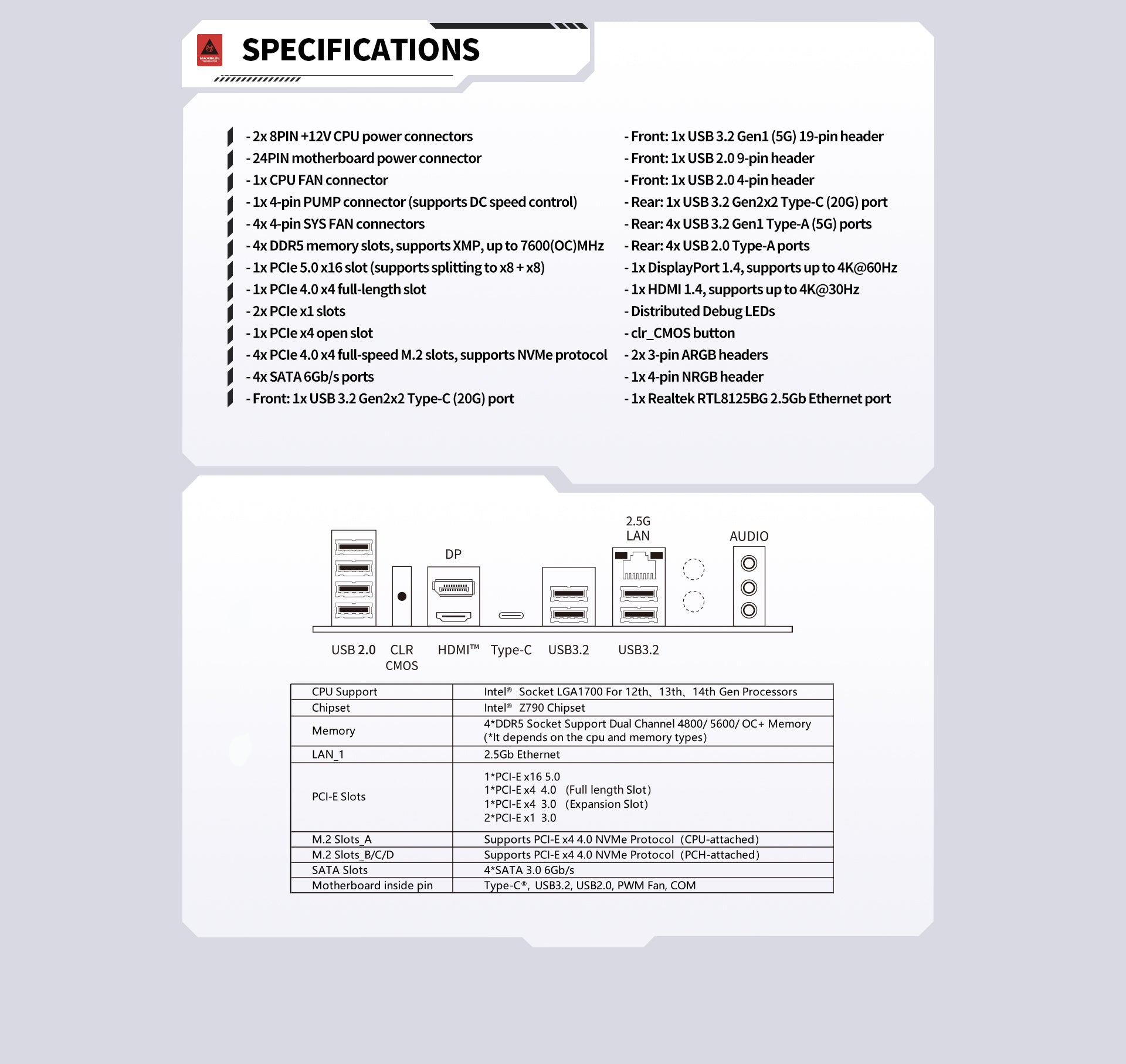

Specification
Support

  • CHIPSET
  • INTEL ®Z790
  • CPU
  • Supports 12th/13th/14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
    LGA 1700
    TDP:253W

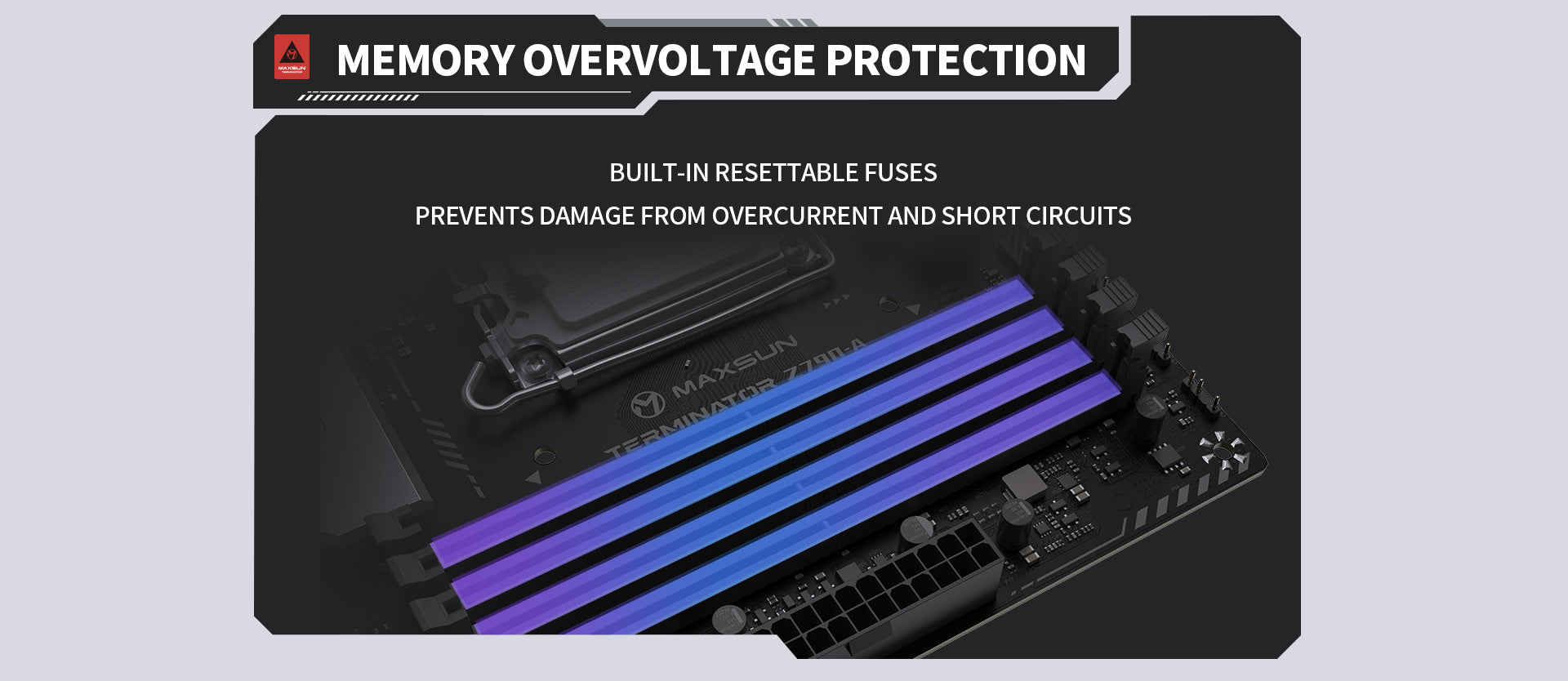

  • MEMORY
  • 4x DDR5, Maximum Memory Capacity 192GB
    Memory Support DDR5 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Supports Intel® XMP 3.0 OC
    Supports Dual-Controller Dual-Channel mode
  • ONBOARD GRAPHICS
  • 1*HDMI™ port supports up to 4096x2160@30Hz resolution (support HDCP2.2)
    1*DP1.4 interface with a maximum resolution of 4096x2160@60Hz

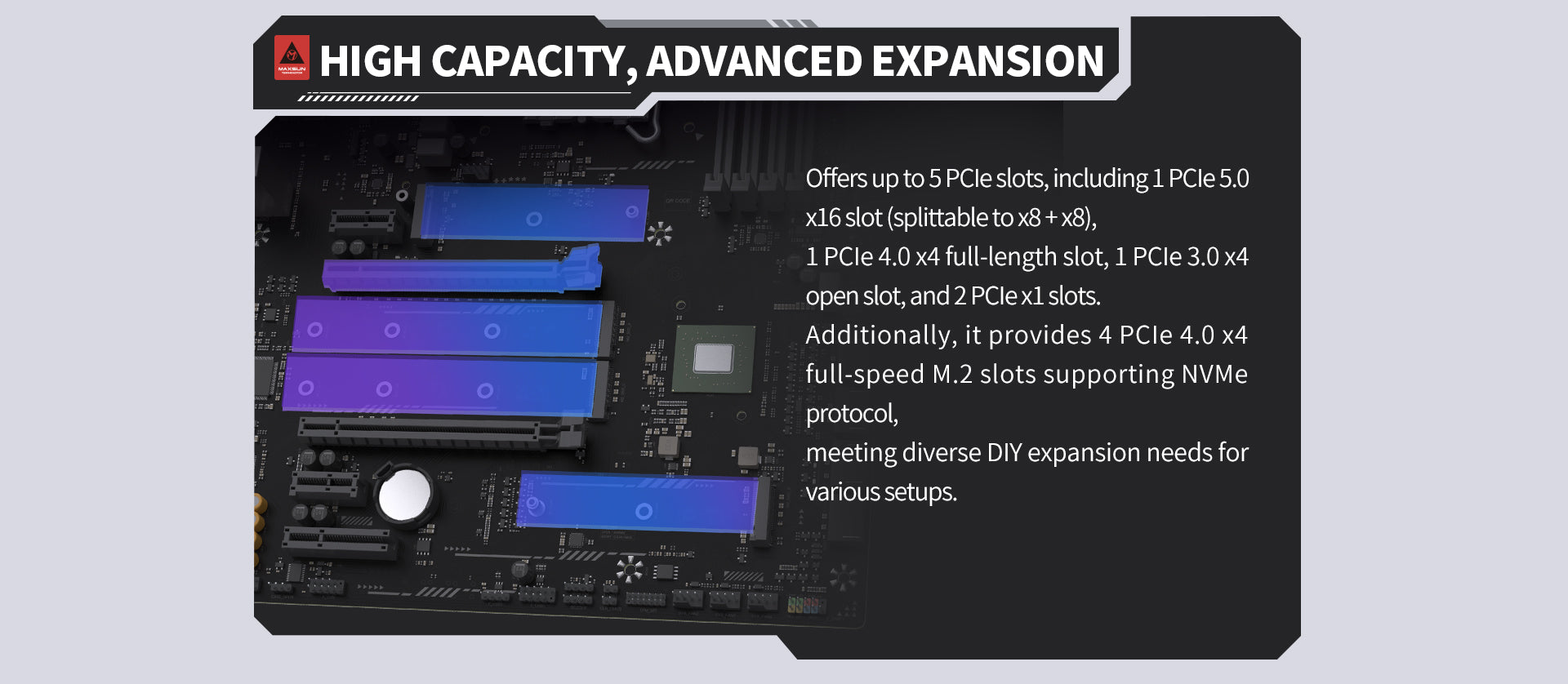

  • EXPANSION SLOT
  • 1x PCIe 5.0 x16 slot
    1x PCIe 4.0 x4 slot
    1x PCIe 3.0 x4 slot
    2x PCIe 3.0 x1 slot
  • STORAGE
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
  • RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • USB
  • *Front USB (Total 6 ports)
    1x USB 3.2 Gen2x2 Type C
    2x USB 3.2 Gen1 Type A
    3x USB 2.0
    *Rear USB (Total 9 ports)
    1x USB 3.2 Gen2x2 Type C
    4x USB 3.2 Gen1 Type A
    4x USB 2.0

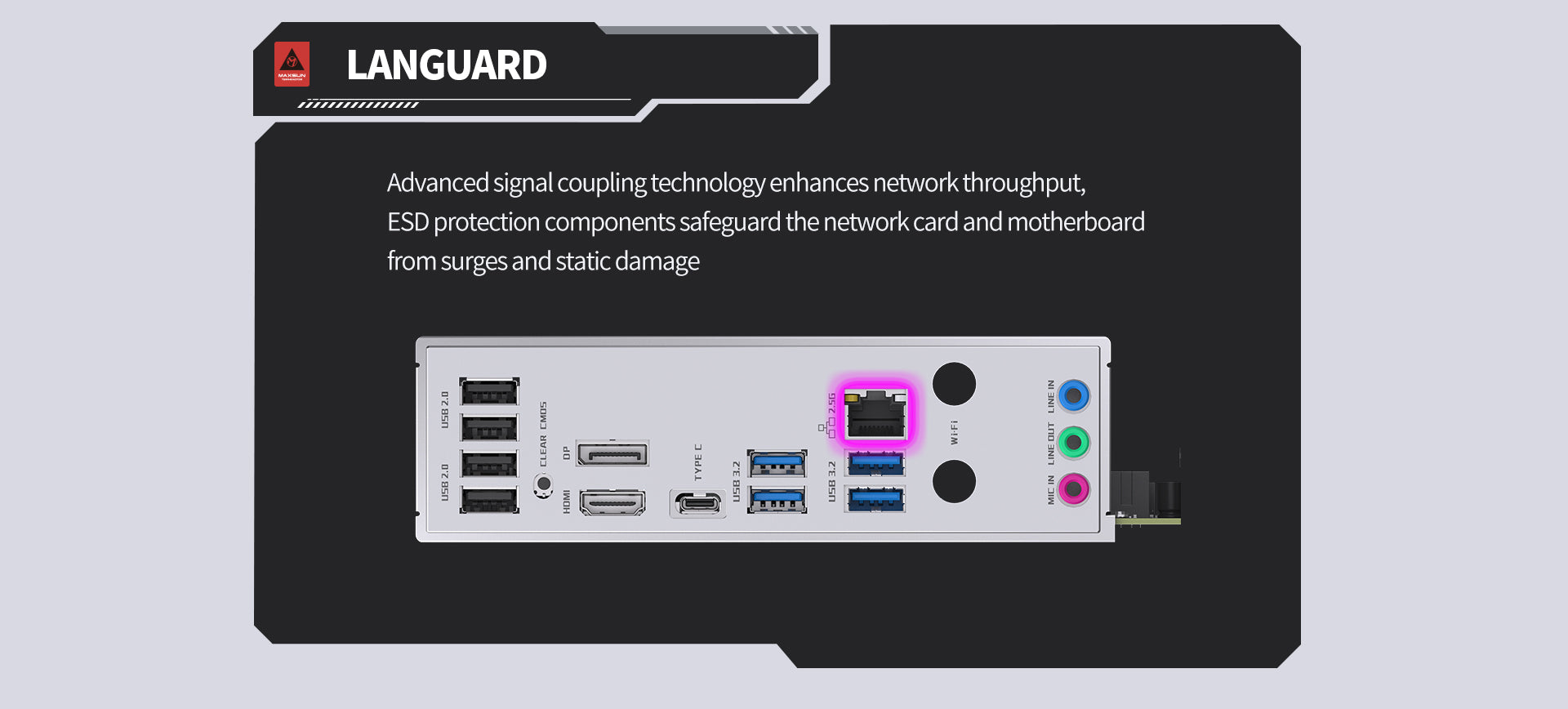

  • LAN
  • 1x Realtek® RTL8125BG 2.5G LAN
  • WIRELESS / BLUETOOTH
  • Intel® Wi-Fi 6E AX211
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax
    Supports Bluetooth® 5.3
  • AUDIO
  • Realtek® ALC897 Codec
    7.1-Channel High Definition Audio
    Supports S/PDIF output
  • INTERNAL I/O
  • 1x 24-pin Power Connector(ATX_PWR)
    2x 8-pin Power Connector(CPU_PWR)
    1x CPU Fan
    1x AIO_Pump Fan
    4x System Fan
    4 x M.2 slots (Key-M)
    4x SATA 6Gb/s ports
    1x M.2 slots (Key-E)
    1x 4-Pin SPEAKER
    2x 5V 3-Pin ARGB
    1x 12V 4-Pin RGB
    1x Clear CMOS
    1x Front Audio
    1x COM_A Port
    1x TPM pin header(Support TPM 2.0)
    1x RGB Button
    1x POWER Button
    1x REBOOT Button
  • LED FEATURE
  • 4x Distributed Debug LED
  • OPERATING SYSTEM
  • Support for Windows® 11 64-bit, Windows® 10 64-bit
  • FORM FACTOR
  • ATX
    305mm x 248mm
