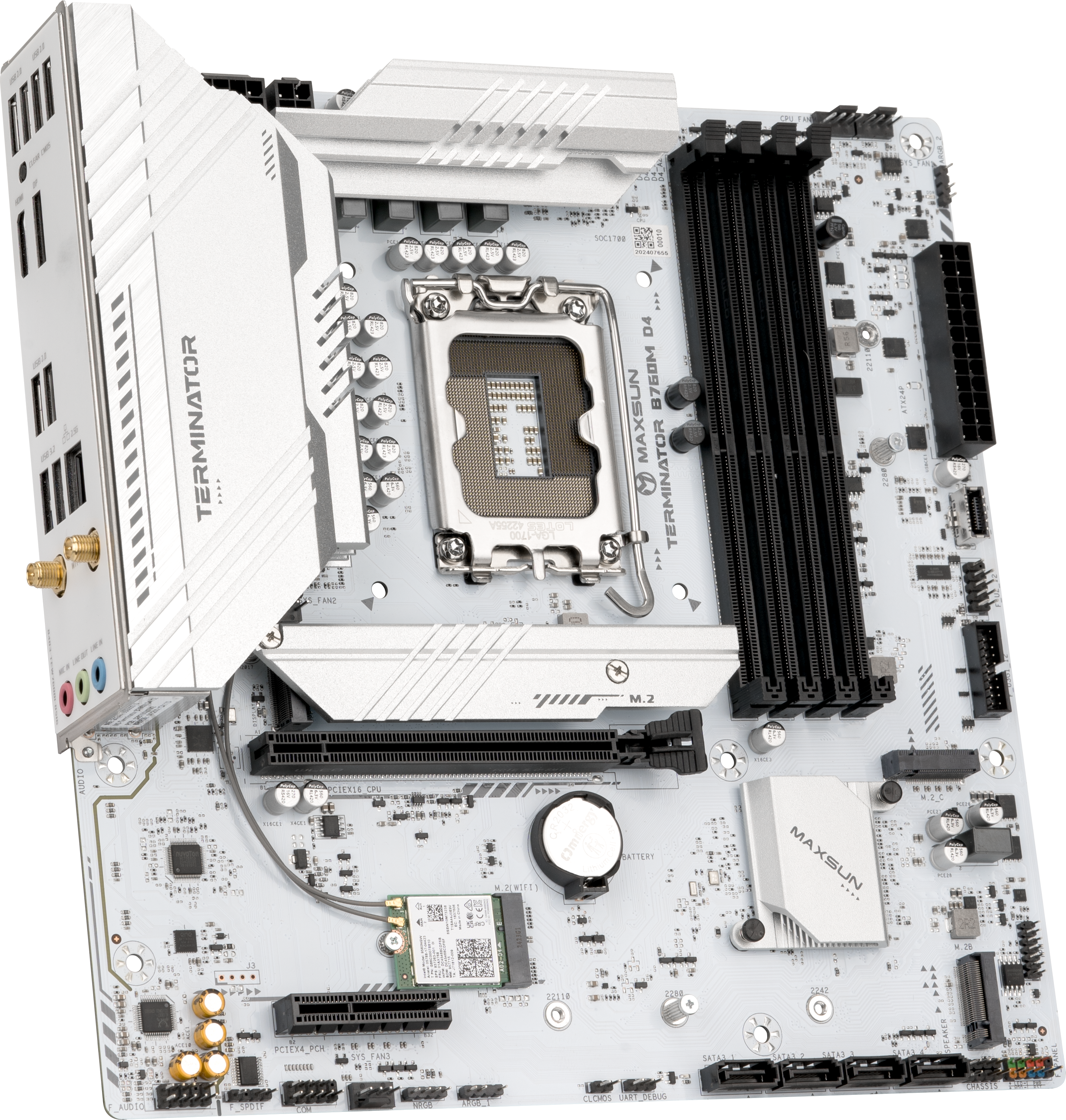

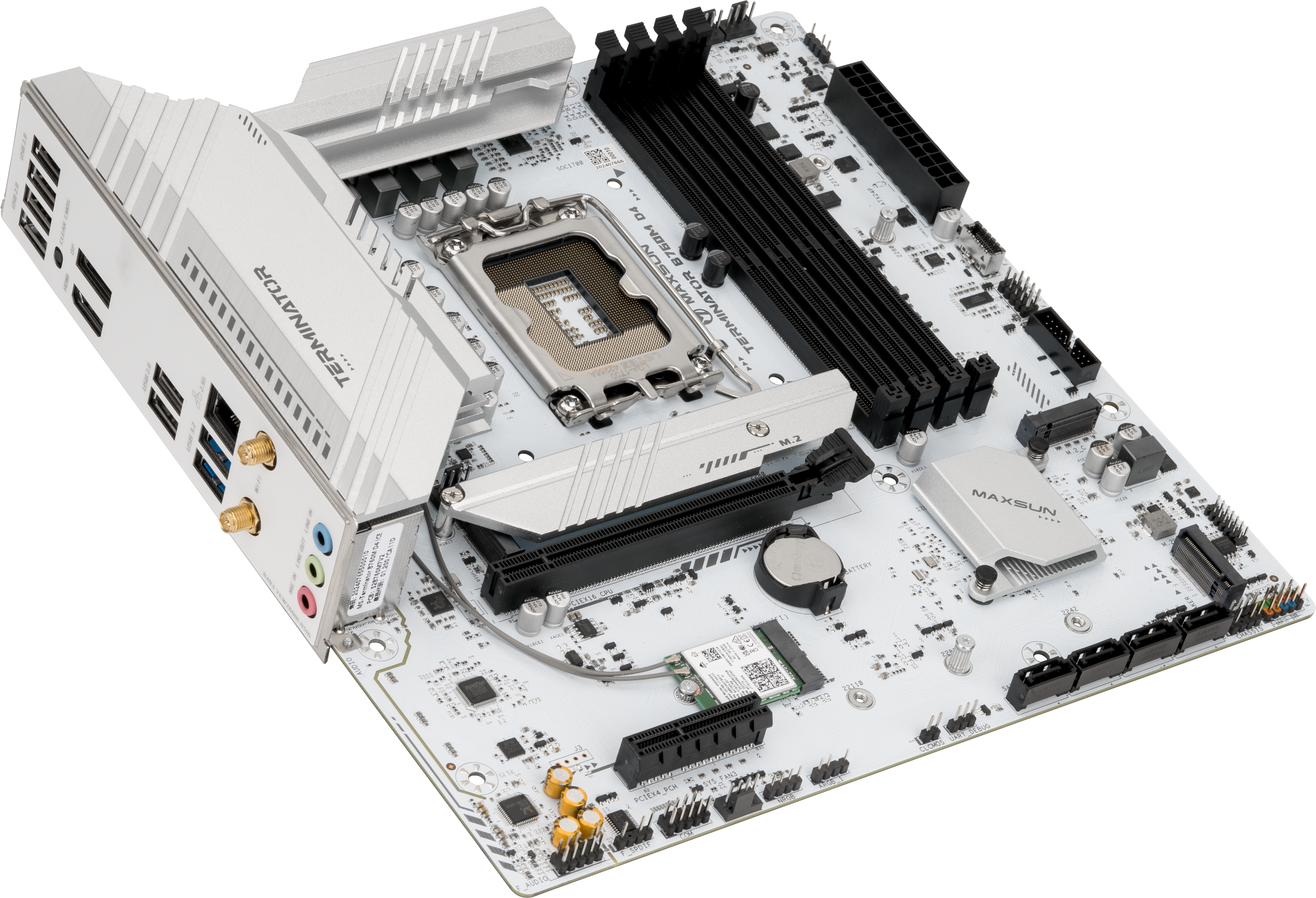

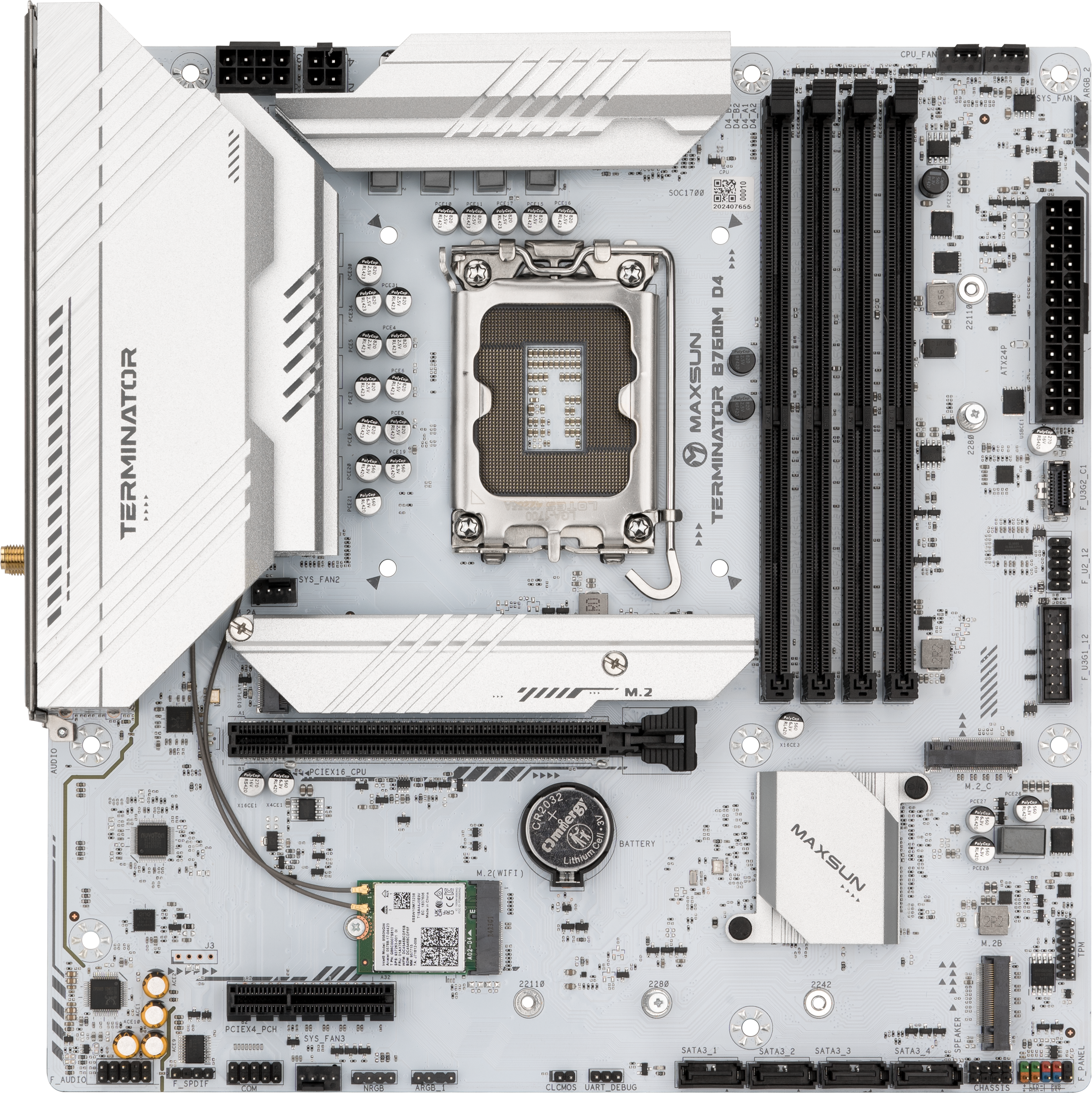

Terminator B760M D4 ICE

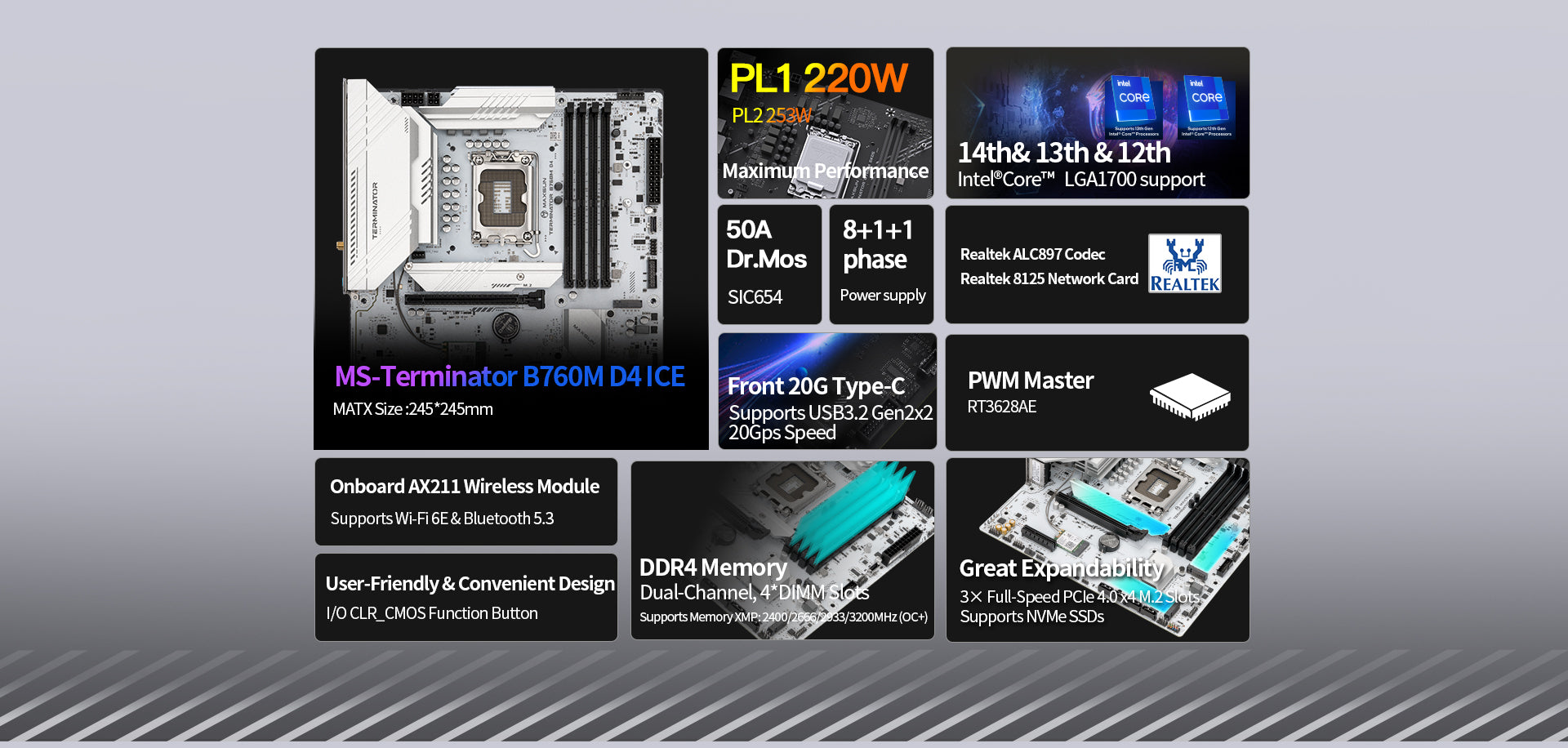

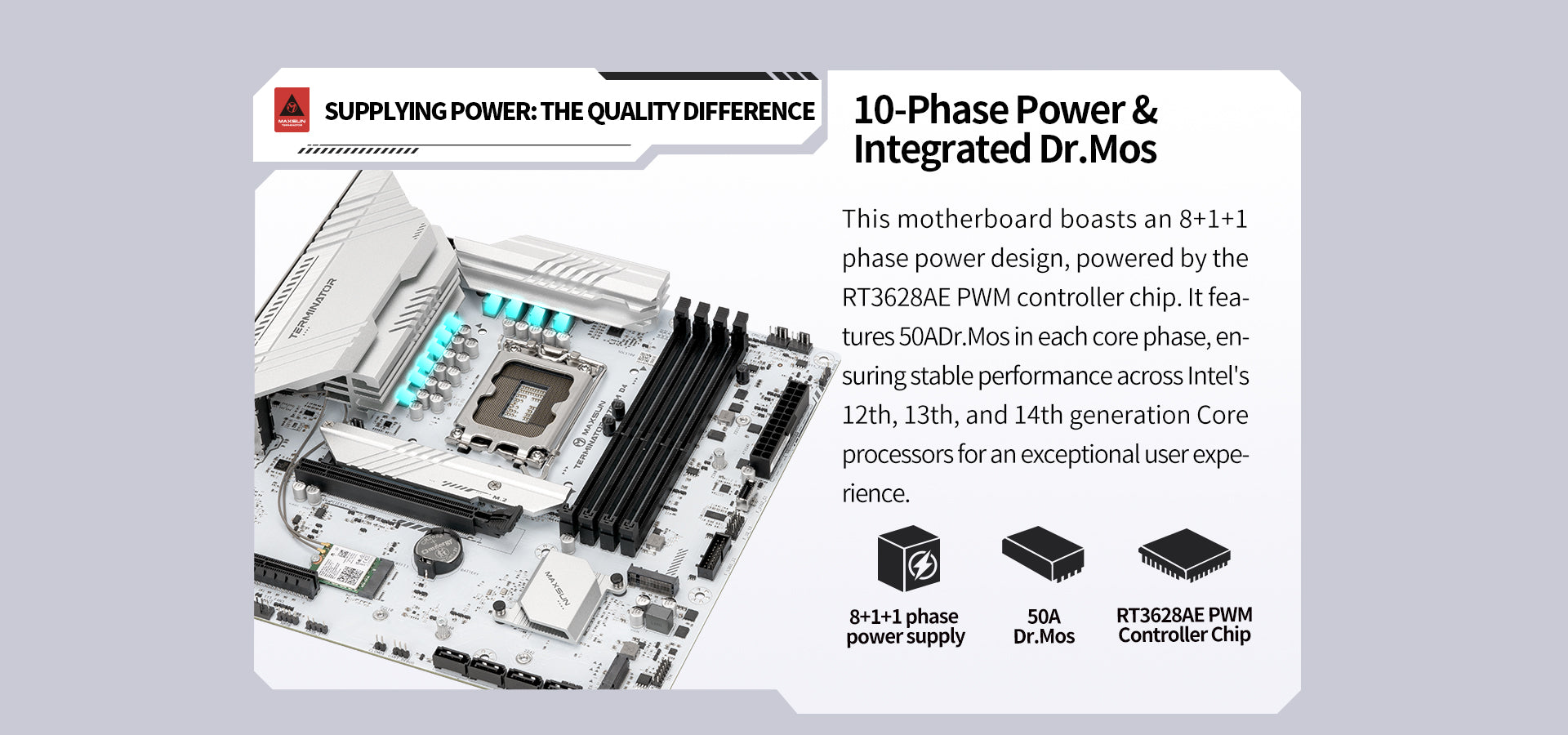

- Unmatched Power Performance: 8+1+1 Phase Power Design & Integrated Dr. MOS for stable performance with Intel’s 12th, 13th, and 14th Gen Core processors.

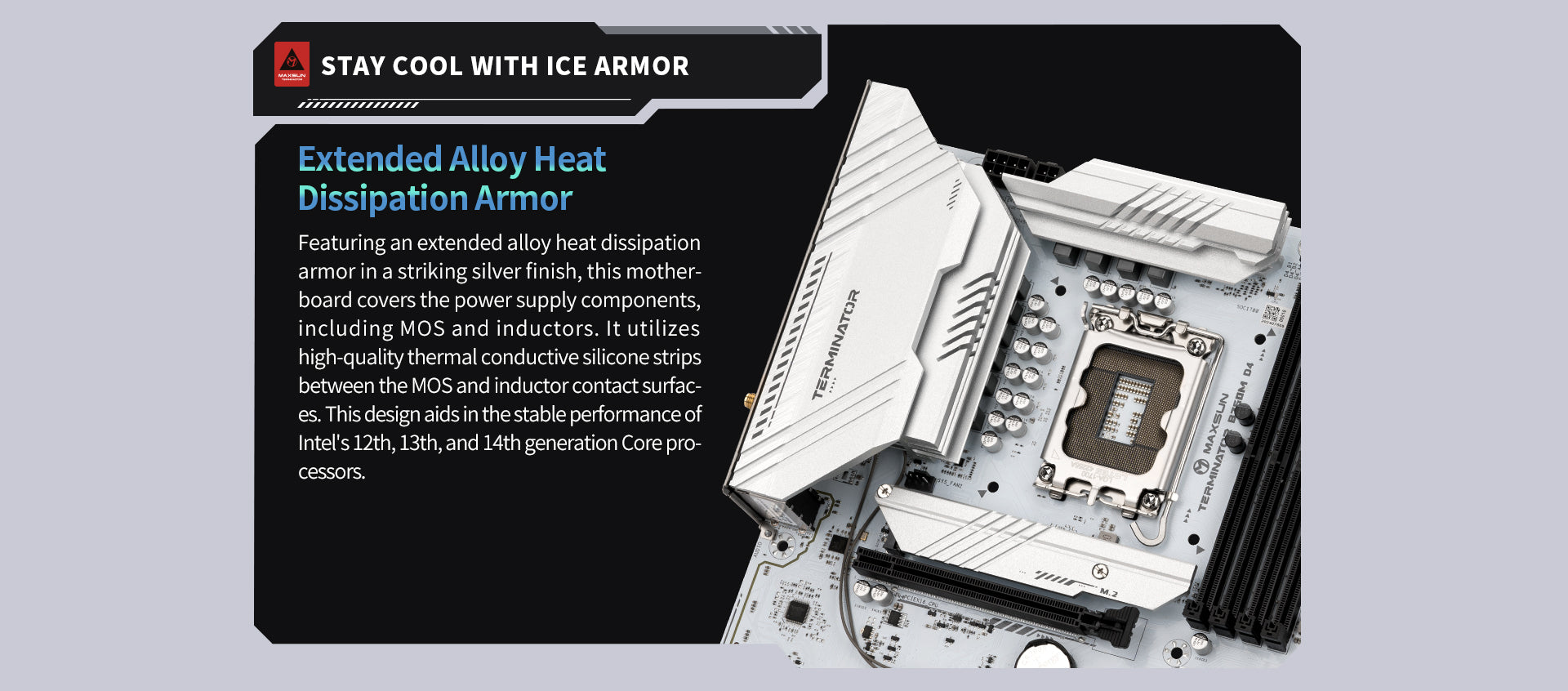

- Advanced Heat Dissipation: Extended Alloy Heat Dissipation Armor to cool the system under high loads with cutting-edge cooling technology.

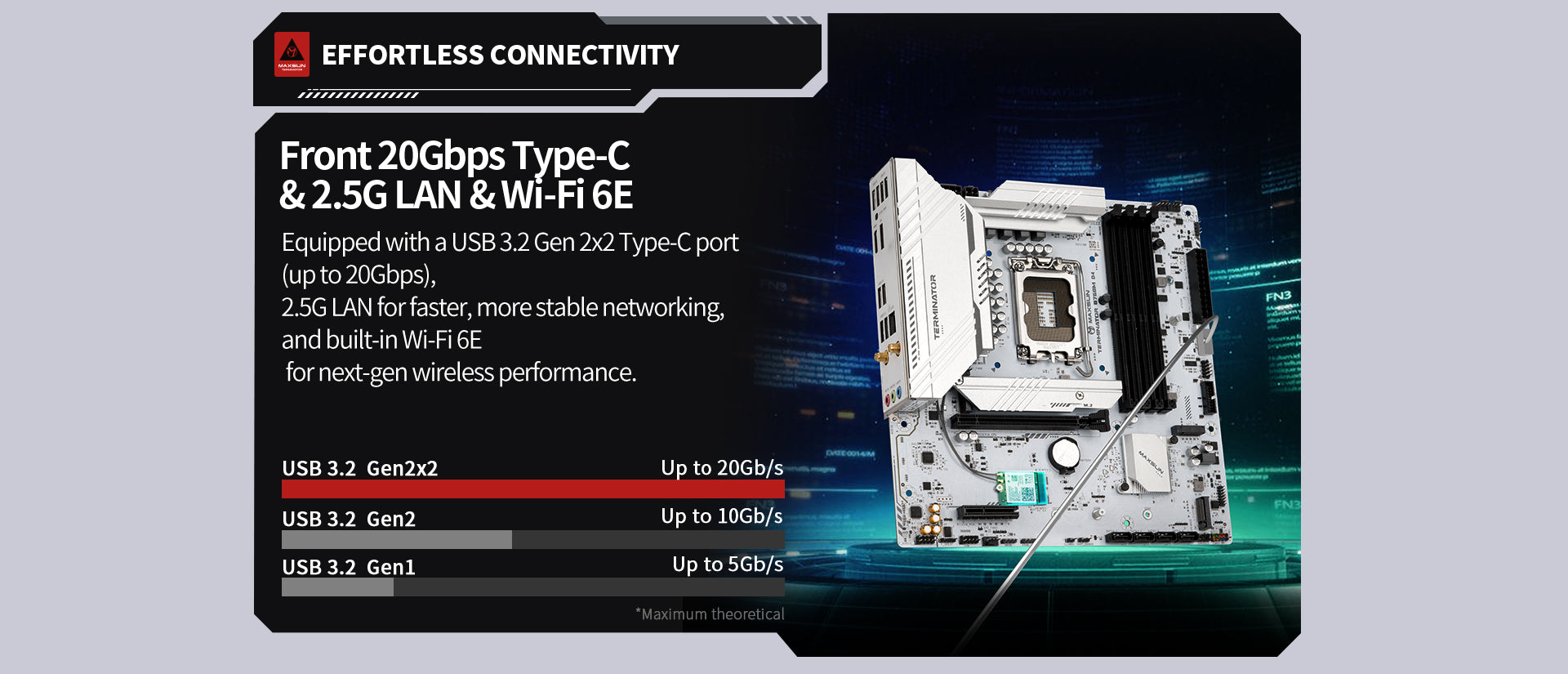

- High-Speed Connectivity: 20Gbps Front USB 3.2 Gen2x2 Type-C, 2.5Gbps LAN, and Wi-Fi 6E for ultra-fast data transfers and smoother gaming experiences.

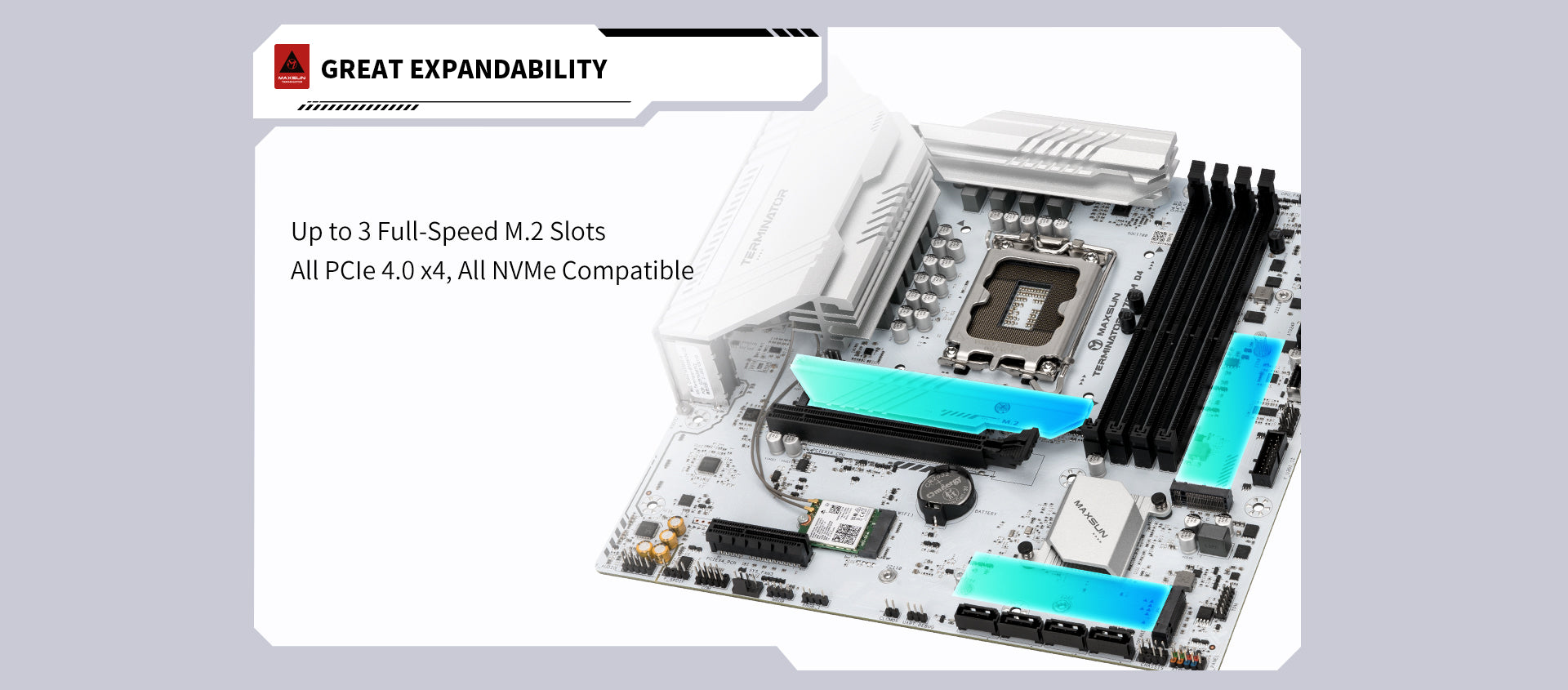

- Ultimate Expandability: Supports up to 3 full-speed M.2 slots, all PCIe 4.0 compatible, and up to 64GB DDR4 RAM for unparalleled expansion.
- Built for Future-Proofing: Equipped with USB 3.2 Gen2x2, HDMI, 10Gb LAN, and more, ready to handle future technology demands.
- Optimized Power Delivery: Powered by a high-performance 220W PL1, ensuring your system always stays stable under heavy workloads.
Overview
Specification
Support

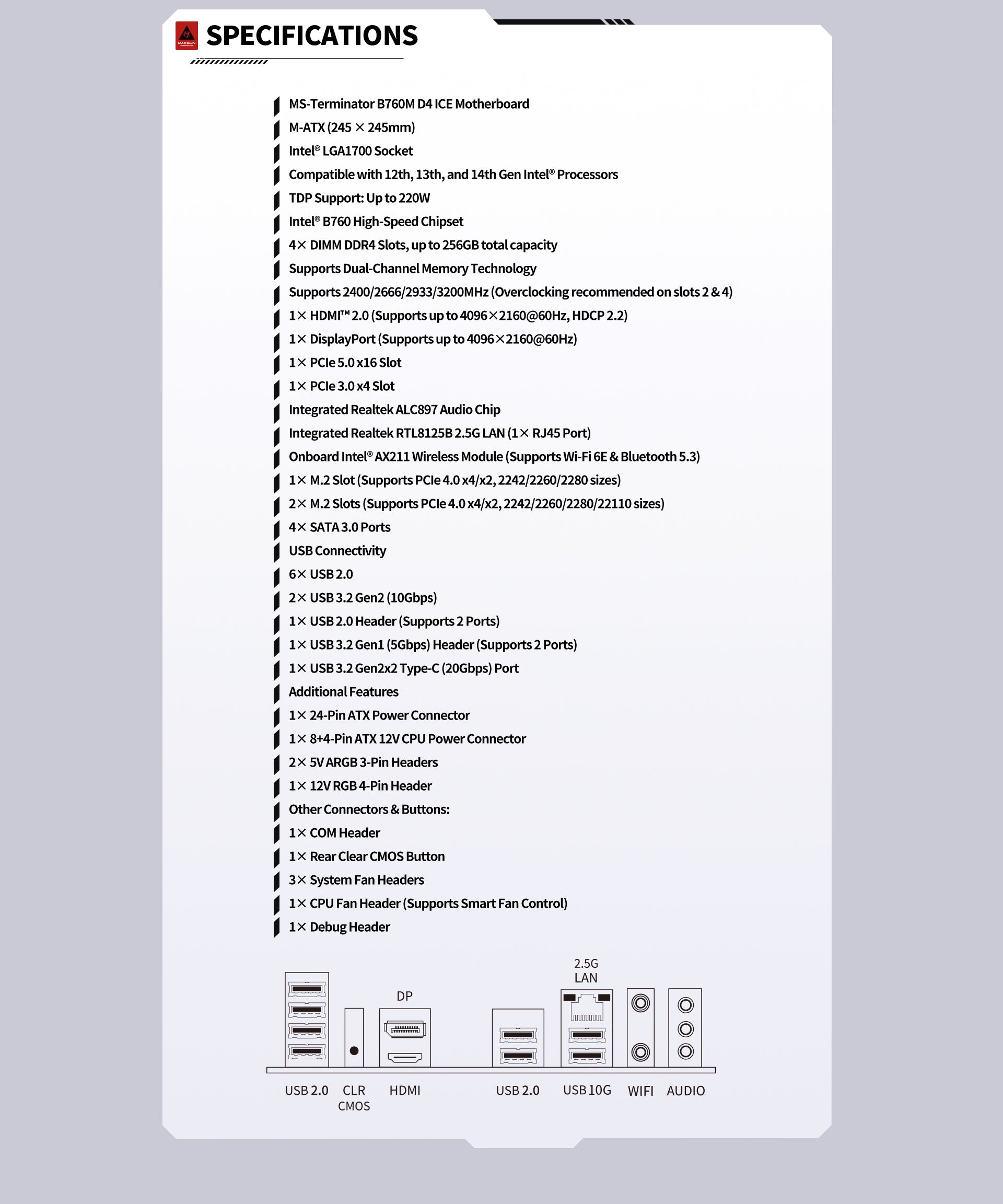

- Model
- MS-Terminator B760M D4 ICE Motherboard
- Form Factor
- M-ATX (245 × 245mm)
- CPU Support
- Intel® LGA1700 Socket
Compatible with 12th, 13th, and 14th Gen Intel® Processors
TDP Support: Up to 220W
- Chipset
- Intel® B760 High-Speed Chipset
- Memory
- 4 x DIMM DDR4 Slots, up to 256GB total capacity
Supports Dual-Channel Memory Technology
Supports 2400/2666/2933/3200MHz (Overclocking recommended on slots 2 & 4)
- Display Outputs
- 1 x HDMI™ 2.0 (Supports up to 4096×2160@60Hz, HDCP 2.2)
1 x DisplayPort (Supports up to 4096×2160@60Hz)
- Expansion Slots
- 1 x PCIe 5.0 x16 Slot
1 x PCIe 3.0 x4 Slot
- Audio
- Integrated Realtek ALC897 Audio Chip
- Networking
- Integrated Realtek RTL8125B 2.5G LAN (1 x RJ45 Port)
Onboard Intel® AX211 Wireless Module (Supports Wi-Fi 6E & Bluetooth 5.3)
- Storage
- 1 x M.2 Slot (Supports PCIe 4.0 x4/x2, 2242/2260/2280 sizes)
2 x M.2 Slots (Supports PCIe 4.0 x4/x2, 2242/2260/2280/22110 sizes)
4 x SATA 3.0 Ports
- USB Connectivity

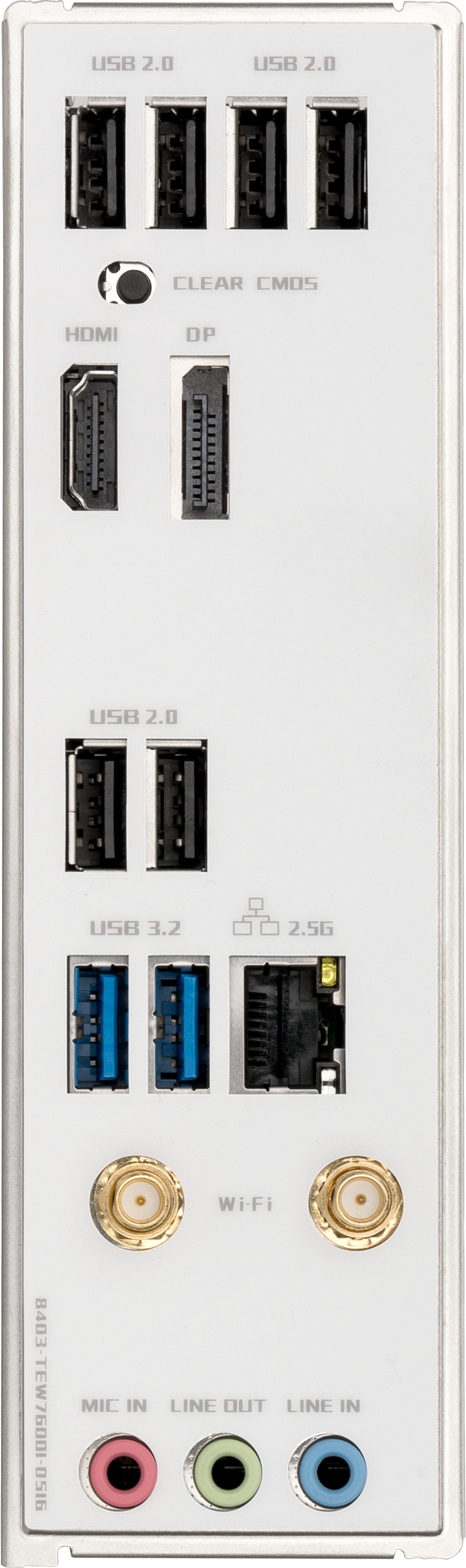

- Rear I/O:
6 x USB 2.0
2 x USB 3.2 Gen2 (10Gbps)
Internal Headers:
1 x USB 2.0 Header (Supports 2 Ports)
1 x USB 3.2 Gen1 (5Gbps) Header (Supports 2 Ports)
1 x USB 3.2 Gen2x2 Type-C (20Gbps) Port
- Power & RGB Headers
- 1 x 24-Pin ATX Power Connector
1 x 8+4-Pin ATX 12V CPU Power Connector
2 x 5V ARGB 3-Pin Headers
1 x 12V RGB 4-Pin Header
- Other Connectors & Buttons
- 1 x COM Header
1 x Rear Clear CMOS Button
3 x System Fan Headers
1 x CPU Fan Header (Supports Smart Fan Control)
1 x Debug Header
