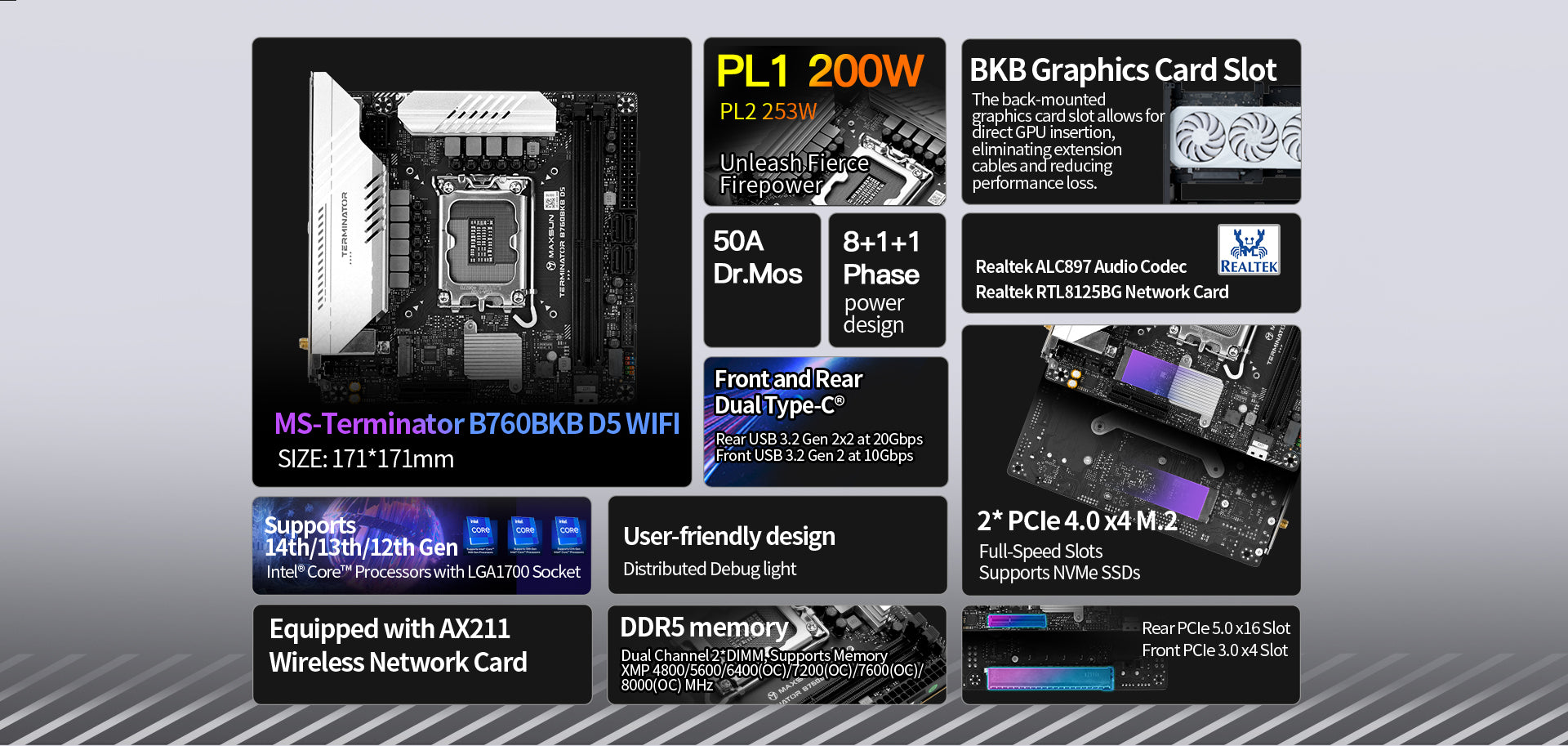

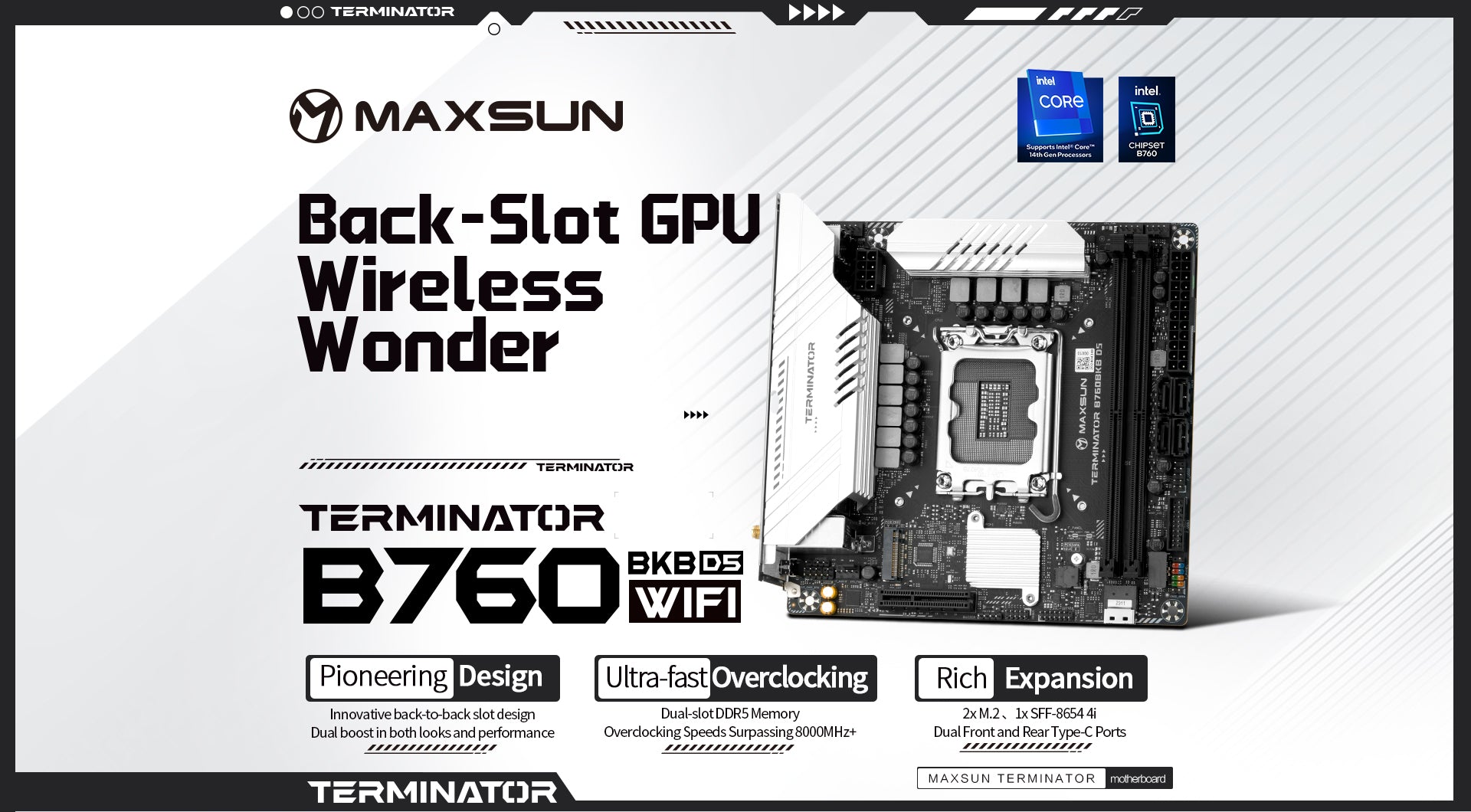

Terminator B760BKB D5 WIFI

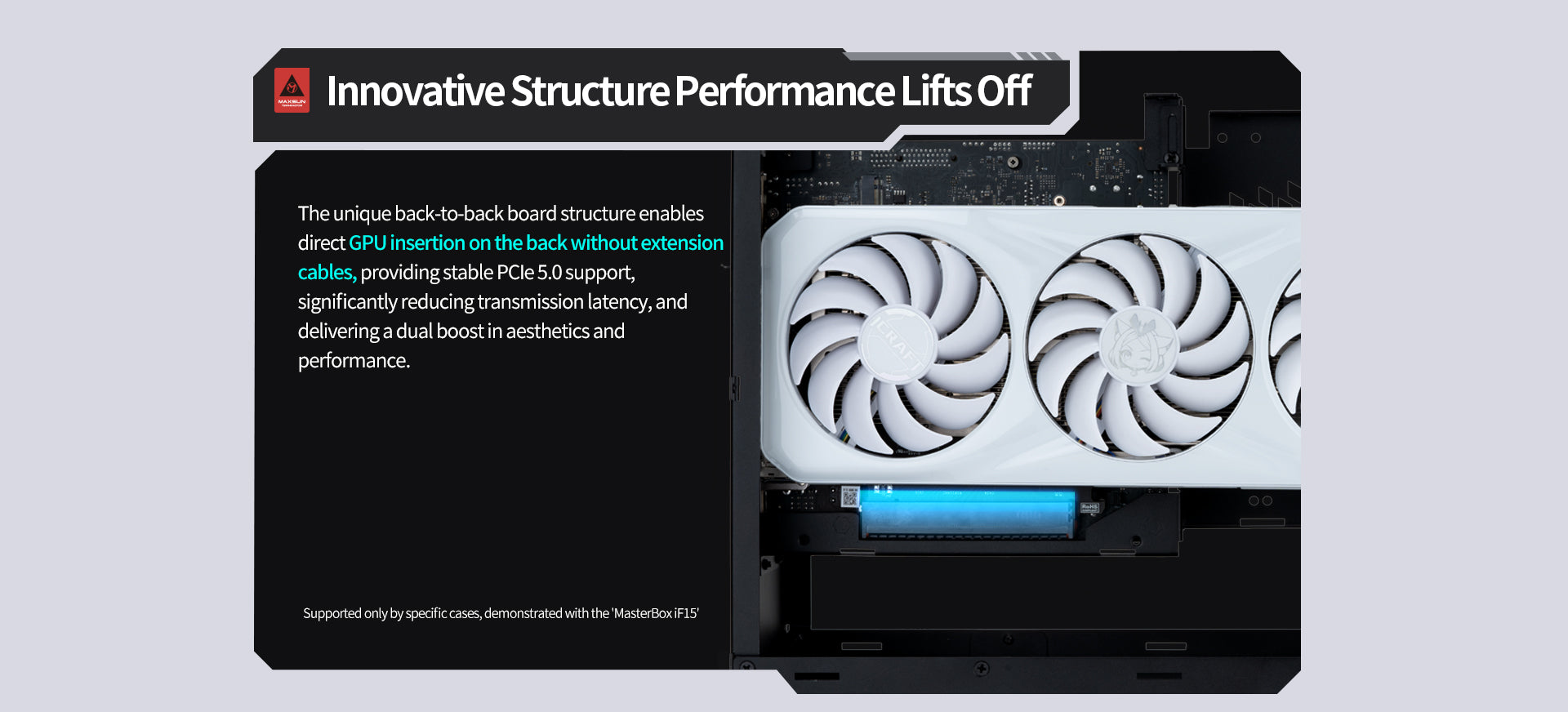

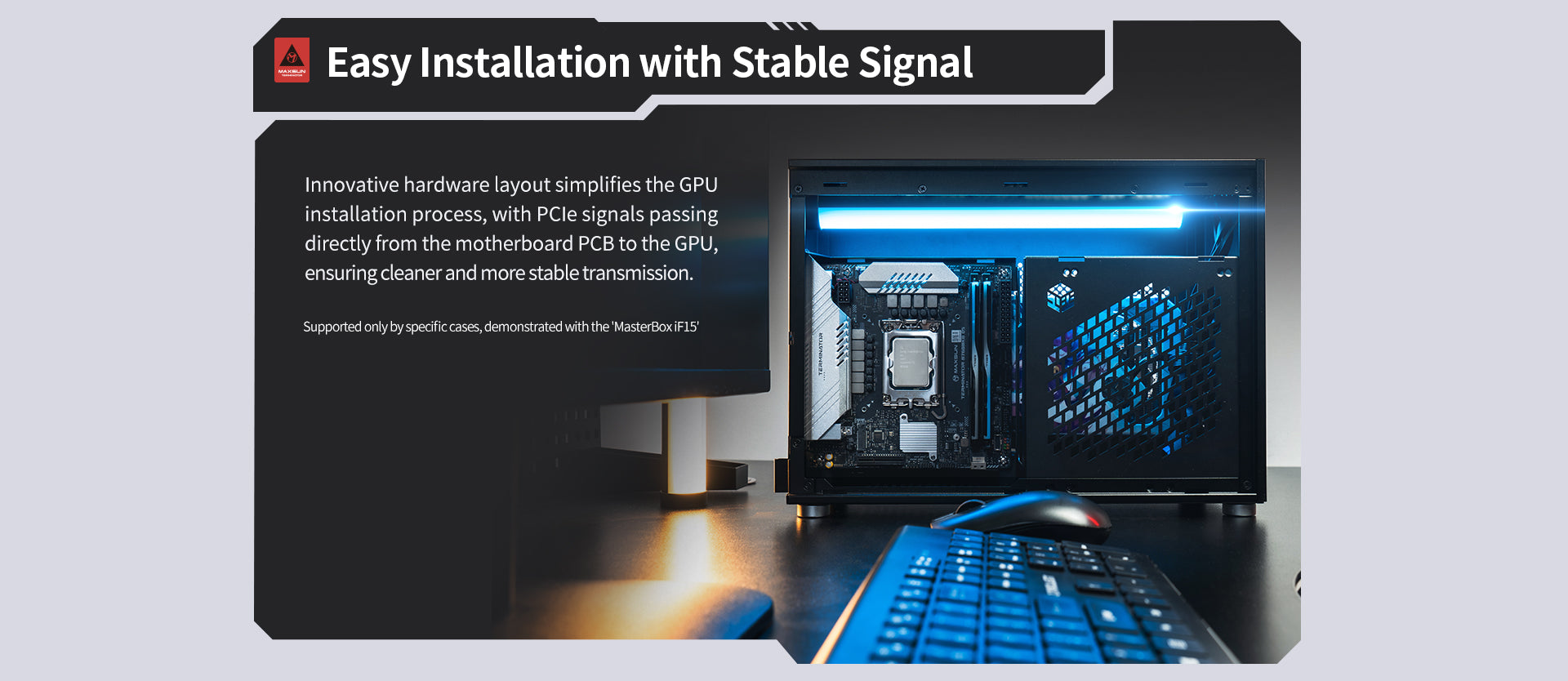

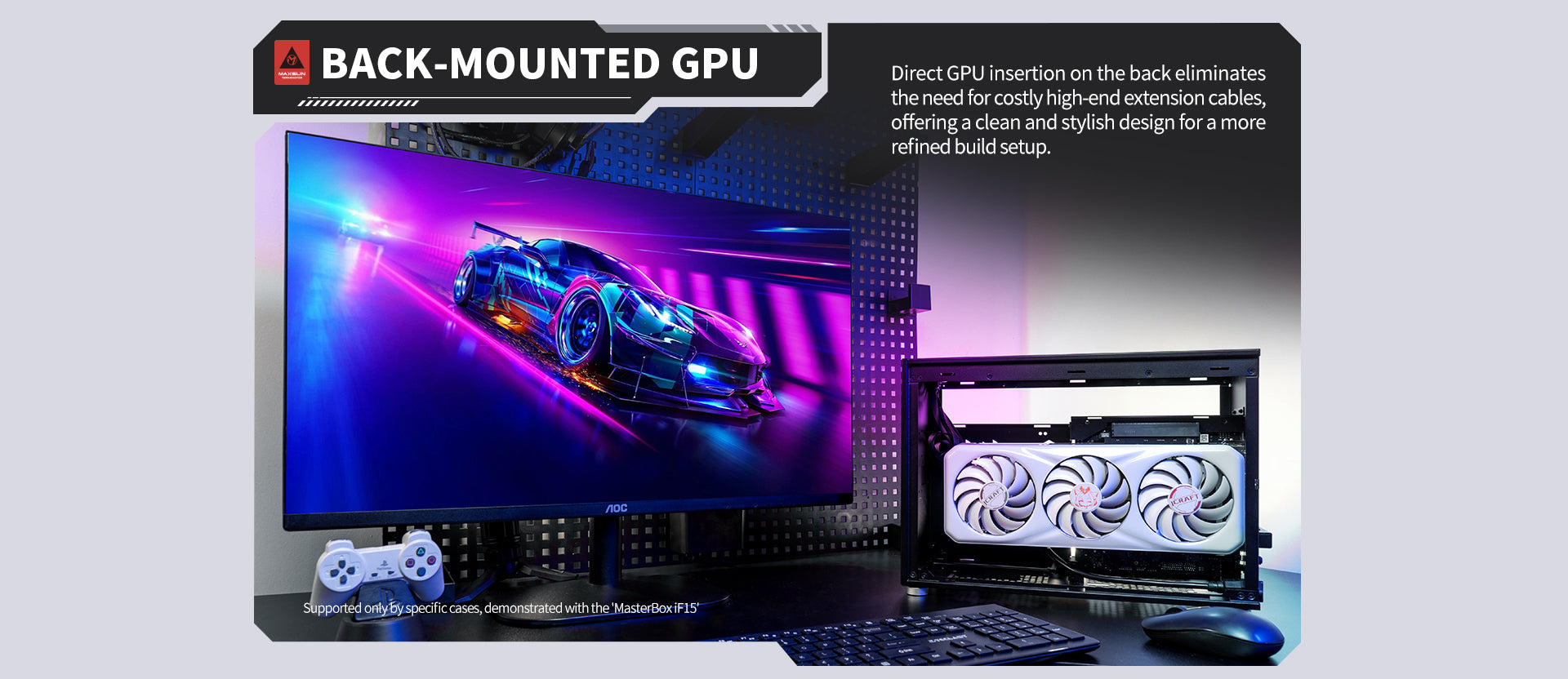

- Innovative Back-to-Back Design: Where form meets function—an engineering marvel.
- Aesthetic and Performance Boost: Elevate your build with both style and speed.

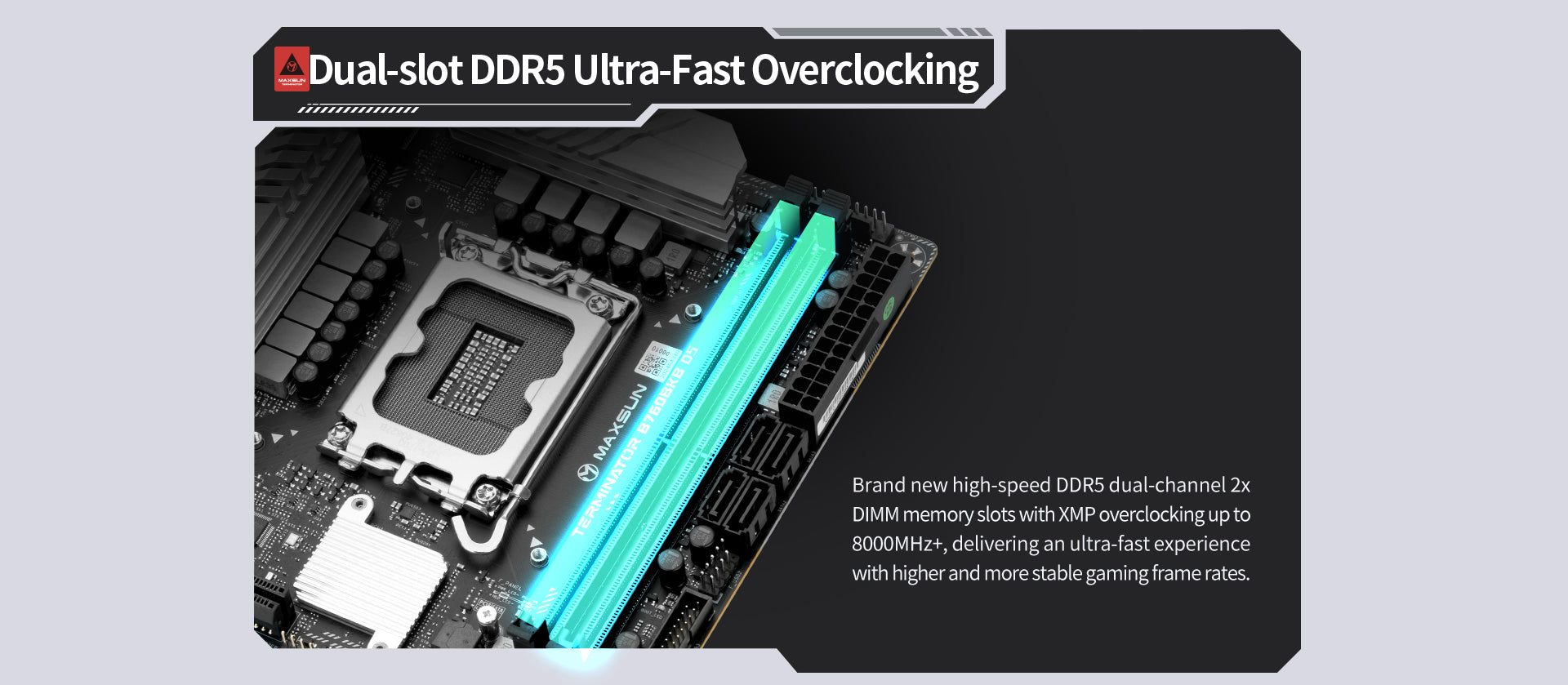

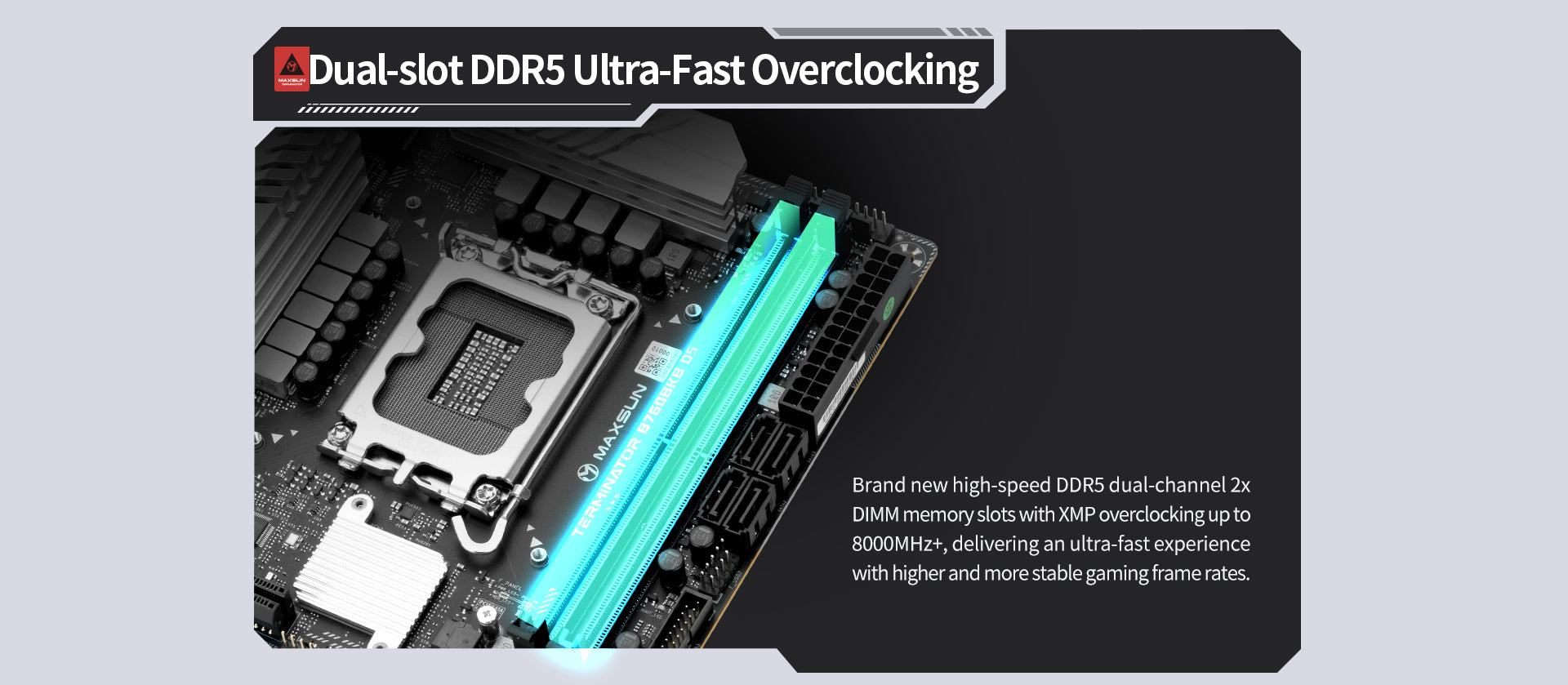

- Dual Slot DDR5 Memory: Unleash the power of the latest memory tech.
- Overclocking to 8000MHz+: Push your system beyond limits with confidence.

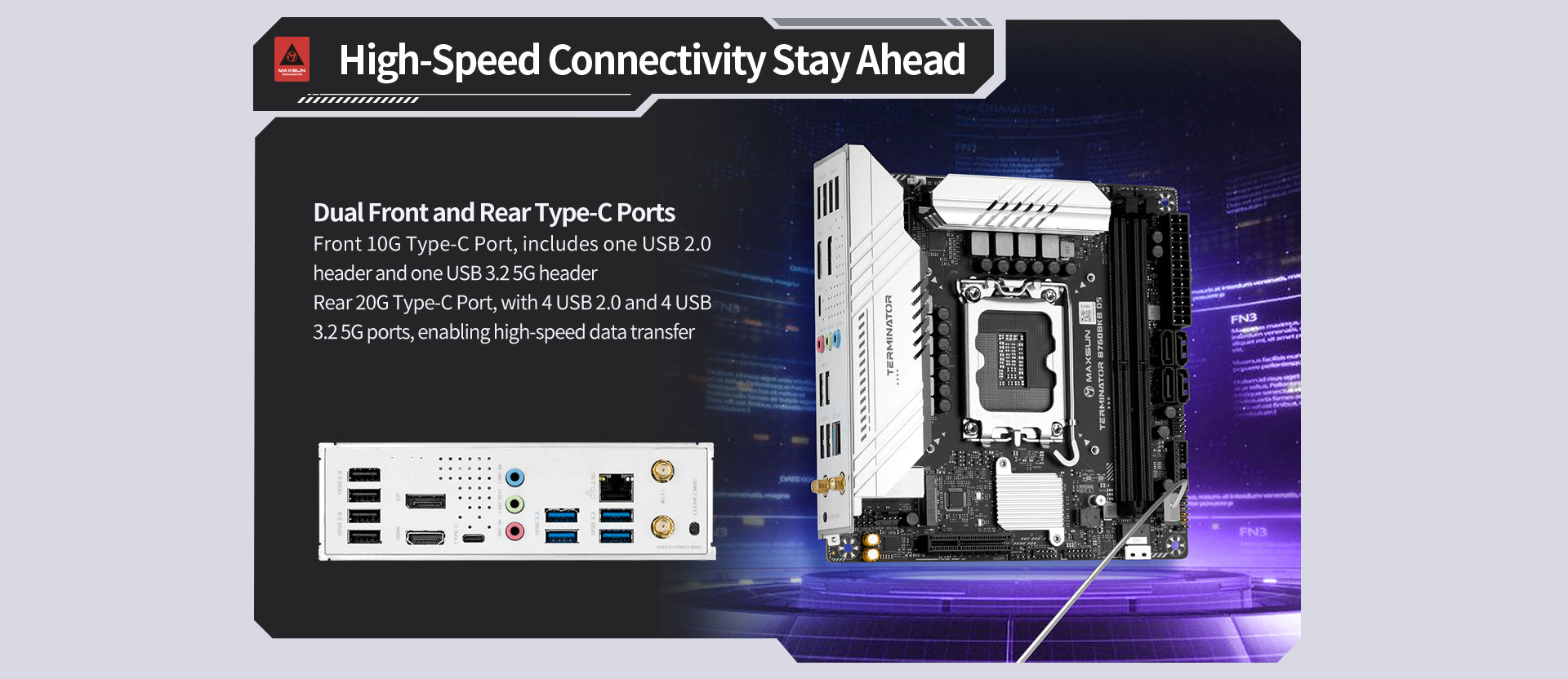

- Front and Rear Dual Type-C Ports: Connectivity, doubled for your convenience.
Overview
Specification
Support
- CPU
- Supports LGA1700 slots
Intel® 12th, 13th, and 14th processors
- CHIPSET
- Intel®B760
- MEMORY
- 2 DIMM DDR5 memory slots，maximum capacity 96GB
Dual channel memory architecture is supported
Support Up to 8000(OC)Mhz
- DISPLAY
- 1 x DisplayPort 1.4 display interface, support up to the specified 4K@60Hz
1 x HDMI™ 2.0 display interface, supports up to specified 4K@60Hz * Graphics specifications

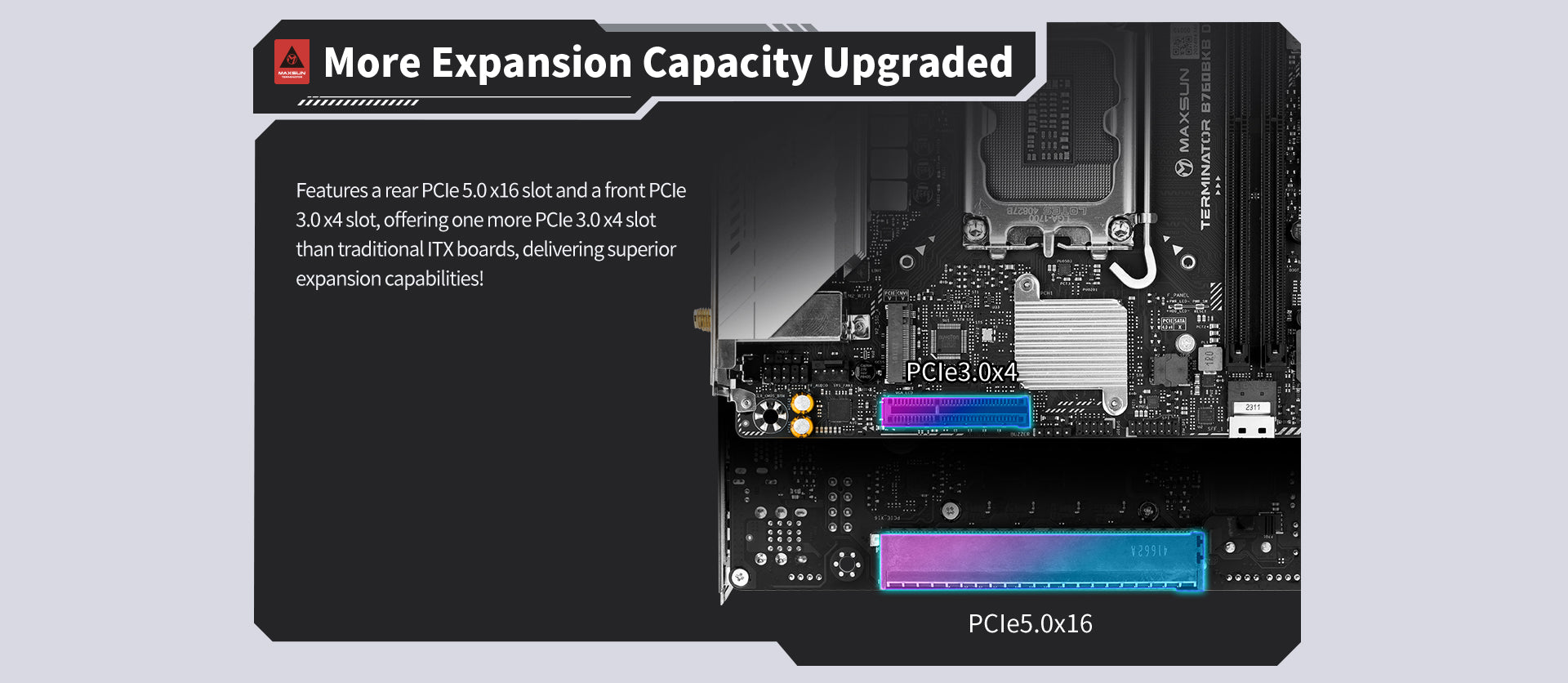

- EXTENSION INTERFACE
- 1*PCIEX16 5.0 slot
1* PCIEX4 3.0 open slot
- AUDIO
- Integrated REALTEK ALC897 sound card chip
- NETWORK
- Integrated REALTEK 8125BG 2.5G chip (10/100/1000/2500Mbit)
1 x Intel ® AX211 Wireless card: Wi-Fi 6e and Bluetooth® v5.3 support

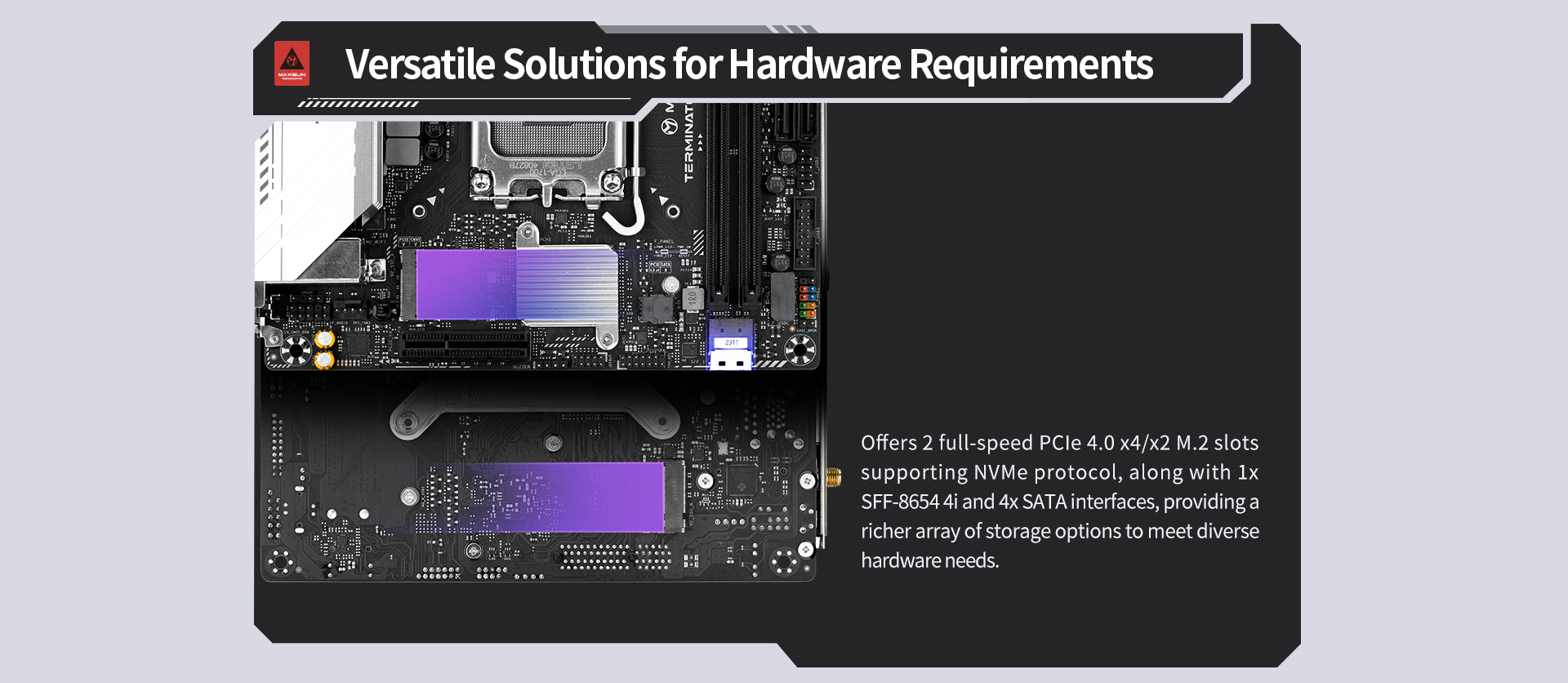

- STORAGE
- A total of 2 x M.2 slots, 4 x SATA 6Gb/s interfaces, and 1 x SFF-8654 4i interfaces are supported
M.2_A slot (Key_M) : supports PCIe 4.0X4 /X2 mode, supports 2280 length (located on the front side of the motherboard)
M.2_B slot (Key_M) : supports PCIe 4.0X4 /X2 mode, supports 2280 length (located on the back of the motherboard)
SFF-8654 4i interface: supports PCIe 4.0X4 /X2
4 x SATA 6Gb/s interface
- USB
- Onboard rear ports: 2 USB3.2 GEN2 ports, 6 USB2.0 ports
In-board pins: 1 set (2) USB2.0 pins, 1 set (2) USB3.2 GEN1 pins,One USB3.2 Gen2x2 Type-C(20G) front interface
- FORM FACTOR
- Mini-ITX (171mm x 171mm)
