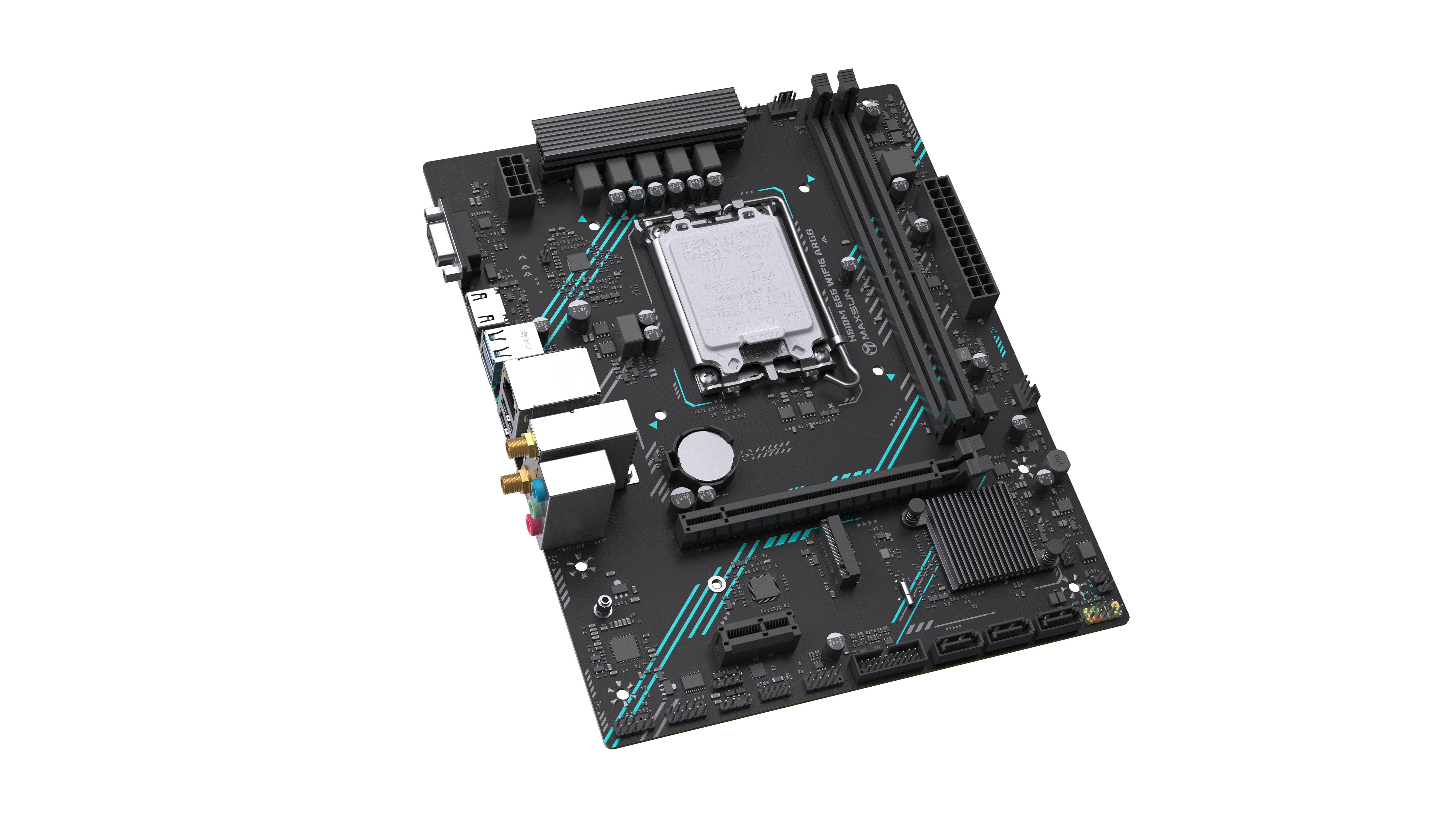

MS-H610M 666 WiFi6 ARGB

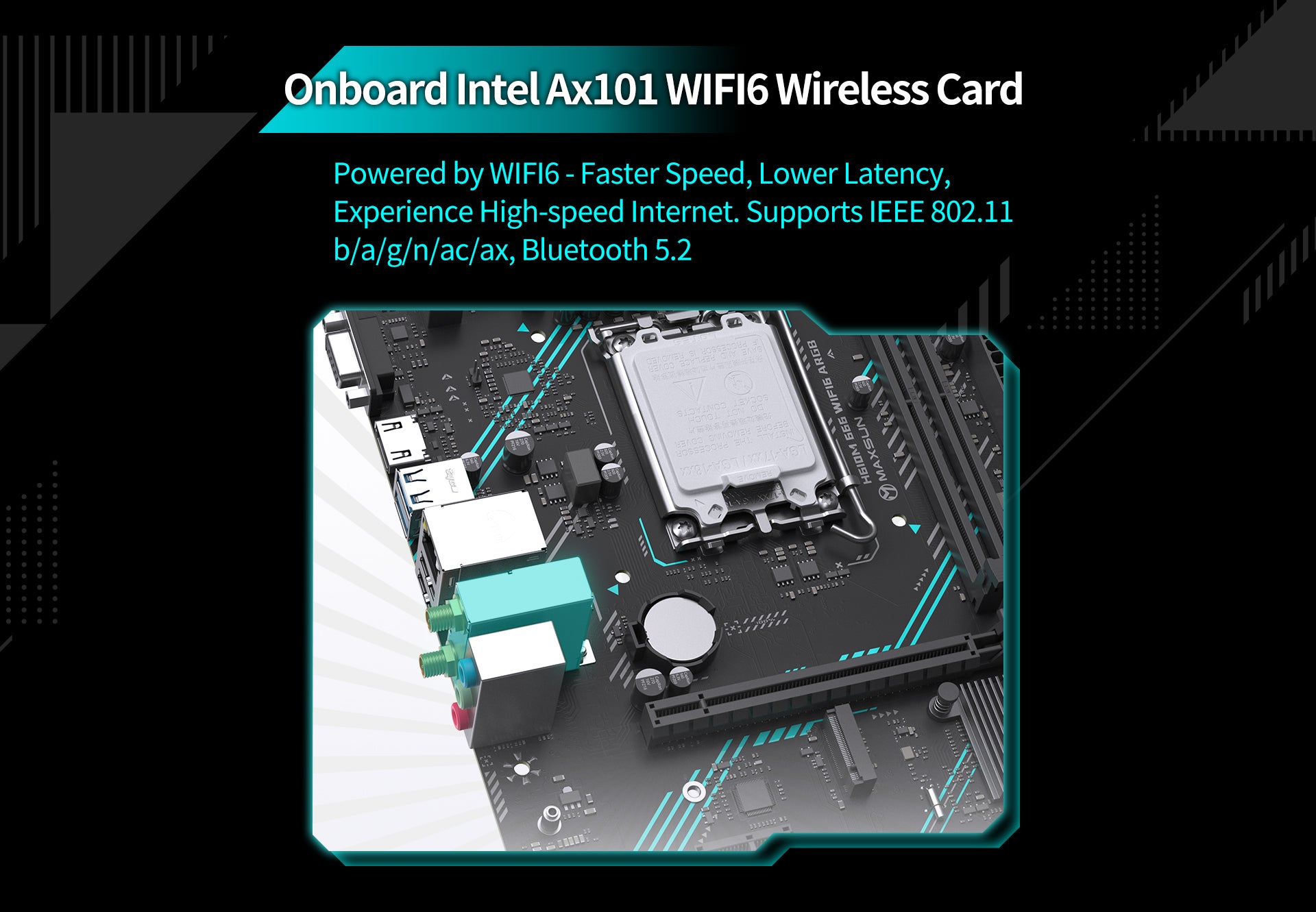

- Intel WiFi 6 Wireless Card: Faster, more stable connectivity for gaming and streaming.

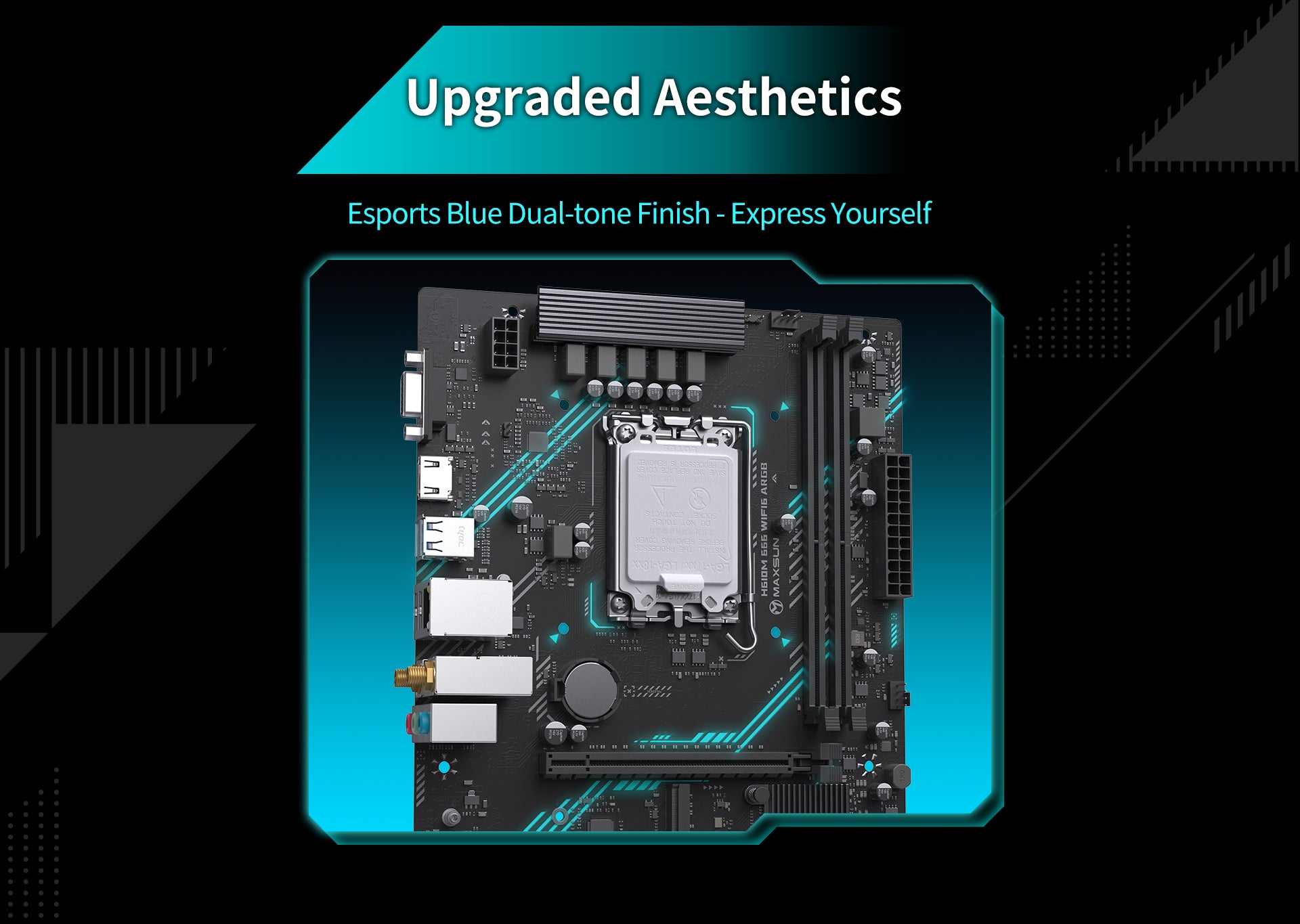

- Gaming Blue Dual-Tone Silk Screen: Stylish design with a distinct esports vibe.

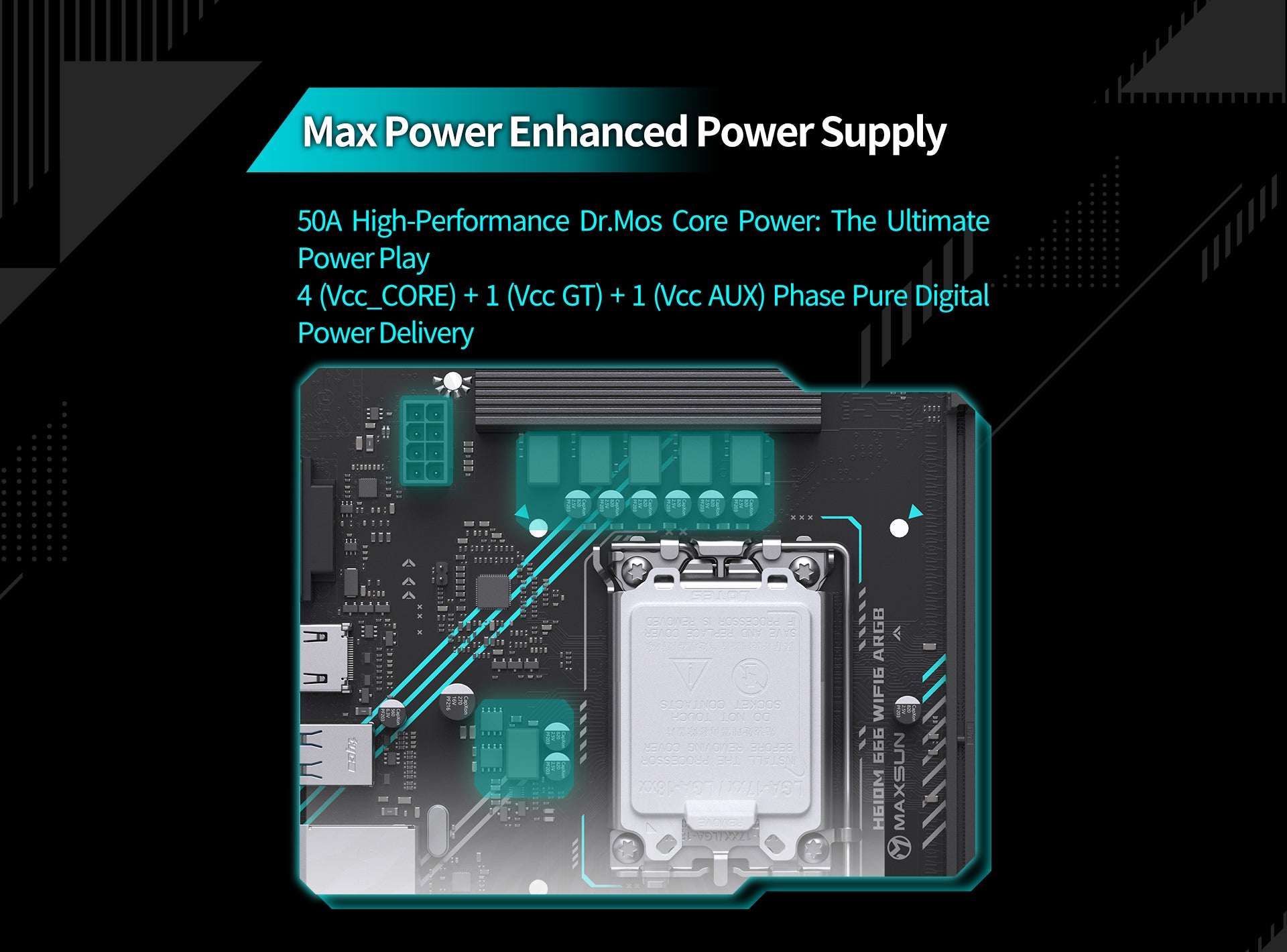

- 4+1+1 Phase Dr.MOS Power Supply: High-spec power delivery for reliable performance.
- 2x 5V ARGB + 1x 12V RGB Headers: Expand your lighting setup with versatile RGB connectivity.

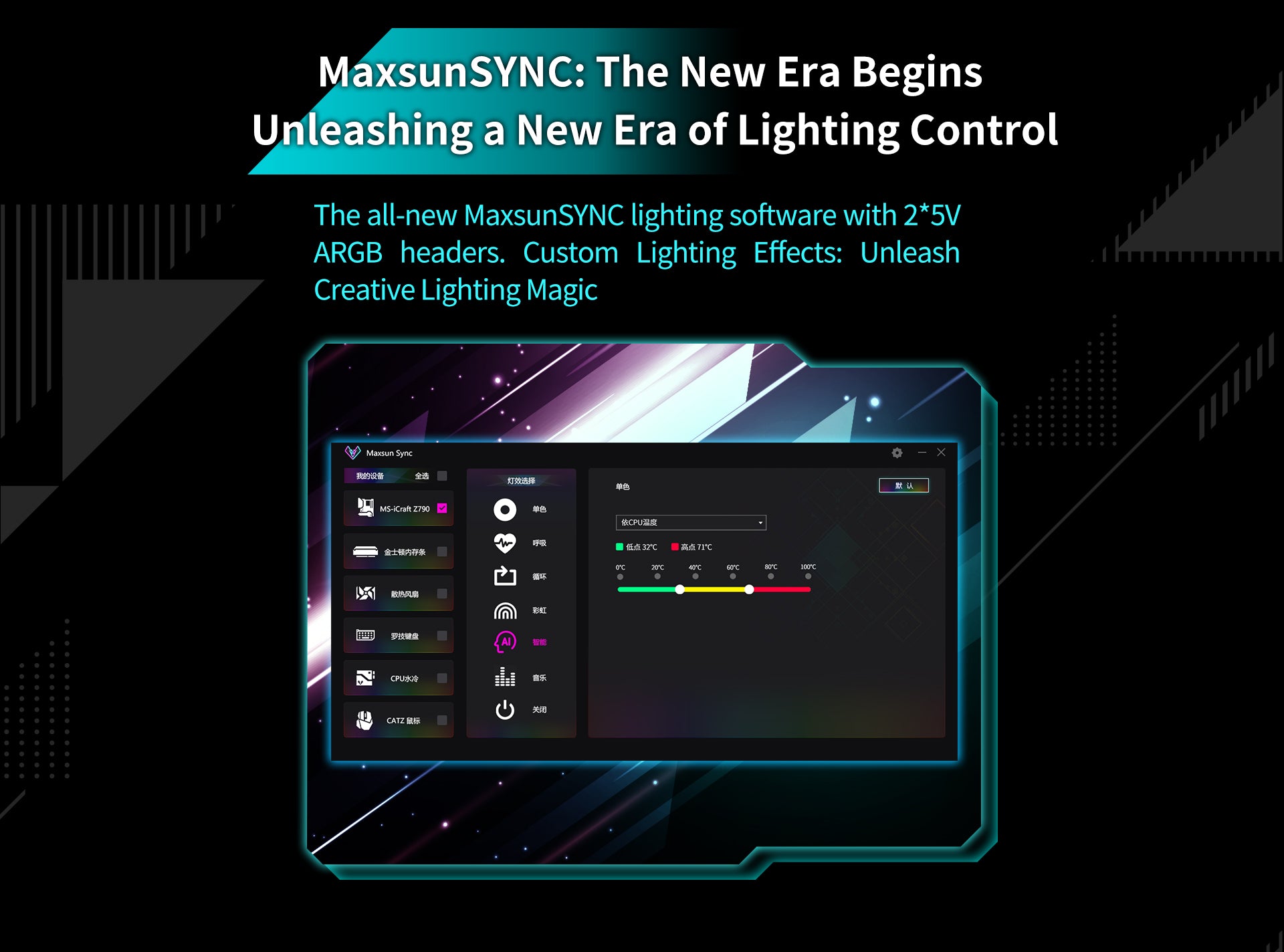

- Supports Maxsun Sync Lighting Software: Seamless control of all RGB effects through one platform.
Overview
Specification
Support

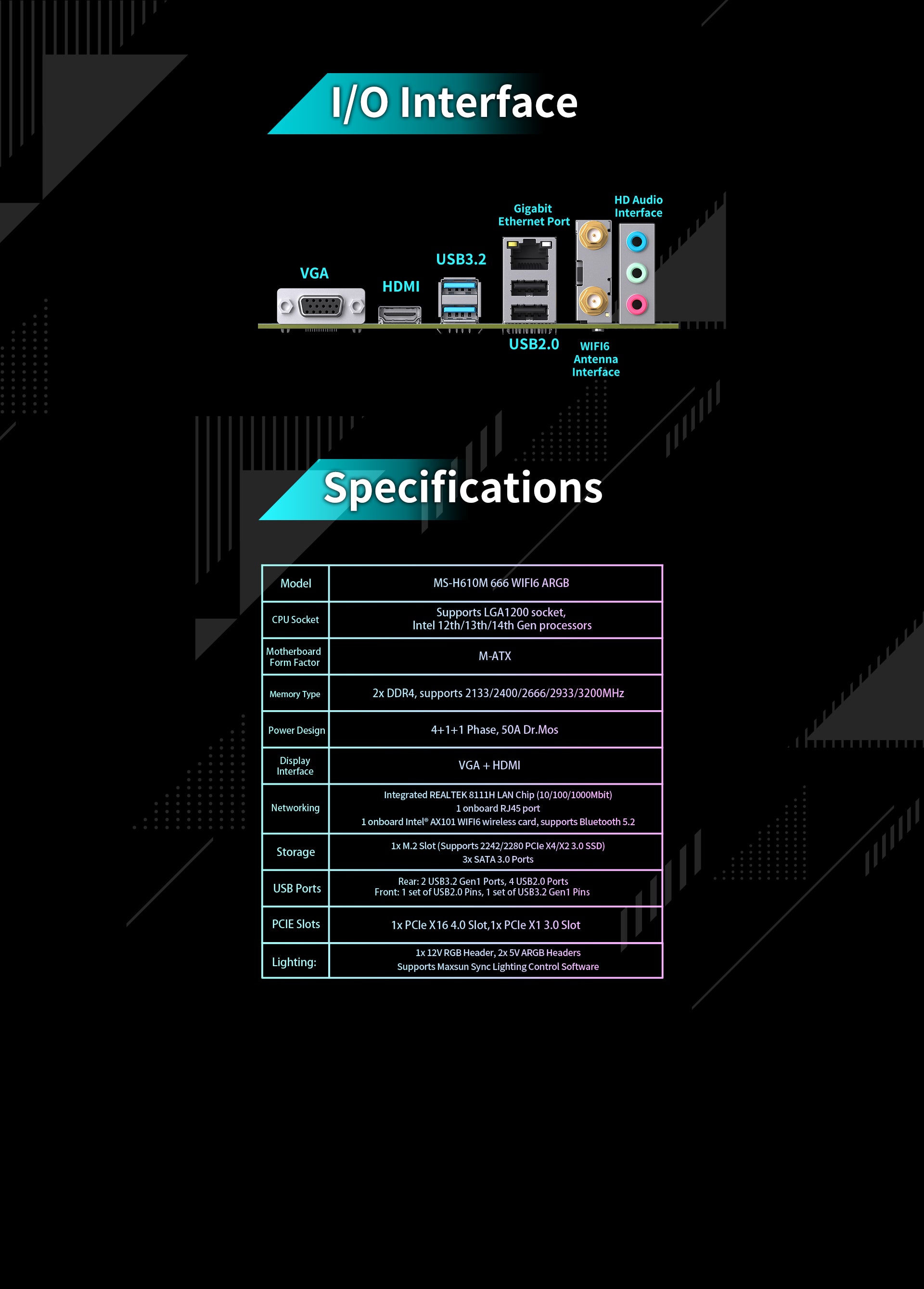

- CHIPSET
- INTEL H610
- CPU
- Supports 12th/13th/14th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
- MEMORY
- 2x DDR4, Maximum Memory Capacity 64GB
Support 2133/2400/2666/2933/3200MHz memory frequency MHz memory frequency
- DISPLAY
- 1xVGA port.Supports up to 1920*1080@30Hz resolution
1x HDMI™1.4port. Supports up to 4096*2160@30Hz resolution
- EXPANSION SLOT
- 1x PCIe 4.0 x16 slot
1x PCIe 3.0 x1 slot
- STORAGE

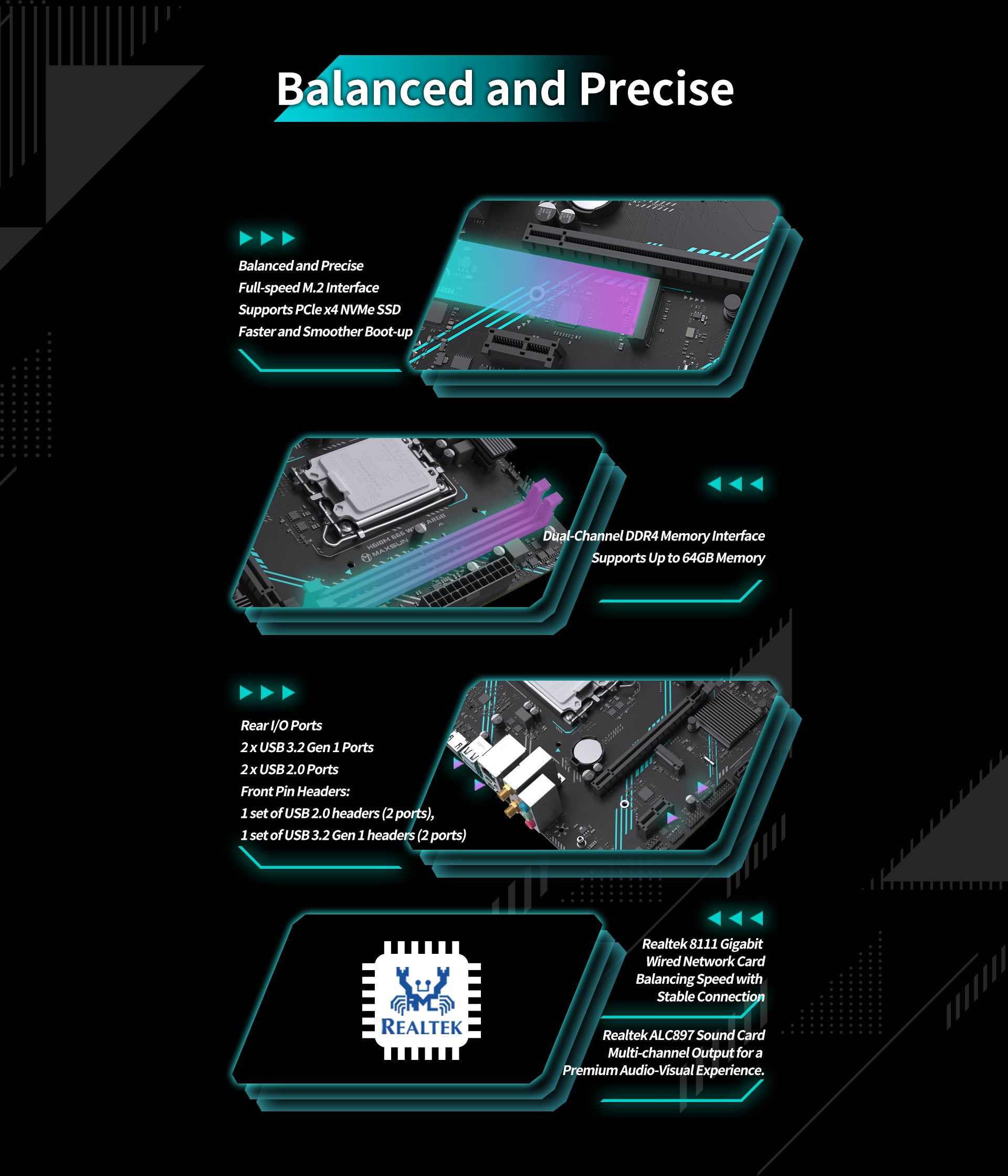

- M.2 slot (Key M), type 2242/2280 (supports PCIe 3.0 x4 mode)
4x SATA 6Gb/s ports

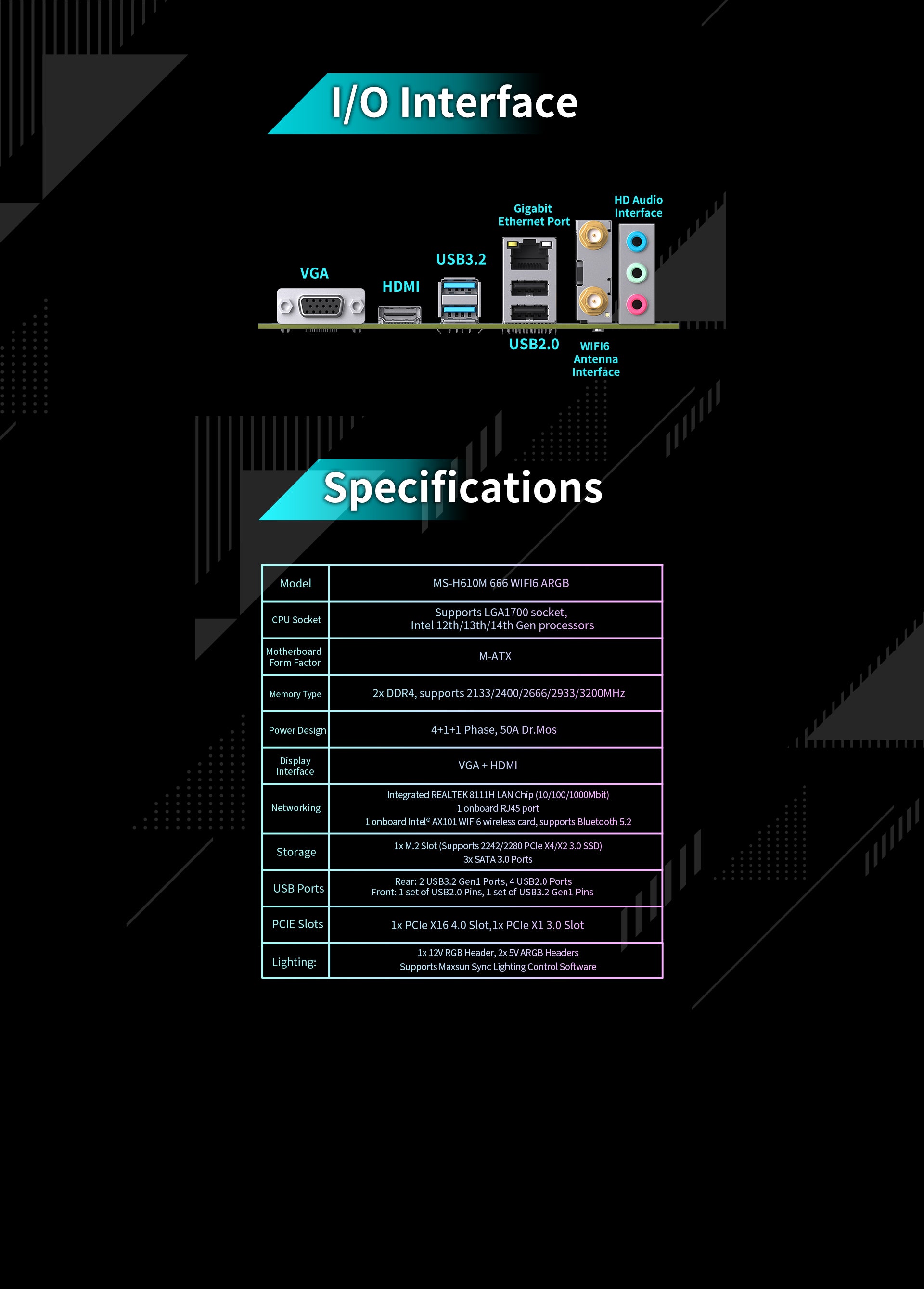

- USB

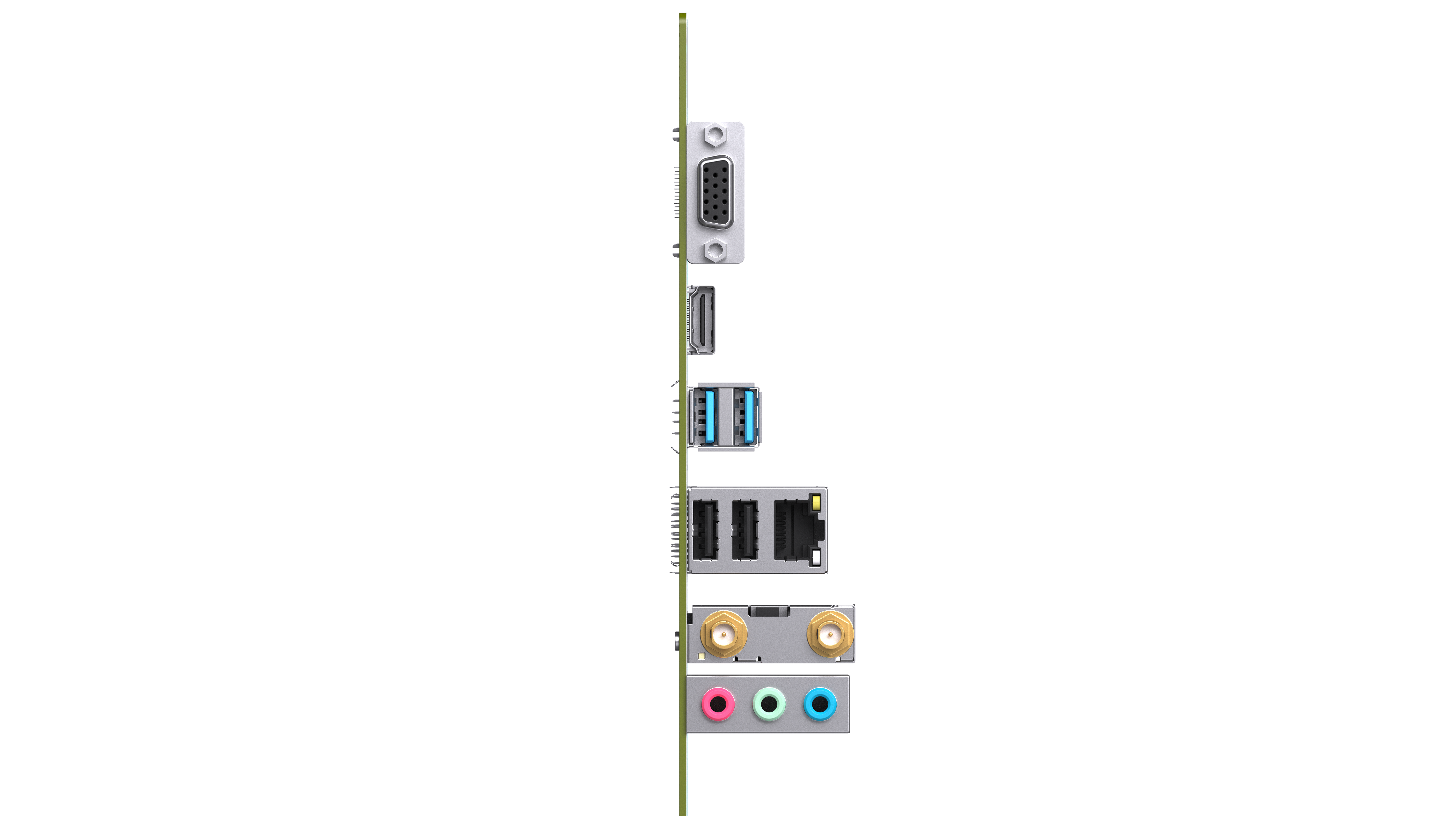

- Onboard rear ports:2*USB3.2 GEN1 ports, 2* USB2.0 ports
On-board pins: 1* set (2 pcs)ofUSB2.0 pins, 1* set (2 pcs) ofUSB3.2 GEN1 pins
- NETWROK
- Realtek® RTL8111H 1G LAN.
- AUDIO
- Realtek® ALC897 Codec.
- INTERNAL I/O
- 1x 24-pin Power Connector(ATX_PWR)
1x 8-pin Power Connector(CPU_PWR)
1* set of system fan pins, 1* set of CPU fan pins
1* set of chassis font control panel pins (F_PANEL)
- LED FEATURE
- 4x Distributed Debug LED
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- FORM FACTOR
- M-ATX
225mm x 180mm
