Challenger H610ITX 2.5G
- 8+1+1 phase power supply
- 50A DR.MOS
- 2.5G network card
- ITX air duct optimized alloy heat sink armor
- Reserved for WiFi expansion M.2 interface
Overview
Specification
Support

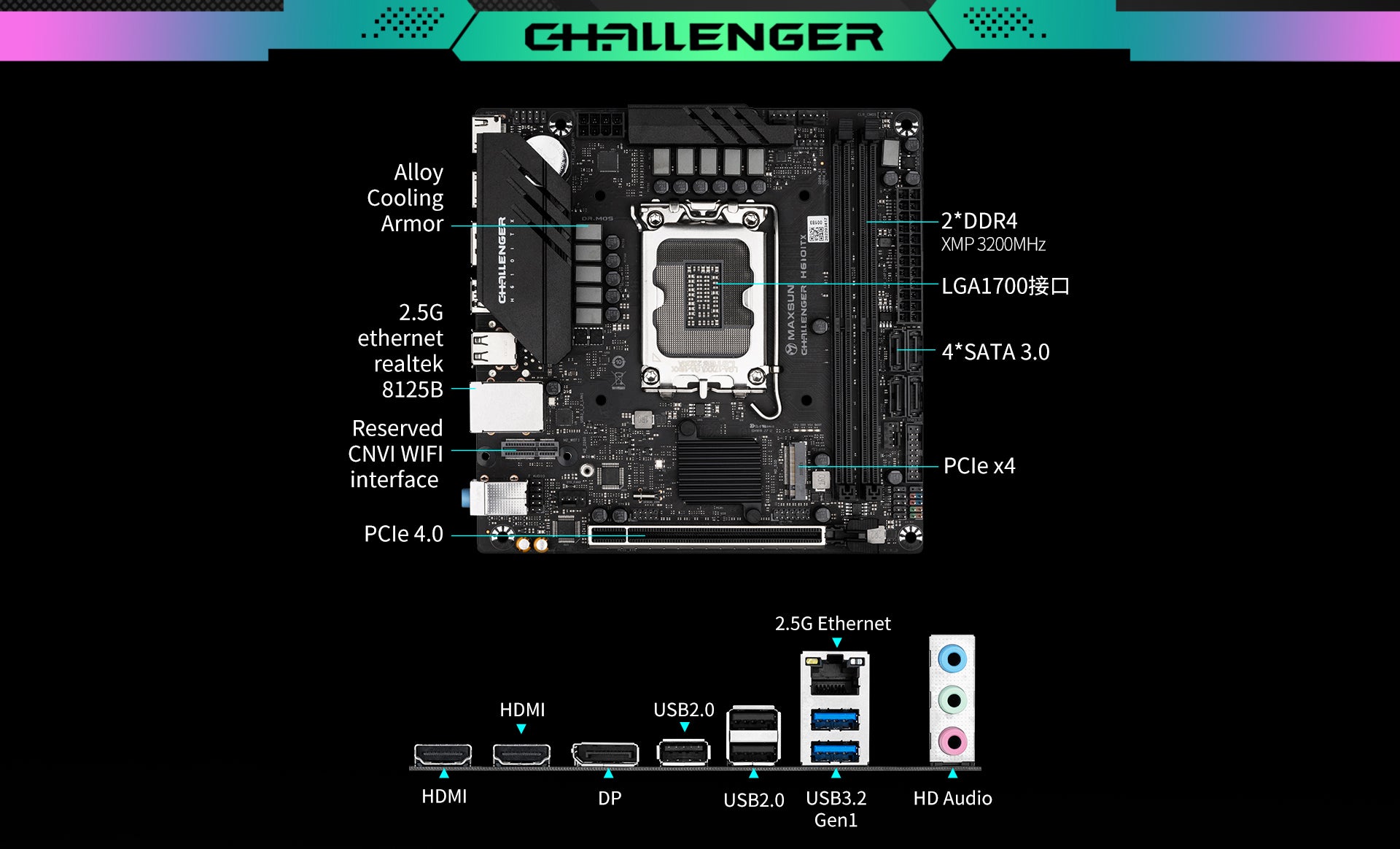

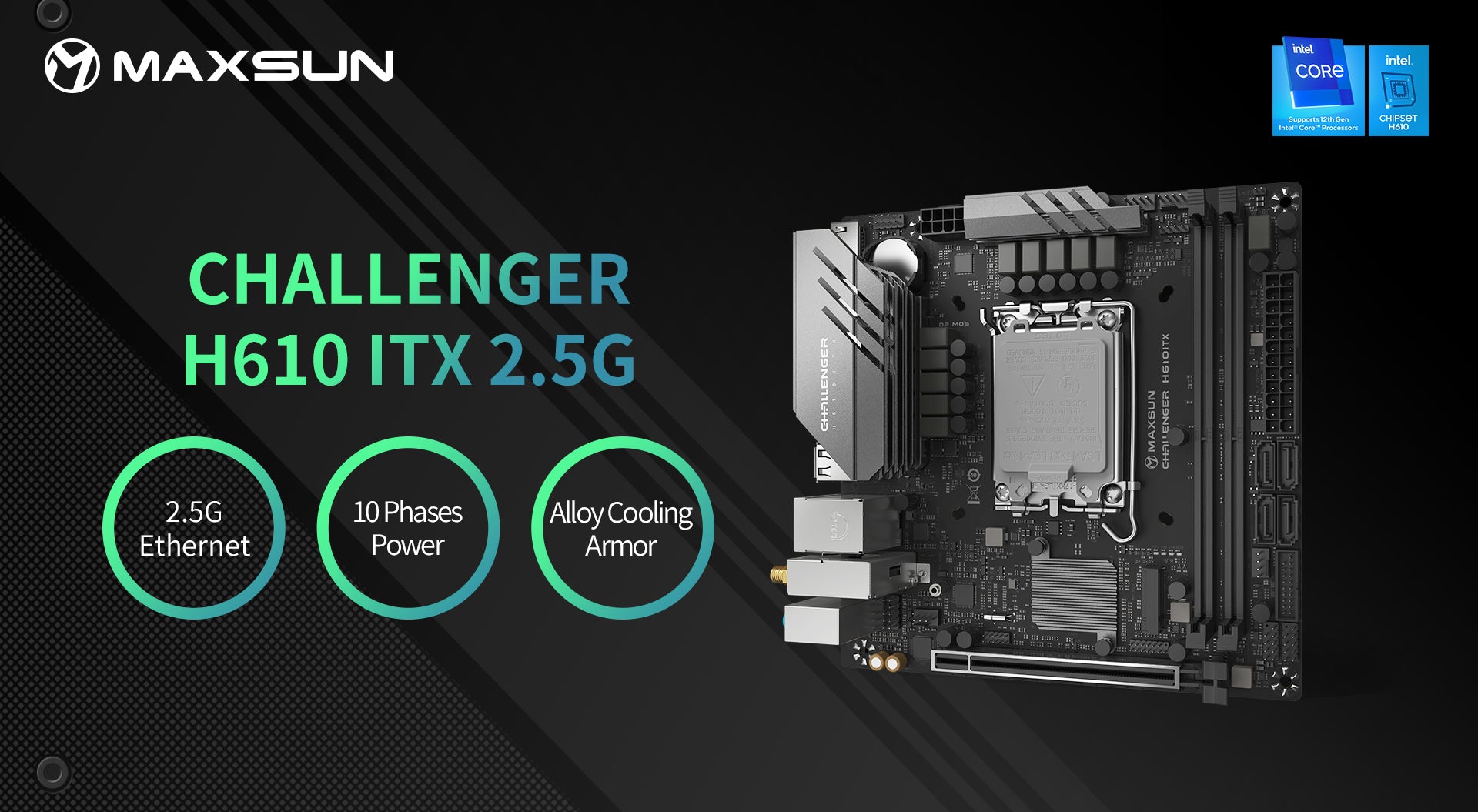

CHALLENGER
H610 ITX 2.5G
2.5G
Ethernet
10 Phases
Power
Alloy Cooling
Armor
Alloy
Cooling
Armor
2.5G
ethernet
realtek
8125B
Reserved
CNVI WIFI
interface
PCIe 4.0
2*DDR4
XMP 3200MHz
LGA1700接口
4*SATA 3.0
PCIe x4
HDMI
HDMI
DP
USB2.0
USB2.0
2.5G Ethernet
USB3.2
Gen1
HD Audio

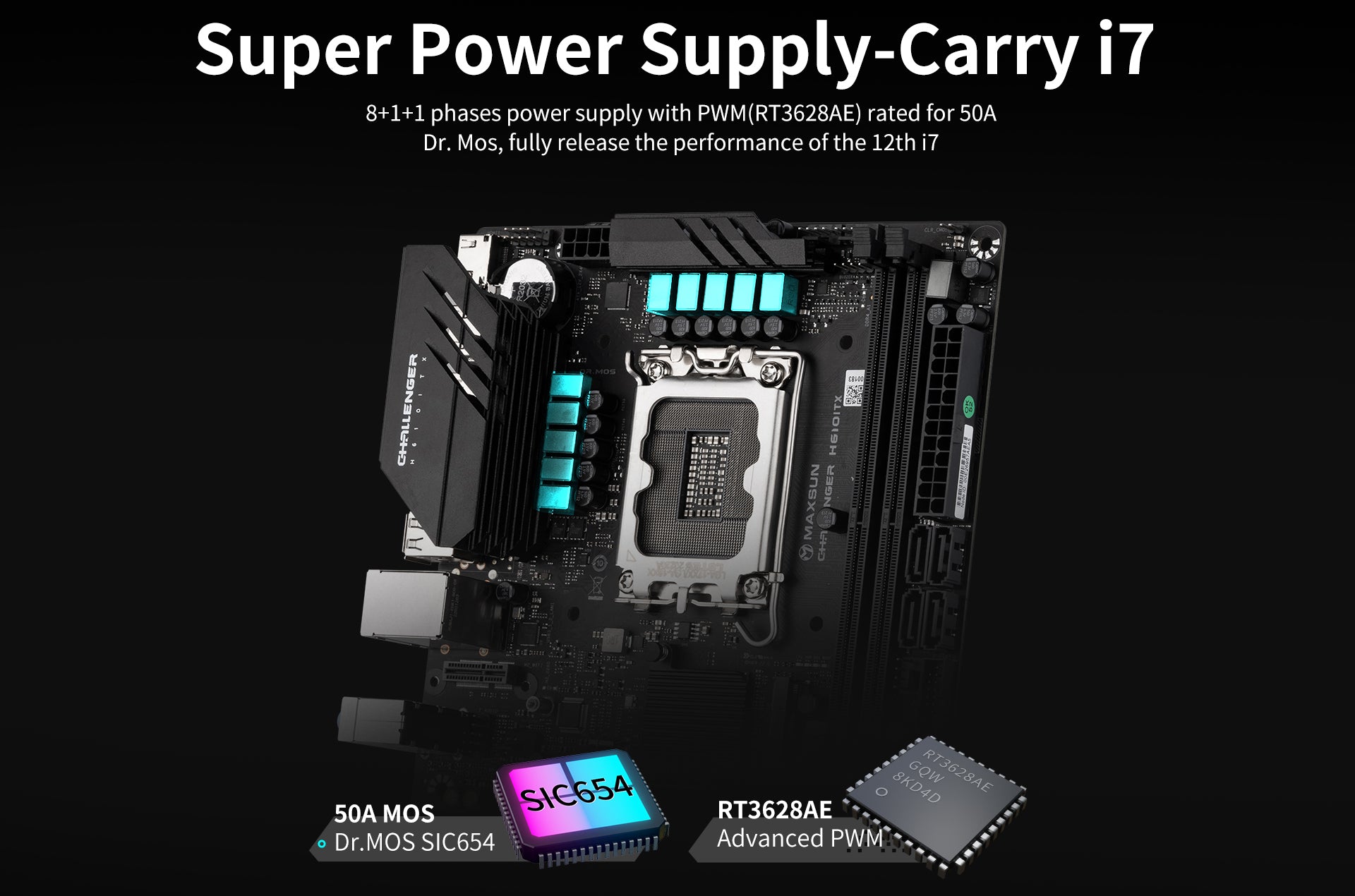

Super Power Supply-Carry i7
8+1+1 phases power supply with PWM(RT3628AE) rated for 50A
Dr. Mos, fully release the performance of the 12th i7
50A MOS
Dr.MOS SIC654
RT3628AE
Advanced PWM

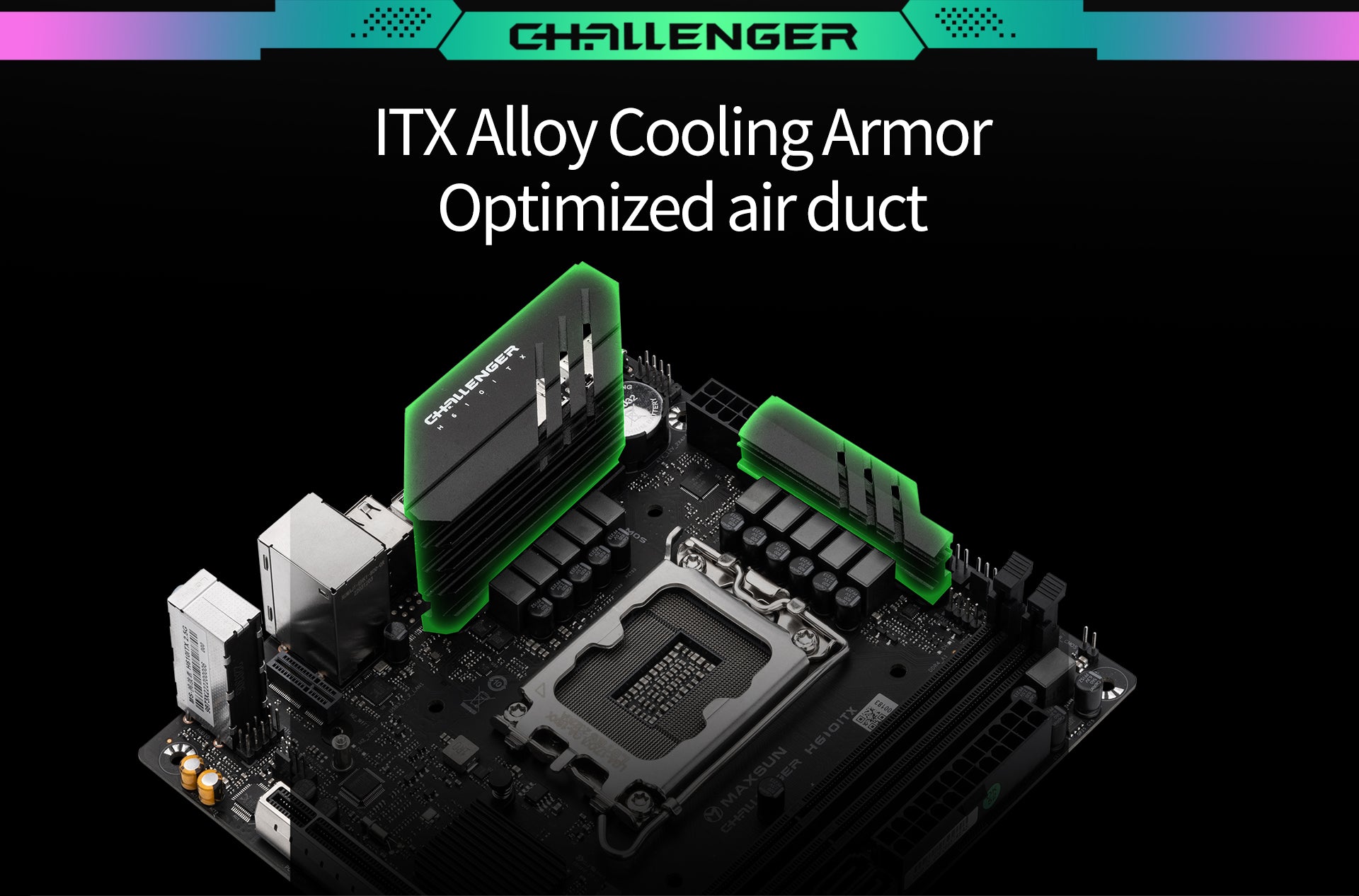

ITX Alloy Cooling Armor
Optimized air duct

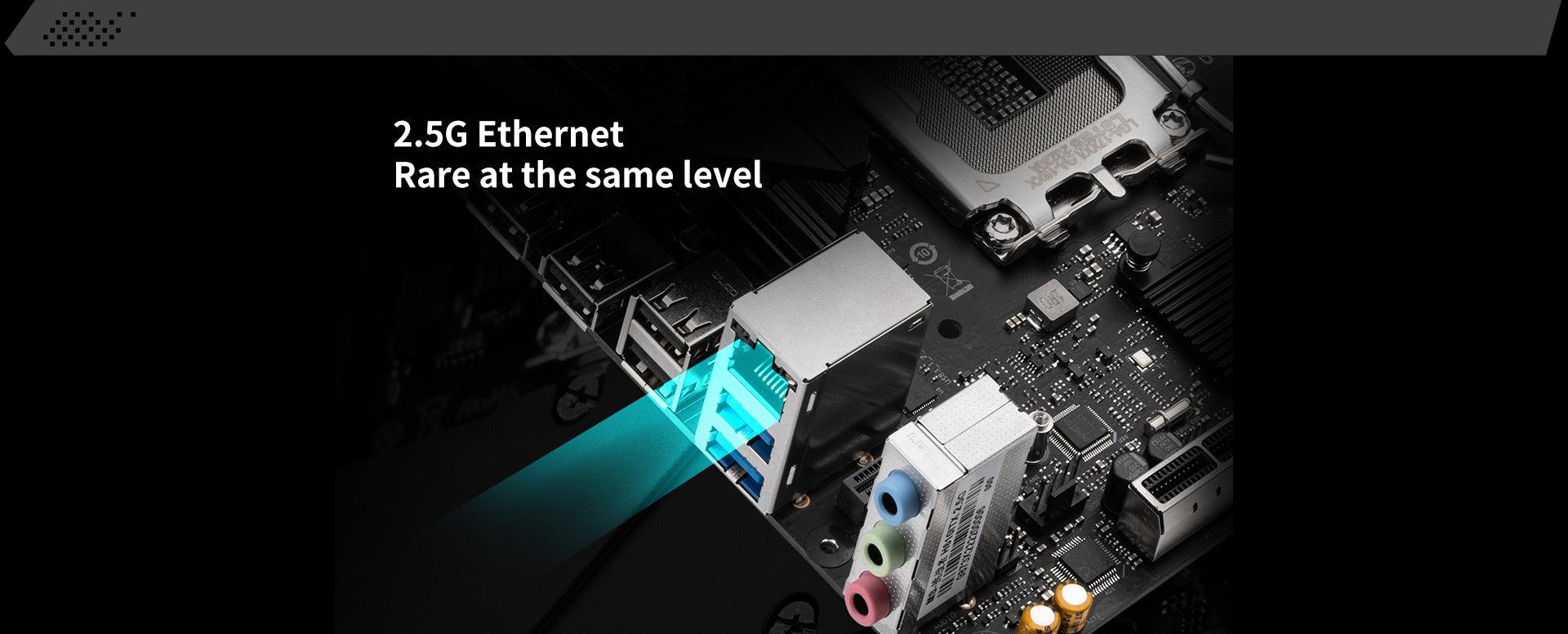

2.5G Ethernet
Rare at the same level

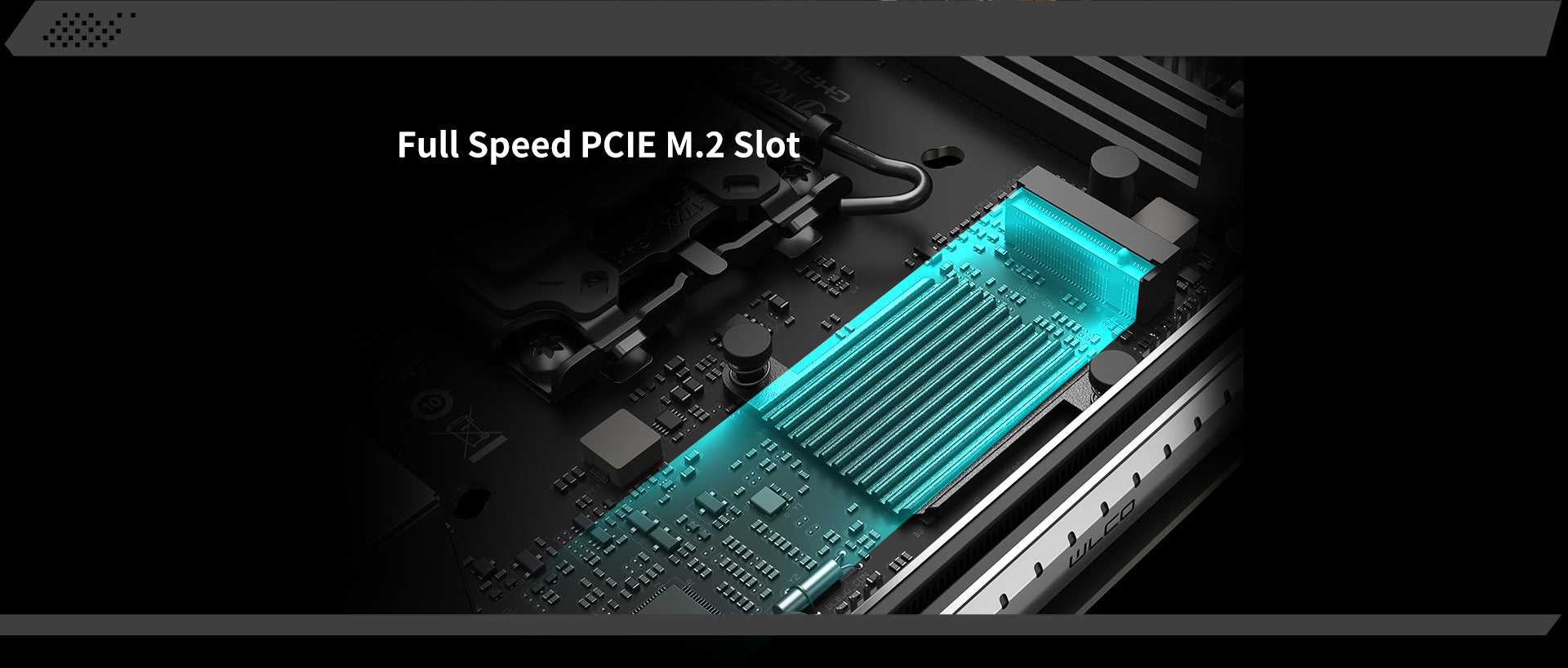

Full Speed PCIE M.2 Slot

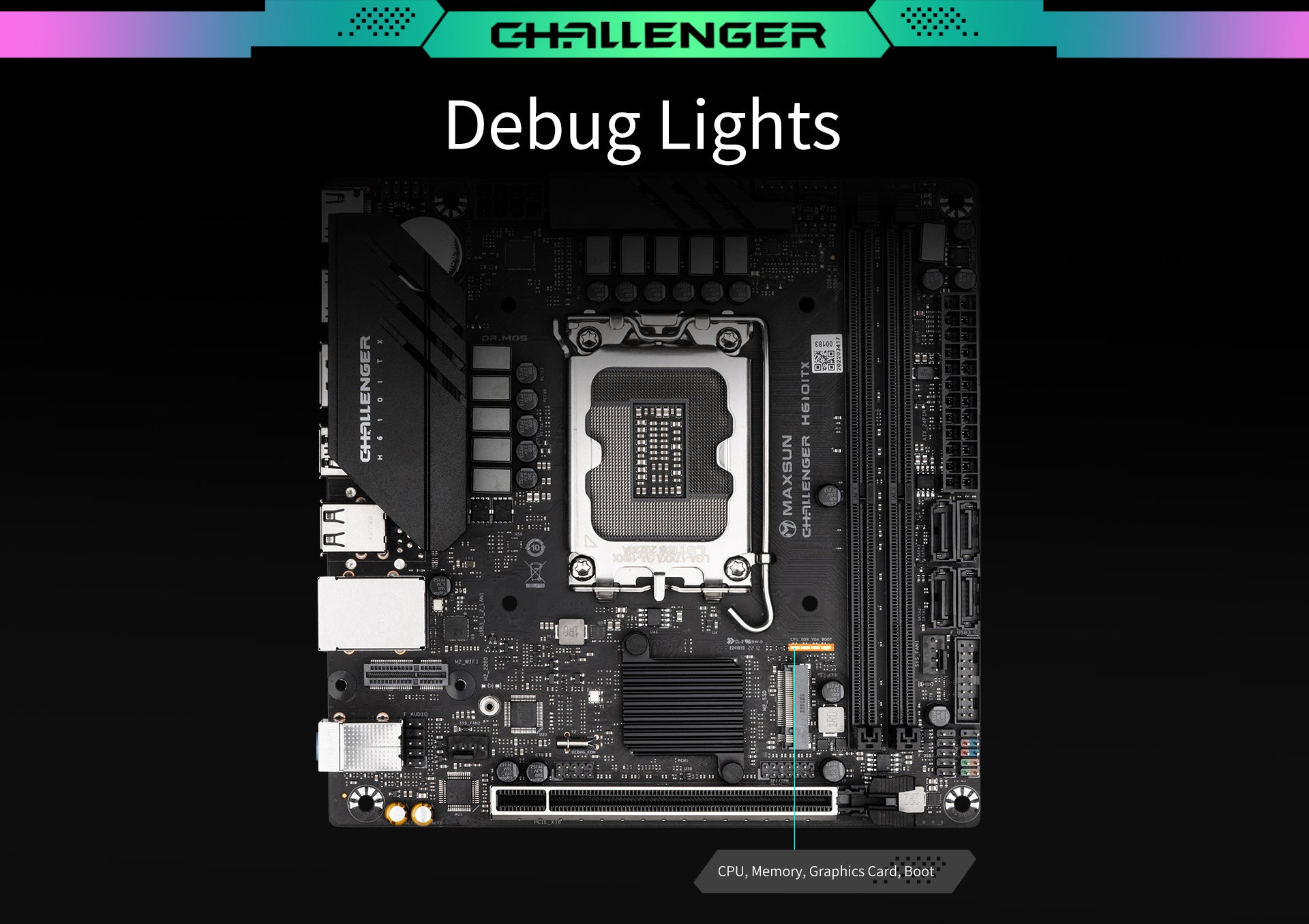

Debug Lights
Support Three-display
Asynchronous Output
HDMI2.0*2
DP1.4*1

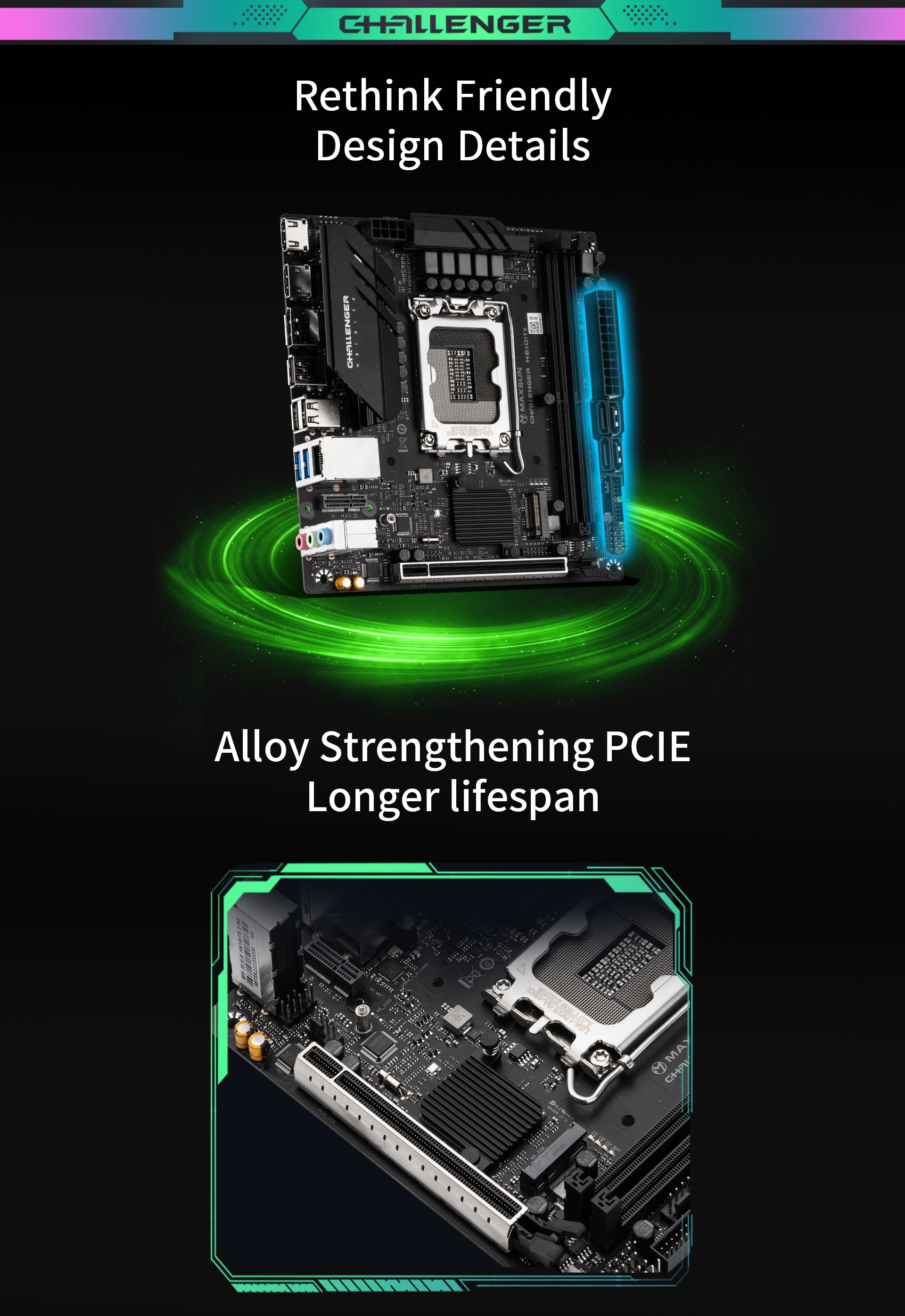

Rethink Friendly
Design Details
Alloy Strengthening PCIE
Longer lifespan

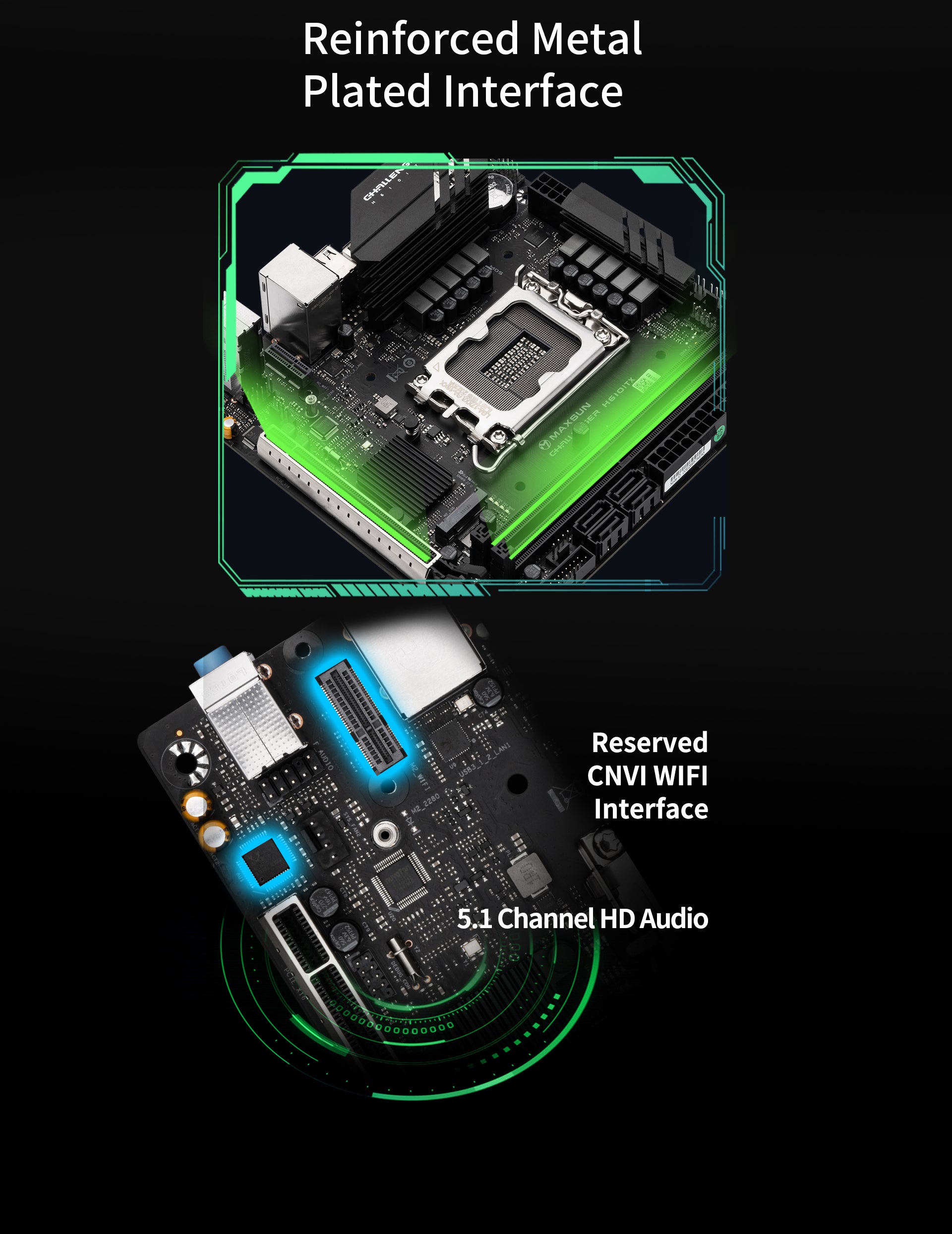

Reinforced Metal
Plated Interface
Reserved
CNVI WIFI
Interface
5.1 Channel HD Audio
- CHIPSET
- INTEL H610
- CPU
- Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
- MEMORY
- 2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz
Supports Intel® XMP 2.0 OC
Supports Dual-Controller Dual-Channel mode
- ONBOARD GRAPHICS
- 1x DisplayPort 1.4
2x HDMI™port
*HDMI™ port supports up to 4K@30Hz
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- EXPANSION SLOT
- 1x PCIe 4.0 x16 slot
- STORAGE
- M.2 slot (Key M), type 2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
- RAID
- Not Supports RAID
- USB
- *Front USB (Total 4 ports)
2x USB 3.2 Gen1 Type A
2x USB 2.0
*Rear USB (Total 5 ports)
2x USB 3.2 Gen1 Type A
3x USB 2.0
- LAN
- Realtek® RTL8125BG 2.5G LAN
- AUDIO
- Realtek® ALC897 Codec
5.1-Channel High Definition Audio
- INTERNAL I/O
- 1x 24-pin Power Connector(ATX_PWR)
1x 8-pin Power Connector(CPU_PWR)
1x CPU Fan
3x System Fan
1x M.2 slots (Key-M)
4x SATA 6Gb/s ports
1x CLR_CMOS
1x 4-Pin BUZZER
1x Front Audio
1x COM Port
- LED FEATURE
- 4x Side-by-Side Debug LED
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- FORM FACTOR
- ITX
170mm x 170mm
