Intel Arc B580 iCraft 12G
- 12GB GDDR6 memory for smooth, high-performance gaming.
- Intel Arc B580 GPU with PCIe 4.0 for fast, responsive gameplay.

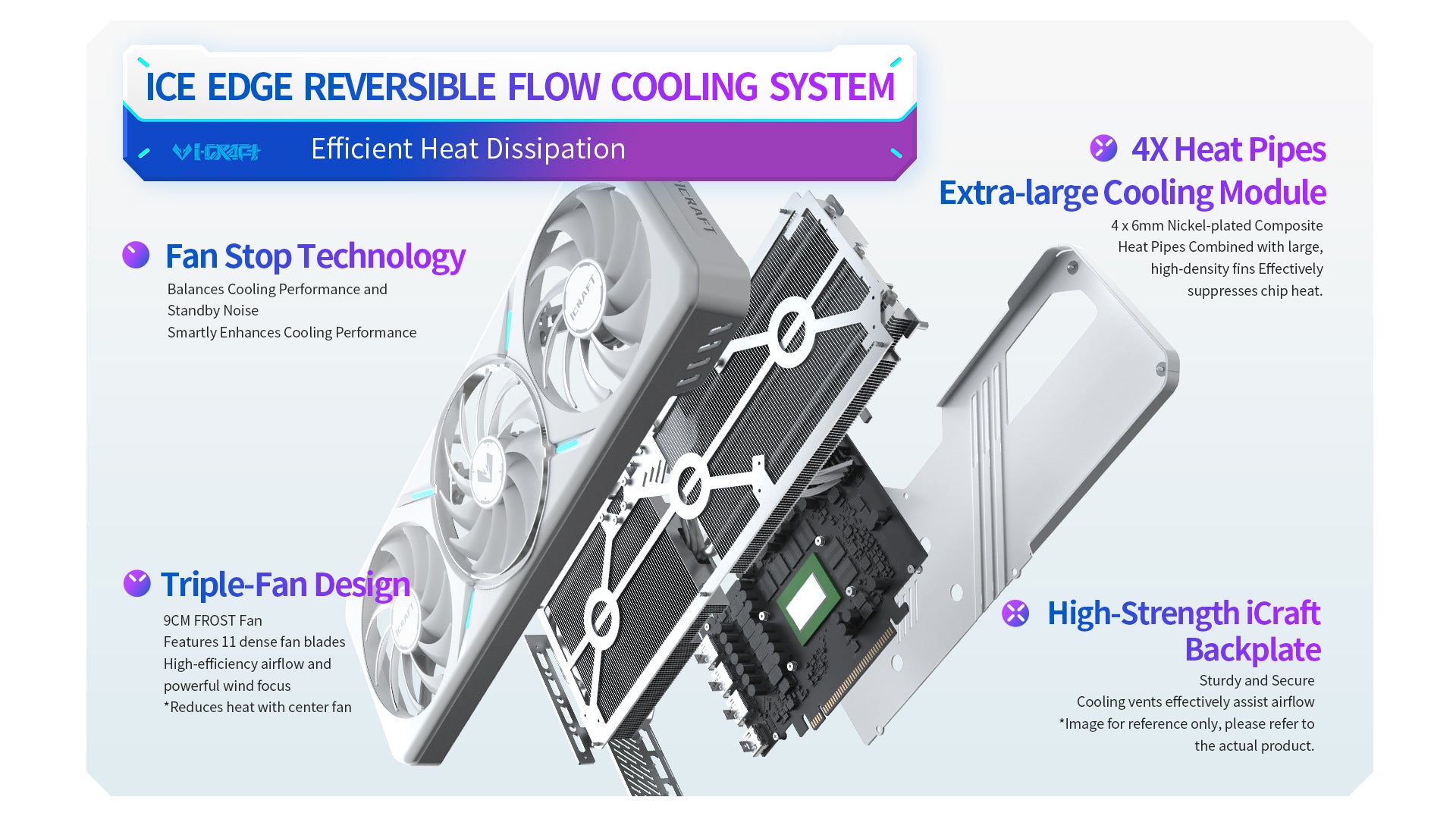

- Triple fan cooling with reverse fan technology for reduced noise and better airflow.
- ARGB lighting for customizable, vibrant visuals.
- Future-proof connectivity with HDMI 2.1 and DisplayPort 2.0, supporting up to 8K resolution.

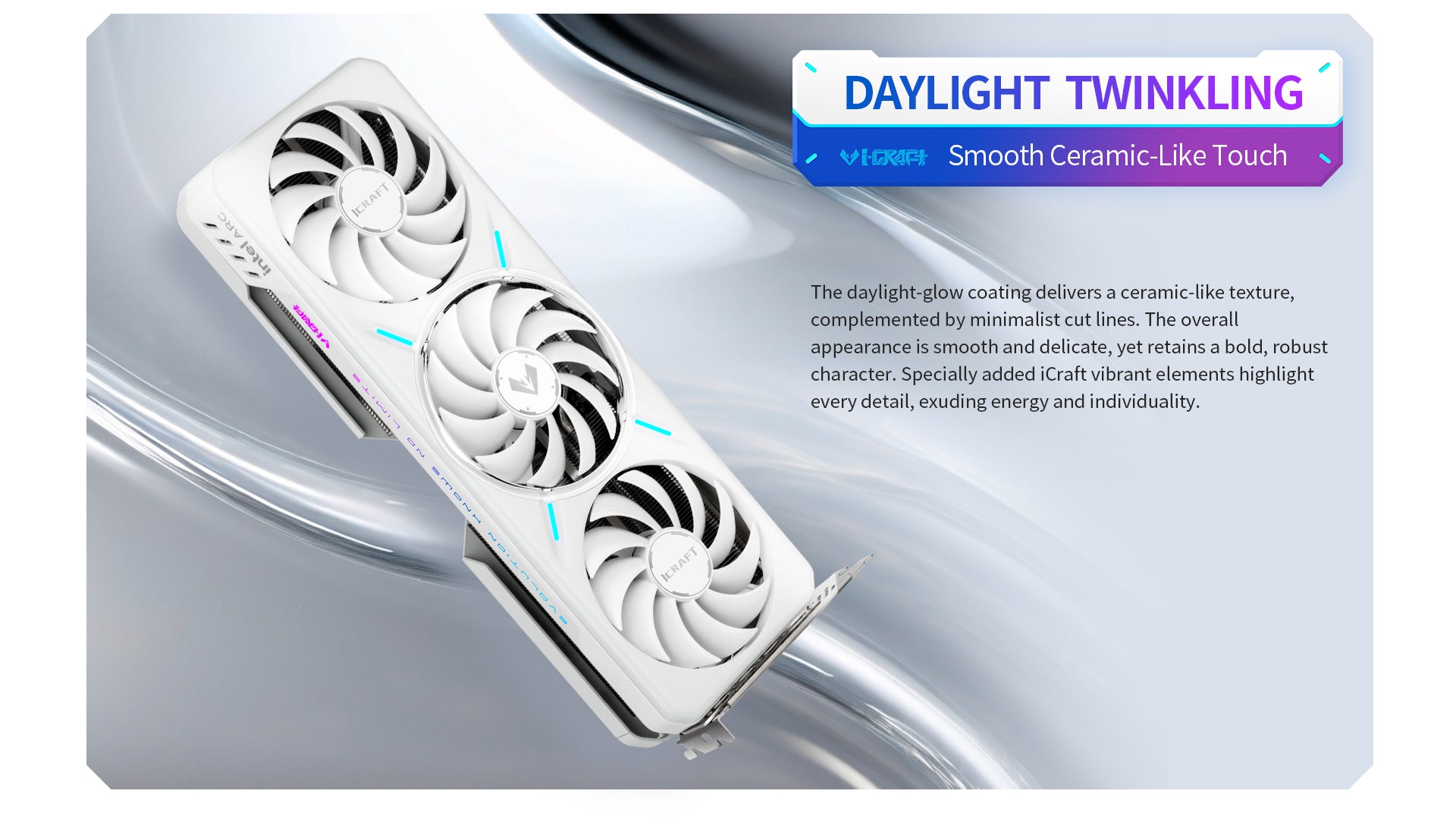

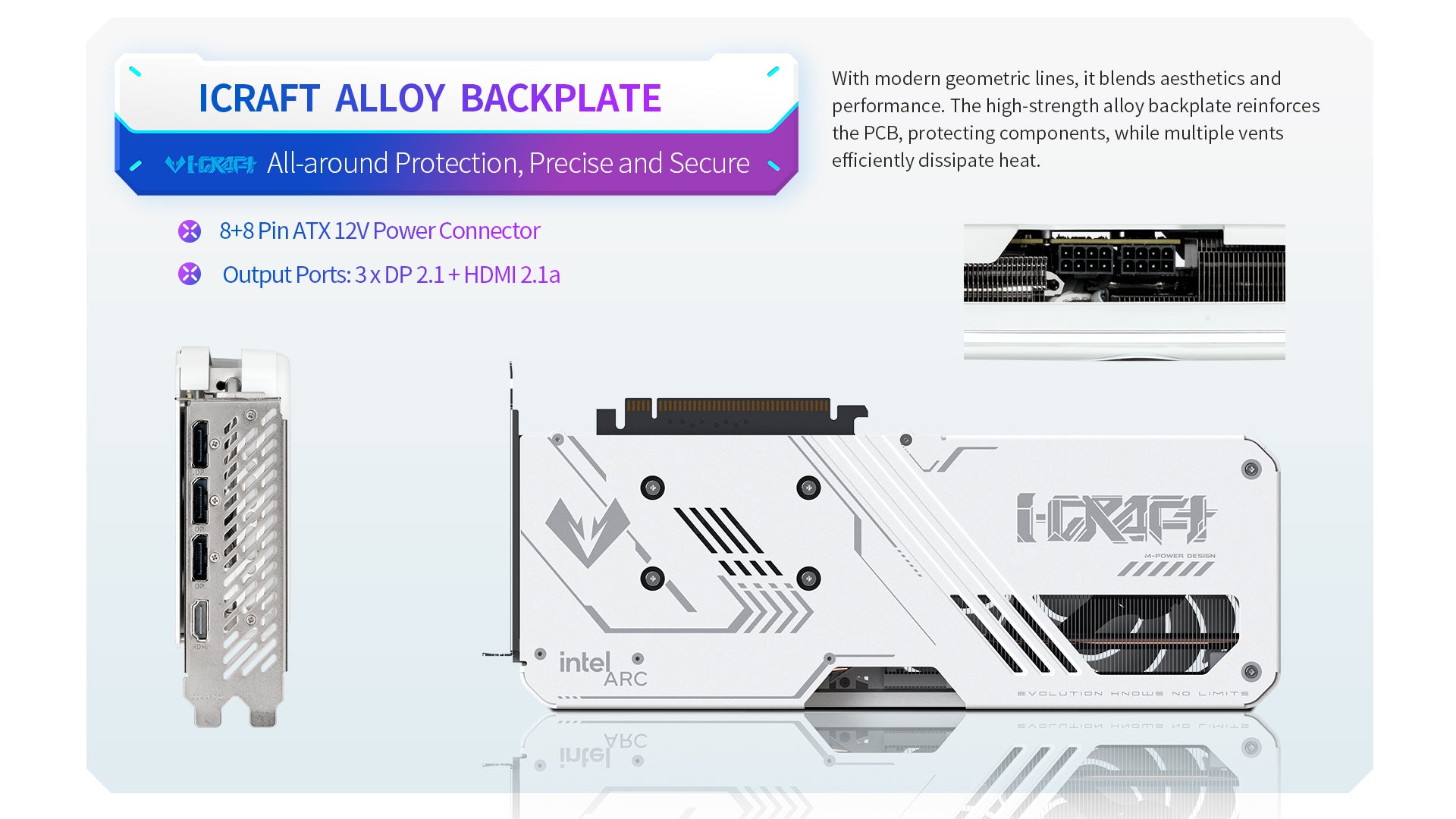

- Sleek design with an iCraft alloy backplate for durability and style.
Overview
Specification
Support

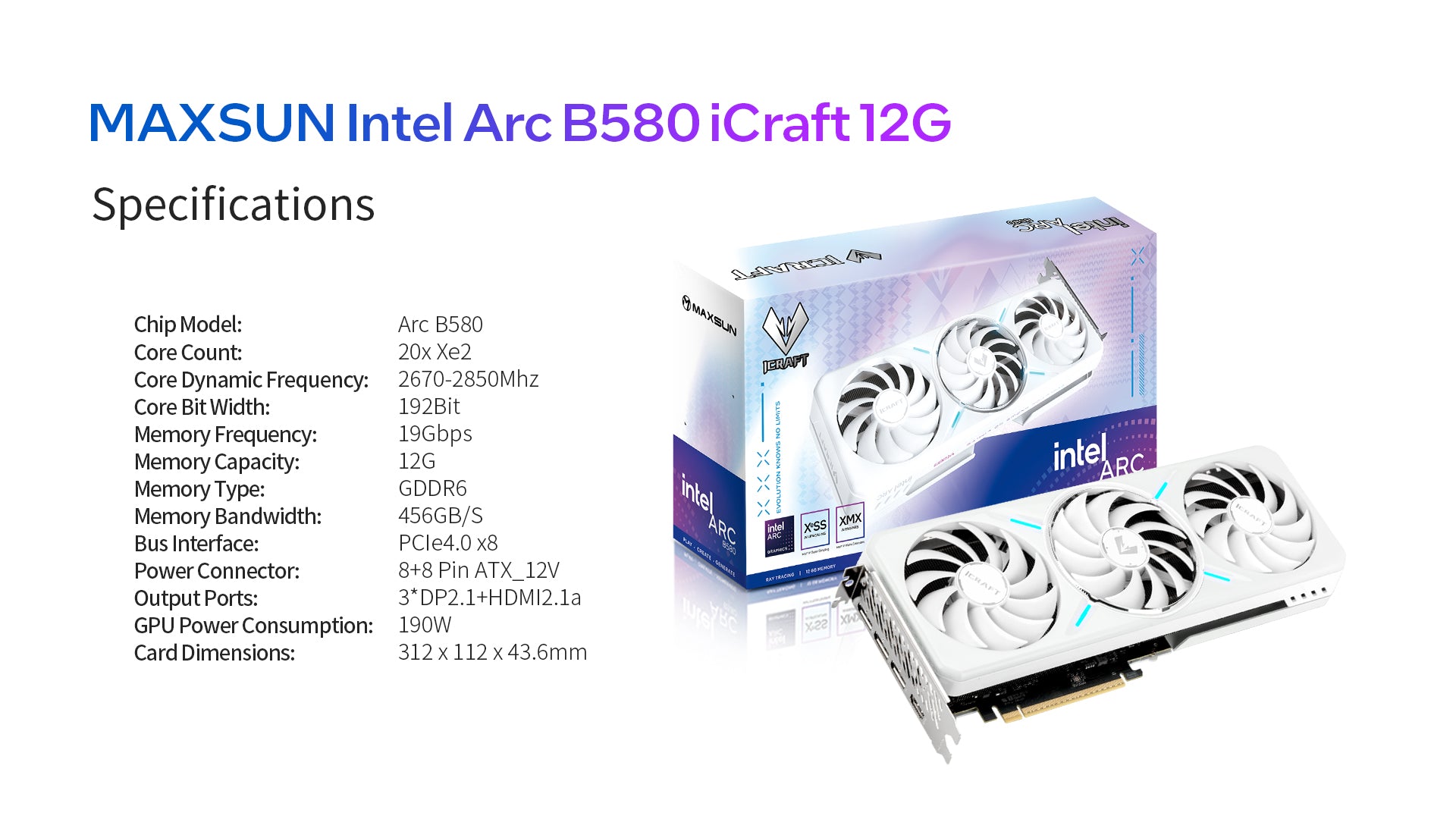

- Model Number
- Arc B580
- Xe-cores
- 20
- Graphics Clock
- 2670 MHz
- Graphics Clock Boost
- 2850 MHz
- Graphics Memory Interface
- 192-bit
- Graphics Memory Speed
- 19 Gbps
- Memory Capacity
- 12GB
- Memory Type
- GDDR6
- Graphics Memory Bandwidth
- 456 GB/s
- PCIe Bus Interface
- PCIe 4.0 x8

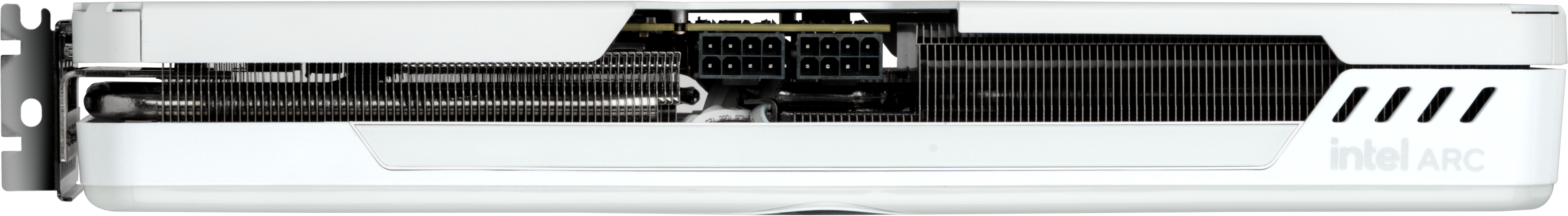

- Power Connector
- 8 Pin ATX 12V

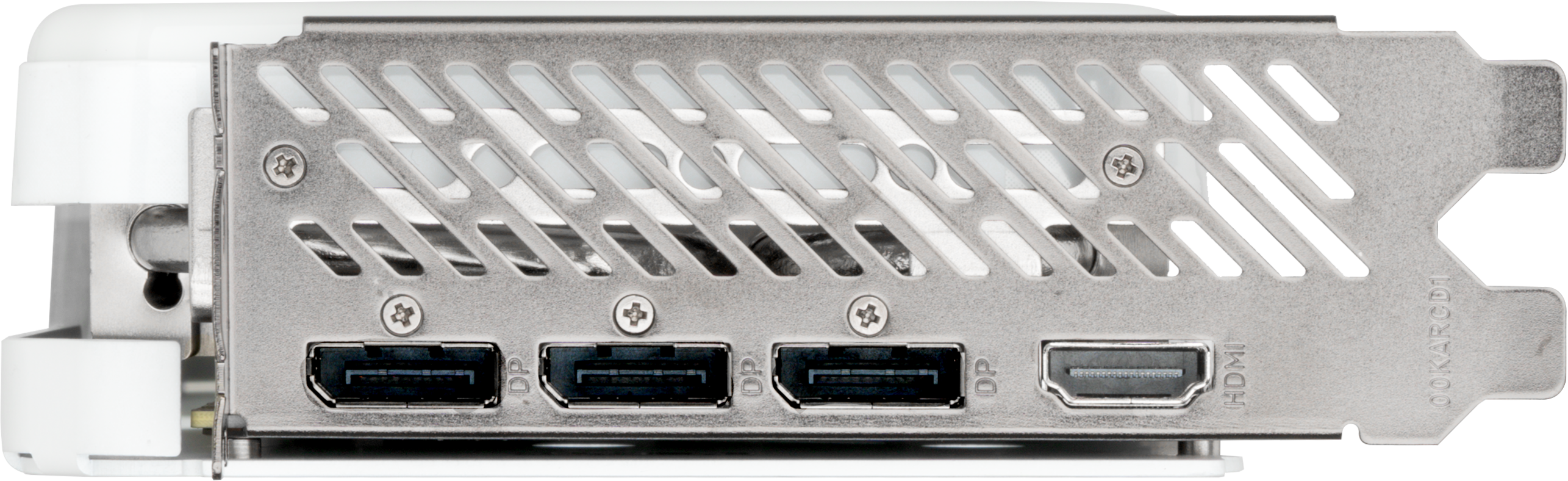

- Output Ports
- 3x DisplayPort 2.1 + HDMI 2.1
- GPU Power Consumption
- 190W
- Card Dimensions
- 241 x 104 x 43.1 mm
