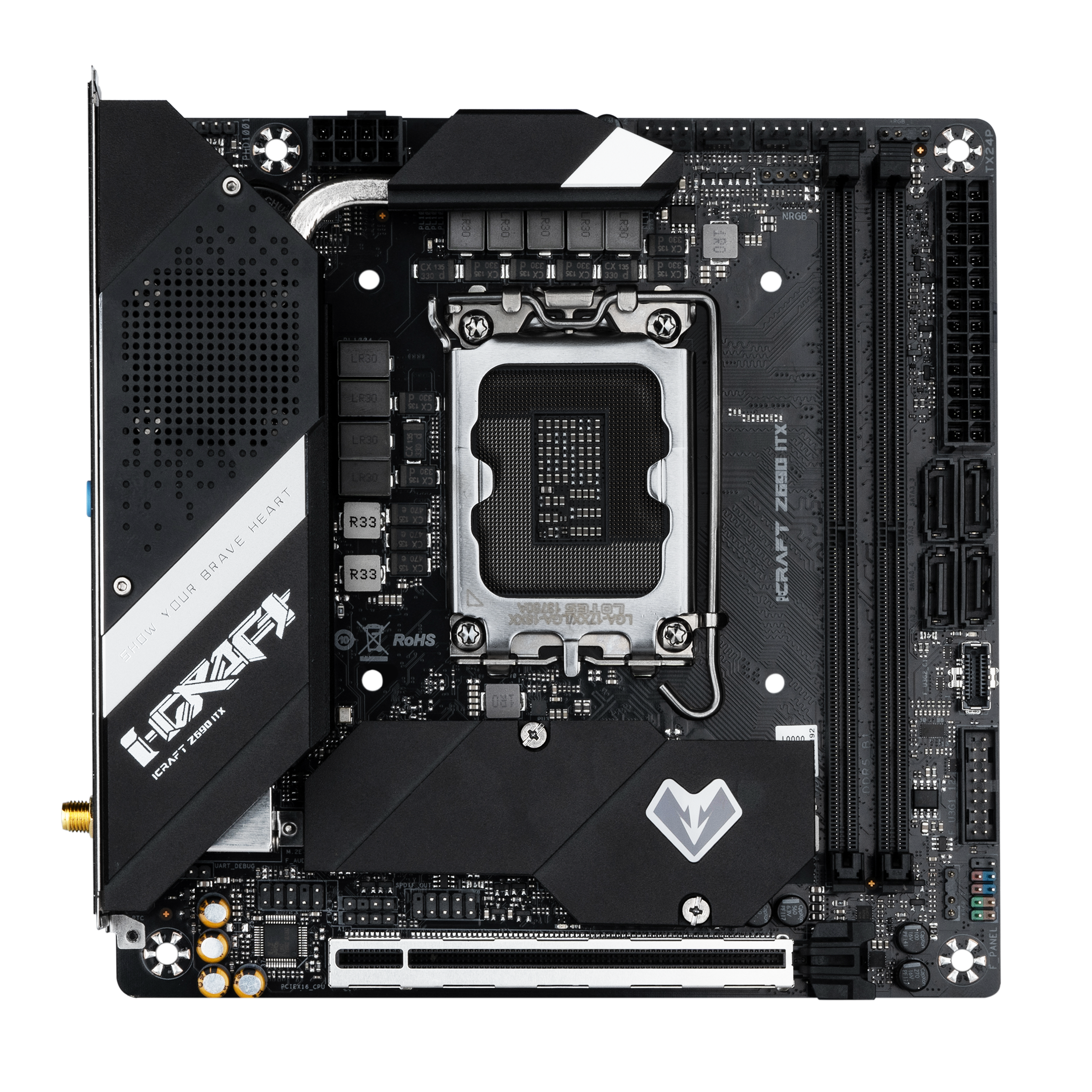

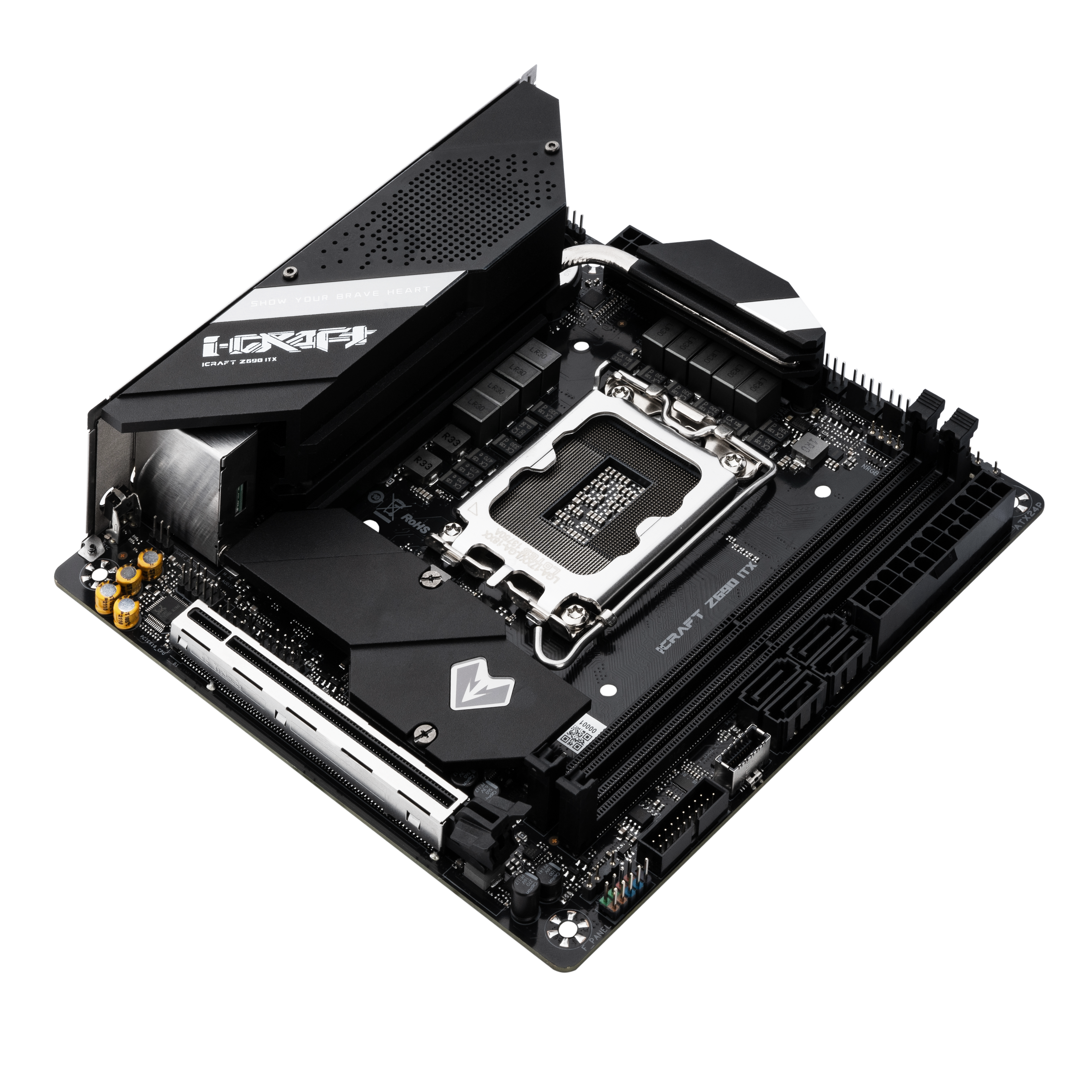

iCraft Z690ITX WIFI
- 9-phase direct out power supply, stable i9 overclocking
- 90A high specification Dr. Mos, classic ISL99390
- GodLike RAA229131 digital power PWM
- SCD cooling system (intelligent start/stop fan + heat pipe)
- New generation DDR5 memory
- Dual 2.5G NICs to support advanced applications such as link aggregation
- Distributed Debug error detection light
- ReThink motherboard layout, cable management more tidy, more friendly installation
OVERVIEW
rated for
Dual Ball Cooling Fans
8+1 Phrase Dr.Mos
Dual Alloy Heatsink
Enhanced Slots
10-layer Reinforced PCB
SMT Double
DUAL M.2 SLOTS
Back Dual Protocol M.2 Slots
Dual DP + Dual HDMI
Dual 2.5G Ethernet
6*USB3.2 Gen1 ports
WIFI6
One-Click Clear CMOS Button
SATA forward and
Colored Front Pin
More Reasonable Fan
Scientific ITX Wiring Layout
SPECIFICATION
SUPPORT
OVERVIEW
9 Phases Power
rated for
90A Dr Mos
SCD Cooling System
AI fan
Dual 2.5 Ethernet
PCIE 5.0 DDR5
8+1 Power Stage
Intel’s IMPV9.1
90A Dr.Mos
4CM Intelligent Fan
6mm Nickel
Plated Heat Pipe
PCIE5.0&DDR5
Dual M.2 SSD Slots
ITX Upgraded
Layout
10-layer
Reinforced PCB
DDR5 for 7200MHz
Integrated PCB
Front 10G Type C
SMT Electronic and
Chip Capacitors
Dual 2.5G Ethernet
WIFI6
ITX STRONG POWER SUPPLY&SCD COOLING
Dual Ball Cooling Fans
Support intelligent on/off
8+1 Phrase Dr.Mos
Rated for 90A (single ISL99390)
Theoretical power supply
capacity-360W+
Dual Alloy Heatsink
and High Efficiency Heatpipe
DDR5 PERFORMANCE ENHANCEMENT
Enhanced Slots
Durable and stable
signal
10-layer Reinforced PCB
Overclocking
potential-7200MHz
SMT Double
Strengthening Process
High-quality materials,
strengthen welding
DUAL M.2 SLOTS
DUAL M.2 SLOTS
PCIE4.0 Connect Directly to the CPU
Back Dual Protocol M.2 Slots
PCIE4.0, Support NVME/SATA

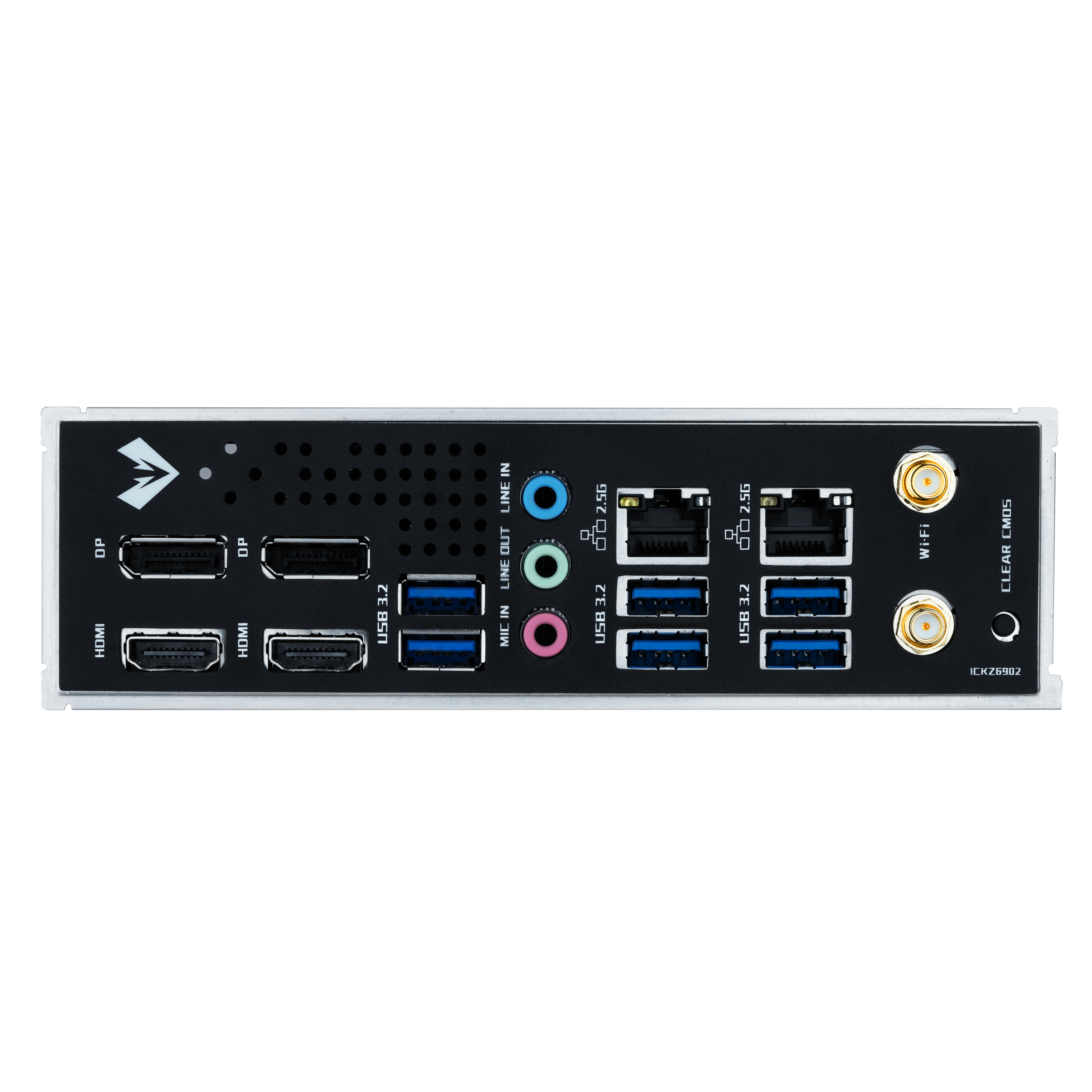

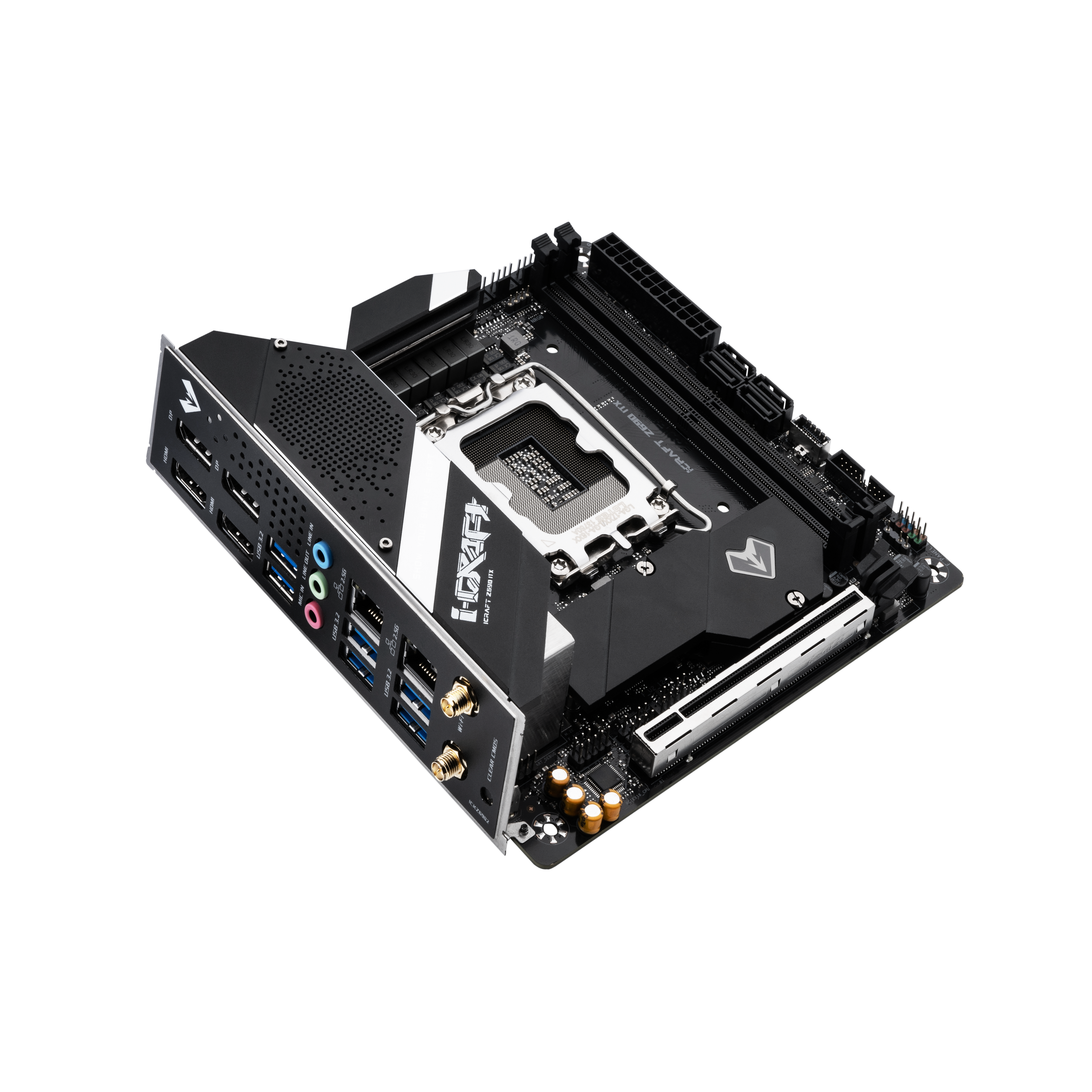

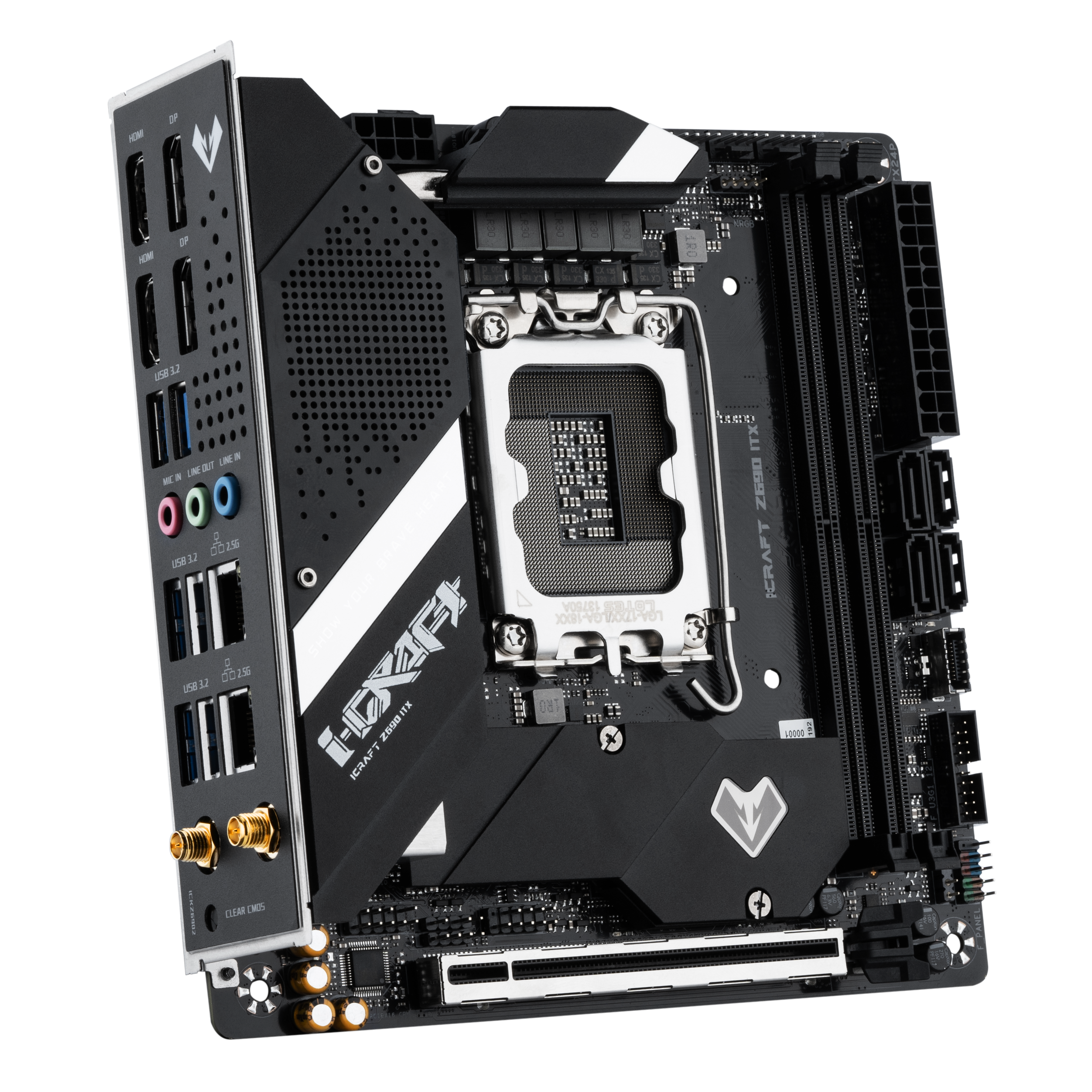

INTEGRATED I/O PORTS
Dual DP + Dual HDMI
Support core display
quad-frequency output
Dual 2.5G Ethernet
Support link aggregation 5G
(Standalone/Group Mode)
6*USB3.2 Gen1 ports
5G A-ports
WIFI6
High bandwidth,
low latency
One-Click Clear CMOS Button
One-click quick maintenance,
more convenient overclocking
debugging

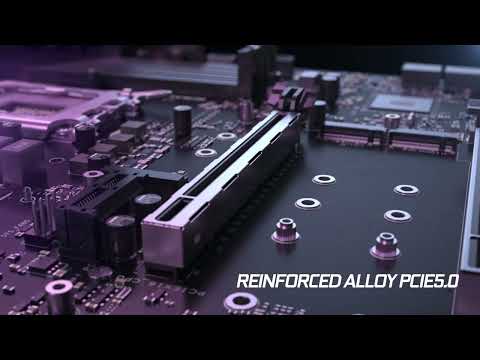

PCIE5.0 Double Alloy Strengthening
Rethink Friendly Design Details
SATA forward and
reverse distribution
Easier to unplug
Colored Front Pin
Easy to tell
More Reasonable Fan
Interface
Scientific ITX Wiring Layout
More neat and easy to install
One-click Clear CMOS Button
SPECIFICATION
- CHIPSET
- INTEL Z690
- CPU
- Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
- MEMORY
- 2x DDR5, Maximum Memory Capacity 96GB
Memory Support DDR5 7400+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
- ONBOARD GRAPHICS
- 2x DisplayPort 1.4
2x HDMI™port
*HDMI™ port supports up to 4K@30Hz
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- EXPANSION SLOT
- 1x PCIe 5.0 x16 slot
- STORAGE
- M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
- RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- USB
- *Front USB (Total 6 ports)
1x USB 3.2 Gen2 Type C
2x USB 3.2 Gen1 Type A
3x USB 2.0
*Rear USB (Total 6 ports)
6x USB 3.2 Gen1 Type A
- LAN
- Realtek® RTL8125B 2.5G LAN
- WIRELESS / BLUETOOTH
- Intel® Wi-Fi 6E AX211
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3
- AUDIO
- Realtek® ALC897 Codec
5.1-Channel High Definition Audio
- INTERNAL I/O
- 1x 24-pin Power Connector(ATX_PWR)
1x 8-pin Power Connector(CPU_PWR)
1x CPU Fan
4x System Fan
2 x M.2 slots (Key-M)
4x SATA 6Gb/s ports
1x M.2 slots (Key-E)
2x 5V 3-Pin ARGB
1x 12V 4-Pin RGB
1x 2-pin Clear CMOS
1x Front Audio
1x SPDIF OUT
- LED FEATURE
- 4x Distributed Debug LED
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- FORM FACTOR
- ITX
172.5mm x 172.5mm
