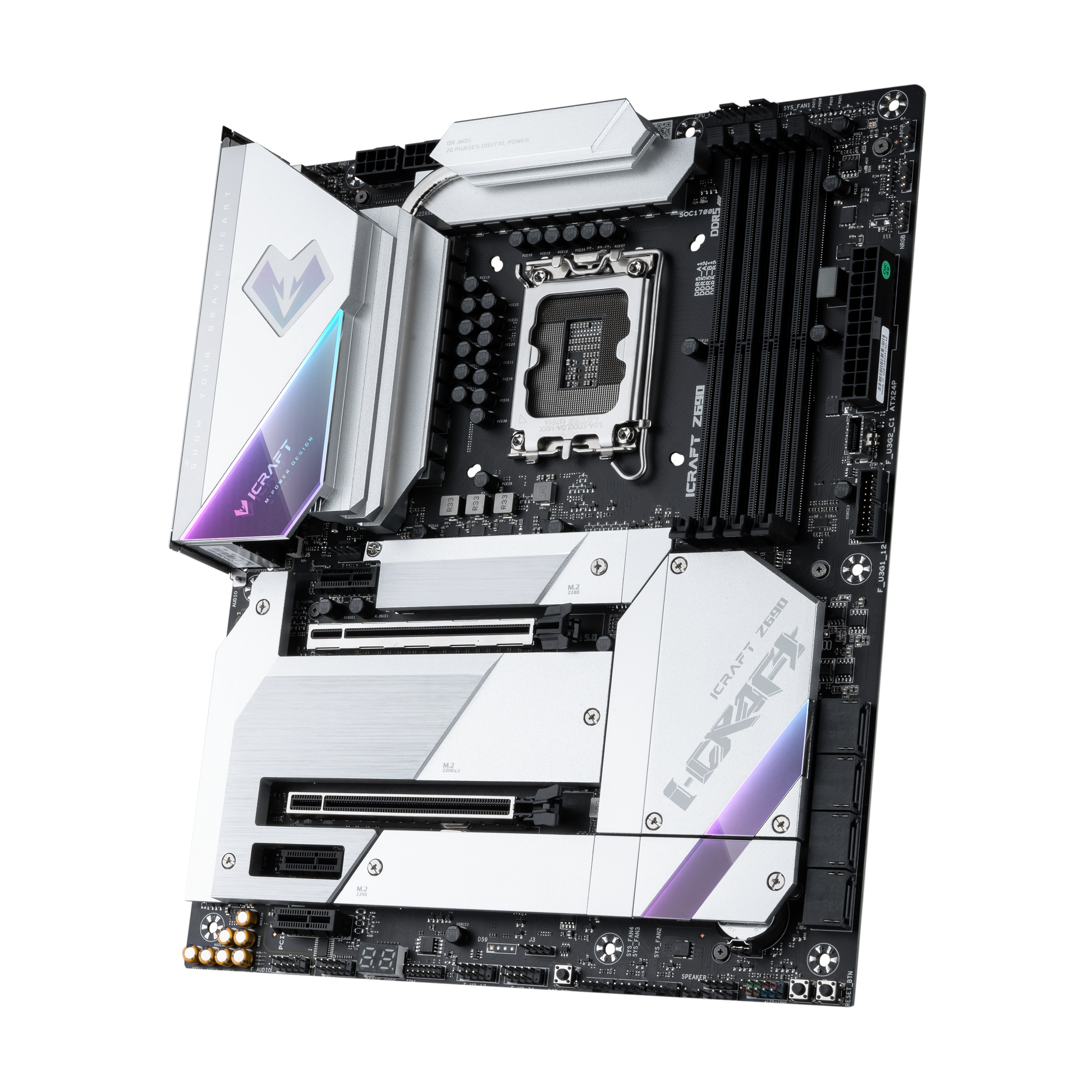

iCraft Z690 WIFI
- Strong power supply and High performance
- 20-phase straight out DR.MOS enhanced power supply, stable with i9 overclocking
- 90A high specification Dr. Mos, classic ISL99390
- GodLike-class RAA229131 digital power PWM
- New generation DDR5 memory, Daisy Chain reinforced cabling
- Dual 2.5G NICs, support advanced applications such as link aggregation
- Full board armor, power supply heatpipe, 8-layer reinforced PCB
- ReThink motherboard layout, cable management more neat, more friendly installation
- 80 digital display + split Debug error detection light
- Flash & CMOS buttons
OVERVIEW
REAL FLAGSHIP
STRONG POWER
19+1 Power Stage
Dr.Mos with 90A
RAA229131 Chips
SMT Signal Enhancement
DaisyChain Routing
Dual Alloy Process
Alloy Covered
6mm Nickel
Skylight RGB
PCIE5.0 With SMT
ReThink Friendly
Vertical
Side plug
Extension
HDAC
ALC1220 professional
7 advanced audio
Classic 5532
Metal Backplane
Better sense of touch,
WIFI 6E-High-Speed
6GHz Frequency - faster speed,
Foldable antenna
Distributed Debug Lights
80Code Module
CLR CMOS Button
FlashBIOS Physical IO Buttons
Onboard Shortcut Buttons
SPECIFICATION
SUPPORT
OVERVIEW
REAL FLAGSHIP
SUPER PERFORMANCE
19+1 Power
Stages
Enhanced
Dual 8pin
Dr.Mos Rated
for 90 amps
9*USB3.0
Ports
6mm Nickel
Plated Heat
Pipe
DDR5
Reinforced
Alloy
Dual Op Amp
Sound Card
Dual 2.5G
Ethernet
Debug Light
Skylight RGB
I/O Dual
Maintenance
PCIE5.0
Reinforced Alloy
STRONG POWER
SUPPLY
19+1 Power Stage
Theoretical power supply
capacity-640W. Stable
overclocking for i9 processor
with 16core
Dr.Mos with 90A
Classic ISL99390 premium 90A
Dr.Mos. Support IMon, more
precise voltage
RAA229131 Chips
New flagship digital PWM chip
with new standard and high
performance
DDR5 MEMORY SLOTS
SMT Signal Enhancement
Avoid signal loss through the board and
improve high frequency quality
DaisyChain Routing
Improves memory overclocking potential
and reduces signal loss
Dual Alloy Process
Stronger reinforced solder joints and
more stable double gold plating
Alloy Covered
Cooling Armor
Large Heatsink
6mm Nickel
Plated Heat Pipe
Skylight RGB
Preset multiple colors
Software/Onboard button switch
2*ARGB, 1*RGB expansion pin

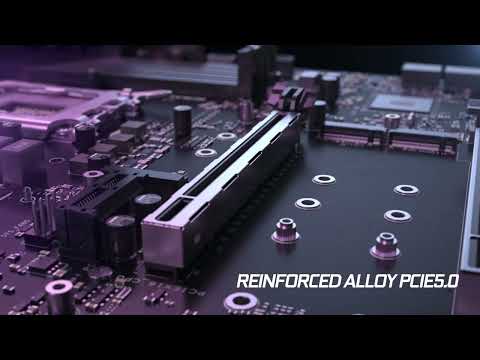

PCIE5.0 With SMT
Metal Reinforcement
4* M.2 SSD slots
Independent solid-state power-down
protection voltage regulator IC
All interfaces are conflict-free
PCIe 3.0 X1
PCIe 4.0 X4
M.2-Directly Connected with CPU
PCIe5.0 SMT Alloy Reinforced
PCIe 4.0 X4
PCIe 4.0 X4
PCIe 3.0 X4速率全长接口
PCIe 3.0 X1
PCIe 4.0 X4
NVME/SATA auto switch
PCIe 3.0 X1
ReThink Friendly
Layout
Vertical
line zone
Side plug
SATA zone
Extension
pin zone
HDAC
Sound Card System
Custom Audio
Modules
ALC1220 professional
audio chip
7 advanced audio
capacitors
Classic 5532
dual op amp
Metal Backplane
Overlay
Better sense of touch,
better protection
WIFI 6E-High-Speed
Wireless Internet
6GHz Frequency - faster speed,
higher throughput, wider bandwidth,
lower latency
Foldable antenna
design and magnetic
base can be attached
to the top or side
of the case

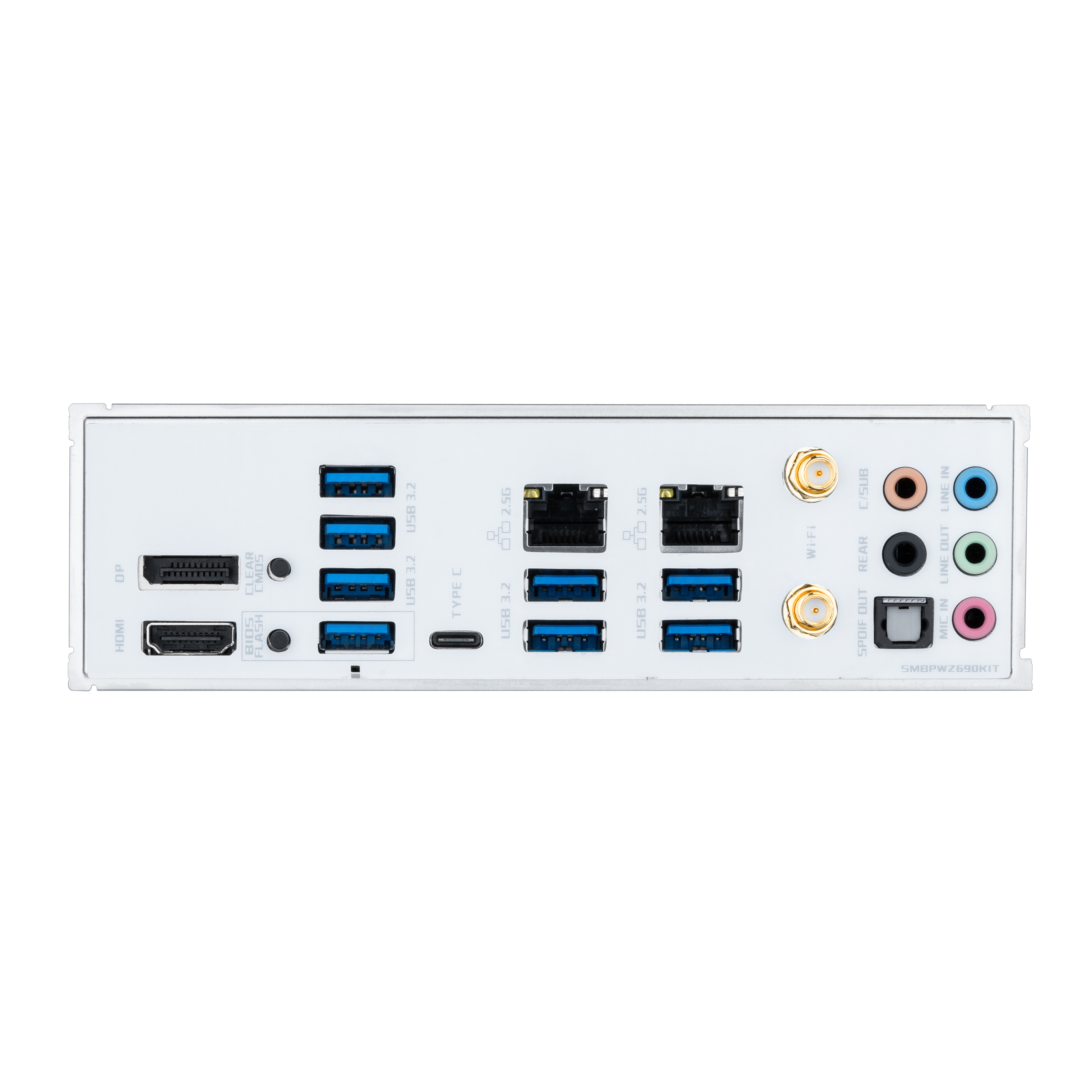

Stainless-Steel Back I/O
DP1.4+HDMI2.0
Clr CMOS
&
Flash BIOS Buttons
8* USB3.2 + 1* Type-C
Dual 2.5G Ethernet
WIFI 6E Wireless
Network Card
7.1 Voice Channel
+ Optical Interface
Dual Op Amps
and 7 Capacitors
Quick Maintenance
Distributed Debug Lights
Quickly locate the fault
position according to the
light color and flashing
status
80Code Module
Accurately monitor the
status of the motherboard
Provide various error
reporting functions
CLR CMOS Button
One-click refresh, restore to the
initial value
One-click maintenance, simple
and convenient
FlashBIOS Physical IO Buttons
Can update BIOS without CPU
Onboard Shortcut Buttons
Quick RGB reboot
/switch shortcut button
RGB Switch On Off / Reboot
SPECIFICATION
- CHIPSET
- INTEL Z690
- CPU
- Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
- MEMORY
- 4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
- ONBOARD GRAPHICS
- 1x DisplayPort 1.4
1x HDMI™port
*HDMI™ port supports up to 4K@60Hz
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- EXPANSION SLOT
- 1x PCIe 5.0 x16 slot
1x PCIe 3.0 x4 slot
3x PCIe 3.0 x1 slot
- STORAGE
- M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
- RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- USB
- *Front USB (Total 7 ports)
1x USB 3.2 Gen2 Type C
2x USB 3.2 Gen1 Type A
4x USB 2.0
*Rear USB (Total 9 ports)
1x USB 3.2 Gen2 Type C
8x USB 3.2 Gen1 Type A
- LAN
- Realtek® RTL8125B 2.5G LAN
- WIRELESS / BLUETOOTH
- Intel® Wi-Fi 6E AX211
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3
- AUDIO
- Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
- INTERNAL I/O
- 1x 24-pin Power Connector(ATX_PWR)
2x 8-pin Power Connector(CPU_PWR)
1x CPU Fan
1x AIO_Pump Fan
3x System Fan
4 x M.2 slots (Key-M)
4x SATA 6Gb/s ports
1x M.2 slots (Key-E)
1x 4-Pin SPEAKER
2x 5V 3-Pin ARGB
1x 12V 4-Pin RGB
1x Clear CMOS
1x Front Audio
1x COM_A Port
1x TPM pin header(Support TPM 2.0)
1x RGB Button
1x POWER Button
1x REBOOT Button
- LED FEATURE
- 4x Distributed Debug LED
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- FORM FACTOR
- ATX
305mm x 245mm
