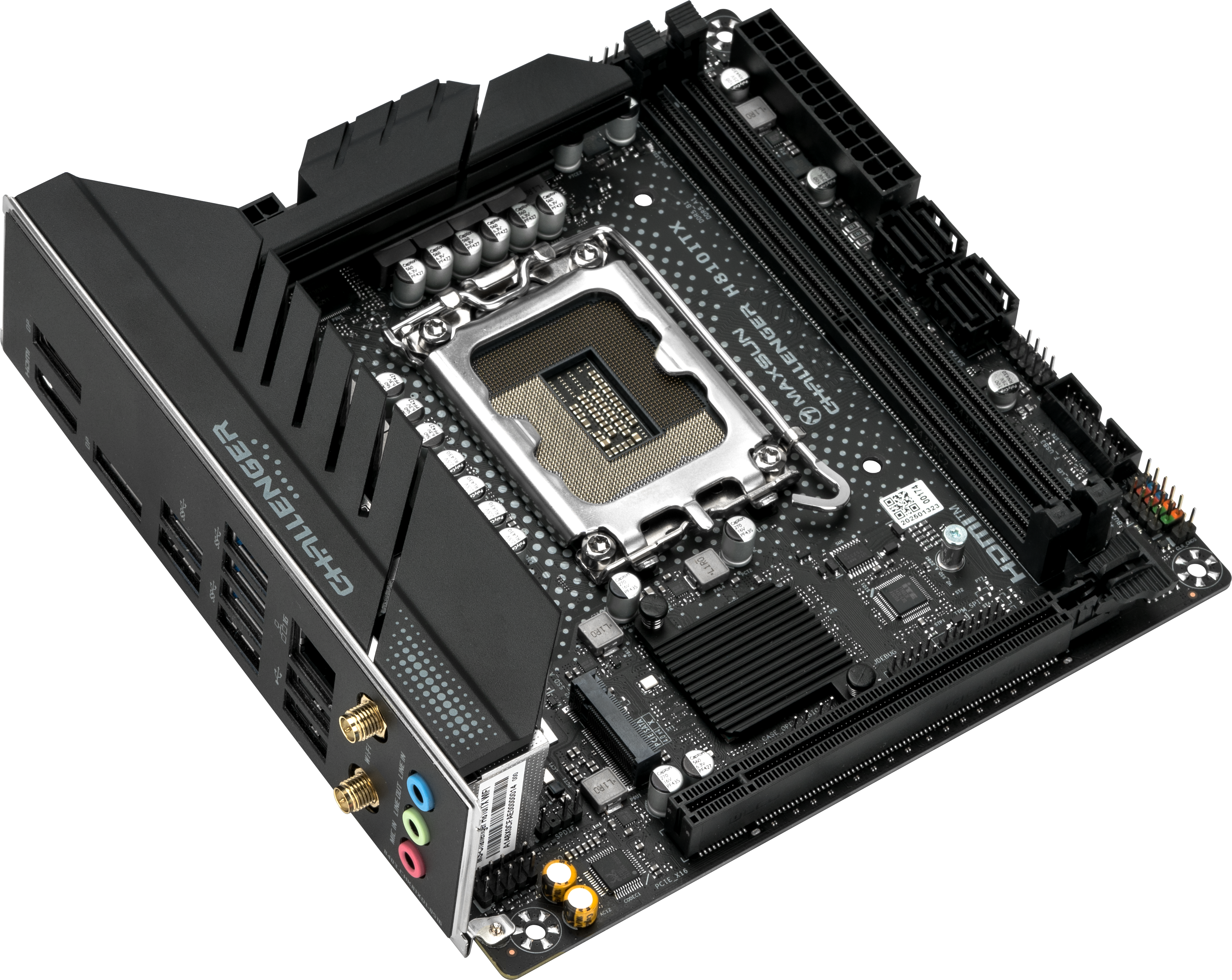

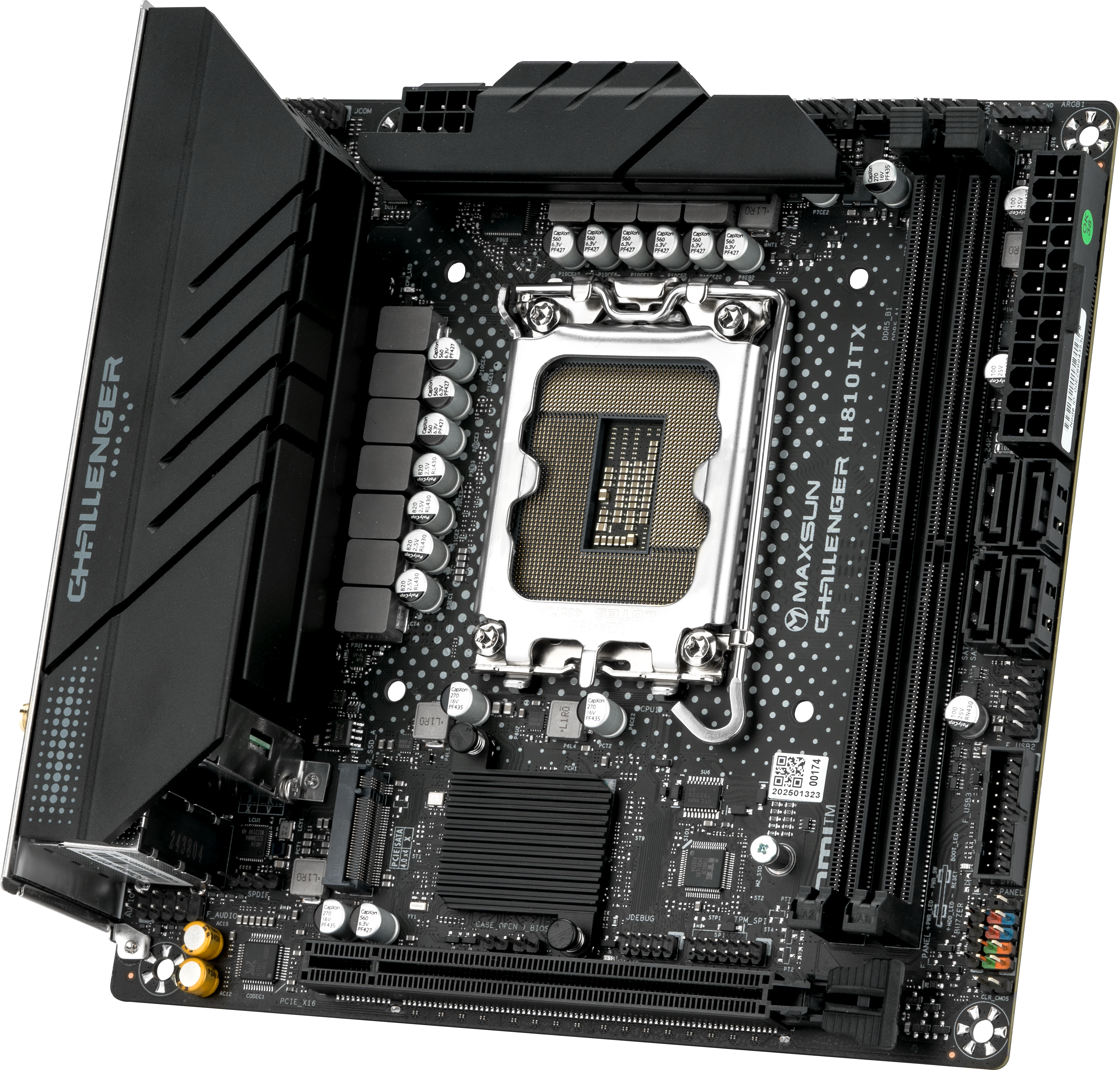

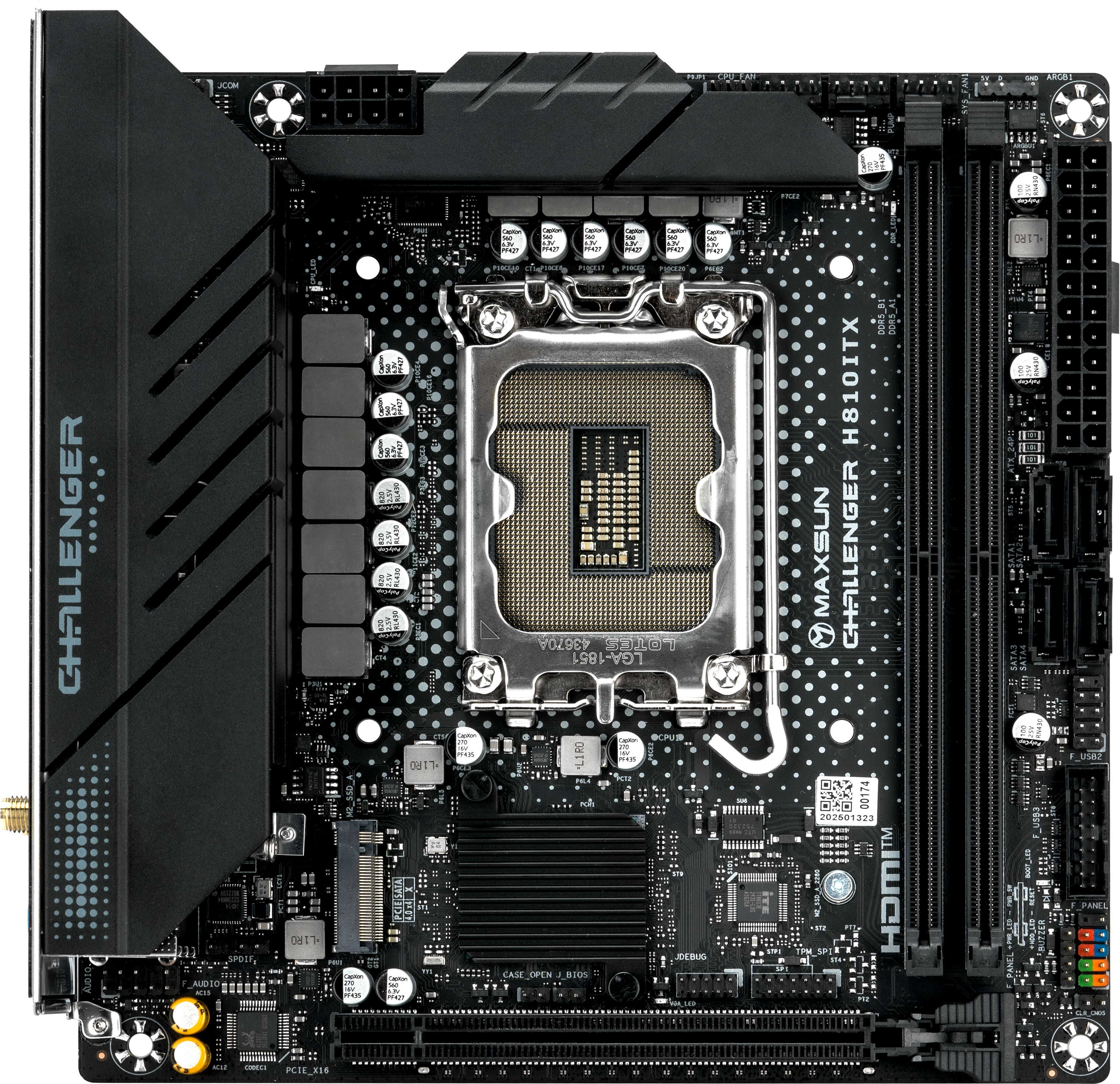

Challenger H810ITX WIFI
- Next-Gen Performance: Supports Intel® Core™ Ultra 200 Series
- Compact & Efficient: Mini-ITX form factor (170×170mm)
- Stable Power Delivery: 8+1+1 phase with 50A Dr.MOS
- High-Speed Memory: Dual DDR5 DIMMs up to 96GB
- Fast Storage & GPU Support: Dual PCIe 4.0 x4 M.2 + PCIe 5.0 x16
- Seamless Connectivity: Wi-Fi 6 + Bluetooth 5.2
- Smart Control & Custom Lighting: PTM UI BIOS + MAXSUN Sync
Overview
Specification
Support
- Model
- MS-Challenger H810ITX WIFI
- Form Factor
- Mini-ITX (170 × 170 mm)
- CPU Socket
- Intel® LGA 1851, compatible with Intel® Core™ Ultra processors
- Chipset
- Intel® H810
- Memory
- 2× DIMM DDR5 slots, up to 96GB
Dual-channel memory support
XMP support
Speeds: 6400 / 6200 / 6000 / 5600 / 5200 / 4800 MHz
- Display Outputs
- 1× HDMI™ 2.0 (up to 4K @ 60Hz)
2× DP 1.4 (up to 4K @ 60Hz)
- Expansion Slots
- 1× PCIe x16 slot (PCIe 5.0 x16 mode)
- Audio
- Integrated Realtek ALC897 audio codec
- Networking
- 1× Intel® i219V 1Gb Ethernet port
1× Intel® AX101 Wi-Fi 6 & Bluetooth 5.2 module
- Storage
- 1× M.2 slot (PCIe 4.0 x4/x2, 2280) – Front
1× M.2 slot (PCIe 4.0 x4/x2, 2280) – Back
4× SATA 6Gb/s ports
- USB Ports
- Onboard:
1× USB 5G 19-pin header (supports 2× USB 5G ports)
1× USB 2.0 9-pin header (supports 2× USB 2.0 ports)
Rear I/O:
4× USB 10G Type-A
2× USB 5G Type-A
2× USB 2.0 Type-A
- Other Features
- 1× 24-Pin ATX power connector
1× 8-Pin +12V power connector
1× 3-Pin ARGB header
1× Front-panel COM port header
1× CLR CMOS reset header
1× 4-Pin CPU FAN header
1× 4-Pin PUMP header
1× 4-Pin SYS FAN header
1× TPM header
