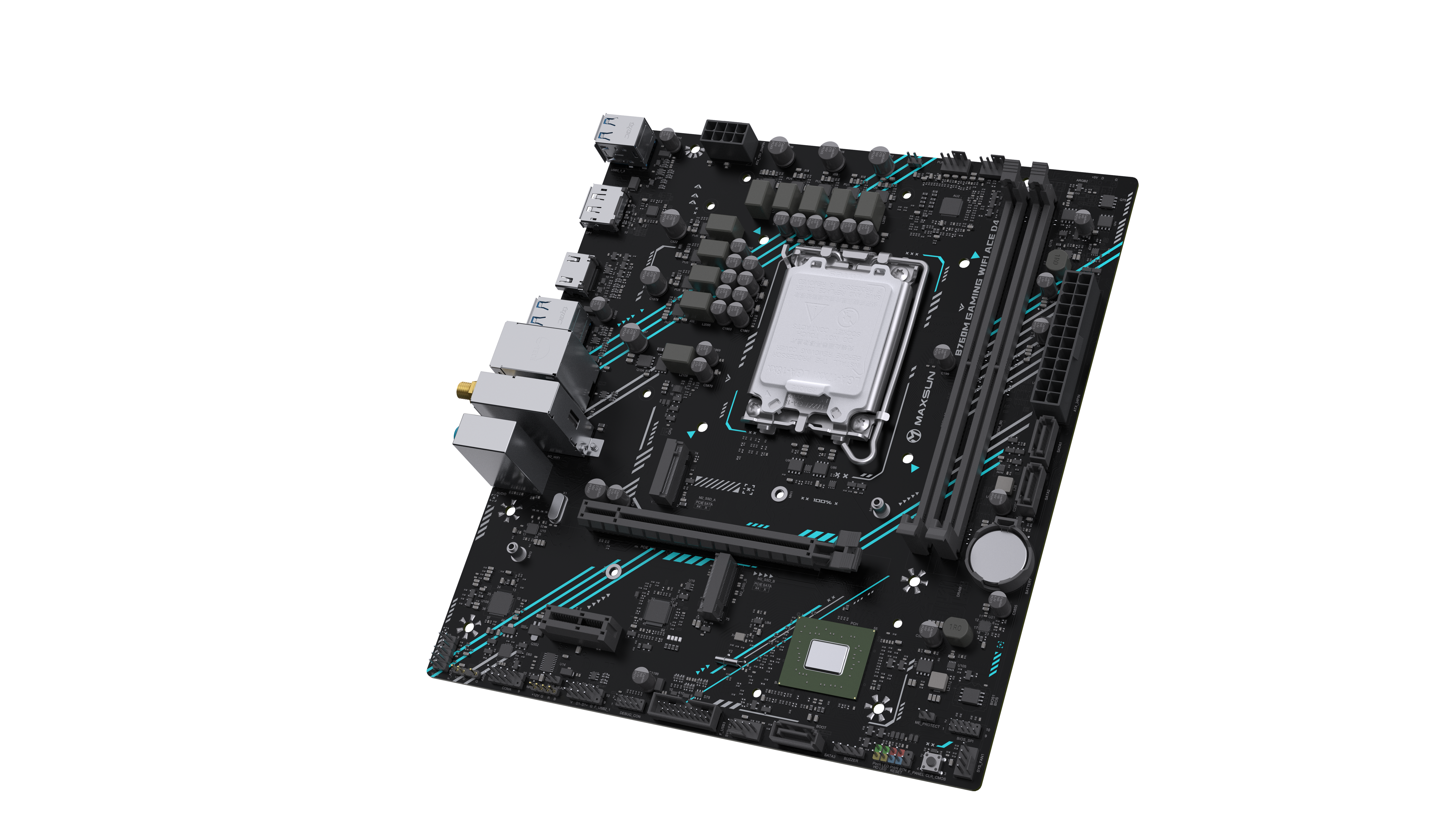

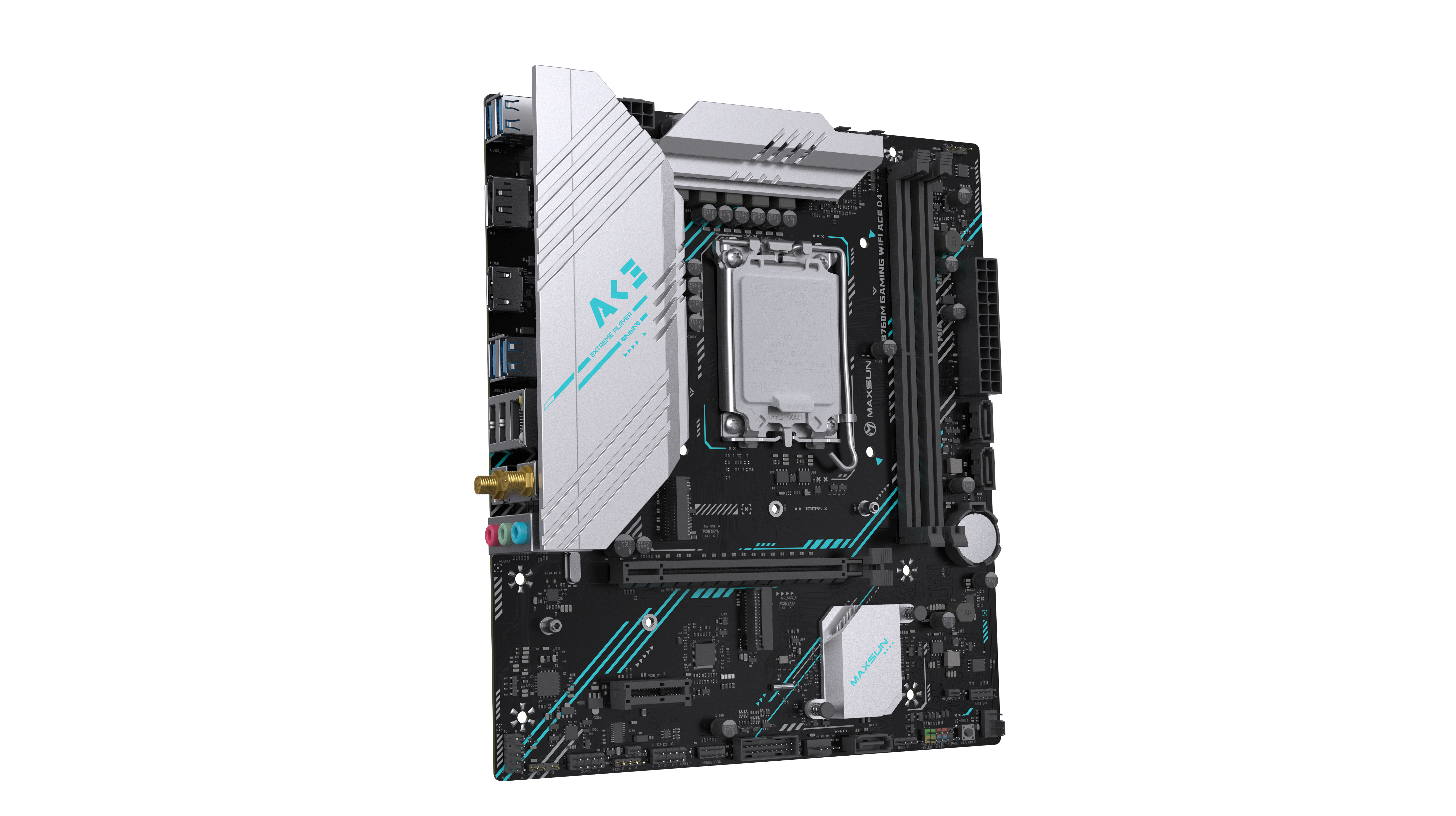

B760M GAMING WIFI ACE D4

• CHIPSET
• INTEL B760 High-speed chipset

• CPU
• Support for LGA1700 slots
  The 12th/13th/4th Gen processors

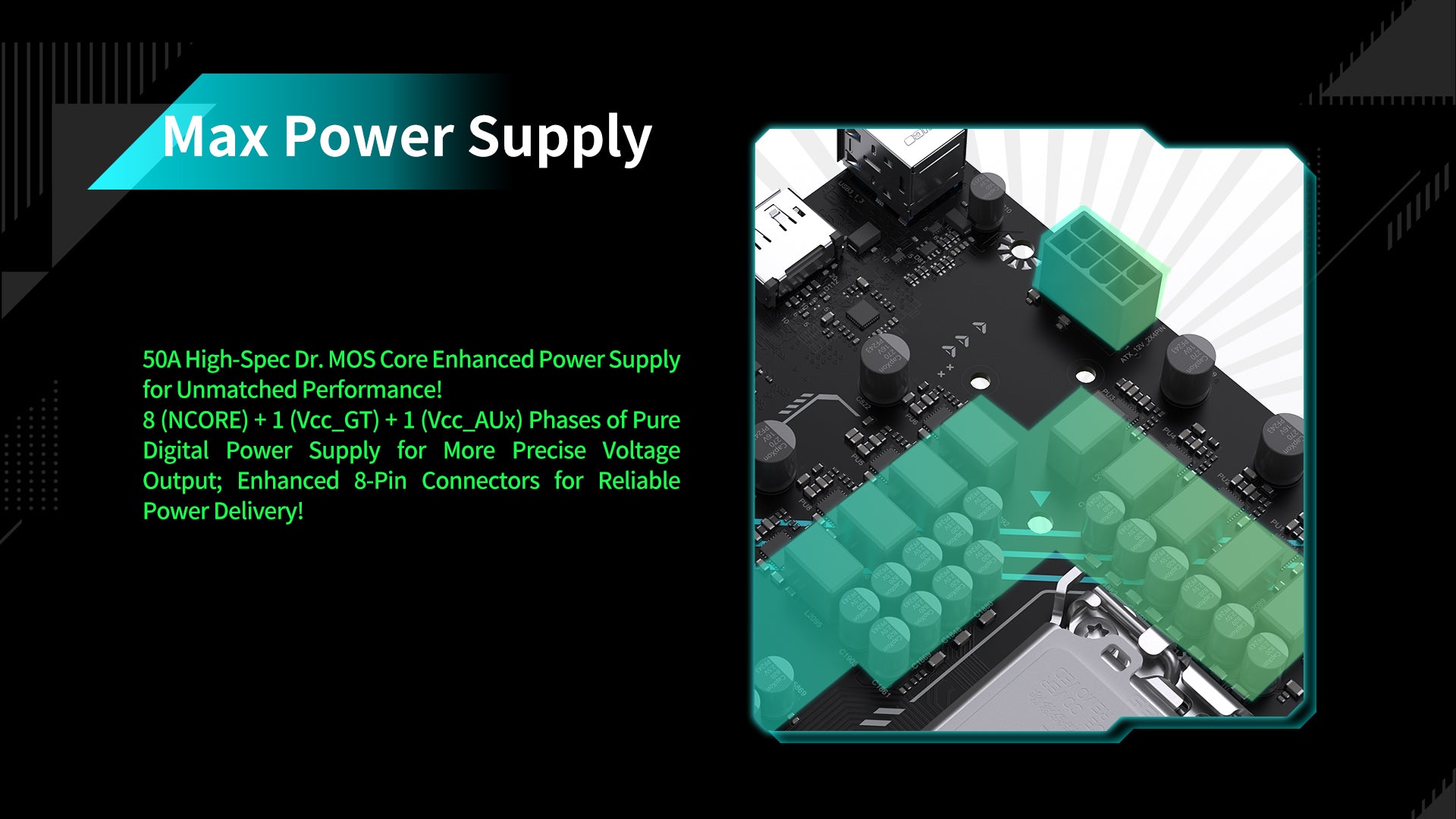

  TDP: 150W(8+1+1)

• MEMORY
• 2x DIMM DDR4 memory slots
  Maximum support in total is 64GB
  Support to 3200 MHz/OC + memory frequency

• EXPANSION SLOT
• 1x PCIE X16 4.0 slot
  1x PCIE X1 slot
  Support for AMD and NVIDIA and INTEL graphics cards
  Support for PCIE resizable bar technology

• STORAGE

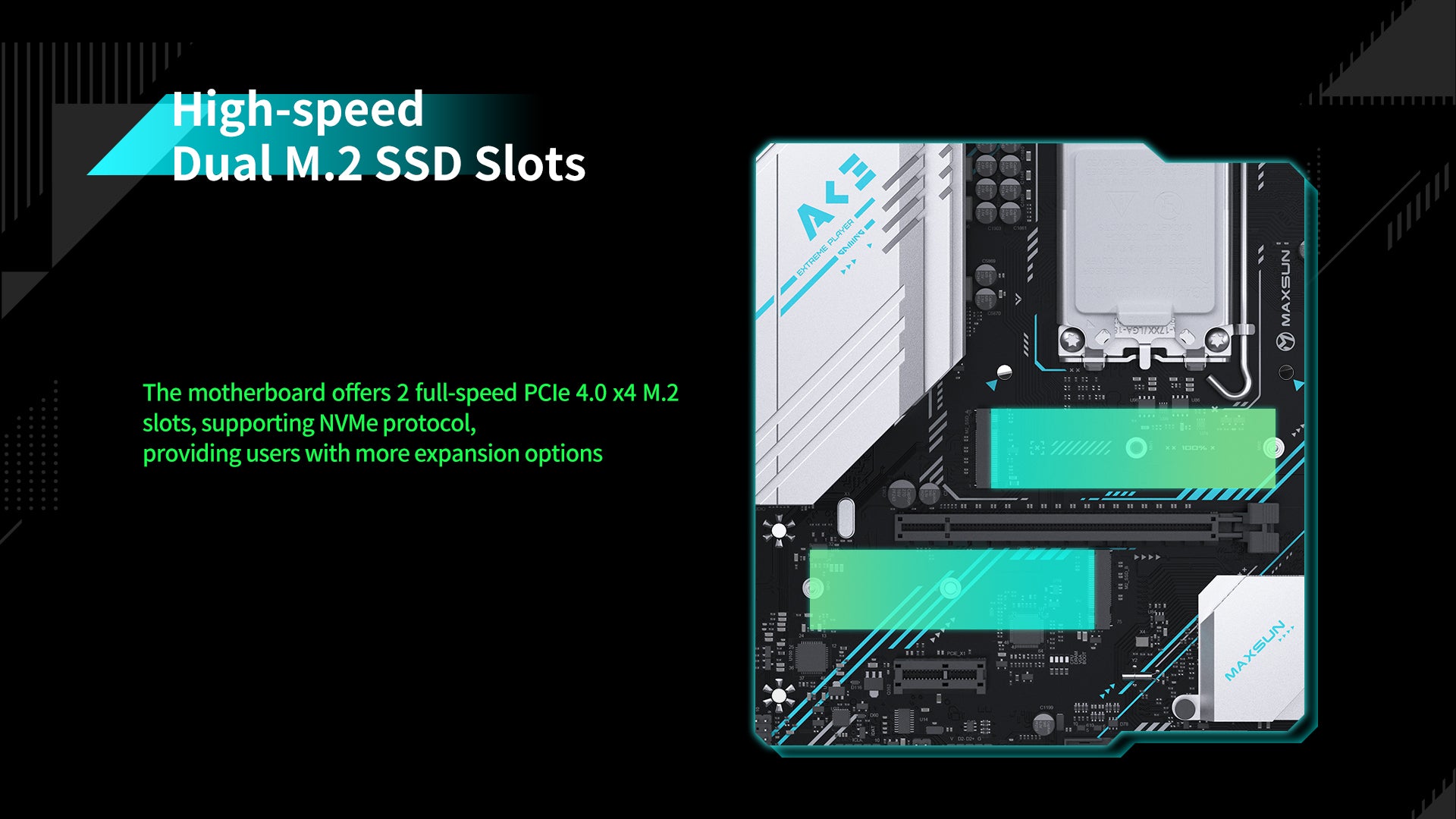

• 2x M.2 4.0 slots (only support 2242 / 2280 PCIE X4 / X2 channel SSD supported only)
  3x SATA 3.0 ports

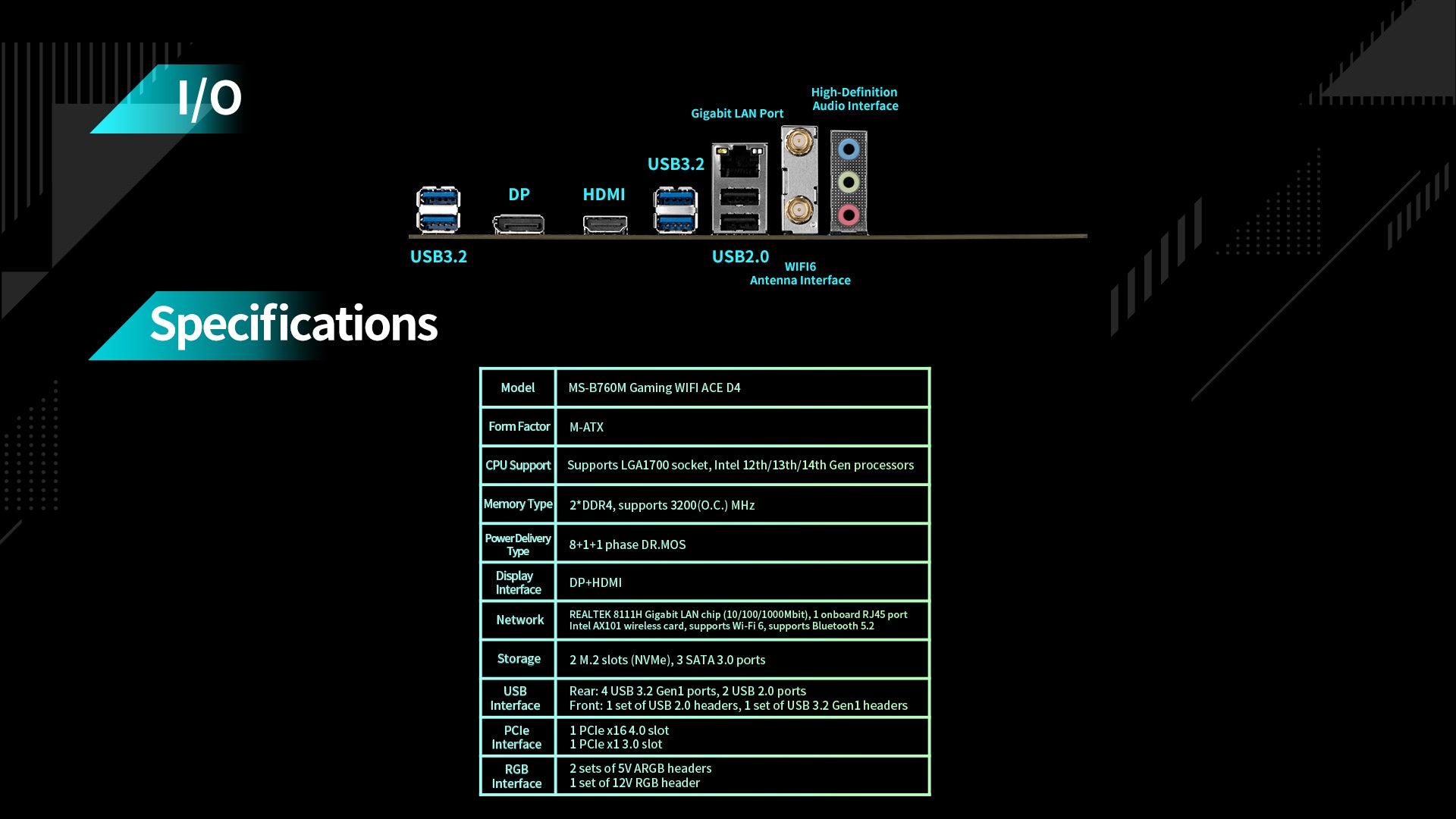

• USB

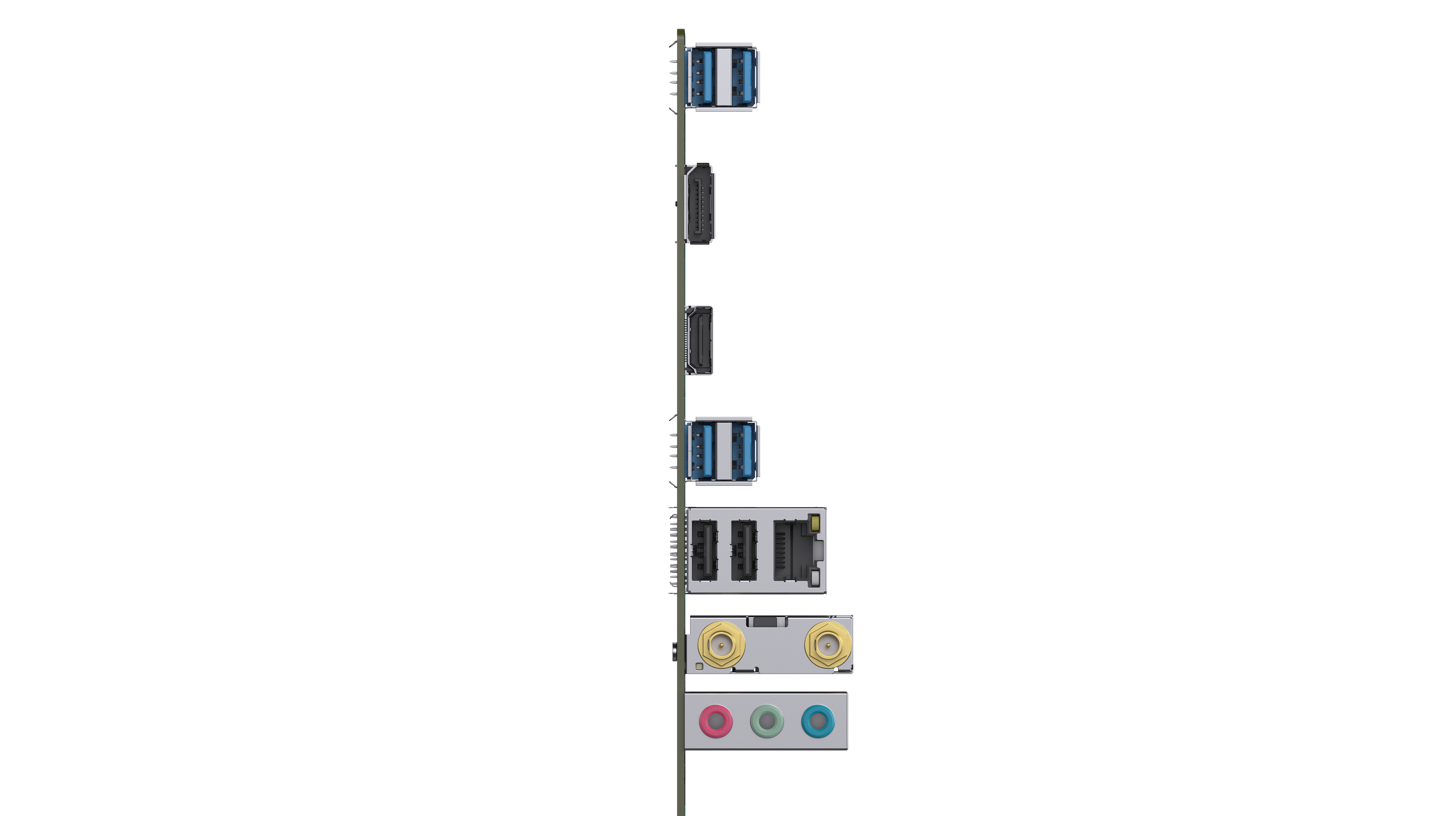

• *On-board rear port: 4x USB 3.2 GEN 1 ports,
  On-board pins:1X set(2)USB2.0 pins,1X set(2) USB3.2 GEN 1 pins

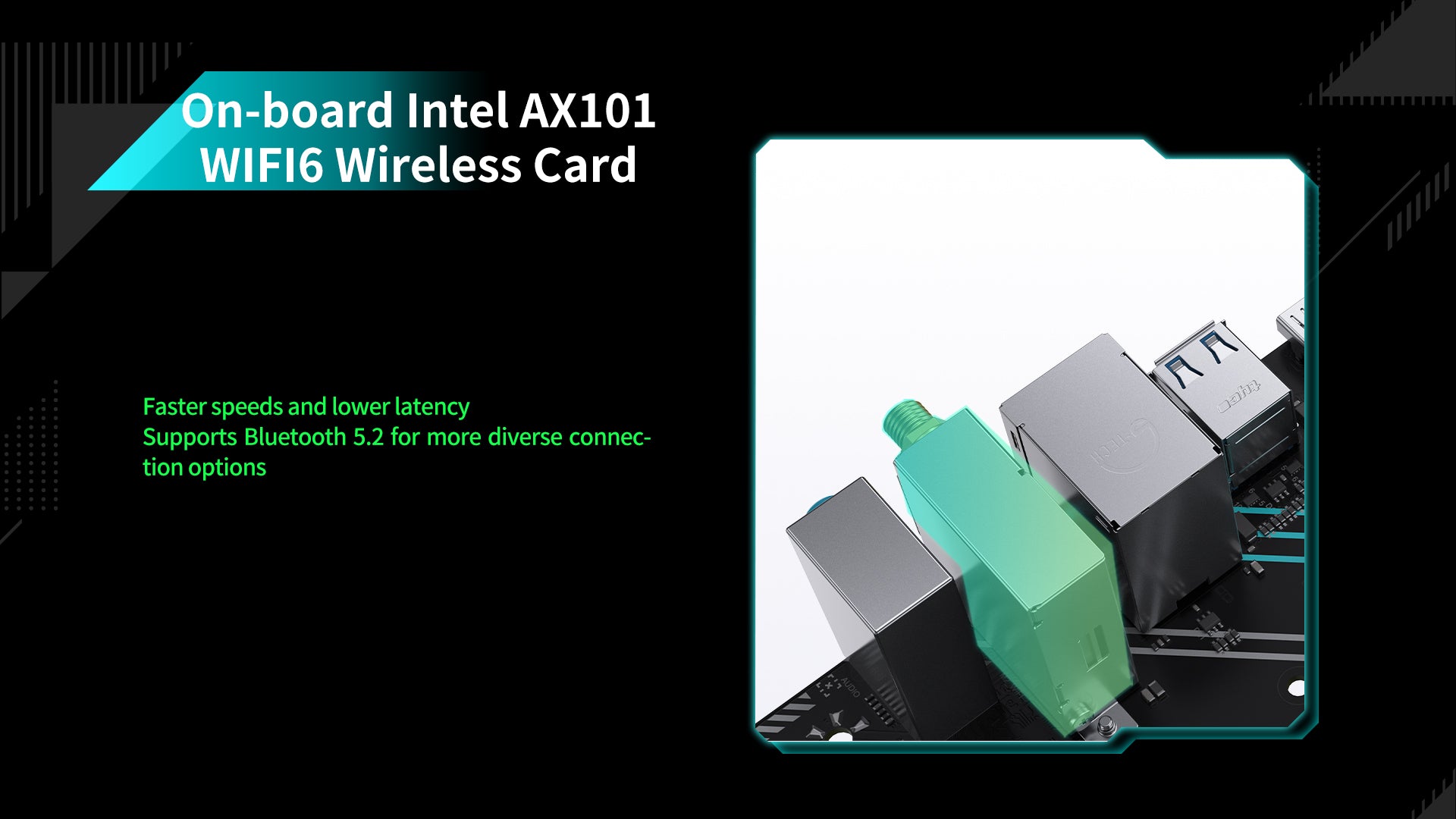

• NETWORK
• Integrated REALTEK 8111 chip (10 / 100 / 1000Mbit)
  1x onboard R]45 port
  Support network wakeup
  Support PXE no disk, UEFI no disk guide

• AUDIO
• Integrated REALTEK ALC 897 sound chip

• INSIDE BOARD SOCKET
• 1x 24-PIN motherboard ATX power supply
  1x 8-PIN motherboard ATX 12V power supply port, 12V input,
  2x sets of system fan pins and 1x group of CPU fan pins、
  1x group of PUMP fan pinslx group chassis front control panel pin (F PANEL)

• OPERATING SYSTEM
• Support for Windows 10 64bit,
  Windows 11 64bit
  Support for Ubuntu 64bit

• FORM FACTOR
• Micro ATX 230mm x 205mm
