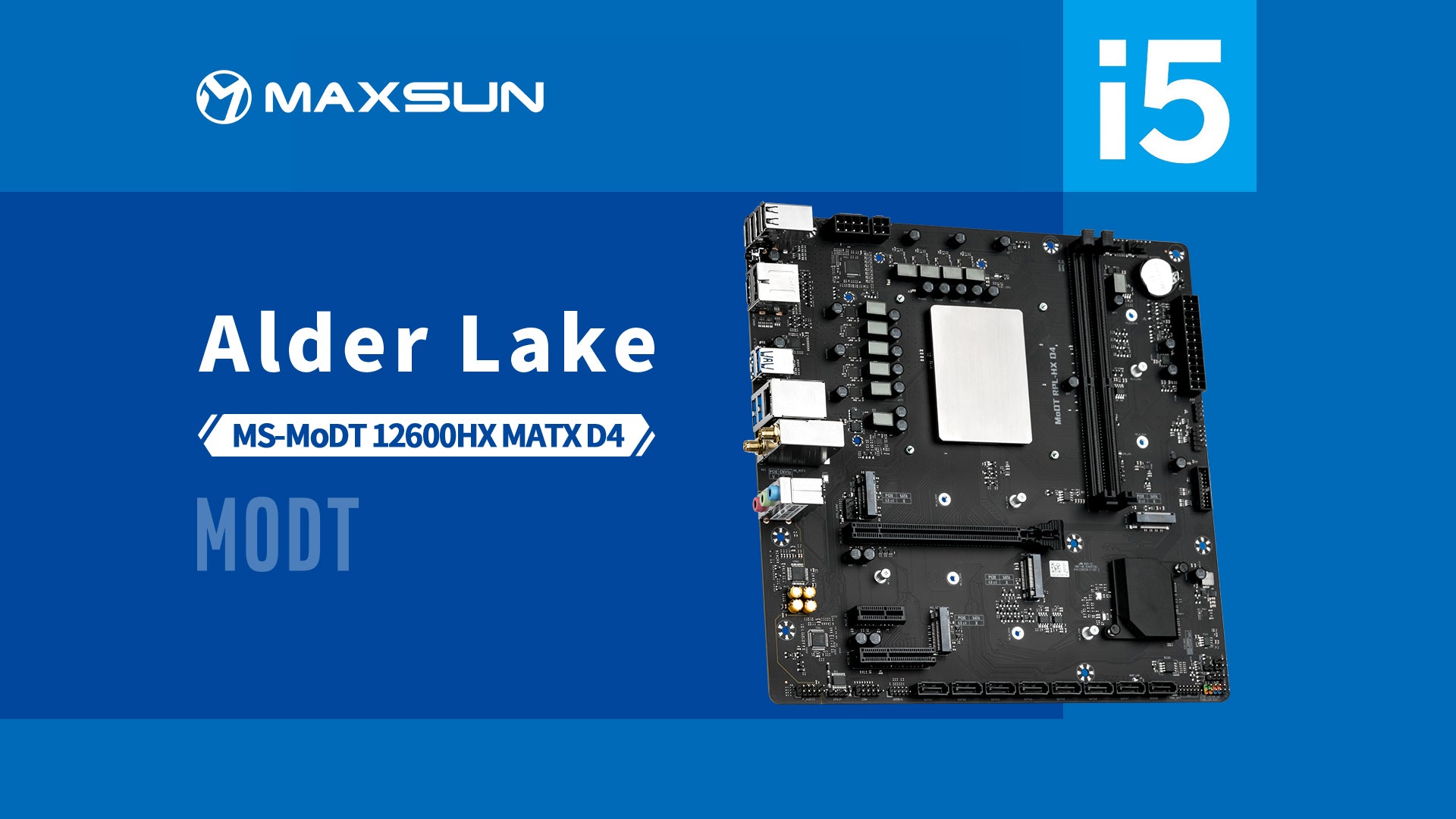

MS-MoDT 12600HX MATX D4
- Powerful Core Performance: Intel Core i5-12600HX with 12 cores, 16 threads, and up to 4.6GHz boost.

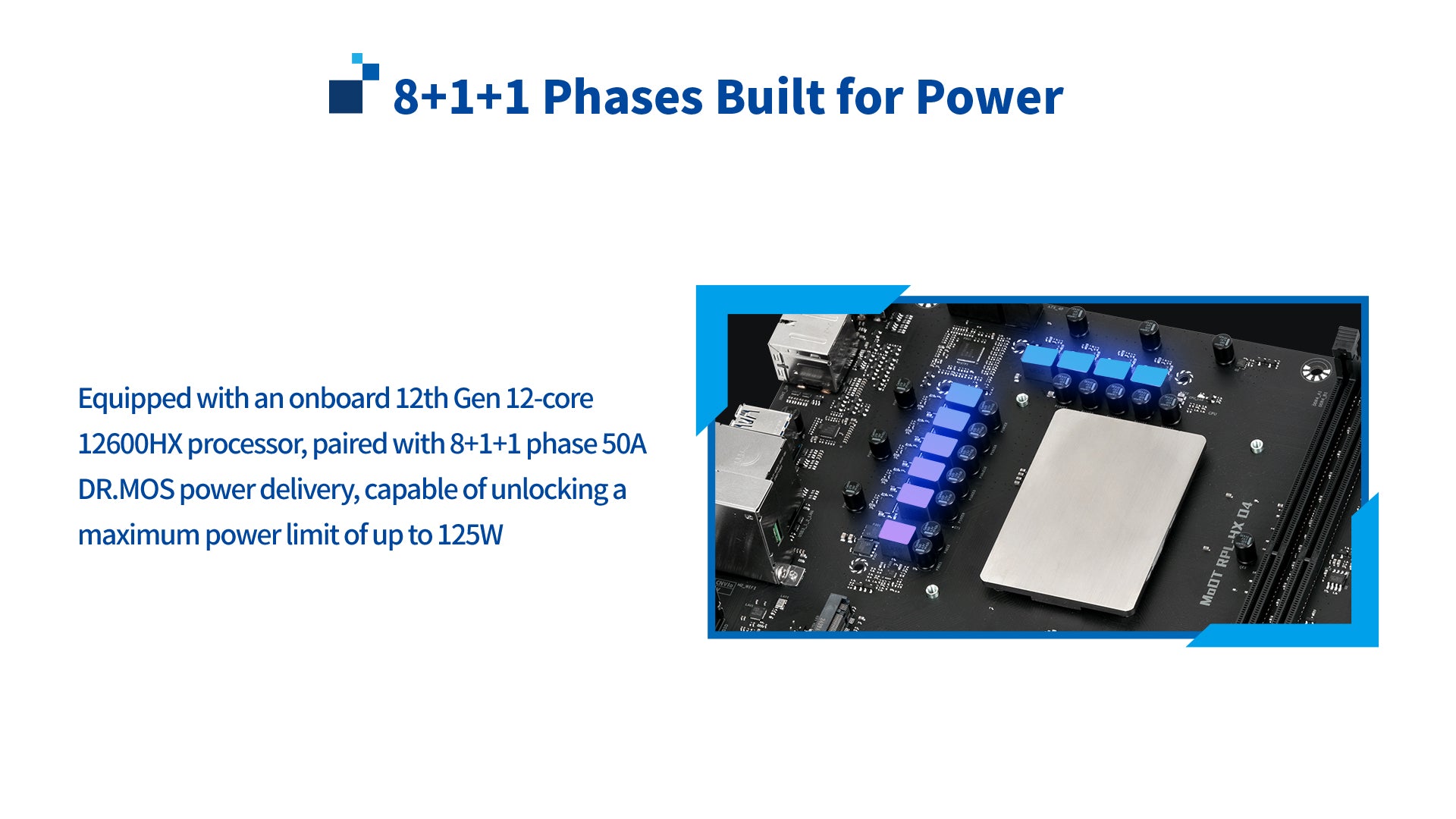

- Efficient Power Design: 8+1+1 phase 50A DrMOS for up to 125W stable output.
- High-Speed Expansion: PCIe 4.0, PCIe 3.0, USB 3.2 Gen 1 Type-C, and more.
- 4K Dual Display: DP + HDMI ports support 4K@60Hz multi-display setups.

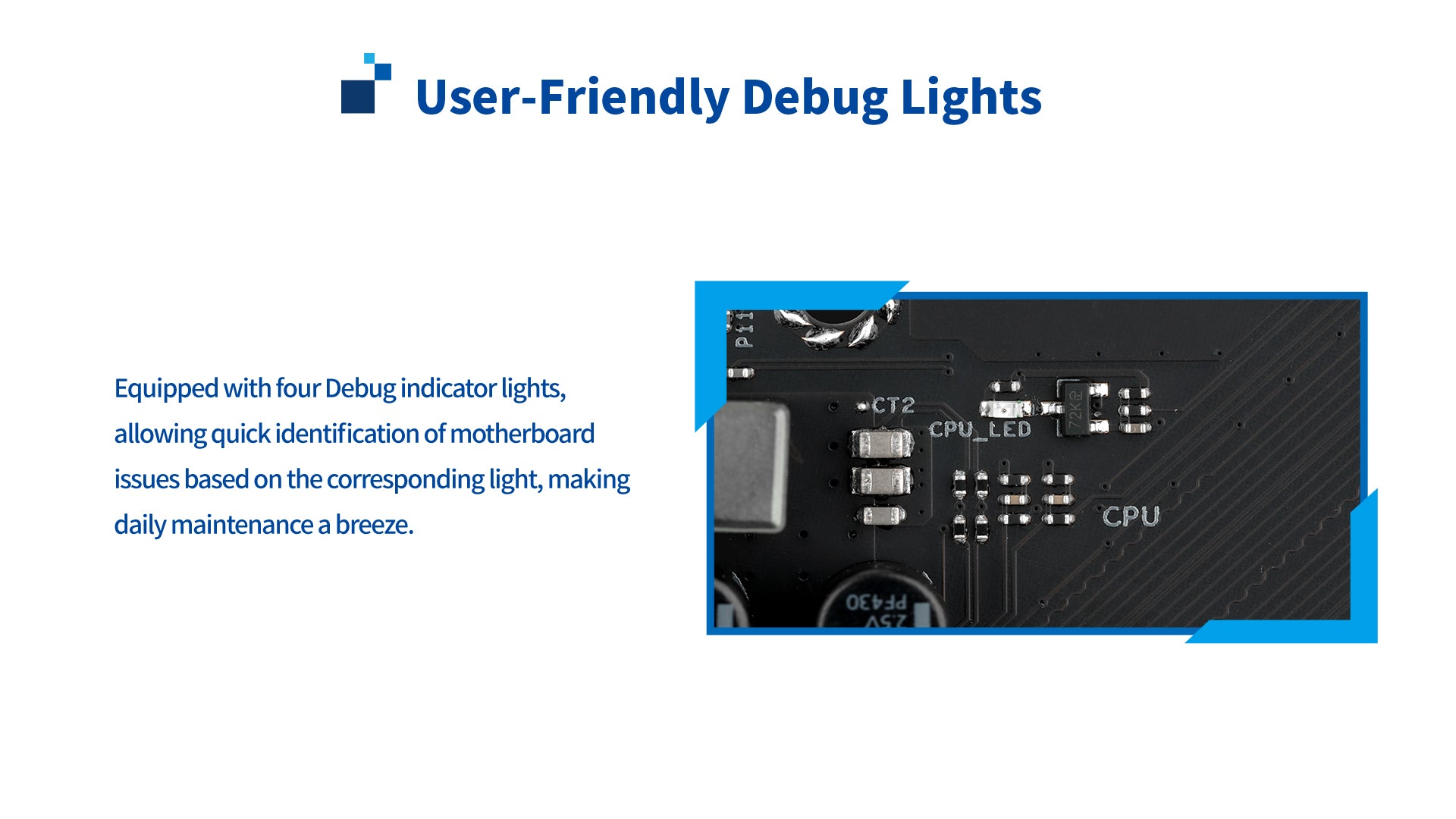

- Easy Debugging: Built-in diagnostic LEDs for quick troubleshooting.

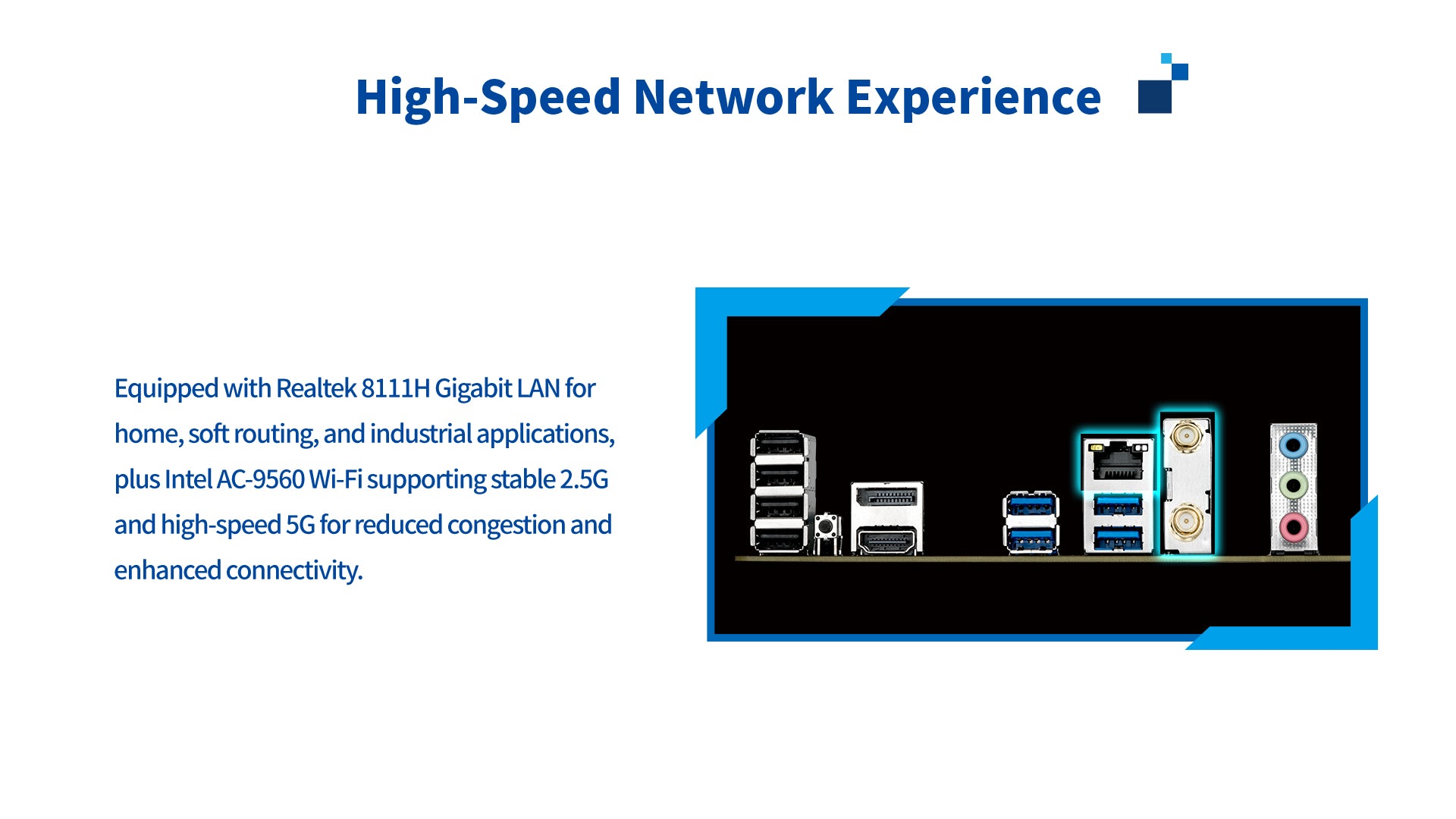

- Blazing Network Speeds: Realtek 2.5G LAN + Intel Wi-Fi 6 for seamless connectivity.
- Compact & Versatile: MATX form factor is perfect for compact builds.
Overview
Specification
Support

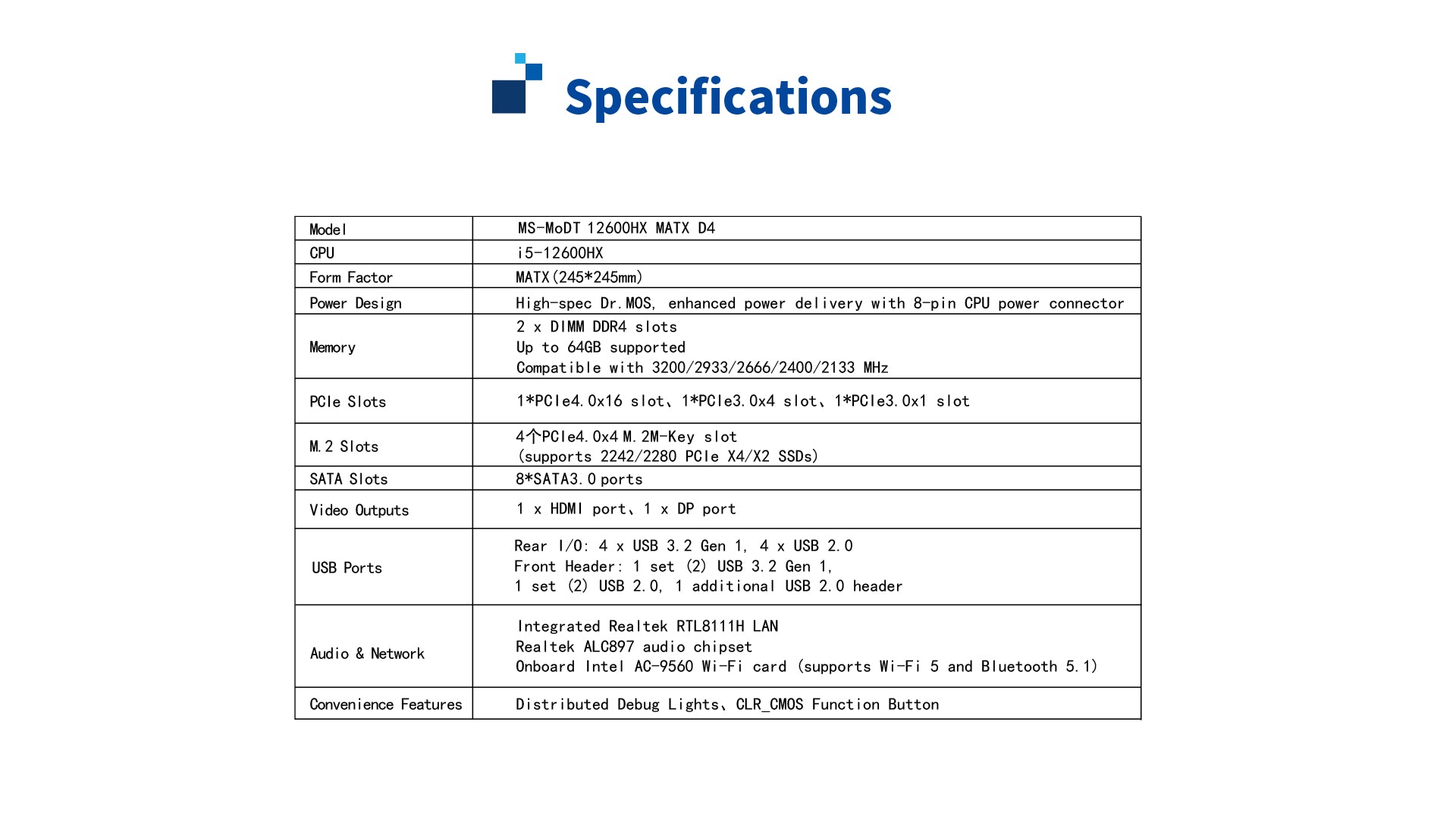

- Model
- MS-MoDT 12600HX MATX D4
- CPU
- i5-12600HX
- Form Factor
- MATX (245 x 245mm)
- Power Design
- High-spec Dr.MOS, enhanced power delivery with 8-pin CPU power connector
- Memory
- 2 x DIMM DDR4 slots
Up to 64GB supported
Compatible with 3200/2933/2666/2400/2133 MHz

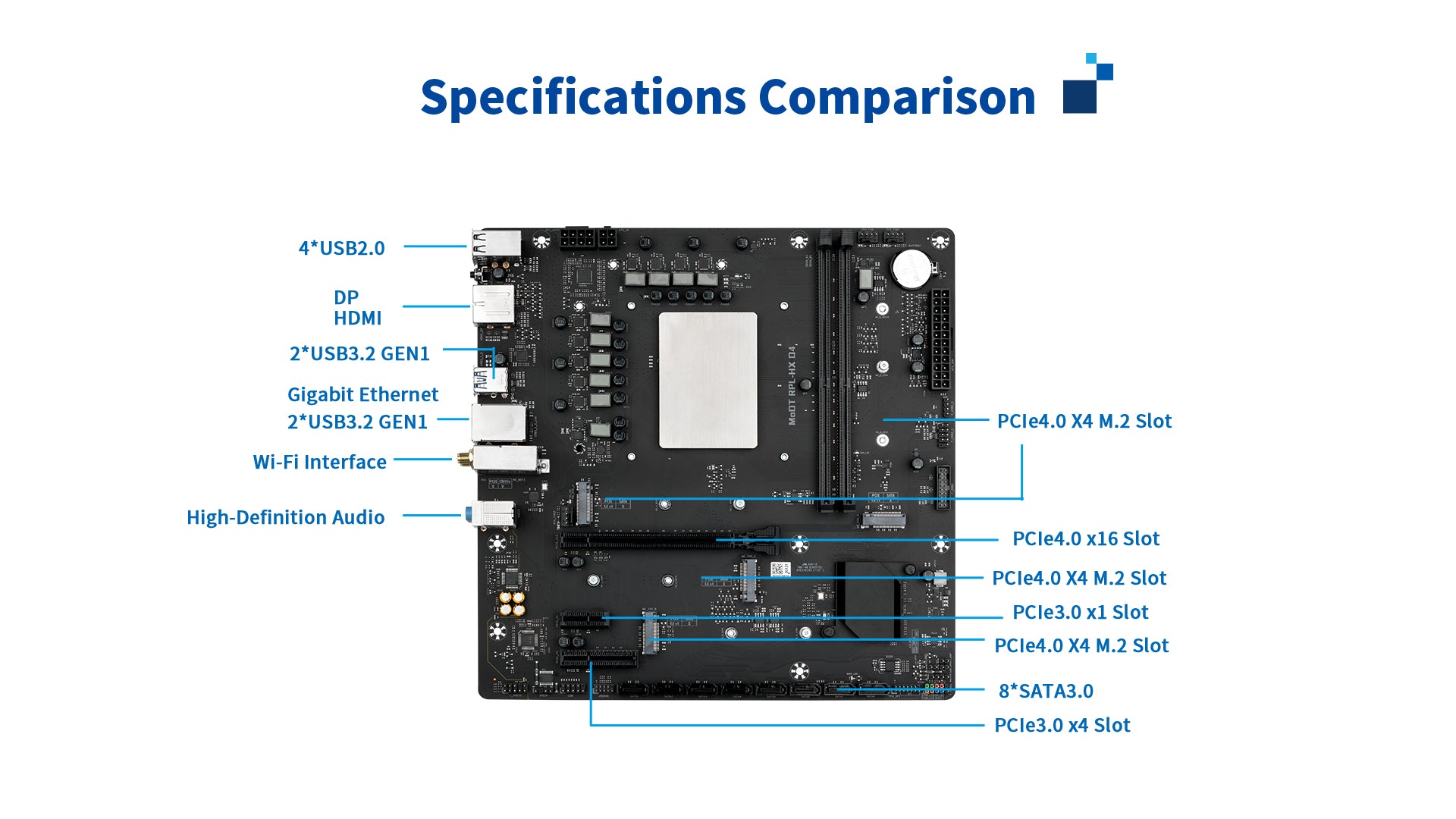

- PCIe Slots
- 1 x PCIe 4.0 x16 slot
1 x PCIe 3.0 x4 slot
1 x PCIe 3.0 x1 slot
- M.2 Slots
- 4 x PCIe 4.0 x4 M.2 M-Key slots
Supports 2242/2280 PCIe x4/x2 SSDs
- SATA Slots
- 8 x SATA 3.0 ports
- Video Outputs
- 1 x HDMI port
1 x DP port
- USB Ports
- Rear I/O: 4 x USB 3.2 Gen 1, 4 x USB 2.0
Front Header: 1 set (2) USB 3.2 Gen 1, 1 set (2) USB 2.0, 1 additional USB 2.0 header
- Audio & Network
- Integrated Realtek RTL8111H LAN
Realtek ALC897 audio chipset
Onboard Intel AC-9560 Wi-Fi card (supports Wi-Fi 5 and Bluetooth 5.1)
- Convenience Features
- Distributed Debug Lights
CLR_CMOS Function Button
