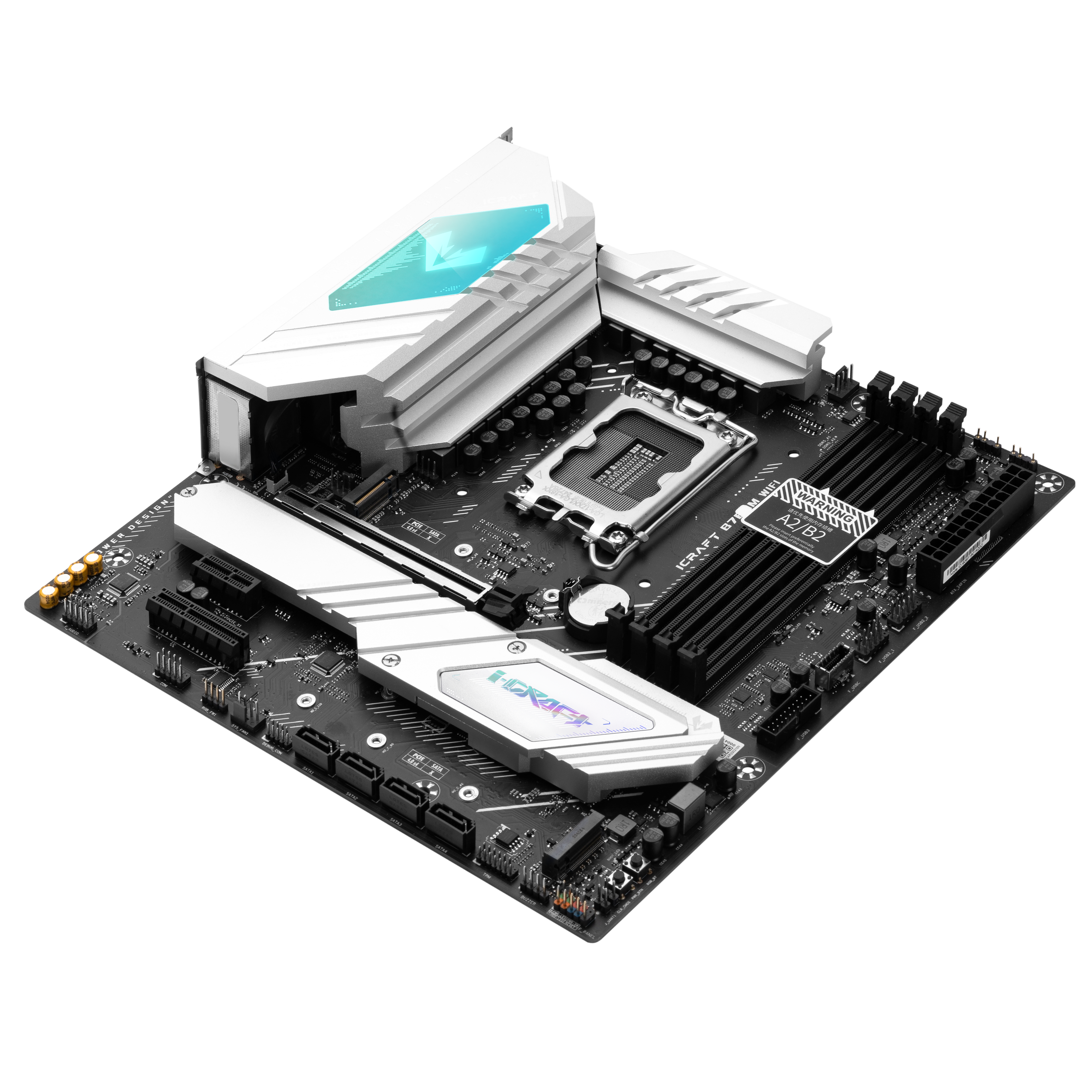

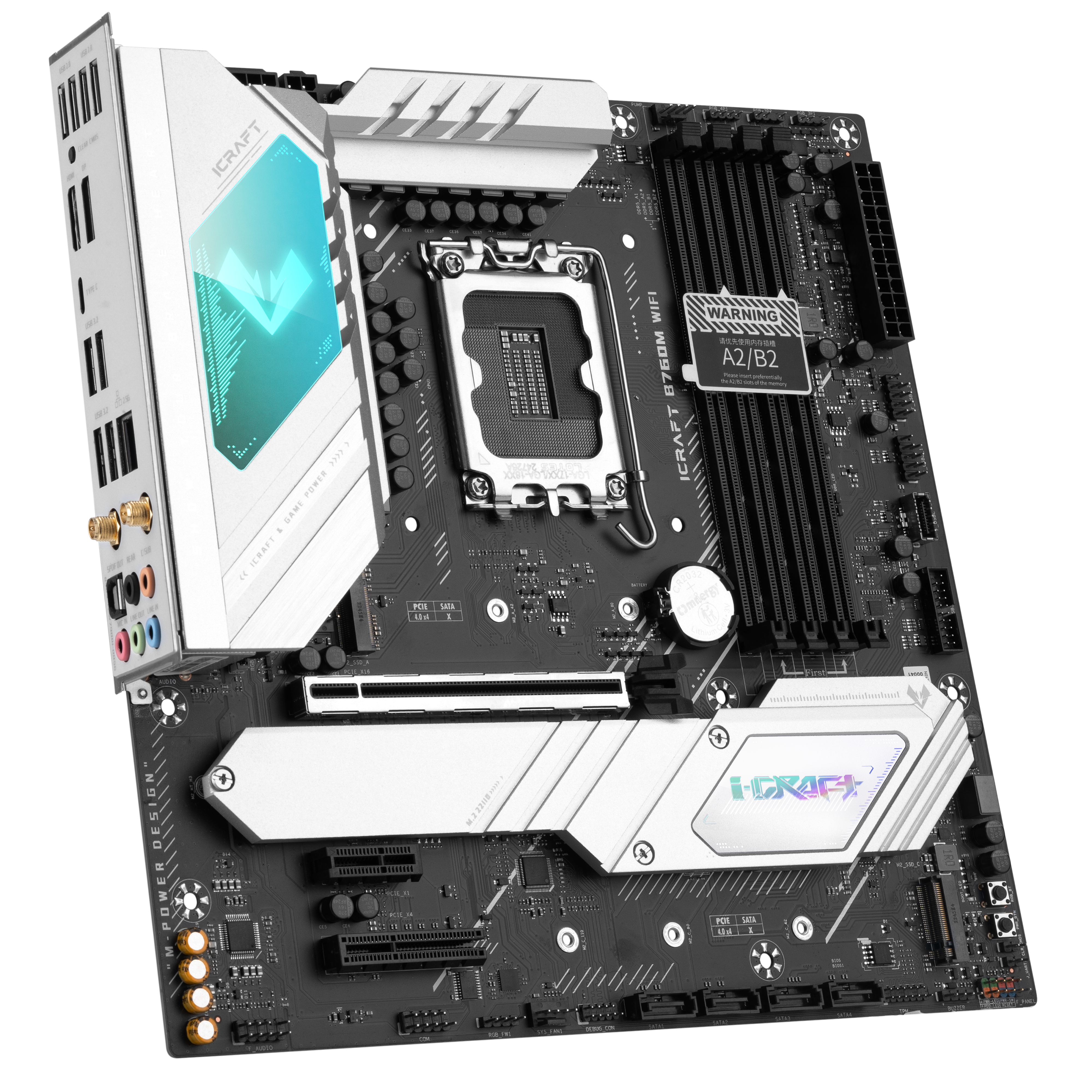

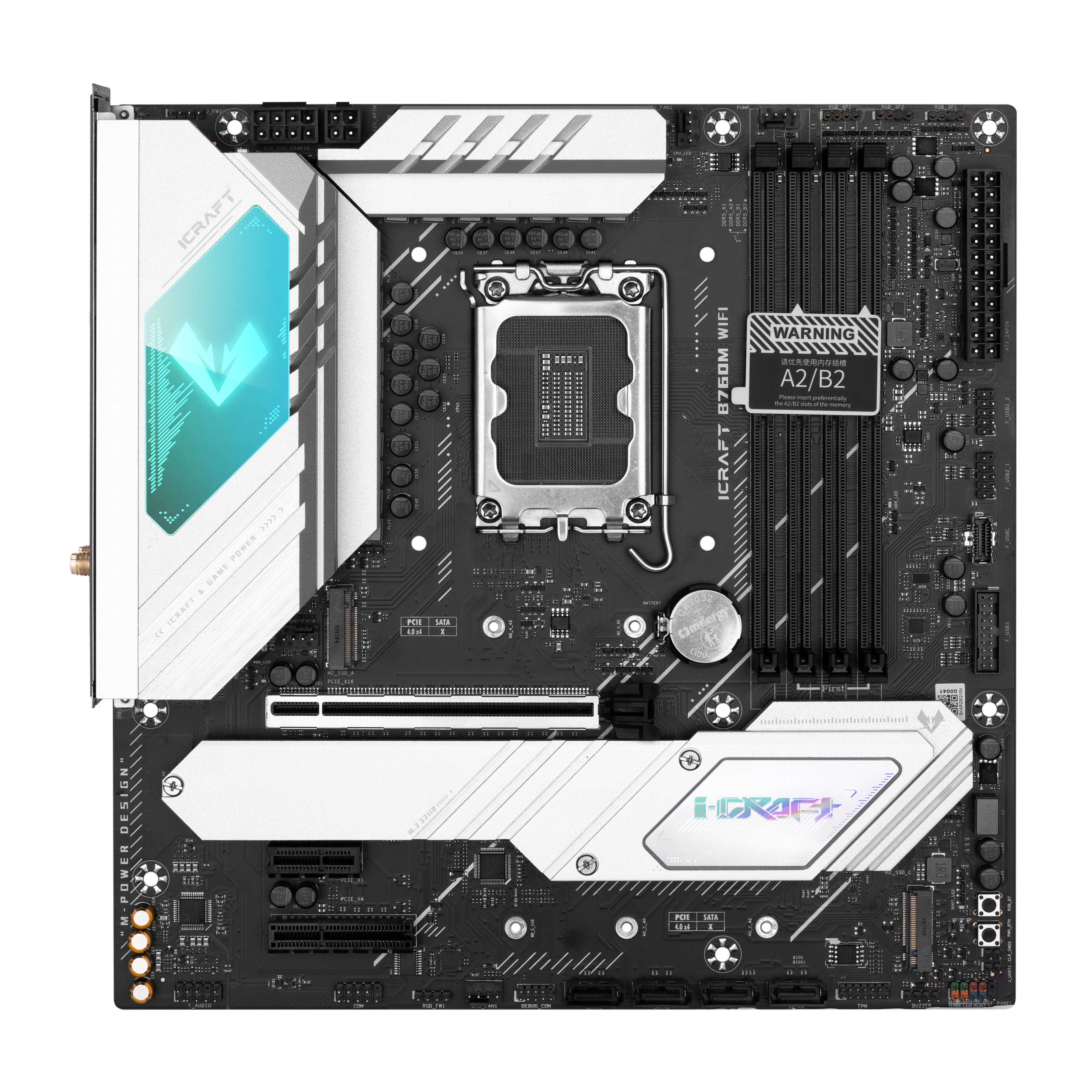

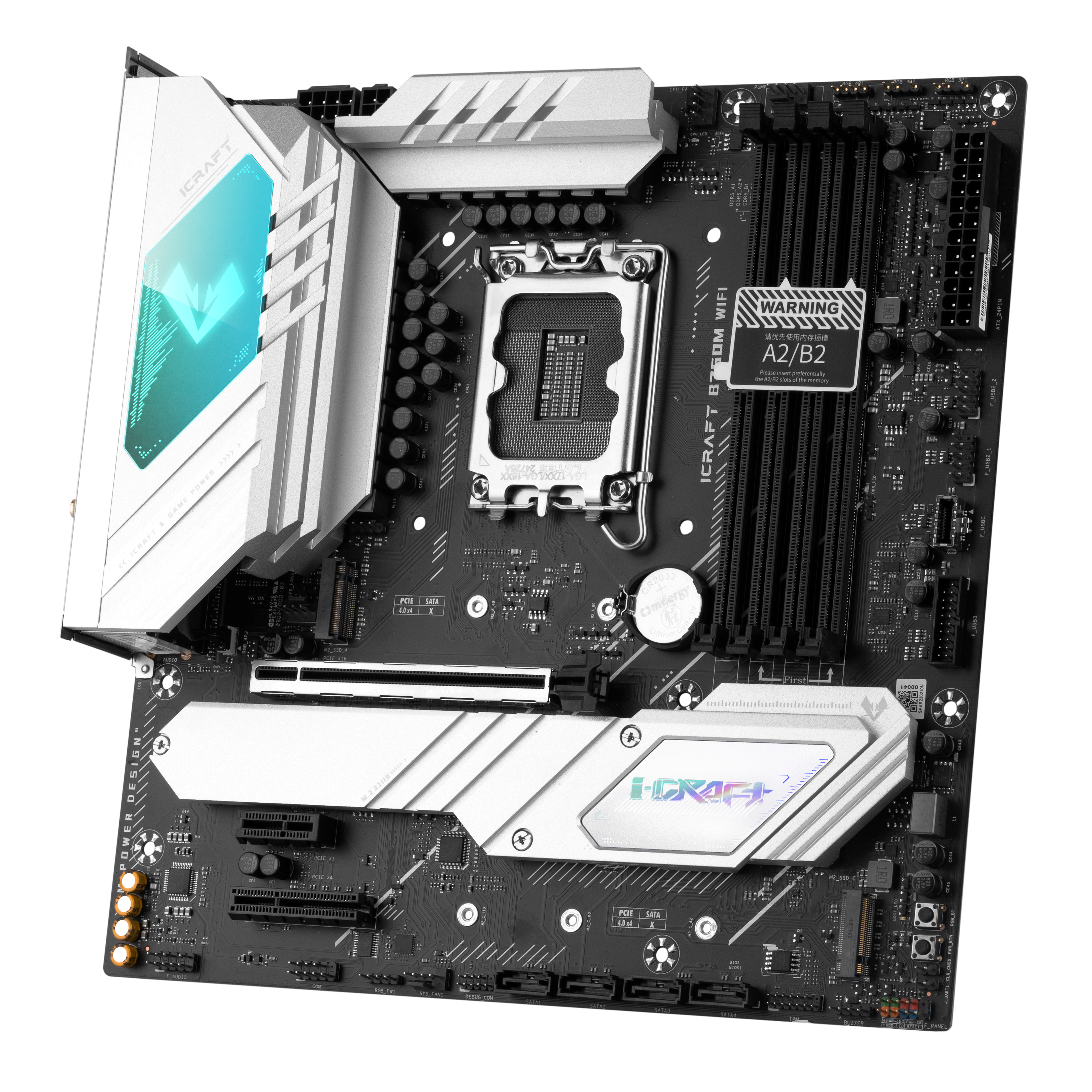

iCraft B760M WIFI
- 12+3+2 phases power supply
- 60A Dr.Mos
- DDR5 XMP 7000MHz+ overclocking potential
- 2.5G network card
- PCIe 5.0
- 20G Type-C
OVERVIEW
17-phase power supply
Core 60A Dr.Mos
DualType-C
Rear 20Gbps
Front 10Gbps
3*PCle4.0M.2
Support NVMe
DDR5
XMP 7000MHz+
MS-iCraft Z790ITX WIFI
m-ATX board size:245*245mm
13th & 12th
Intel Core LGA1700 Support
60A Dr.Mos
Upgrade 2oz PCB
12+3+2 phase
Power supply design
Dual Type-C front and rear
Front USB 3.2Gen2 10G rate
Full-speed interface with NVMe drive support
3*PCIe4.0 x4 M.2
Full-speed interface with
NVMe drive support
Humanized design
Distributed Debug Lights
CLR_CMOS function button /
RGB switch button / Power on button
DDR5 memory
Dual-channel 4*DIMM
Support memory XMP4800/5600/0C+Mhz
Realtek ALC897 sound card
Realtek 8125 network card
PWM master control
MP2960
WiFi6E wireless
network card
ntel AX211 + Magnetic WIFI Antenna
Power Supply Excellence
Unleashing Heterogeneous Performance
17-phase power supply & integrated Dr. Mos
Adopting 17 phases of power supply, each phase of the
core is equipped with 60A Dr. Mos, PL1 power
consumption can be released up to 253W, while
upgrading the 2oz PCB to release the performance of
the 13th generation Core core heterogeneous
12-phase Vcore
3-phase VGT
2-phase VCC_AUX
MP86945 Dr.Mos
MP2960 PWM
Master Control Chip
Alloy Heat Sink Armor
Helping performance output
RGB alloy heat sink armor & alloy back plate armor
Large alloy heat dissipation armor covers the power supply part, efficient and balanced heat dissipation, between the armor and MOS using high-quality thermal conductive silicon strip connection; the second M.2 slot is also equipped with heat dissipation armor
Dual USB Type-C transfers are fast
and convenient
One step faster data transfer

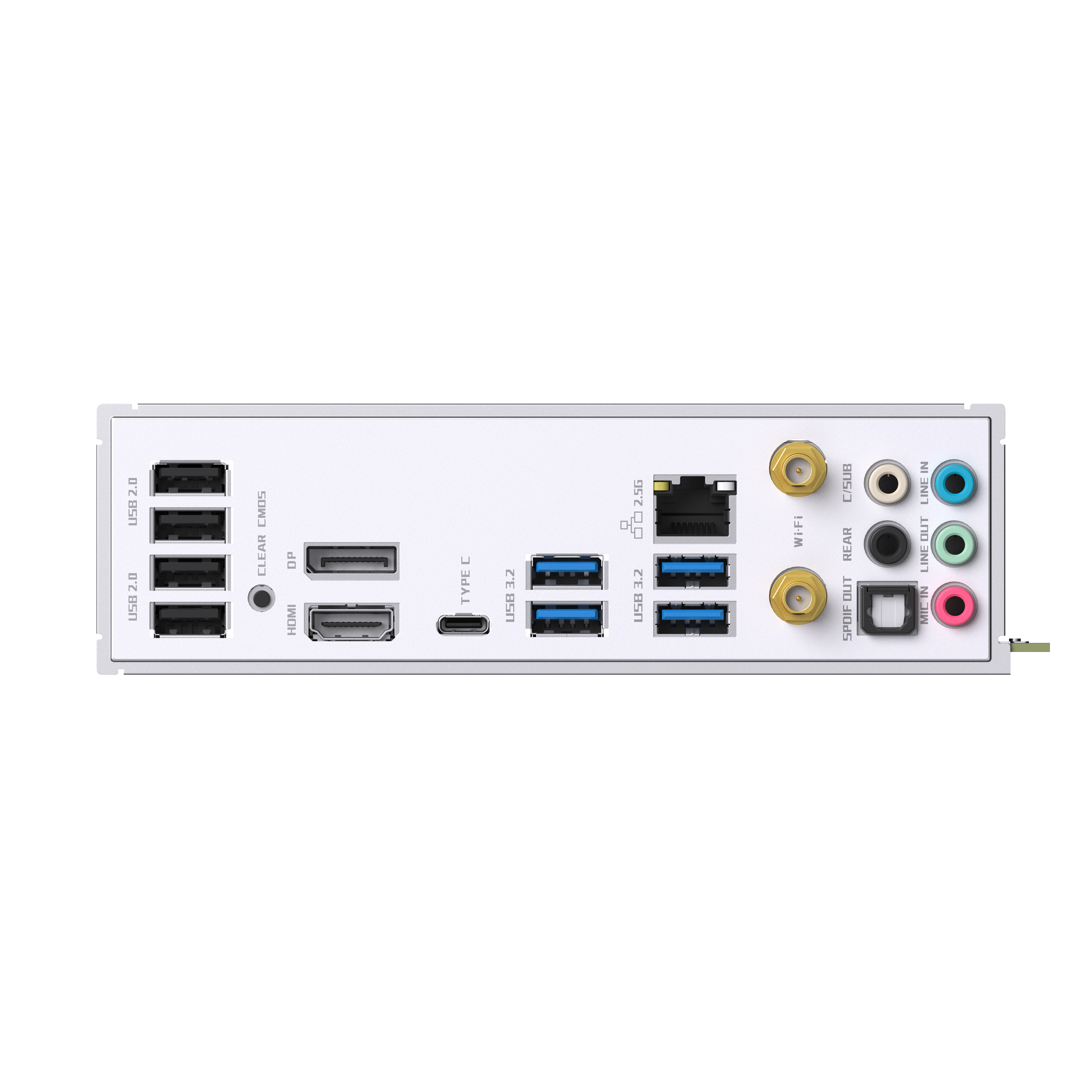

The motherboard provides a rear USB 3.2Gen2 X 2 Type-C interface that provides 20Gbps theoretical transfer speed
High-speed network interconnection
Foldable antenna design with magnetic base that
can be attached to the top or side of the case
Standard 2.5G wired network card and AX211 WiFi6E wireless network card, allowing players to switch between wired or wireless network at any time; with the use of signal gain antenna, wireless connection is more stable and smooth
* Comes with a magnetic WiFi gain antenna and AX211 wireless network card
Rich expansion interface
More mainstream configuration to meet a host of needs
Motherboard provides 1 PCle 5.0x16 full-length alloy armor slot, 1 PCle x4 open slot, 1*PCle x1 slot. 4 fan connectors, including 1 CPU_FAN, 1 PUMP_FAN, 2 SYS_FAN. 2 5V 3PIN ARGB, 1 12V 4PIN RGB
4 FAN
RGB
PCIe 5.0 x16
PCIe x1
PCIe x4
D5 Rising
Equipped with four DDR5 memory slots, dual-channel support, XMP support, 2/4 slots with 7000MHz/OC+ overclocking potential
3*M.2 high-speed hard drive interface
Three PCle4.0x4M.2 hard drive slots are provided, all supporting NVMe hard drives. One of them supports 2280-size hard drives, and the other two support 22110-size hard drives
User-friendly design, easy maintenance
The motherboard provides a series of user-friendly design, convenient RGB switch button, boot button; one key CLR_CMOS, allowing players to quickly restore settings; distributed Debug light, can quickly find the motherboard fault location, at a glance
RGB switch
boot button
CLR_CMOS
SPECIFICATION
- CHIPSET
- INTEL B760
- CPU
- Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1700
- MEMORY
- 4x DDR5, Maximum Memory Capacity 192GB
Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
- ONBOARD GRAPHICS
- 1x DisplayPort 1.4
1x HDMI™port
*HDMI™ port supports up to 4K@30Hz
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- EXPANSION SLOT
- 1x PCIe 5.0 x16 slot
1x PCIe 3.0 x4 slot
1x PCIe 3.0 x1 slot
- STORAGE
- M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
- RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- USB
- *Front USB (Total 7 ports)
1x USB 3.2 Gen1 Type C (10Gbps)
2x USB 3.2 Gen1 Type A
4x USB 2.0
*Rear USB (Total 9 ports)
1x USB 3.2 Gen2 Type C (20Gbps)
4x USB 3.2 Gen1 Type A
4x USB 2.0
- LAN
- Realtek® RTL8125BG 2.5G LAN
- WIRELESS / BLUETOOTH
- Intel® Wi-Fi 6E AX211
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth® 5.3
- AUDIO
- Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Supports S/PDIF output
- INTERNAL I/O
- 1x 24-pin Power Connector(ATX_PWR)
1x 8+4-pin Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
3 x M.2 slots (Key-M)
4x SATA 6Gb/s ports
1x M.2 slots (Key-E)
1x 4-Pin BUZZER
2x 5V 3-Pin ARGB
1x 12V 4-Pin RGB
1x Clear CMOS
1x Front Audio
1x COM_A Port
1x TPM pin header(Support TPM 2.0)
1x RGB Button
1x POWER Button
- LED FEATURE
- 4x Distributed Debug LED
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- FORM FACTOR
- M-ATX
245mm x 245mm
