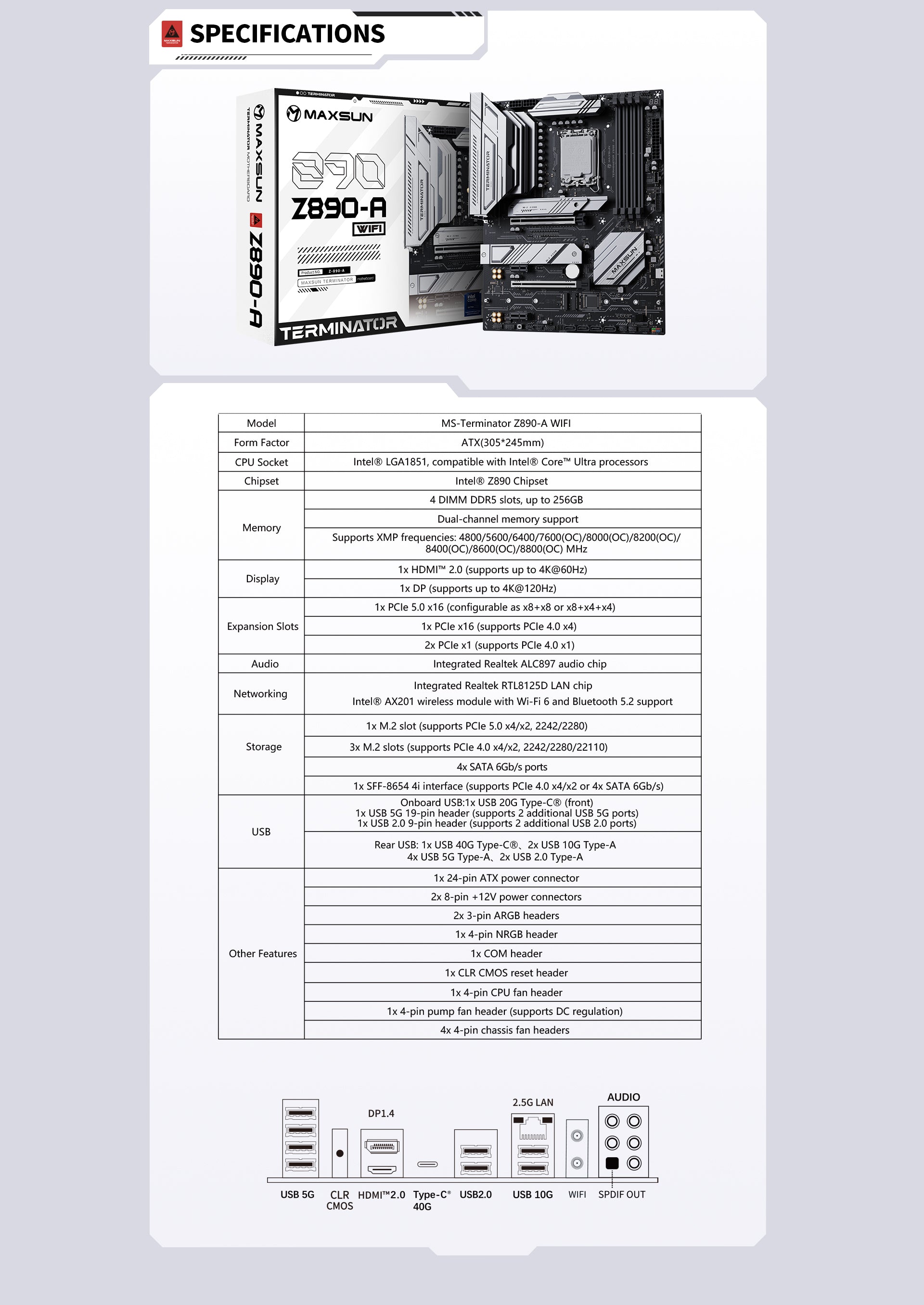

Terminator Z890-A WIFI

• Model
• MS-Terminator Z890-A WIFI

• Form Factor
• ATX (305 × 245 mm)

• CPU Socket
• Intel® LGA1851, compatible with Intel® Core™ Ultra processors

• Chipset
• Intel® Z890 Chipset

• Memory
• 4 × DIMM DDR5 slots, up to 256GB
  Dual-channel memory support
  Supports XMP frequencies: 4800/5600/6400/7600(OC)/8000(OC)/8200(OC)/8400(OC)/8600(OC)/8800(OC) MHz

• Display
• 1 × HDMI™ 2.0 (supports up to 4K@60Hz)
  1 × DP (supports up to 4K@120Hz)

• Expansion Slots
• 1 × PCIe 5.0 x16 (configurable as x8+x8 or x8+x4+x4)
  1 × PCIe x16 (supports PCIe 4.0 x4)
  2 × PCIe x1 (supports PCIe 4.0 x1)

• Audio
• Integrated Realtek ALC897 audio chip

• Networking
• Integrated Realtek RTL8125D LAN chip
  Intel® AX201 wireless module with Wi-Fi 6 and Bluetooth 5.2 support

• Storage
• 1 × M.2 slot (supports PCIe 5.0 x4/x2, 2242/2280)
  3 × M.2 slots (supports PCIe 4.0 x4/x2, 2242/2280/22110)
  4 × SATA 6Gb/s ports
  1 × SFF-8654 4i interface (supports PCIe 4.0 x4/x2 or 4x SATA 6Gb/s)

• USB Ports
• Onboard USB: 1 × USB 20G Type-C® (front)
  1 × USB 5G 19-pin header (supports 2 additional USB 5G ports)
  1 × USB 2.0 9-pin header (supports 2 additional USB 2.0 ports)
  Rear USB: 1 × USB 40G Type-C®
  2 × USB 10G Type-A
  4 × USB 5G Type-A
  2 × USB 2.0 Type-A

• Other Features
• 1 × 24-pin ATX power connector
  2 × 8-pin +12V power connectors
  2 × 3-pin ARGB headers
  1 × 4-pin NRGB header
  1 × COM header
  1 × CLR CMOS reset header
  1 × 4-pin CPU fan header
  1 × 4-pin pump fan header (supports DC regulation)
  4 × 4-pin chassis fan headers
