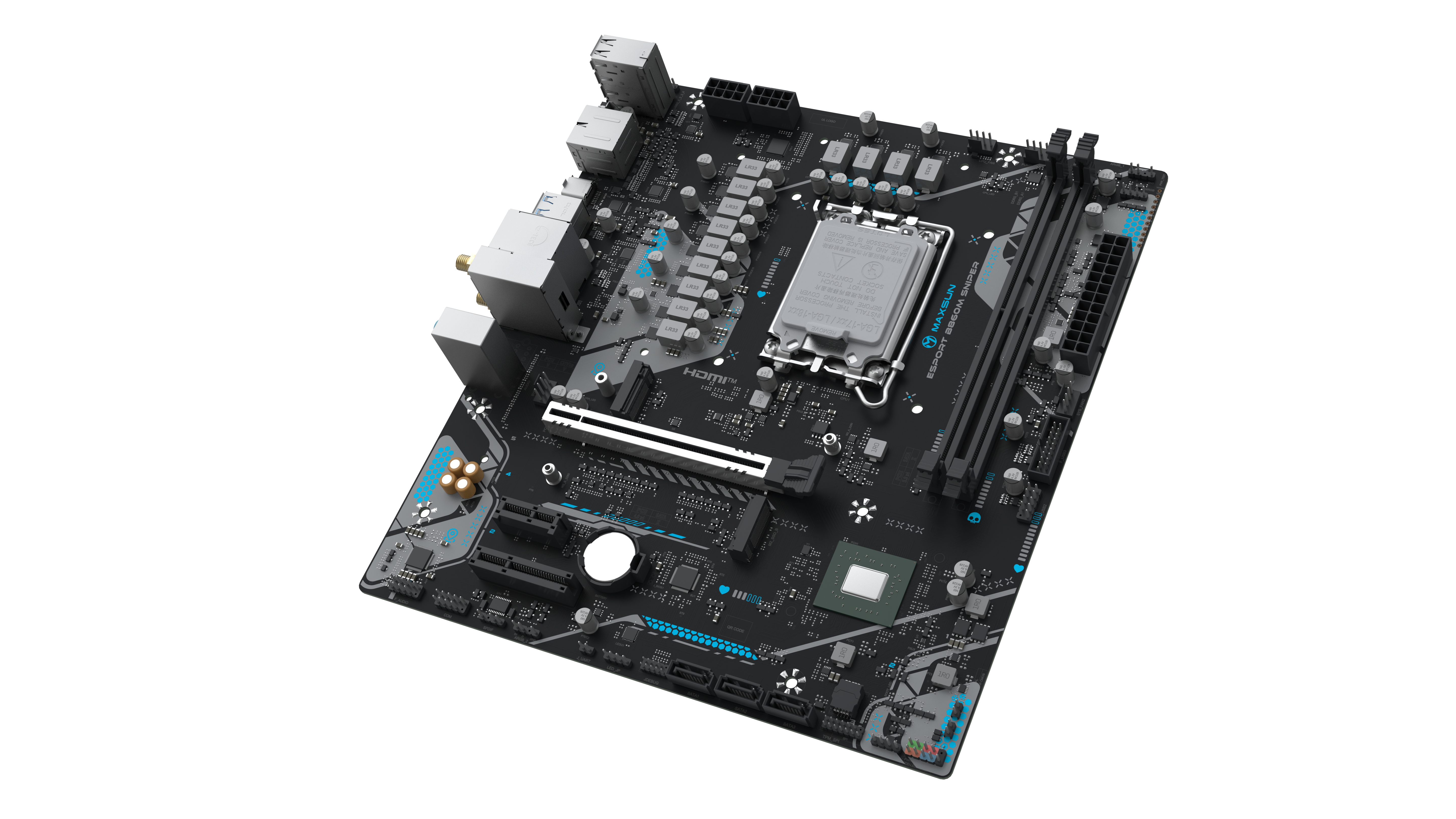

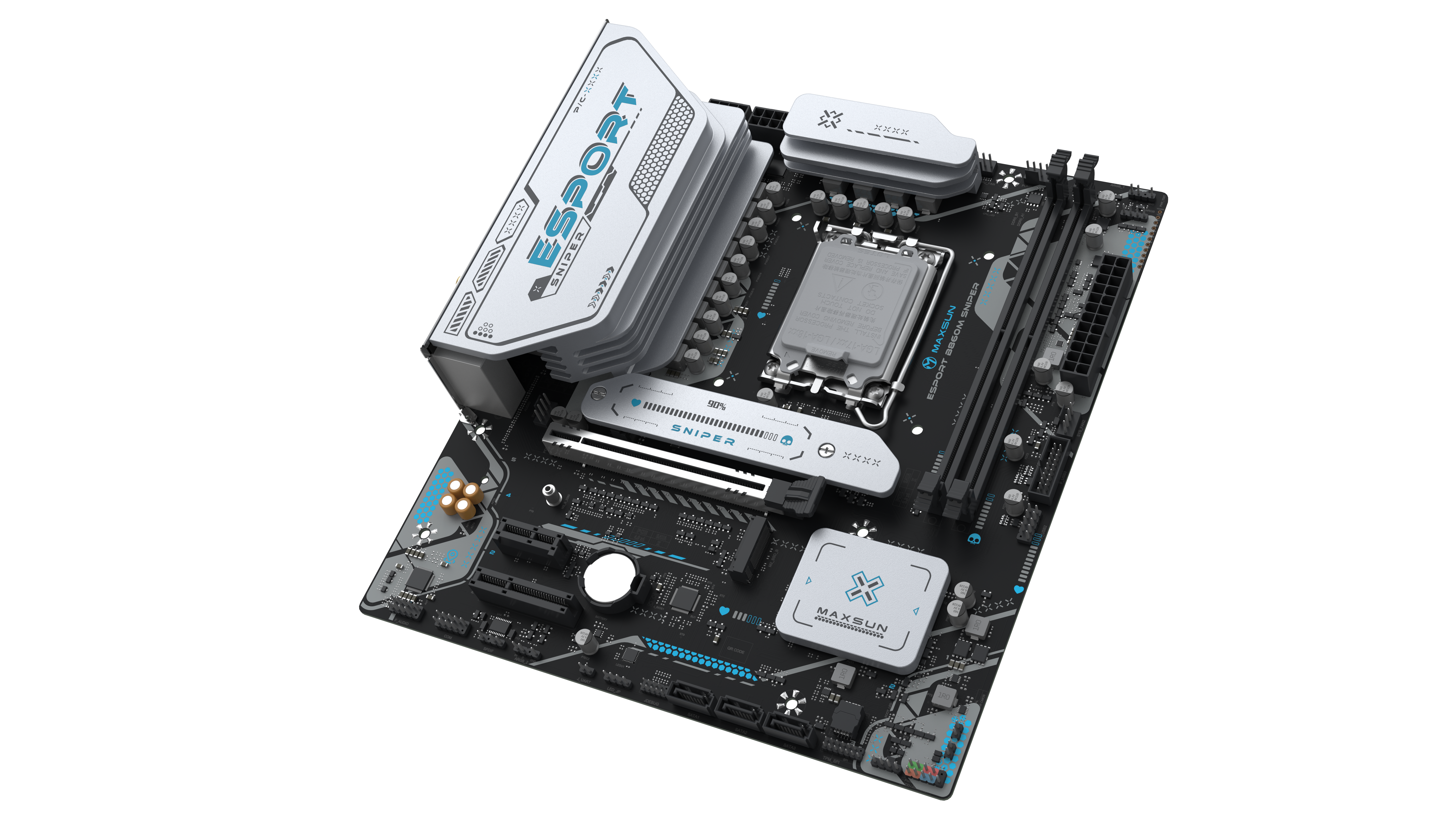

eSport B860M SNIPER WIFI
- Intel® LGA1851 Socket for Core™ Ultra processors
- Intel® B860 Chipset for enhanced performance
- Dual-Channel DDR5 up to 96GB and 8600MHz (OC)
- 4K Support via HDMI™ 2.0 and DP 1.2
- PCIe Expansion: PCIe 5.0 x16, PCIe 4.0 x4, PCIe 4.0 x1
- Realtek ALC897 Audio for immersive sound
- Intel® AX101 Wi-Fi 6 & Bluetooth 5.2
- Dual M.2 Slots for PCIe 5.0/4.0 storage (2280 length)
- 3 x SATA 6Gb/s connectors
- Multiple USB & Power Headers for customization
Overview
Specification
Support
- Model
- MS-eSport B860M SNIPER WIFI
- Motherboard Size
- M-ATX (245x225mm)
- CPU Socket
- Intel® LGA1851 socket, compatible with Intel® Core™ Ultra processors
- Chipset
- Intel® B860 Chipset

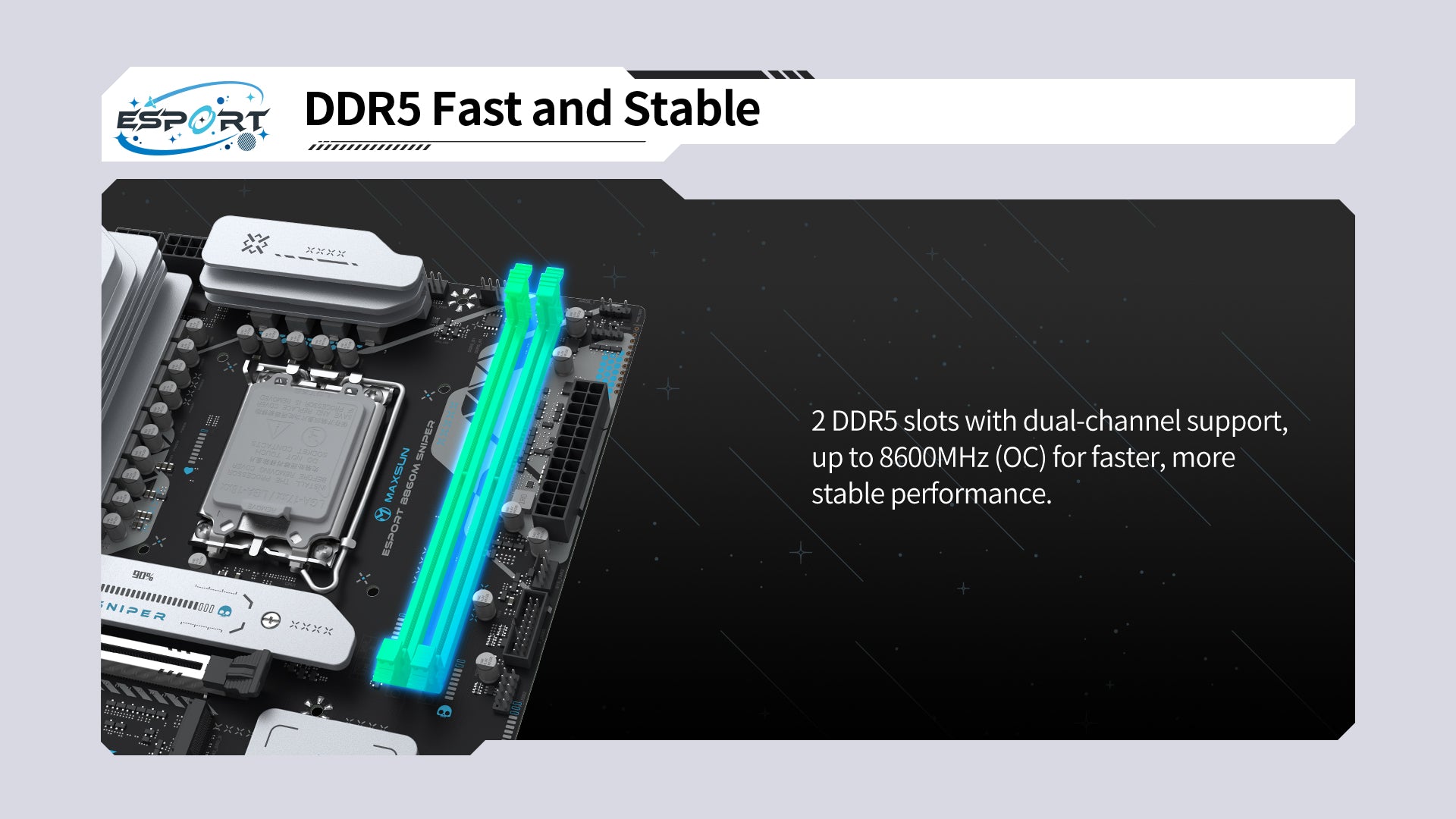

- Memory
- 2 DIMM DDR5 memory slots, supporting up to 96GB
Supports dual-channel memory technology
Memory frequency support: XMP 4800/5000/5200/5400/5800/6000/6200/6400/6600(OC)/6800(OC)/7000(OC)/7200(OC)/7600(OC)/8000(OC)/8200(OC)/8400(OC)/8600(OC) MHz
- Display
- 1 x HDMI™ 2.0 port, supports up to 4K @ 60Hz resolution
1 x DP 1.2 port, supports up to 4K @ 60Hz resolution

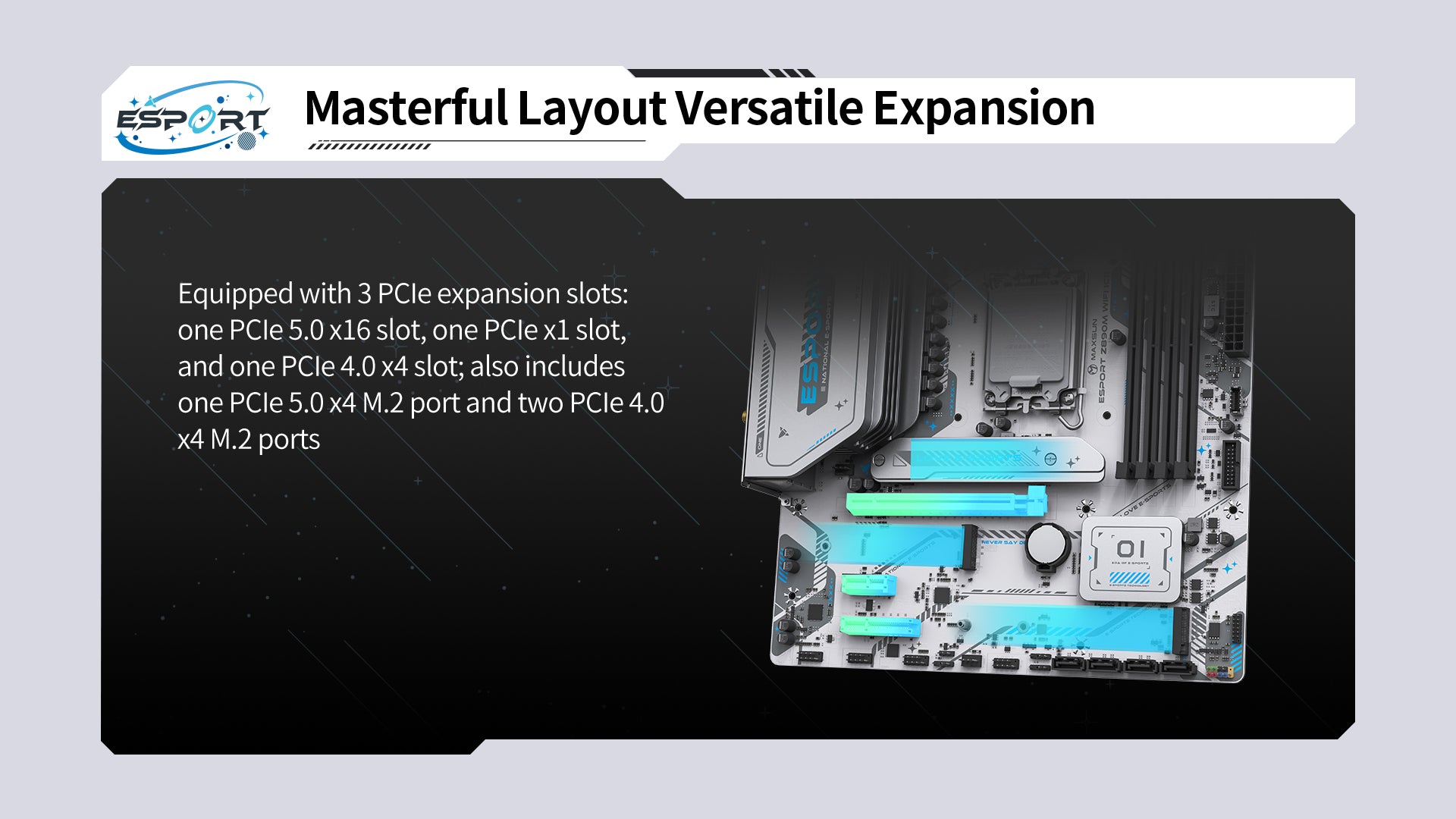

- Expansion Slots
- 1 x PCIe x16 slot (supports PCIe 5.0 x16 mode)
1 x PCIe x4 slot (supports PCIe 4.0 x4 mode)
1 x PCIe x1 slot (supports PCIe 4.0 x1 mode)
- Audio
- Integrated Realtek ALC897 audio chip
- Network
- Integrated Realtek RTL8125BG/D Ethernet chip
Onboard Intel® AX101 Wi-Fi 6 and Bluetooth 5.2 wireless network card
- Storage
- 1 x M.2 slot, supports PCIe 5.0 x4/x2 modes, 2280 length
1 x M.2 slot, supports PCIe 4.0 x4/x2 modes, 2280 length
3 x SATA 6Gb/s connectors

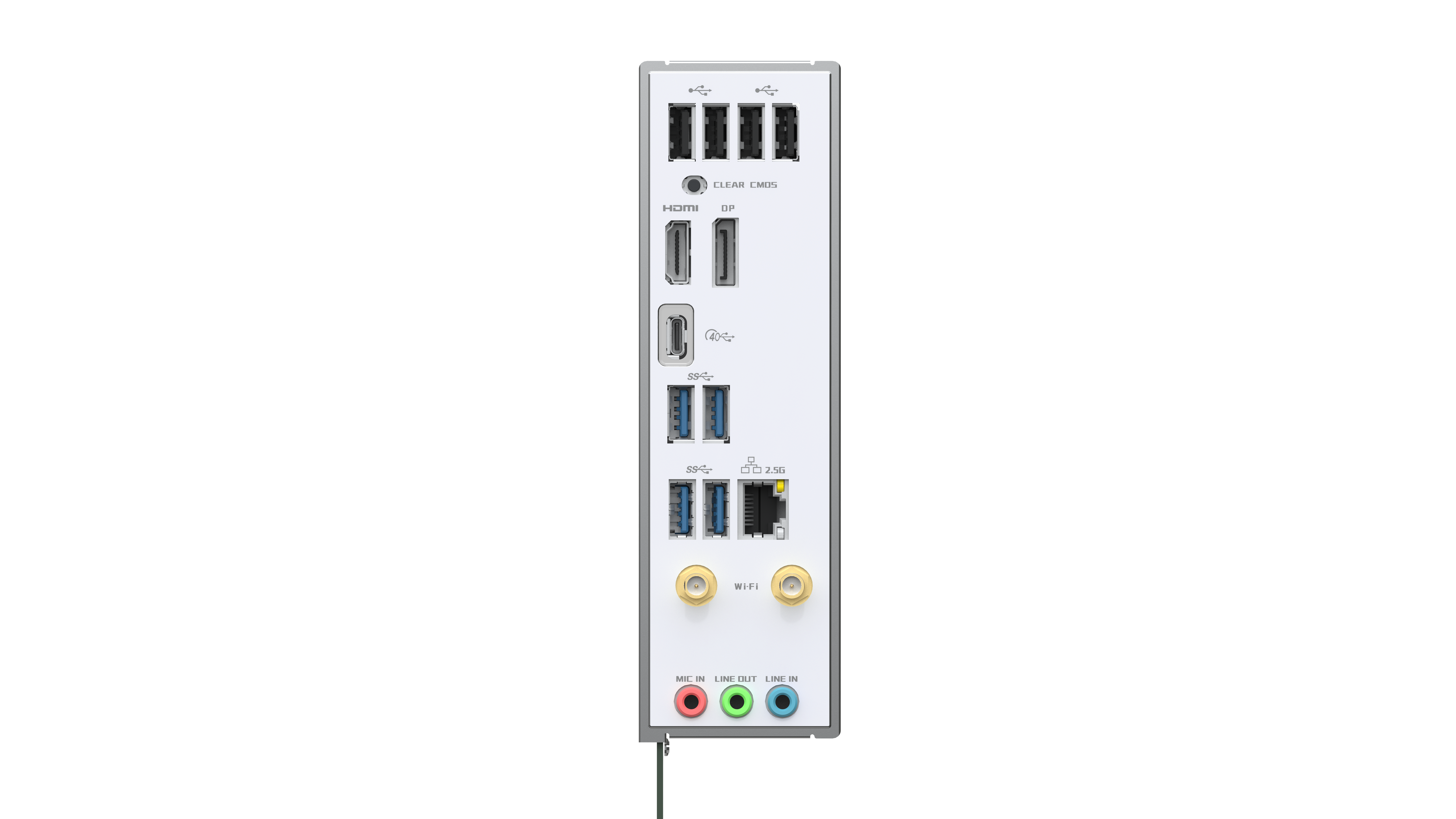

- USB and Power Connections
- 1 x 24-pin ATX power connector
1 x 8+8-pin +12V power connector
2 x 3-pin ARGB connectors
1 x 4-pin NRGB connector
1 x COM port header
CLR_CMOS reset button
1 x 4-pin CPU fan header
1 x 4-pin PUMP water pump header
2 x 4-pin chassis fan headers
