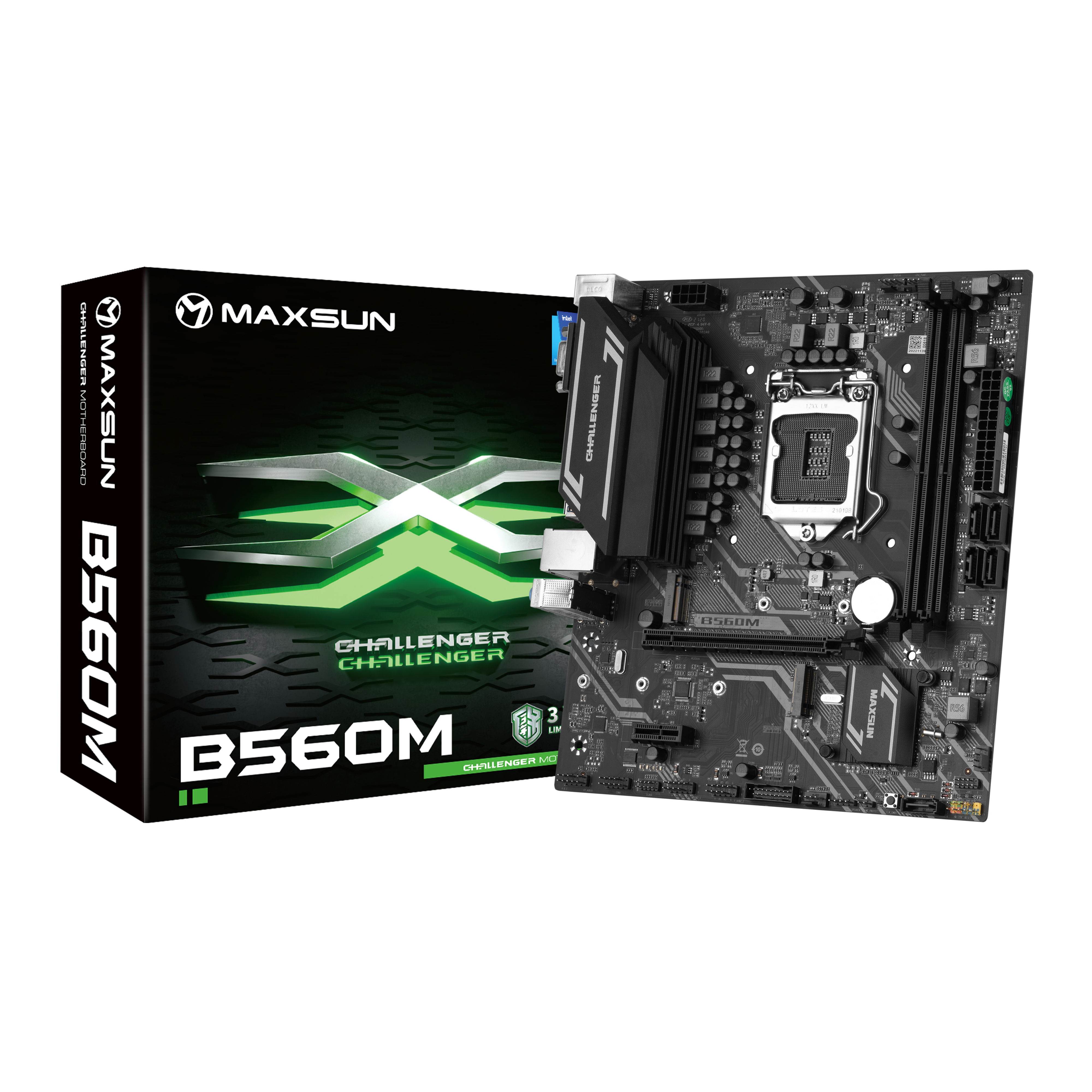

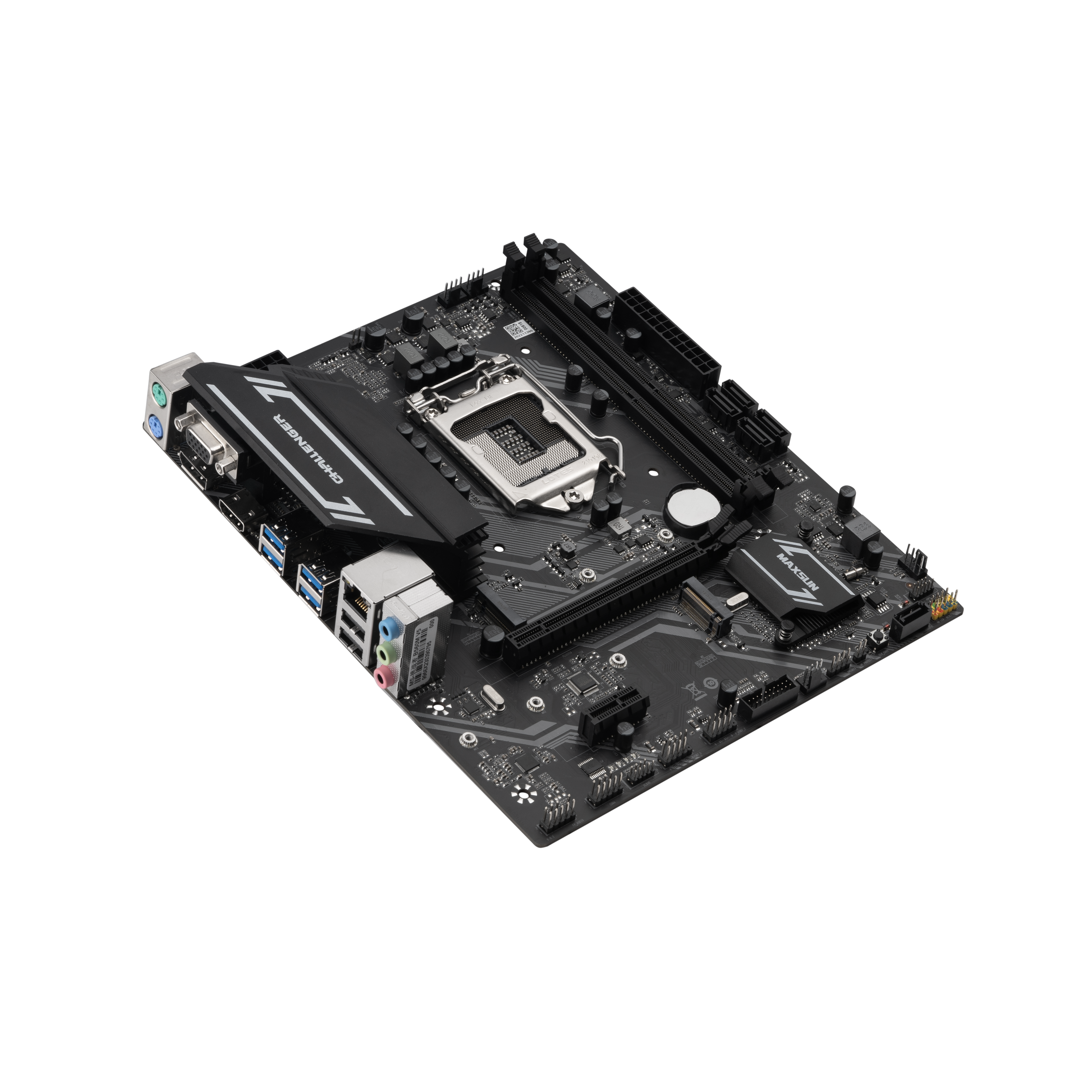

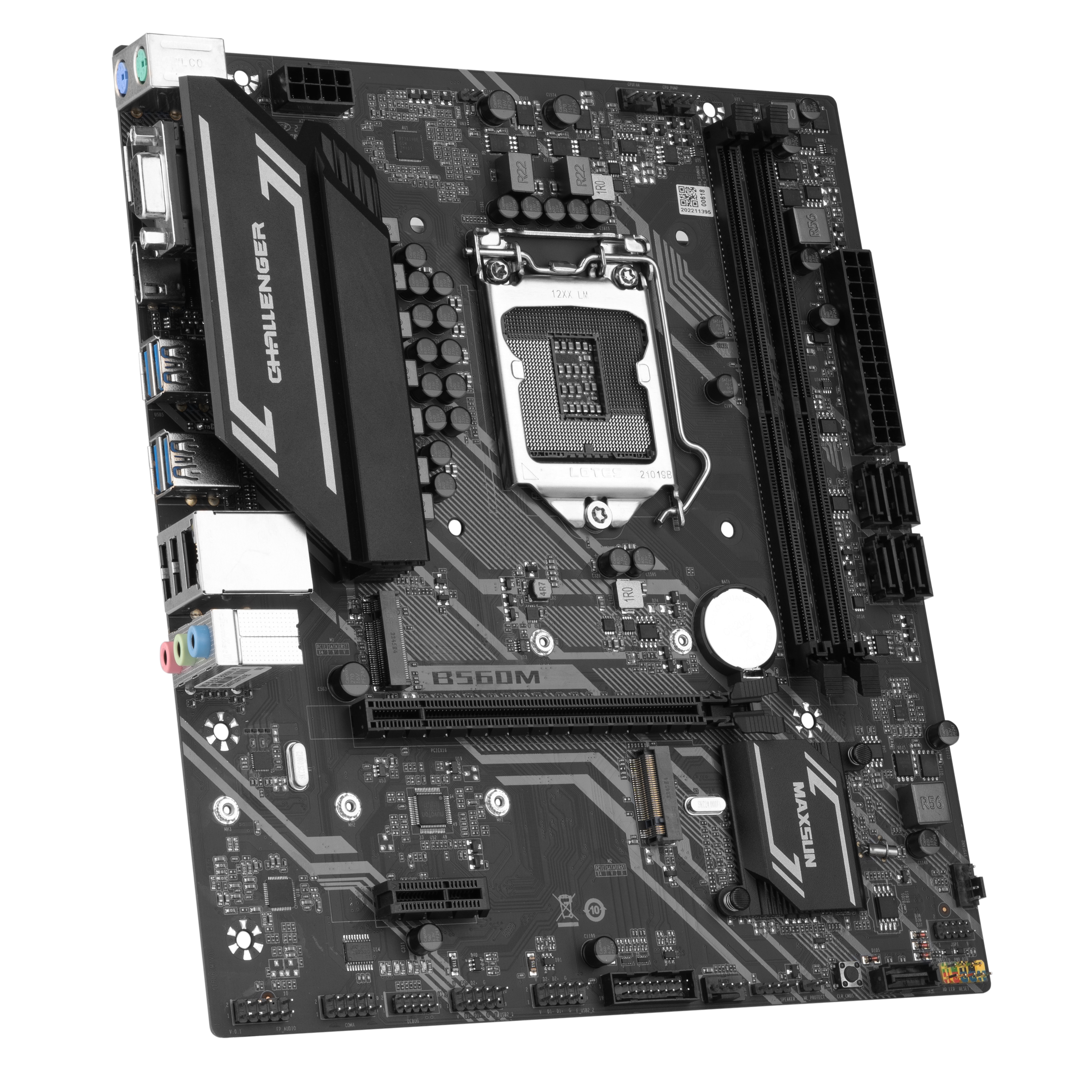

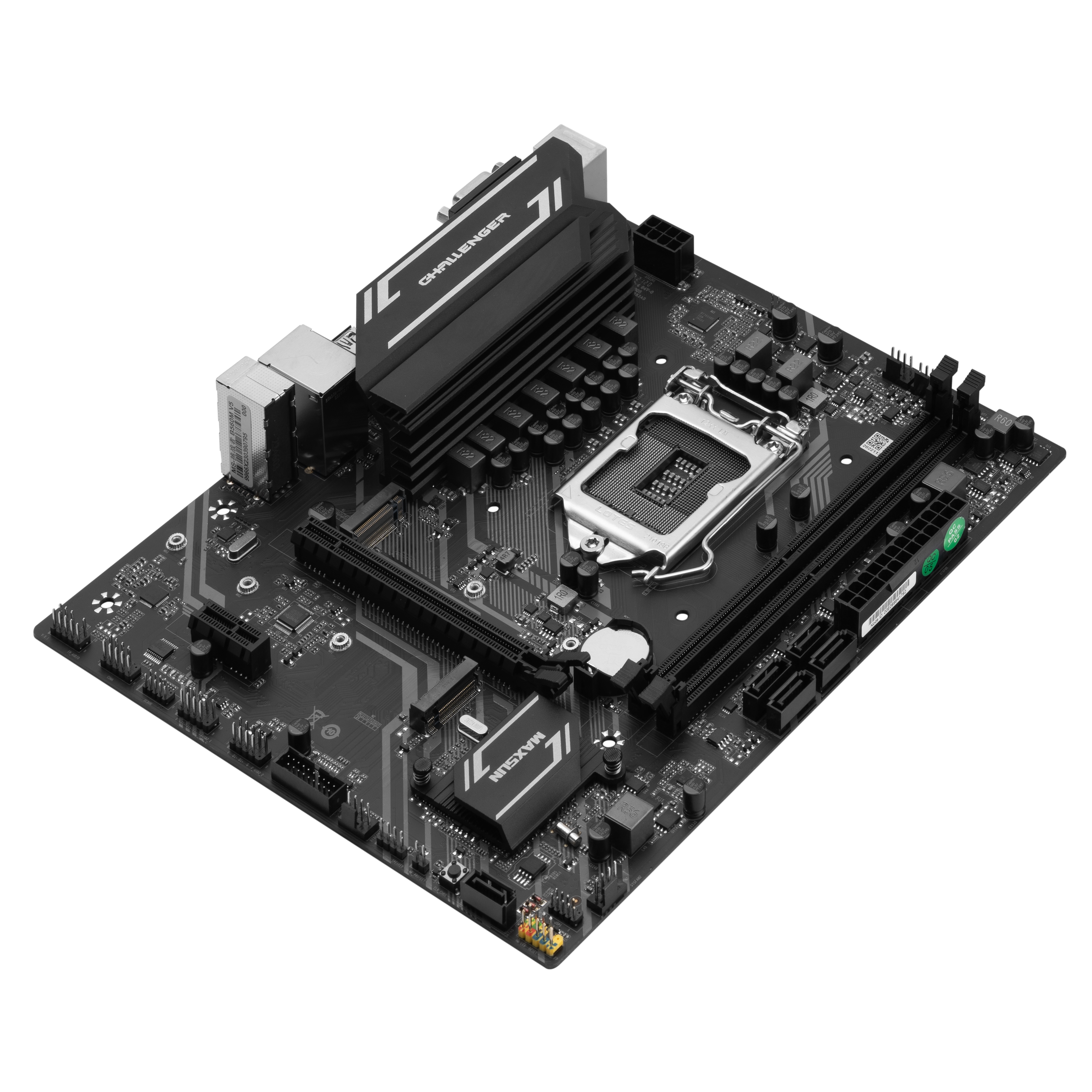

Challenger B560M
- Supports 11th and 10th generation LGA1200 interface CPU
- 7+2 enhanced power supply module
- 2 phase enhanced 3Mos integrated graphics power supply
- Debug error detection light and Clr CMOS physical button
- Built-in filtered gigabit network card
- Independent ESD protection module for all IO interfaces

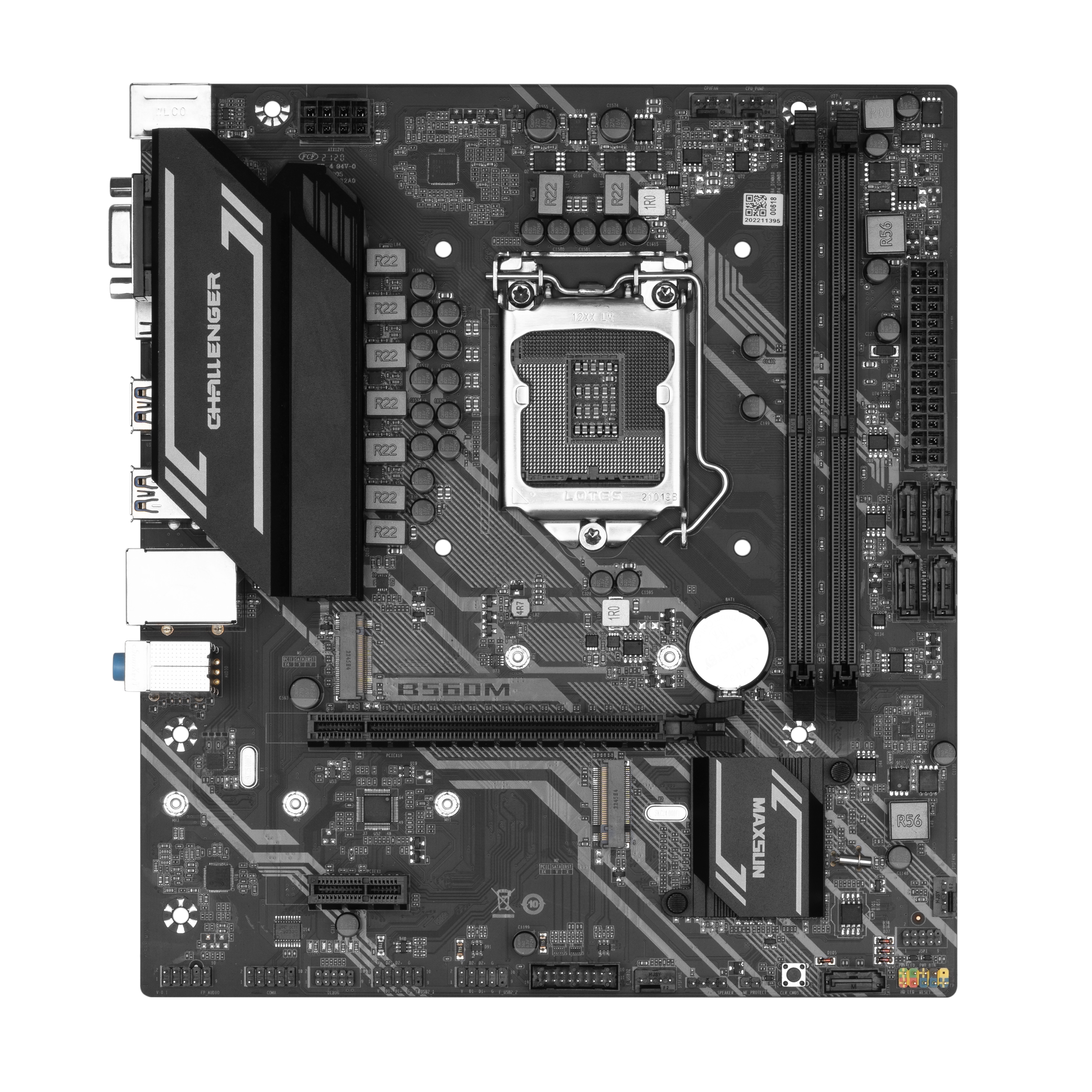

OVERVIEW
Cooling Armor
Large heatsink
Upgraded Power Supply
9+2 phases
Dual M.2
Support PCIE4.0
Three Video Interface
DP+HDMI+VGA
Large
Heatsink
PCIE4.0 X16
M.2 Slot
PCIE/SATA
Auto Switch
PCIE X1
LGA1200
support intel
10/11th Gen
Dual DDR4
4*SATA 3.0
6GB/S
CLR_CMOS

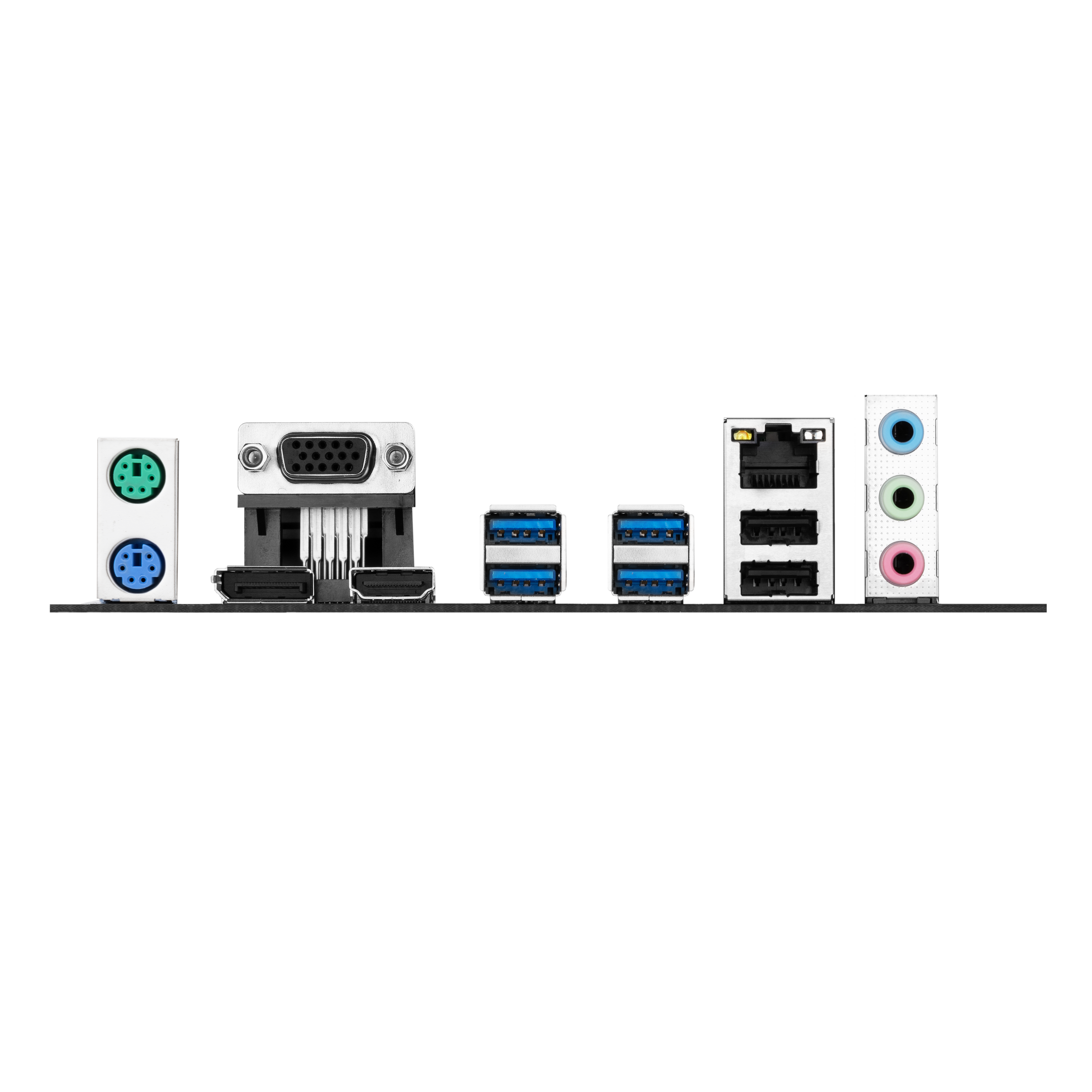

PS/2
DP
VGA
HDMI
USB3.2
USB3.2
Gigabit Ethernet & USB2.0
HD Audio
MAX POWER SUPPLY
New Materials, New Technology
MOS-Low internal resistance, low
loss, high conversion rate
Inductor - Ni-Zn body alloy core, low
resistance coil, low heat generation
Capacitors-Super Long Life Capaci-
tors
7 + 2 PhasesPower Supply
CORE adopts low-temperature
MOS, provides abundant power
supply, stable and durable
Extended Heatsink
Equipped with a large area of alloy heat dissipation armor to increase the heat dissipation area, ensure performance supply, improve efficiency and stability
Alloy Cooling
Armor
High Speed Dual M.2 Slots
Slot1-Support PCIE4.0 x 4
Slot2-Support PCIE/SATA
Friendly Design
One-click
Clr Cmos buttons
Distributed
debug lights
More Extensions
1*PCIE4.0 x 16 Slot
1*PCIE x 1 Slot (Support independent sound
card, independent network card and other
equipment)
Graphics BIOS
Upgraded new graphical BIOS - more convenient
for parameter debugging
SPECIFICATION
- CHIPSET
- INTEL B560
- CPU
- Supports 10th/11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors
LGA 1200
- MEMORY
- 2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 3200(OC)/ 2933(OC)/ 2666(OC)/ 2400(OC) MHz
Supports Intel® XMP 2.0 OC
Supports Dual-Controller Dual-Channel mode
- ONBOARD GRAPHICS
- 1x DisplayPort 1.2
1x VGA
*Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
1x HDMI™port
*HDMI™ port supports up to 4K@30Hz
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
- EXPANSION SLOT
- 1x PCIe 4.0 x16 slot
1x PCIe 3.0 x1 slot
- STORAGE
- M.2_1 slot (Key M), type 2242/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2280/22110 (supports PCIe 3.0 x4 mode)
4x SATA 6Gb/s ports
- RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
- USB
- *Front USB (Total 4 ports)
2x USB 3.2 Gen1 Type A
2x USB 2.0
*Rear USB (Total 6 ports)
4x USB 3.2 Gen1 Type A
2x USB 2.0
- LAN
- Realtek® RTL8111H 1G LAN
- AUDIO
- Realtek® ALC897 Codec
5.1-Channel High Definition Audio
- INTERNAL I/O
- 1x 24-pin Power Connector(ATX_PWR)
1x 8-pin Power Connector(CPU_PWR)
1x CPU Fan
3x System Fan
1x PS/2 interface
2x M.2 slots (Key-M)
4x SATA 6Gb/s ports
1x CLR_CMOS
1x 4-Pin SPEAKER
1x Front Audio
1x COM_A Port
1x 9-Pin DEBUG_CON
1x 9-Pin JSPI
1x 2-Pin ME_PROTECT
- LED FEATURE
- 4x Side-by-Side Debug LED
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- FORM FACTOR
- M-ATX
230mm x 205mm
