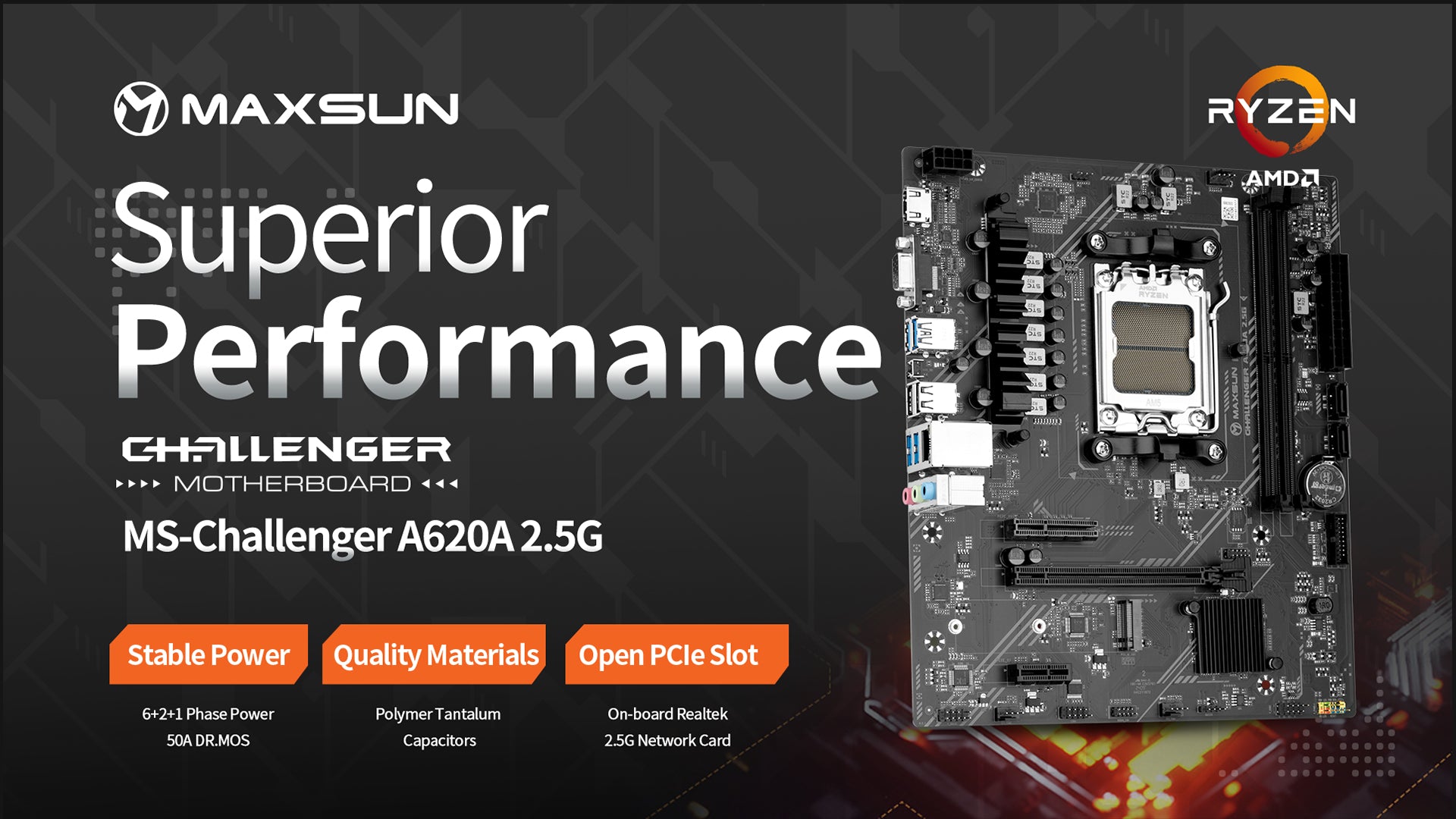

Challenger A620A 2.5G
- ESD Static Protection: Active electrostatic discharge protection designed to enhance the static protection of motherboard ports, ensuring prolonged component lifespan.
- Rust-Resistant I/O Ports: Strengthened I/O interfaces to prevent corrosion and maintain a stable connection.
- Built-in Voltage Protection: Internal circuitry with built-in voltage protection to prevent overcurrent and short circuit damage, safeguarding your system.
- LANGuard Network Security: High-quality signal integration technology with reinforced network ports and ESD protection components to prevent electrical surges and static damage to the motherboard.
Overview
Specification
Support

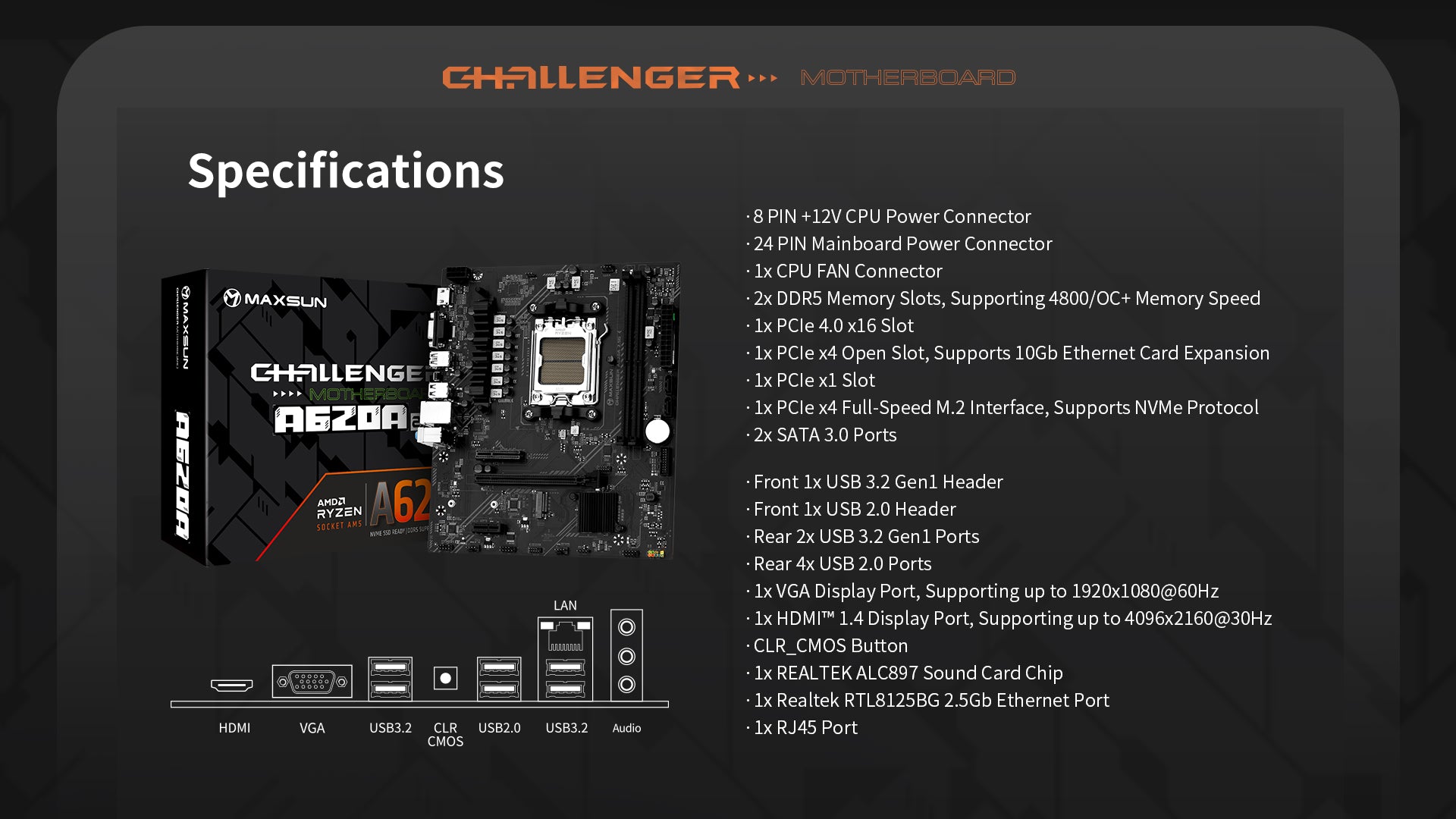

- CPU Power Connector
- 8 PIN +12V CPU Power Connector
- Mainboard Power Connector
- 24 PIN Mainboard Power Connector
- CPU FAN Connector
- 1 x CPU FAN Connector
- Memory Slots

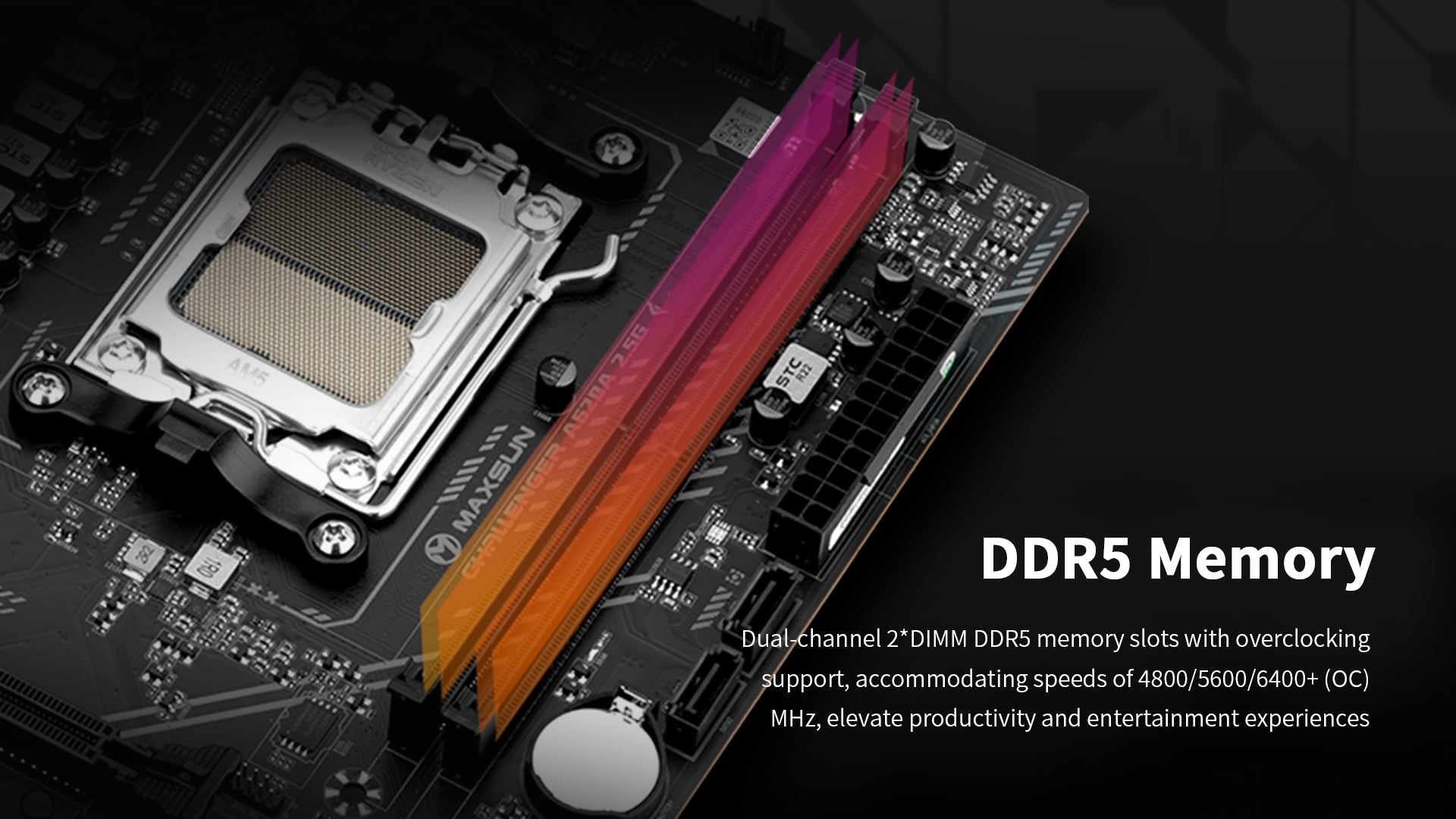

- 2 x DDR5 Memory Slots, Supporting 4800/OC+ Memory Speed
- PCIe Slots

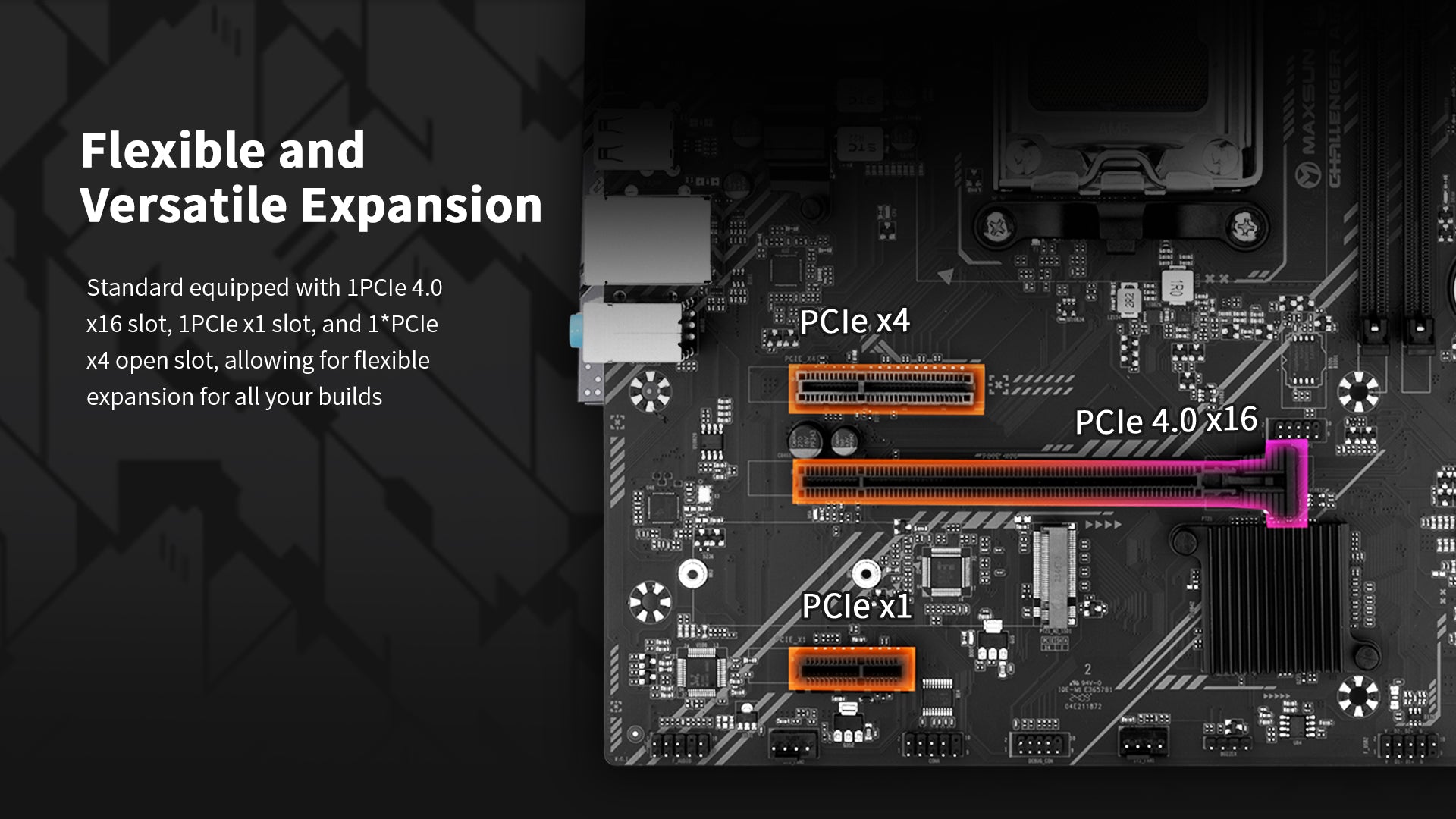

- 1 x PCIe 4.0 x16 Slot
1 x PCIe 3.0 x4 Open Slot, Supports 10Gb Ethernet Card Expansion
1 x PCIe x1 Slot
- M.2 Interface
- 1 x PCIe 4.0 x4 Full-Speed M.2 Interface, Supports NVMe Protocol
- SATA Ports
- 2 x SATA 3.0 Ports
- USB Headers
- Front: 1 x USB 3.2 Gen1 Header
Front: 1 x USB 2.0 Header
- Rear USB Ports
- 2 x USB 3.2 Gen1 Ports
4 x USB 2.0 Ports
- Display Ports
- 1 x VGA Display Port, Supporting up to 1920x1080@60Hz
1 x HDMI™ 1.4 Display Port, Supporting up to 4096x2160@30Hz
- CLR_CMOS Button
- CLR_CMOS Button
- Audio
- 1 x REALTEK ALC897 Sound Card Chip
- Networking
- 1 x Realtek RTL8125BG 2.5Gb Ethernet Port
1 x RJ45 Port
