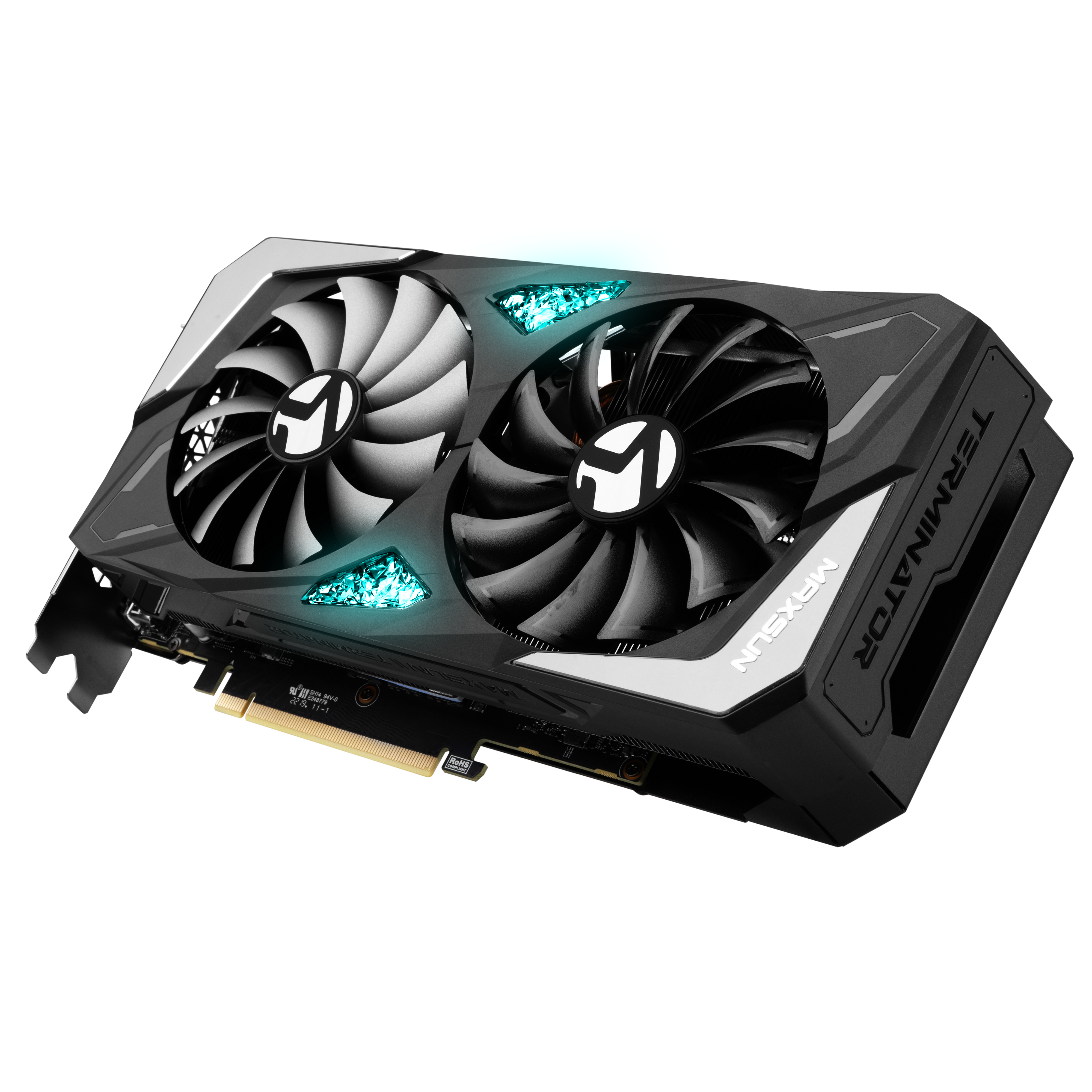

GeForce RTX 3070 Terminator 8G


  • Taiji Cooling System
  • Cool RGB Lighting
  • HEAT PIPES RADIATOR
  • High Efficient Digital Power Supply
  • Metal Strengthen Backplate
  • NVIDIA DLSS
  • Ray Tracing
Overview
Specification
Support

Classic & Simple
TAIJI Model

GeForce RTX 3070 Terminator Series

iCraft SKYLIGHT RGB

Digitally POWER

New Design 2

Product Parameters

  • Core code:

    GA104(LHR)

  • CUDA(stream processor)

    5888

  • Core frequency

    1500MHz

  • Core Boost frequency:

    1725MHz

  • Video memory capacity:

    8GB

  • Video memory type:

    GDDR6

  • Video memory bit width

    256bit

  • Bus interface type:

    4.0

  • Power Connector:

    8pin*2

  • Display interface(I/O):

    DP*3+HDMI*1

  • TDP:

    220W

  • Recommended system
    power supply

    650W

  • Size:

    317*124*53(mm)

  • The new generation of Terminator series RTX graphics cards adopts the newly designed dazzling RGB dynamic lighting effect, which is like the winning brilliance emitted by players at the competitive moment, which is even more attractive.

    High Efficient
    Digital Power Supply

    Digital power supply, high-durability capacitors, and SMD-type electrical
    strengthening components are readily available to ensure the stable release of
    graphics cards with higher performance and a longer lifespan

    *Pictures are for reference only

    TAIJI
    New design

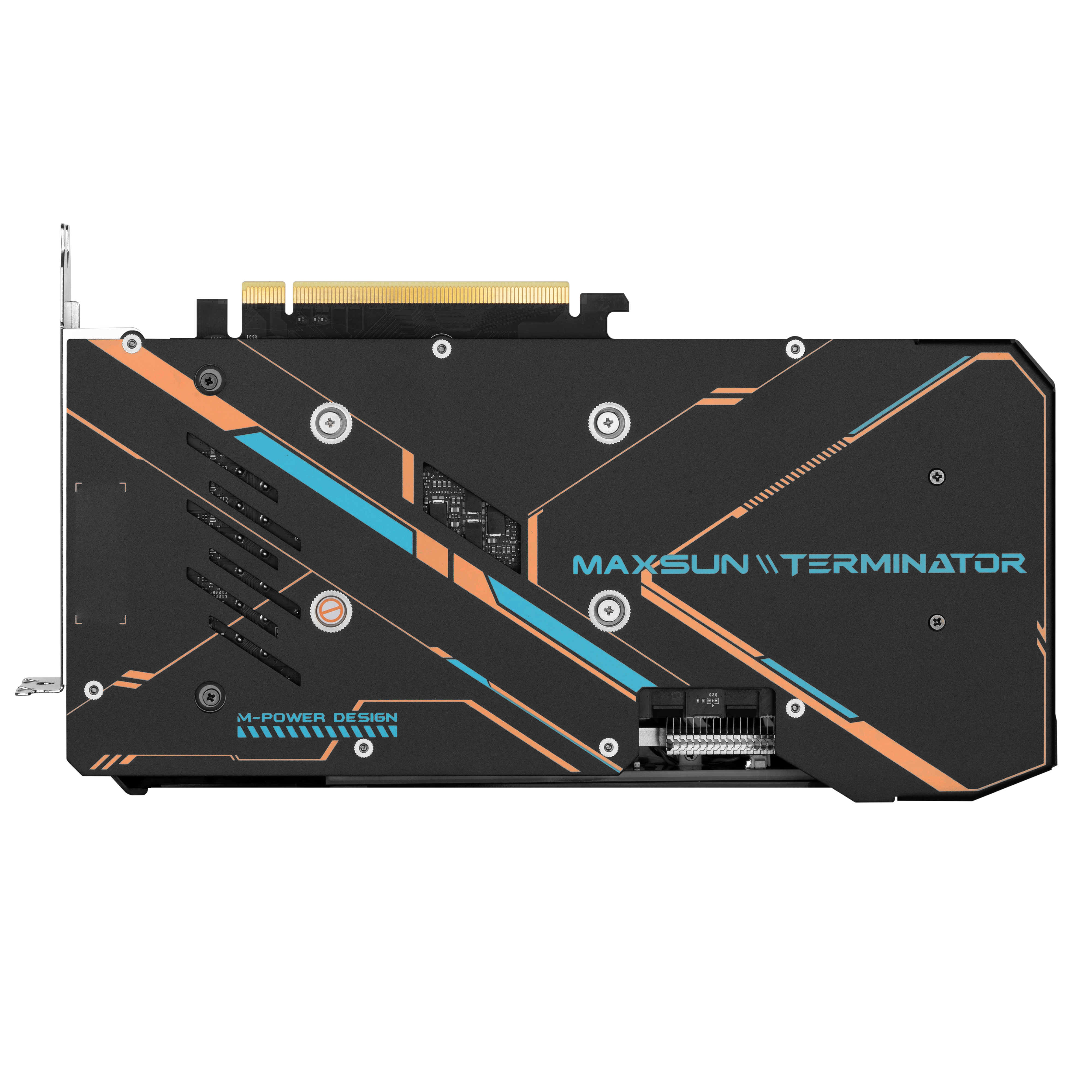

    Cool RGB lighting effect, the front adopts the newly designed TAIJI black/white symmetrical appearance design, and the backplate adopts high-strength composite metal material, which can effectively strengthen the PCB and is not easy to deform, not damaged by static electricity and external force, and the graphics card has a longer life.

    MAXSUN 5 Gen
    TAIJI Cooling System

    Newly designed 2*10CM wide fan blade design, the 5th generation black/white fan makes your Terminator graphics card keep dynamic and quiet like TAIJI style even when running under high load

    *Pictures are for reference only

    5X HEAT PIPES RADIATOR

    The Terminator graphics card adopts the industry's mainstream hybrid 5 heat pipe cooling module. The powerful cooling performance can significantly reduce the graphics card temperature under high load and make the graphics card more stable.

    *Pictures are for reference only

    Efficient heat dissipation

    New technology

    5*Heat pipes

    MULTI-SCREENS
    WIDER HORIZONS

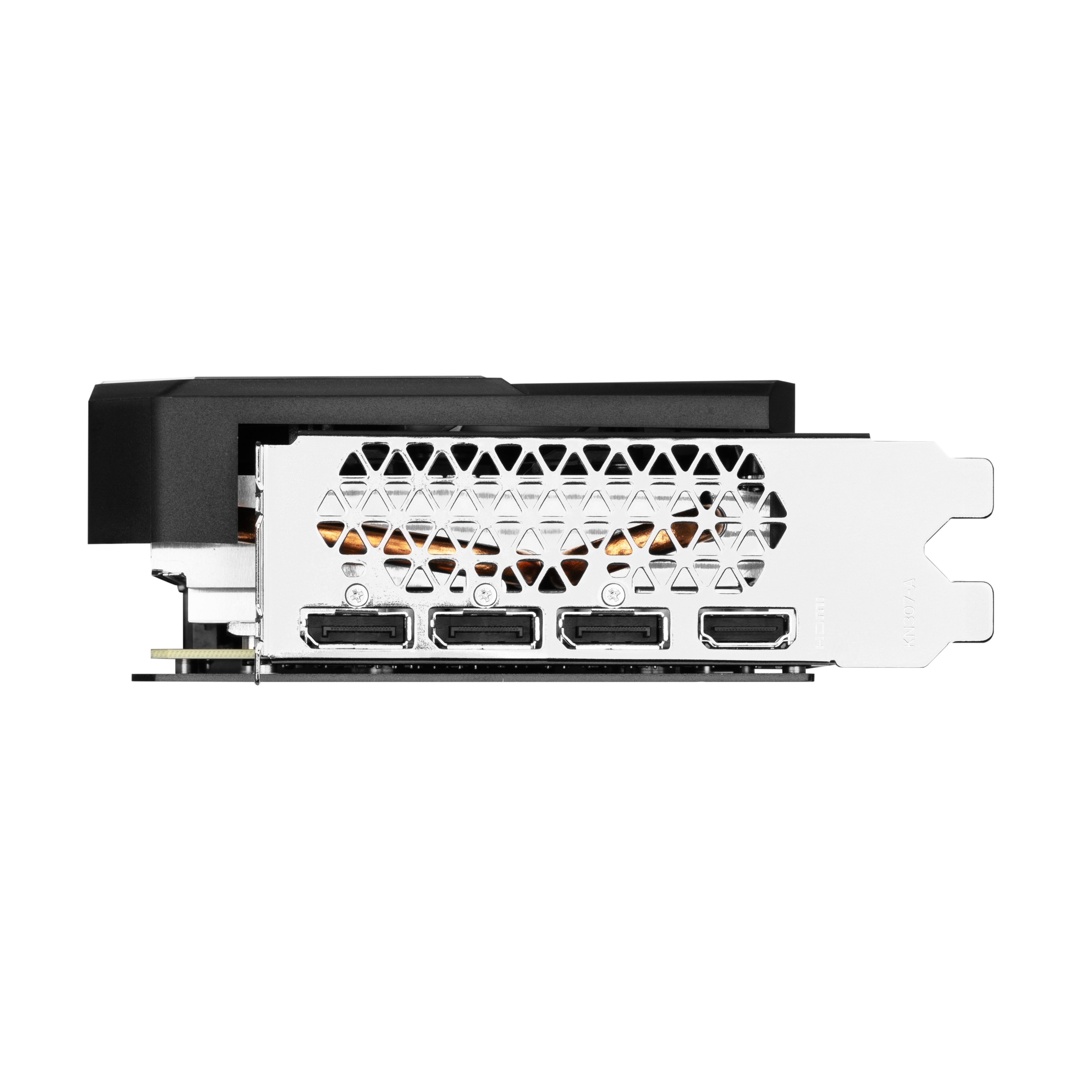

    With DP*3 + HDMI*1 four digital I/O interfaces, support 8K resolution & multi-monitors output to make you enjoy wider audio and video entertainment.

    • MODEL NAME
    • GeForce RTX 3070 Terminator 8G
    • GRAPHICS PROCESSING UNIT
    • NVIDIA® GeForce RTX™ 3070
    • ARCHITECTURE
    • Ampere
    • GPU
    • GA104
    • TECHNOLOGY
    • 8nm
    • CUDA® CORES
    • 5888 Units
    • ENGINE CLOCK
    • Boost mode: 1725 MHz
      Default mode: 1500 MHz
    • MEMORY SPEED
    • 14 Gbps
    • MEMORY
    • 8GB GDDR6
    • MEMORY BUS
    • 256-bit
    • INTERFACE
    • PCI Express® Gen 4
    • HEAT SINKS
    • New Generation iCraft Cooling System
    • OUTPUT
    • 3x DisplayPort (v1.4a)
      1x HDMI™ (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)
    • DIGITAL MAXIMUM RESOLUTION
    • Digital Max Resolution 7680 x 4320
    • POWER CONNECTORS
    • 2x 8-pin
    • TDP
    • Above 220W
    • RECOMMENDED PSU
    • Above 650W
    • 3D API
    • DirectX 12.2
      OpenGL 4.6
    • CARD DIMENSION (MM)
    • 260*133*52 mm
    • FEATURED FUNCTION
    • Support Simultaneous Multi-Projection VR image correction technology
      VRWorks Audio Virtual Reality Audio Technology
      PhysX Physical Acceleration Technology
      NVIDIA CUDA
      NVIDIA REFLEX
      PureVideo HD hardware decoding
      Dynamic Super Resolution
      MFAA
      GeForce 3D Vision
      GameWorks™
      G-Sync™-Ready
      GameStream™-Ready
      GeForce ShadowPlay™
      GPU Boost™
