B760M GAMING WIFI GANK
- Robust Power Delivery: Experience enhanced performance with a 4+1+1 phase configuration and a high-spec 50A Dr.Mos core, ensuring a robust and stable power supply.

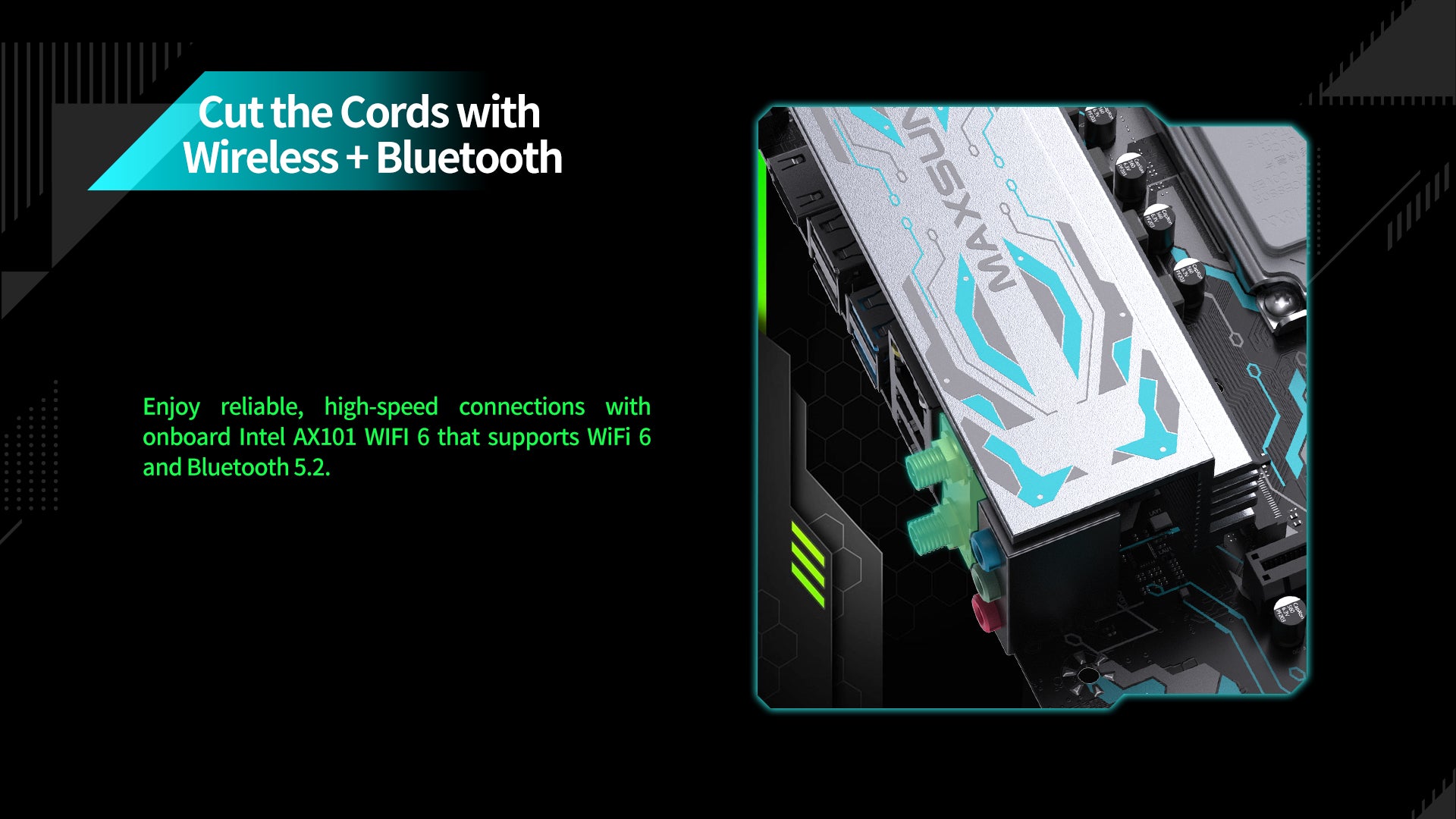

- Advanced Connectivity: Seamlessly connect with the onboard Intel AX101 WIFI6 wireless card, offering high-speed wireless internet, and stay updated with Bluetooth 5.2 support.

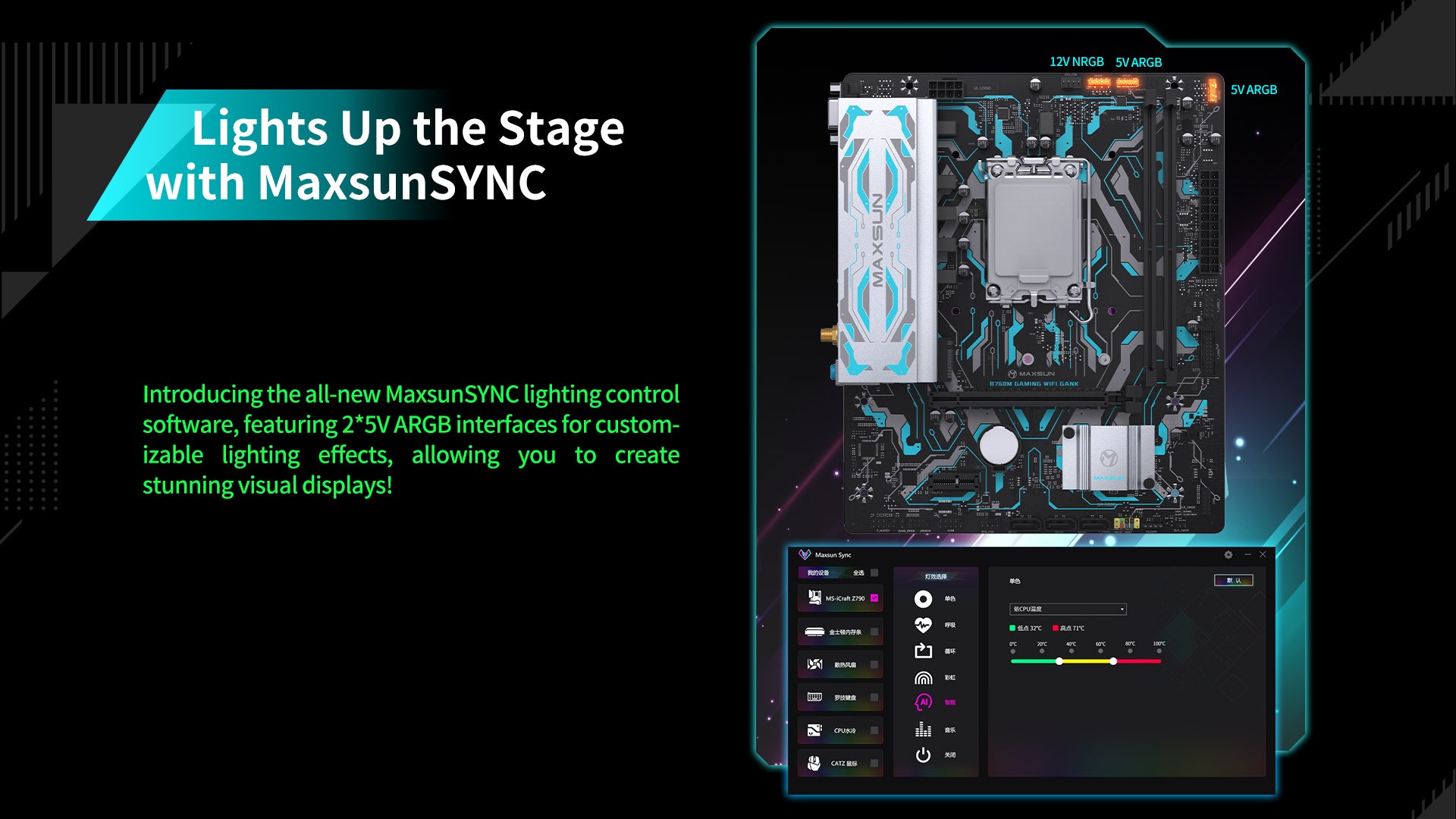

- Intuitive Lighting Control: Take control of your system's aesthetics with the all-new MaxsunSYNC lighting control software, allowing you to customize and synchronize lighting effects effortlessly.
- Efficient Storage Options: Benefit from versatile storage solutions, including a high-speed M.2 interface and three SATA3.0 interfaces, providing flexibility for your storage needs.

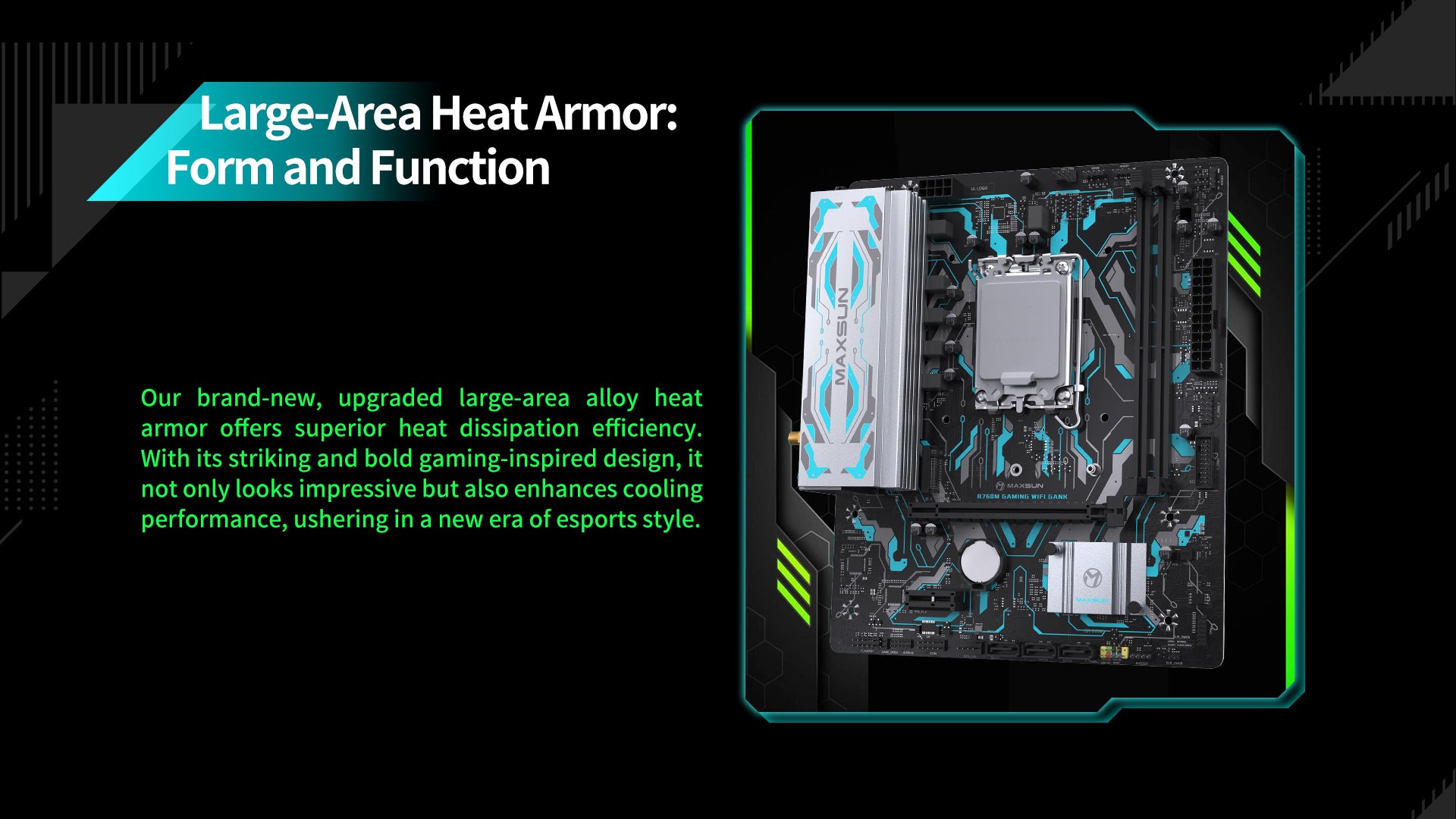

- Enhanced Thermal Performance: Stay cool under pressure with the upgraded large-area alloy heat armor, ensuring efficient heat dissipation for optimal system temperature.

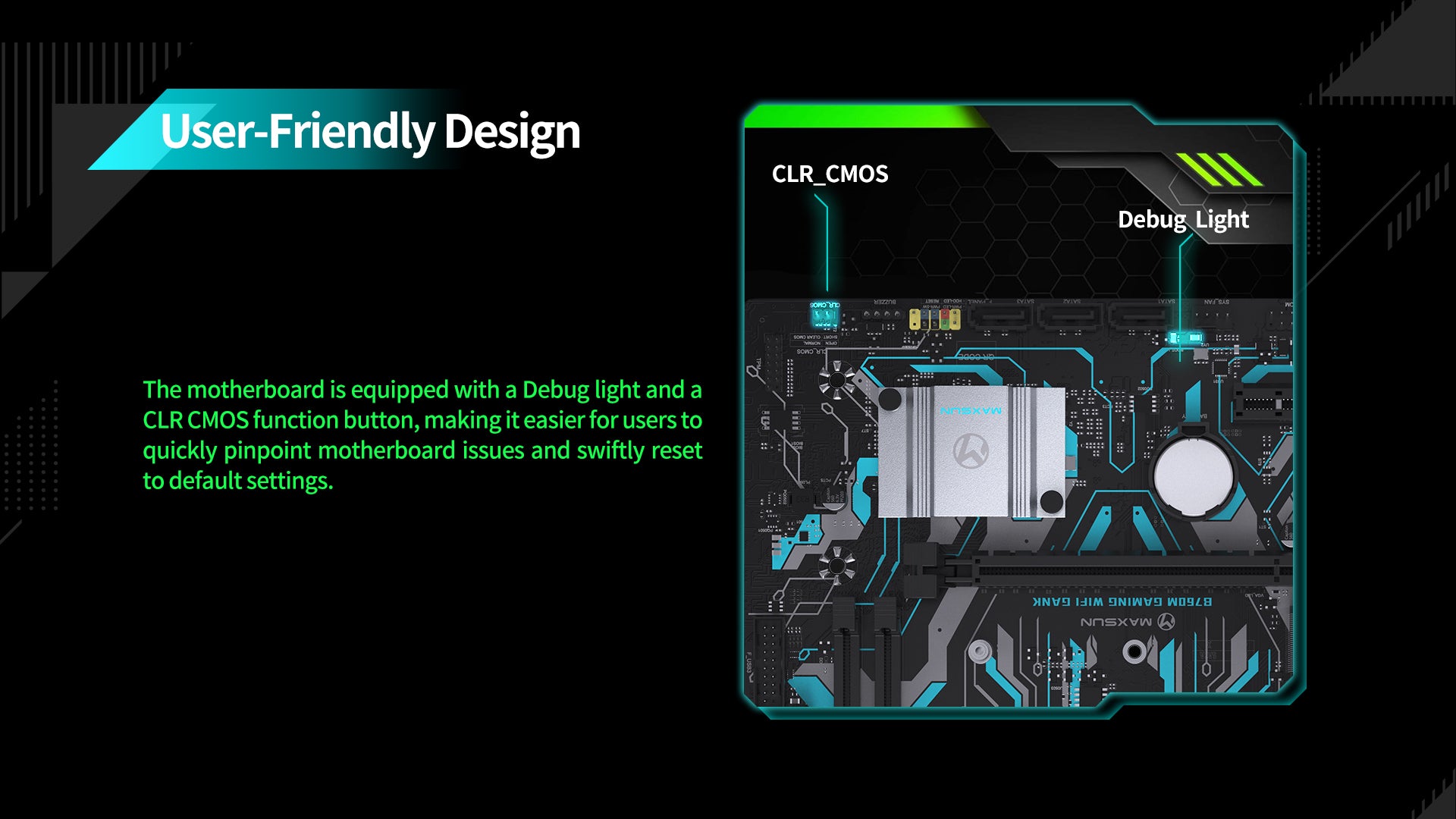

- User-Friendly Debugging: Easily navigate system diagnostics with Debug lights, and enjoy the convenience of the CLR_CMOS function button for hassle-free troubleshooting.
Overview

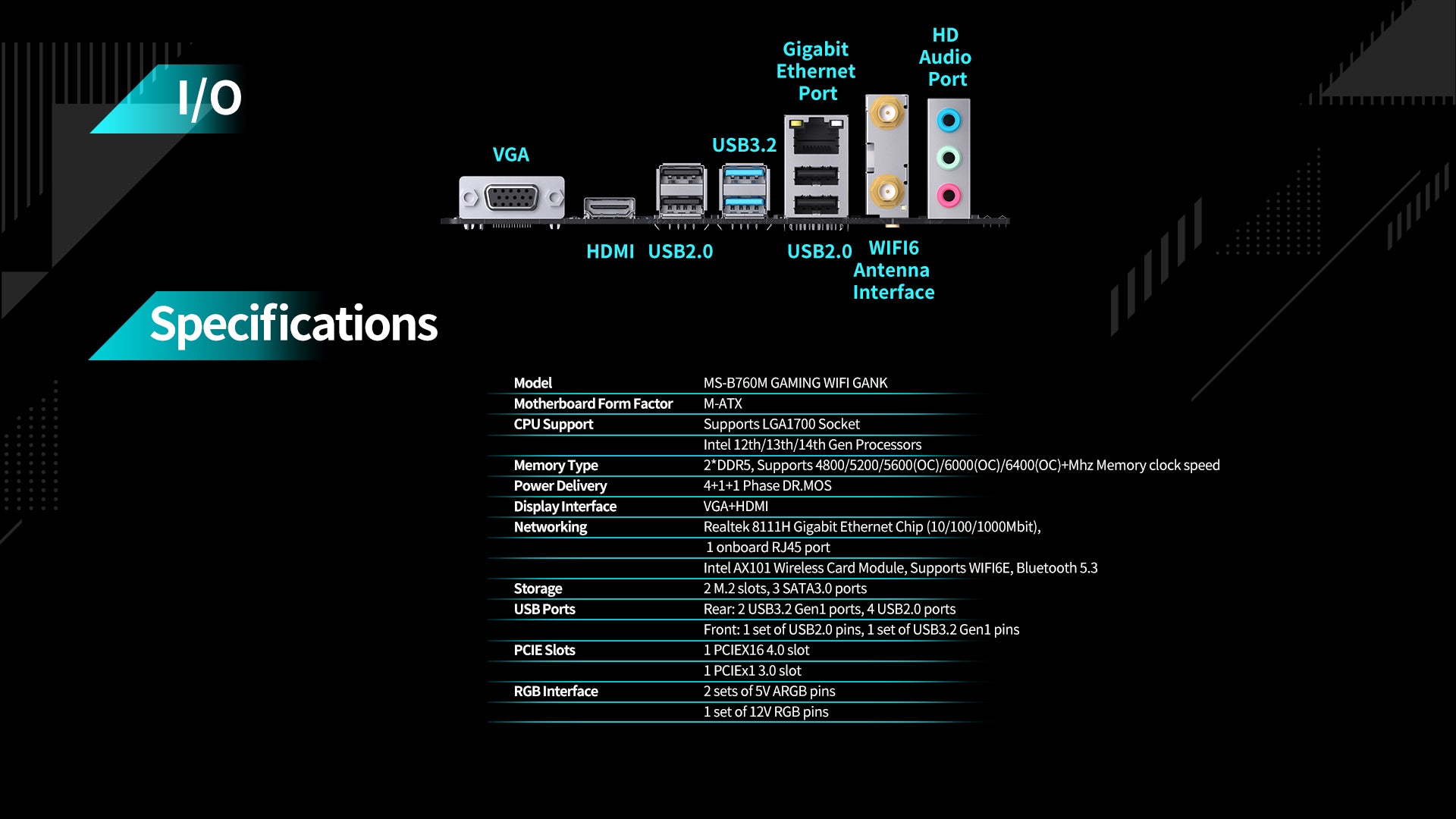

Specification
Support
- CHIPSET
- INTEL B760 High-speed chipset
- CPU
- Support for LGA1700 slots
The 12th ,13th and14t generation processors
TDP: 75W
- MEMORY
- 2x DIMM DDR5 memory slots
Maximum support in total is 128GB
Support for dual-channel memory technology
Support for 4800/5200/5600/OC + memory frequency
Supports Intel®XMP Technology
- EXPANSION SLOT
- 1x PCIE X16 4.0 slot
3.0 sl
Support for AMD and NVIDIA and INTEL graphics cards
Support for PCIE resizable bar technology(Requires CPU and GPU to support synchronous compatibility)
- STORAGE
- 1x M.2 slots (2242 / 2280 PCIE X4 / X2 channel SSD supported only)
3x SATA 3.0 ports
- DISPLAY
- HDMI 1.4: 4096x2160 @30Hz (HDCP2.2)
VGA: 1920x1080 @60Hz
- USB
- *On-board rear port: 2x USB 3.2 GEN 2 ports, 6x USB2.0 ports
Plate insert: 1x group (2 double rows) U SB2.0 pins, 1x group (single row) USB2.0 pin,
1xgroup (2 rows) USB 3.2 GEN 1 pin,
1x TYPE C(USB 3.2 GEN 2X2) ports
- NETWORK
- Integrated REALTEK 8111H card chip (10 / 100 / 1000 / 2500Mbit)
1x onboard R]45 port
Support network arousal
Support PXE no disk, UEFI no disk guide
Support for Bluetooth 5.2
- AUDIO
- Integrated REALTEK ALC 897 sound chip
- INSIDE BOARD SOCKET
- 1x 24-PIN motherboard ATX power supply
1x 8-PIN motherboard ATX 12V power supply port, 12V input,
1x sets of system fan pins and 1x group of CPU fan pins、
1x group of PUMP fan pinslx group chassis front control panel pin (F PANEL)
One 12V NRGB pin and two 5V ARGB pins
- OPERATING SYSTEM
- Support for Windows 10 64bit,
Windows 11 64bit
Support for Ubuntu 64bit
- FORM FACTOR
- Micro ATX 225mm x 195mm
